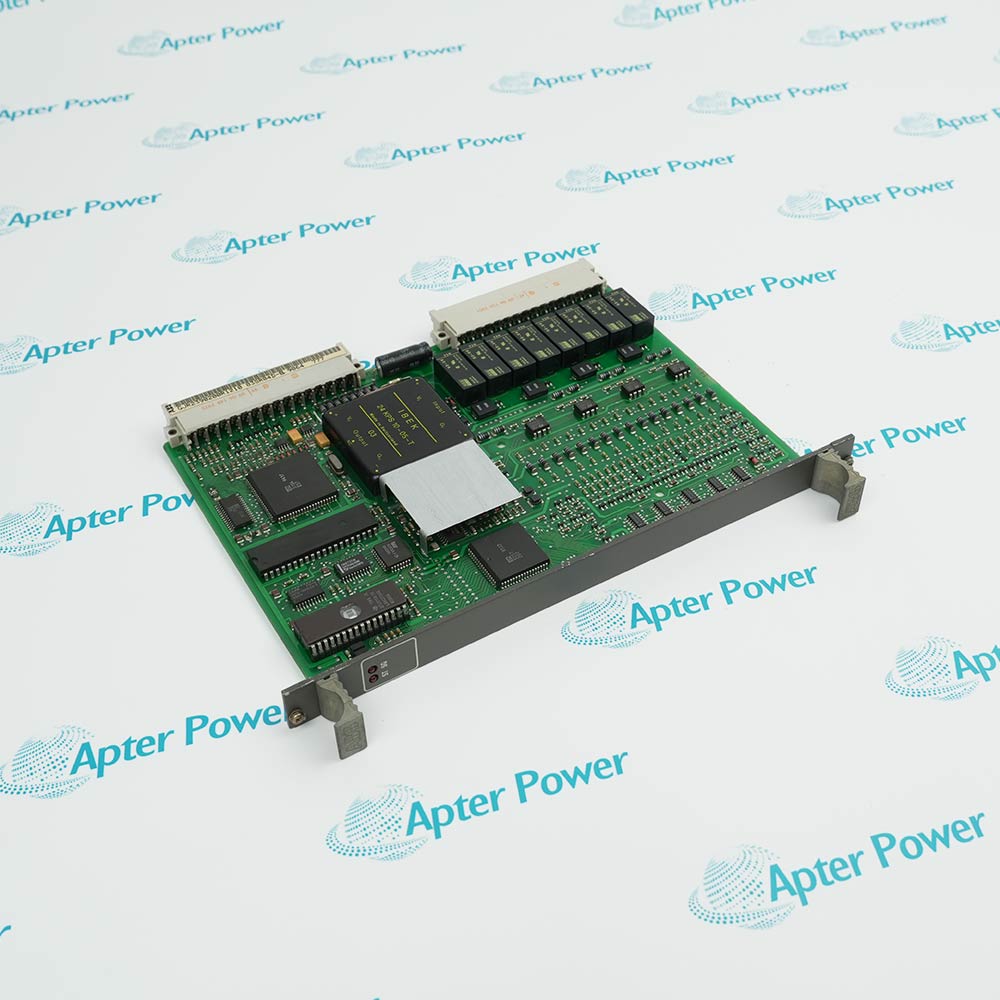

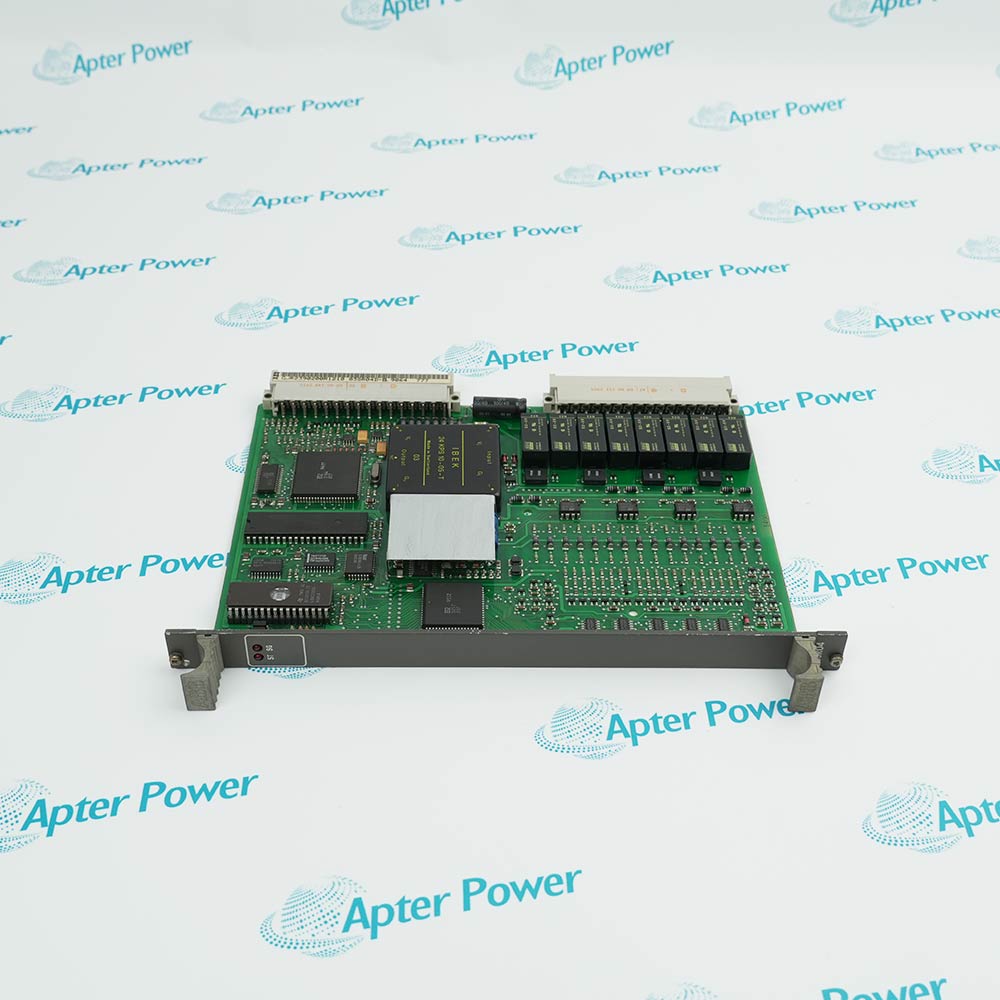

        ABB GJR2390200R1411 83SR04AE
        ABB GJR2390200R1411 83SR04AE
        ABB GJR2390200R1411 83SR04AE
        ABB GJR2390200R1411 83SR04AE
        ABB GJR2390200R1411 83SR04AE
        ABB GJR2390200R1411 83SR04AE
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter Power can quote ABB GJR2391500R1210 81EU01H-E, provide official ABB documentation, or review the documented 81EU50R1210 replacement path.

        GJR2391500R1210 81EU01H-E

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        ABB GJR2391500R1210 81EU01H-E is a 16-channel Procontrol universal input module for binary, current, and temperature-related input processing.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for GJR2391500R1210 81EU01H-E
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for GJR2391500R1210 81EU01H-E

        • Manufacturer:
          ABB
        • Part Number:
          GJR2391500R1210 81EU01H-E
        • Product Family:
          ABB Procontrol
        • Product Type:
          Universal Input Module
        • Stock:
          1
        • Universal input channels:
          16
        • Operating voltage:
          24 V DC
        • Base current consumption:
          140 mA plus input loads
        • Power dissipation:
          3.4-11 W
        • Binary input sources:
          24 V / 48 V contacts, up to 60 V external, or NAMUR
        • Analog current ranges:
          0-20 mA, 4-20 mA, or 0-5 mA
        • Binary processing time:
          5 ms
        • Analog processing time:
          80 ms
        • Temperature processing time:
          320 ms
        • Station-bus connector:
          X11
        • Process connector:
          X21
        • Weight:
          1.1023 lbs (0.5 kg)
        • Tariff Code:
          8538900000
        • Country of origin:
          Germany
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Signal Types Timing Behavior Supply & Bus Fault Checks

        Features:

        • Provides 16 universal input function units for ABB Procontrol stations.
        • Accepts documented binary, analog-current, NAMUR, and temperature-related input arrangements.
        • Processes binary, analog, and temperature signals with distinct timing characteristics.
        GJR2391500R1210 81EU01H-E brings multiple field-signal categories into one station input module while keeping each channel configurable for its assigned function.

        Binary contacts, NAMUR transmitters, and several milliamp ranges use the documented circuit arrangements rather than one universal wiring diagram.

        The module communicates through X11, connects process signals through X21, and relies on the specified subrack reference link for correct operation.
        ABB GJR2391500R1210 81EU01H-E Universal Input Module Manuals, Datasheets, LinksImportant Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        Supported input arrangements

        • Contact inputs: Documented circuits cover 24 V and 48 V binary contacts.
        • External binary supply: Inputs can use field power up to 60 V in the specified arrangement.
        • NAMUR sources: Proximity-style transmitters use their dedicated channel configuration.
        • Current signals: Available ranges include 0-20 mA, 4-20 mA, and 0-5 mA.
        • Temperature path: Measurement uses the documented transducer and linearization functions.

        Response and initialization

        • Binary baseline: Input processing takes 5 ms without added function blocks.
        • Analog baseline: Current-signal processing takes 80 ms.
        • Temperature baseline: Temperature measurement takes 320 ms.
        • Debounce: Binary bounce suppression is configured in 5 ms increments.
        • Startup: Initialization spans 1-12 seconds or 2-22 seconds with function blocks.

        Module connections

        • Operating supply: The module uses 24 V DC.
        • Base demand: Current consumption starts at 140 mA before input loads.
        • Station bus: X11 carries the documented station connection.
        • Process side: X21 connects the 16 field-input circuits.
        • Subrack reference: X11/d18 links to ZD once per subrack.

        When an input is unreliable

        • All channels inactive: Check the common ZD link and operating supply first.
        • One range incorrect: Verify the configured signal category and current range.
        • Contact chatter: Compare the field contact with the selected debounce value.
        • Slow temperature update: Account for the 320 ms baseline and added block time.
        • NAMUR fault: Inspect the dedicated polarity, supply, and wire-break conditions.
        Description
        ABB GJR2391500R1210 81EU01H-E provides 16 universal input function units in a Procontrol station. Each input can be assigned to the documented binary, analog-current, or temperature-related signal path.

        Binary sources include 24 V or 48 V contacts, externally powered circuits up to 60 V, and NAMUR transmitters. Analog ranges include 0-20 mA, 4-20 mA, and 0-5 mA, while temperature signals are handled through the documented transducer and linearization arrangements.

        Base processing times are 5 ms for binary inputs, 80 ms for analog inputs, and 320 ms for temperature measurements before any added function-block time. Power-up or hot insertion requires an initialization interval before valid operation.

        The station-bus connection uses X11 and the process side uses X21. ABB specifies a single X11/d18-to-ZD link per subrack, so a missing reference link can affect operation across an otherwise correctly wired module.
        Alternative Names
        GJR 239 1500 R1210 81EU01H-E GJR2391500R1210 81EU01H E 81EU01H-E GJR2391500R1210 ABB GJR2391500R1210 81EU01H-E GJR2391500R1210 81EU01 H-E GJR2391500R1210 81EU01-H-E GJR23915OOR121O 81EUO1H-E 81EU01HE GJR2391500R1210
        Technical notes
        ABB GJR2391500R1210 81EU01H-E requires X11/d18 to be linked to ZD once per subrack; a missing link can prevent correct operation.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Why can every channel remain inactive after ABB GJR2391500R1210 81EU01H-E is fitted?
        ABB GJR2391500R1210 81EU01H-E requires X11/d18 to be linked to ZD once per subrack. Check that common link and the 24 V supply before tracing all 16 field channels separately.
        Why does a binary signal chatter on ABB GJR2391500R1210 81EU01H-E?
        ABB GJR2391500R1210 81EU01H-E provides bounce suppression in 5 ms increments. Confirm the configured n value and the contact circuit before increasing filtering.
        Why is a temperature value slower than a binary input on ABB GJR2391500R1210 81EU01H-E?
        ABB GJR2391500R1210 81EU01H-E has documented base times of 320 ms for temperature measurement and 5 ms for binary input processing. The difference is normal unless extra function blocks add delay.
        Why does ABB GJR2391500R1210 81EU01H-E not show a valid value immediately after insertion?
        ABB GJR2391500R1210 81EU01H-E initializes for 1-12 seconds without function blocks or 2-22 seconds when blocks are used. Allow that interval before treating the input as failed.
        What should be checked when a 4-20 mA channel on ABB GJR2391500R1210 81EU01H-E reads incorrectly?
        ABB GJR2391500R1210 81EU01H-E supports several current ranges. Confirm the selected range, channel wiring, burden, and any linearization block before recalibrating the transmitter.
        Can ABB GJR2391500R1210 81EU01H-E be replaced directly by 81EU50R1210?
        ABB GJR2391500R1210 81EU01H-E is shown in ABB's 81EU50R1210 replacement strategy as a direct predecessor path, but the site configuration and process wiring should still be checked before changeover.
        Why can a NAMUR input fail while a contact input works on ABB GJR2391500R1210 81EU01H-E?
        ABB GJR2391500R1210 81EU01H-E supports different binary-source arrangements. Verify the NAMUR circuit assignment, polarity, field supply, and wire-break conditions rather than applying the contact-input wiring unchanged.
        What causes extra response delay on ABB GJR2391500R1210 81EU01H-E?
        ABB GJR2391500R1210 81EU01H-E adds documented execution time for KOR1, KOR3, NIV, or FIL functions beyond the base input-processing time. Review the active block chain when timing exceeds the channel baseline.
