PHARPS32200000

/ 4.9
1001 reviews | Need a Specific Revision?

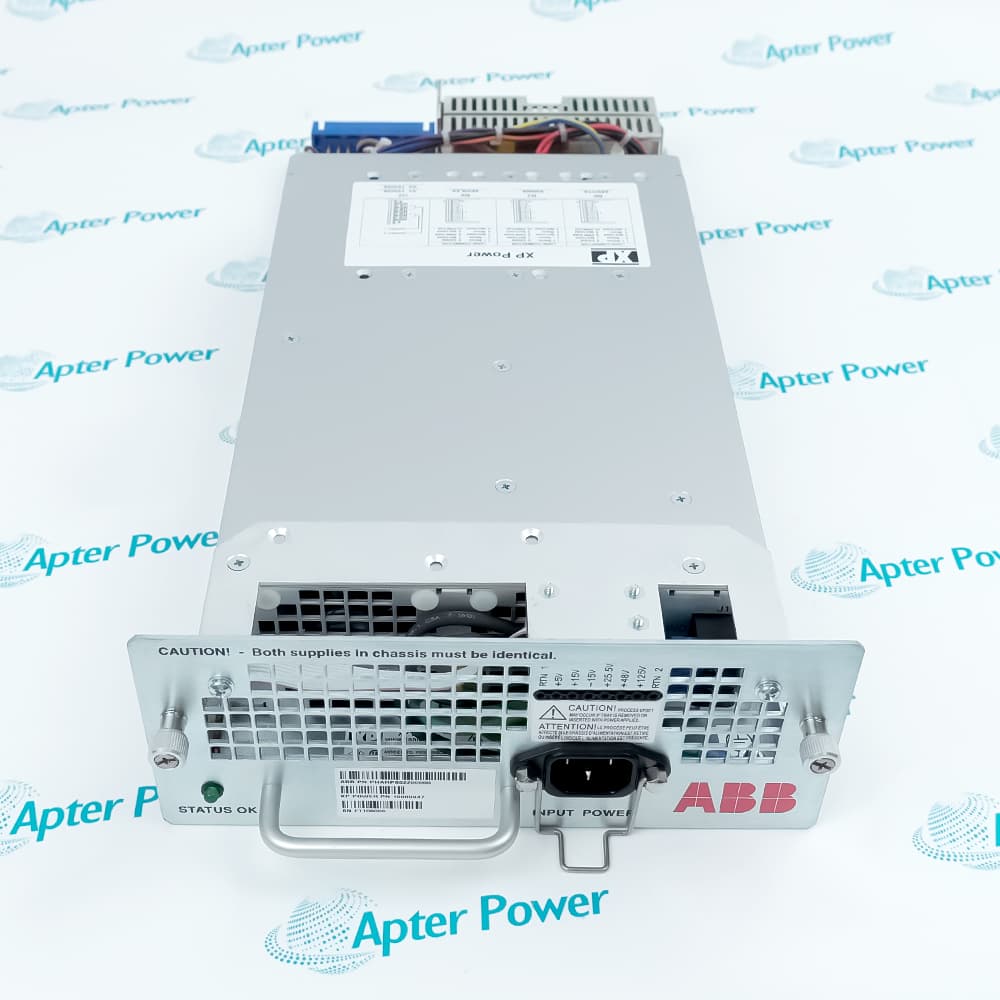

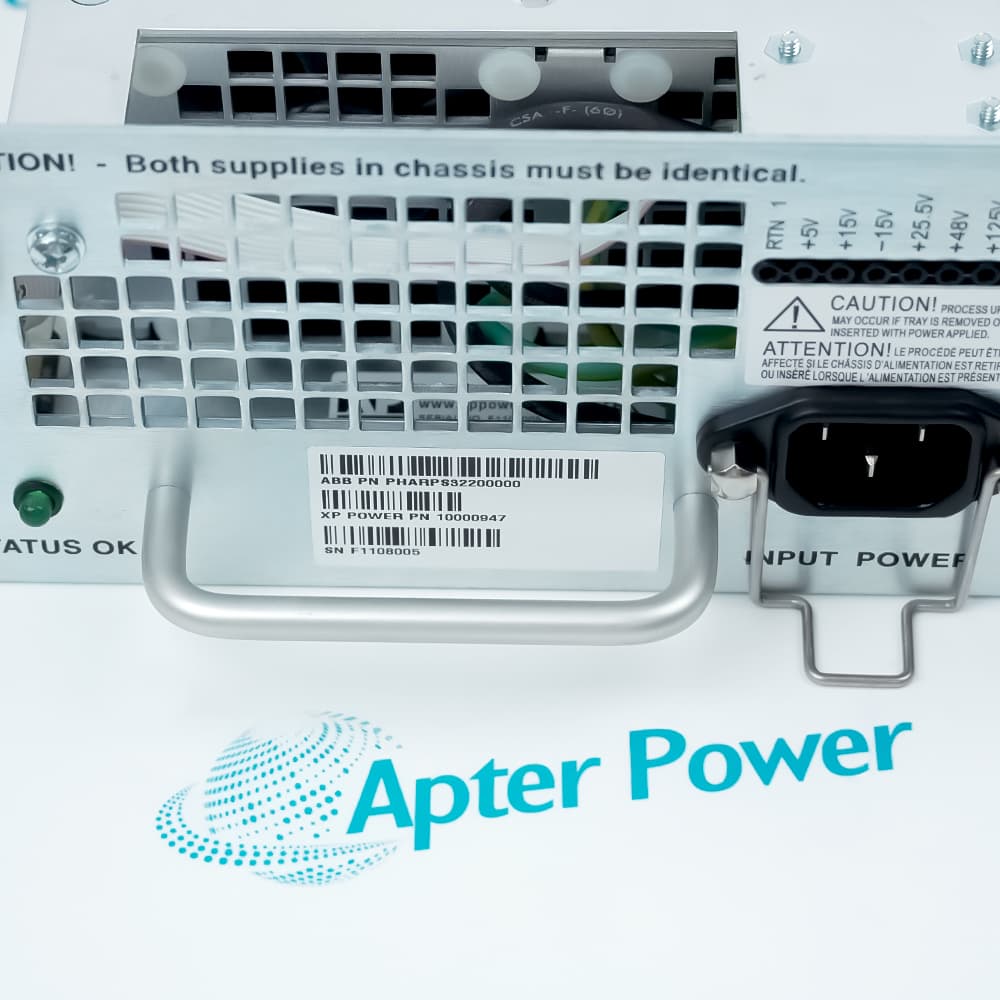

ABB PHARPS32200000 is a Modular Power System III supply tray providing 5 V, ±15 V, 24 V and 48 V rails. It powers supported Harmony rack electronics and field circuits.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for PHARPS32200000
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for PHARPS32200000

  • Manufacturer:
    ABB
  • Part Number:
    PHARPS32200000
  • Product Family:
    ABB Symphony Plus SD
  • Product Type:
    multi-output power supply tray
  • Stock:
    1
  • ABB type designation:
    MPS III
  • Catalog description:
    Power Supply, 5V, +15V, -15V, 24V, 48V
  • Number of DC output rails:
    5
  • 5 V output current:
    60 A
  • +15 V output current:
    3 A
  • -15 V output current:
    3 A
  • 24 V output current:
    17 A
  • 48 V output current:
    8.5 A
  • Product sales status:
    Active
  • Product availability class:
    On Request
  • Availability note:
    Availability and price quoted case by case; check replacement or alternative part
  • Made to order:
    No
  • Lead time:
    30 days
  • Country of origin:
    China
  • HS code:
    850440
  • Customs tariff number:
    85044095
  • Net depth:
    127 mm
  • Net height:
    508 mm
  • Net width:
    254 mm
  • Net weight:
    1 kg
  • Weight:
    2.2046 lbs (1 kg)
  • Estimated shipping dimensions:
    127 x 508 x 254 mm
  • Tariff Code:
    85044095
  • Country of origin:
    China
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Ambient Limits Safety Performance

Features:

  • Provides five regulated DC output rails.
  • Supplies 5 V at 60 A and 24 V at 17 A.
  • Also supplies +15 V, -15 V and 48 V outputs.
PHARPS32200000 is the ABB MPS III power supply tray providing 5 V, ±15 V, 24 V and 48 V outputs.

It supplies the multiple DC rails used by supported Symphony Harmony rack electronics and field-power circuits.

Confirm rail loading, tray wiring, input source, grounding and the complete PHARPS32200000 nameplate before replacement.

Availability is subject to Apter Power inventory and sourcing confirmation.

Verified resources for ABB PHARPS32200000:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

ABB PHARPS32200000 Multi-Output Power Supply Tray Specs

General

  • ManufacturerABB
  • ModelPHARPS32200000
  • ConditionNew / Surplus / Refurbished
  • Product FamilySymphony Plus / Harmony
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Cabinet temperature and humidity must remain within the Modular Power System III environmental envelope without condensation.
  • Cooling airflow, fan operation and filter condition must be maintained around the supply tray and chassis.
  • Rail loading and redundancy margins should be reviewed at the highest expected cabinet temperature.
  • Isolate both main and auxiliary input sources and follow the documented discharge procedure before servicing the tray.
  • Protective grounding, connector assignment and power-entry-panel compatibility must be verified before energization.
  • Each DC rail should be checked for correct polarity and connected load before rack electronics are enabled.
  • The supply provides 5 V at 60 A together with positive and negative 15 V rails rated 3 A each.
  • Additional outputs provide 24 V at 17 A and 48 V at 8.5 A for supported rack and field circuits.
  • Usable capacity depends on the summed load of every connected module, termination circuit and redundancy arrangement.
Description
PHARPS32200000 is the ABB MPS III power supply tray providing 5 V, ±15 V, 24 V and 48 V outputs.

It supplies the multiple DC rails used by supported Symphony Harmony rack electronics and field-power circuits.

Confirm rail loading, tray wiring, input source, grounding and the complete PHARPS32200000 nameplate before replacement.
Alternative Names
PHARPS32200000 ABB PHARPS32200000 PHARPS32200000 multi-output power supply tray Symphony Plus Modular Power System III PHARPS32200000 ABB Symphony Plus Modular Power System III PHARPS32200000 ABB Symphony Plus Modular Power System III multi-output power supply tray
Technical notes
Before energizing PHARPS32200000, verify field wiring, power isolation and the validated Symphony Plus Modular Power System III configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which DC rails are produced by PHARPS32200000?
The MPS III tray supplies documented 5 V, positive and negative 15 V, 24 V and 48 V DC rails.
How is PHARPS32200000 load compatibility checked before installation?
Add the connected rack loads on every rail and verify connectors, redundancy, grounding and cabinet distribution against the tray ratings.
What system duty is assigned to PHARPS32200000?
It powers logic, analog electronics and field circuits in supported Symphony and Harmony modular power installations.
What does the PHARPS32200000 availability record mean for purchasing?
ABB lists the product on request; Apter Power confirms current price, condition, quantity and delivery case by case.
Why is another MPS III tray not automatically interchangeable with PHARPS32200000?
Rail currents, input arrangement, connectors, tray dimensions and cabinet wiring must match before replacement.
Which power data should accompany a PHARPS32200000 manual and quote request?
Provide the nameplate, input source, measured rail loads, connector photos, quantity and destination.
