AI02J

/ 4.9
1001 reviews | Need a Specific Revision?

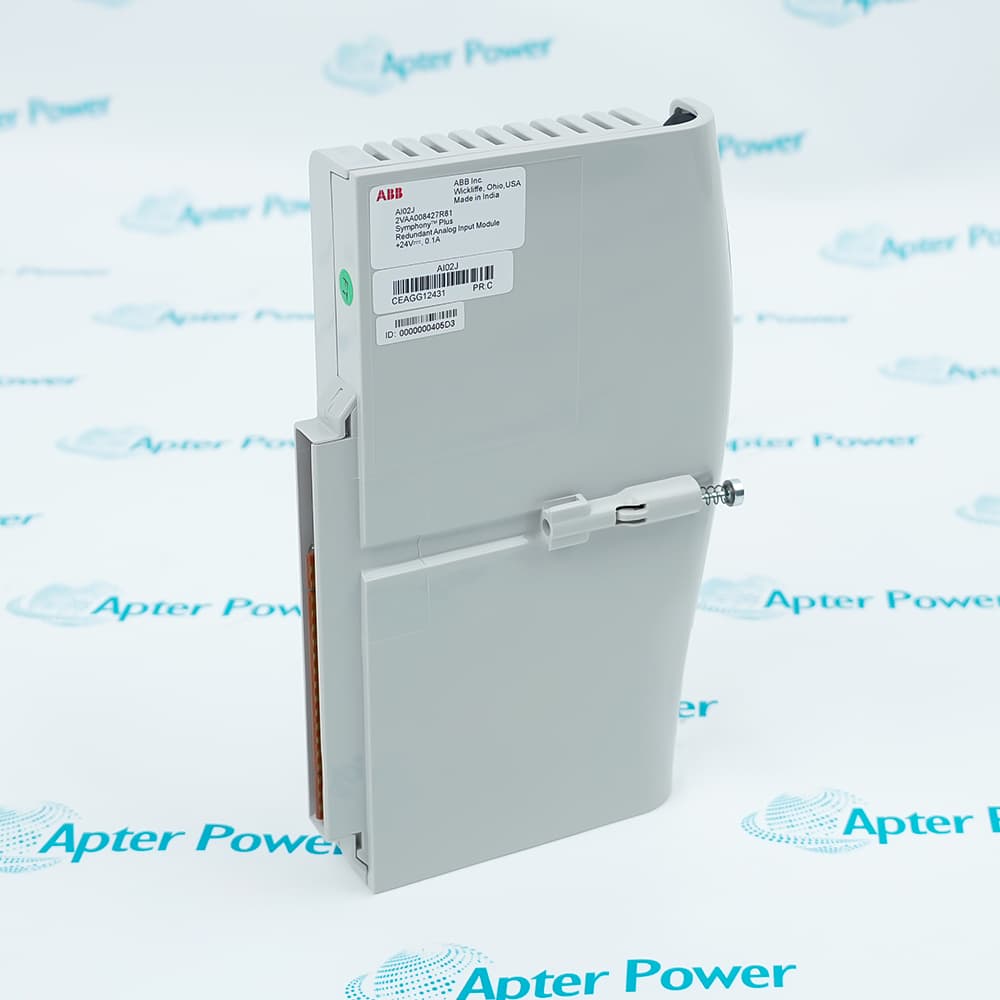

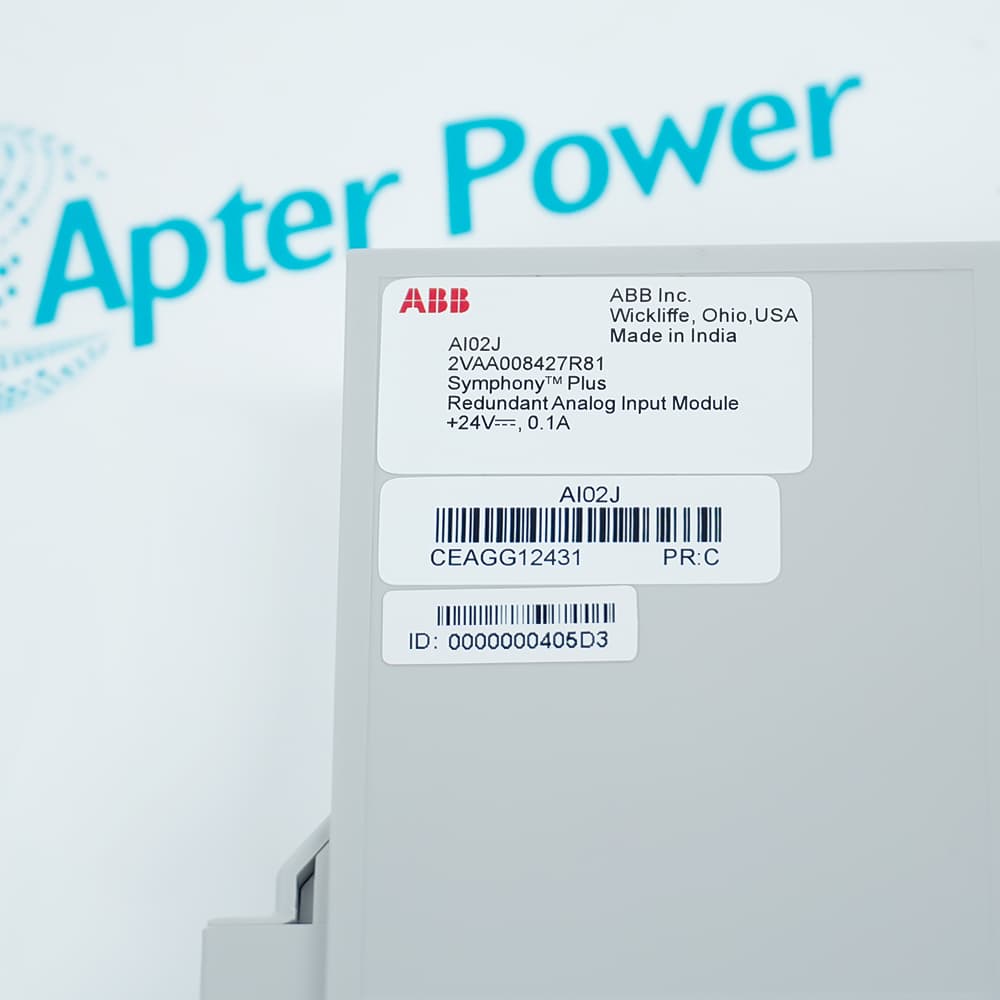

ABB AI02J is a 16-channel quick-response analog input module with HART support for Symphony Plus SD systems.
In Stock
Fast Shipping Available
Get a quick price for AI02J
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for AI02J

  • Manufacturer:
    ABB
  • Part Number:
    AI02J
  • Product Family:
    ABB Symphony Plus SD
  • Product Type:
    Analog Input Module
  • Stock:
    1
  • Input Channels:
    16
  • Protocol Support:
    HART
  • Response:
    Quick response
  • Product Family:
    Symphony Plus SD
  • Module Type:
    Analog input
  • Width:
    3.4 cm
  • Height:
    19 cm
  • Depth:
    11.8 cm
  • Weight:
    0.55 lbs (0.25 kg)
  • Estimated shipping dimensions:
    19 x 11.8 x 3.4 cm
  • Tariff Code:
    8538900000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals HART Integration Channel Operation Configuration Applications

Features:

  • Sixteen process analog input channels in one SD Series module.
  • HART support for compatible intelligent field instruments.
  • Quick-response acquisition for changing process measurements.
AI02J consolidates sixteen analog loops in a compact Symphony Plus SD hardware position.

The same I/O path can carry analog measurement and supported HART information for field-device access.

Commissioning depends on the correct base, termination, loop-power, and controller configuration for the installed channels.

Apter Power can assist with quotation requests and official documentation access for the ABB AI02J Analog Input Module.
ABB AI02J Analog Input Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

AI02J HART integration

  • Device access: Compatible HART instruments can expose digital device information alongside the analog process value.
  • Loop verification: Channel wiring and transmitter supply must support both stable current measurement and HART signaling.
  • Data mapping: Controller configuration must associate each channel with the intended process tag and HART device.
  • Secondary variables: AI02J can make as many as 24 HART secondary variables available in addition to the primary analog values.

AI02J channel operation

  • Channel count: Sixteen inputs support dense process-instrument connections within one module position.
  • Response behavior: The quick-response design reduces module contribution to changing-signal acquisition time.
  • Fault isolation: Loop power, field wiring, termination, module health, and controller status should be checked separately.
  • Update cycle: All sixteen input channels are refreshed within a 100 ms module update interval.

AI02J configuration records

  • Signal definition: Store the configured range, units, alarm limits, and process tag for every input.
  • Hardware identity: The controller project must select the exact module and approved SD Series base arrangement.
  • Commissioning record: Capture measured loop values and HART communication results before returning channels to service.
  • Input mode: Each channel can be assigned for a 4 to 20 mA current signal or a 1 to 5 V DC voltage signal.

Supported projects for AI02J

  • Process transmitters: AI02J can acquire measurements from compatible HART pressure, temperature, level, and flow instruments.
  • Plant modernization: AI02J can retain conventional analog loops while making supported HART device data available to the control system.
  • Dense cabinet I/O: AI02J can consolidate sixteen field measurements in Symphony Plus SD process-control installations.
  • Instrument maintenance: AI02J can expose supported HART status and secondary information for field-device review without adding a separate digital network.
Description
ABB AI02J is a Symphony Plus SD analog input module for acquiring sixteen high-level process signals with integrated HART communication. The narrow module format concentrates field measurements in one I/O position while preserving access to intelligent-transmitter information.

Each channel on AI02J can be assigned for a 4 to 20 mA current loop or a 1 to 5 V DC signal. Group isolation separates the field side from module logic and supports orderly signal referencing inside the SD Series termination architecture.

HART 5.4 operation allows AI02J to carry compatible device data beside the primary analog value, including as many as 24 secondary variables across the module. This arrangement gives the controller both routine process measurements and additional field-device information through the same channel set.

AI02J updates all sixteen inputs within 100 ms and provides current limiting plus open-circuit detection for field-loop supervision. These behaviors help distinguish a changing process signal from wiring, transmitter-power, and channel faults during operation.
Alternative Names
ABB AI02J AI 02J AI-02J ABB Symphony Plus AI02J AI02-J AIO2J A102J AI02J 16-CH HART
Technical notes
AI02J combines sixteen analog input channels with HART support; base selection, loop power, grounding, and channel configuration determine usable field integration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How should field channels be assigned on AI02J?
AI02J provides sixteen input channels, so each transmitter loop should be documented against its terminal position, controller tag, engineering range, and HART device identity.
What should be checked before enabling HART on AI02J?
Before enabling HART on AI02J, confirm compatible field instruments, the approved base and termination hardware, loop wiring, channel configuration, and the controller's HART data mapping.
How can a failed loop be isolated on AI02J?
For AI02J, compare the channel indication and controller diagnostics with loop power, transmitter output, terminal continuity, and configuration before attributing the fault to the module.
What matters when replacing AI02J in a running cabinet?
When replacing AI02J, preserve the channel schedule, isolate field energy as required, verify the module and base identity, and confirm every loop after the new module is seated.
Why is the quick-response designation important for AI02J?
The quick-response designation identifies AI02J for applications where changing analog signals must be acquired promptly; controller scan and process dynamics still determine the total response.
How should grounding be reviewed for AI02J?
Review AI02J field cable shields, reference conductors, cabinet grounding, and transmitter supply routing against the approved Symphony Plus installation so noise is not mistaken for process variation.
Which documentation should follow an installed AI02J?
Keep the AI02J channel list, signal ranges, HART device assignments, termination details, controller configuration, and commissioning results with the cabinet maintenance records.
