Features:
- Robust Multi-Tier Architecture Redundancy for High Availability Plant Environments
- Microsecond-Precision Sequence of Events (SOE) Field Integration
- Extensive Network Device Capacity and Extended Field Routing Boundaries
The advanced electromechanical layout of the ABB PDP800 DP-V2 interface module completely isolates and protects continuous process plant operations by incorporating independent redundancy configurations across every single industrial hardware level. By supporting a dual-module redundant pair layout, an automated bumpless hot-standby switchover is executed instantly without interrupting active DCS control logic if a primary module fault is detected by the host. This absolute safety layer is backed further by dual-channel PROFIBUS DP line routing, dual independent 24 VDC power feed terminals, and dual-channel 4 Mbps HN800 I/O bus monitoring, offering unparalleled fault-tolerance in hazardous heavy process industries.
Engineered to handle high-speed industrial trip diagnostics, the ABB PDP800 DP-V2 master module leverages advanced PROFIBUS DP-V2 cyclical sub-features to support high-performance 1 ms time stamping across complex remote device networks. By capturing event time stamps directly at the physical instrument source—such as smart field devices or downstream S800 I/O nodes—the module completely bypasses common latency and jitter anomalies caused by internal backplane network routing and main processor load overhead. This absolute precision ensures that an unedited, chronologically exact sequence of events is transferred back to the central S+ Operations workplaces, enabling optimal plant root-cause trip analysis.
The robust transmission matrix of the ABB PDP800 DP-V2 master interface easily orchestrates up to 125 slave nodes per network while sustaining flexible electrical or fiber-optic line topologies across vast manufacturing footprints. Using cRBX01 remote bus extenders via star topologies, the module extends its electrical bus reach up to 3 km from the central controller panel via redundant HN800 fiber-optic lines, and up to 15 km using dedicated fiber-optic links on the primary PROFIBUS DP field network. This immense routing flexibility drastically reduces overall field wiring requirements, lowers plant panel space profiles, and minimizes capital infrastructure expenditures.
The PDP800 DP-V2 ABB PROFIBUS DP Master Interface Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB PDP800 DP-V2 PROFIBUS DP Master Interface Module Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

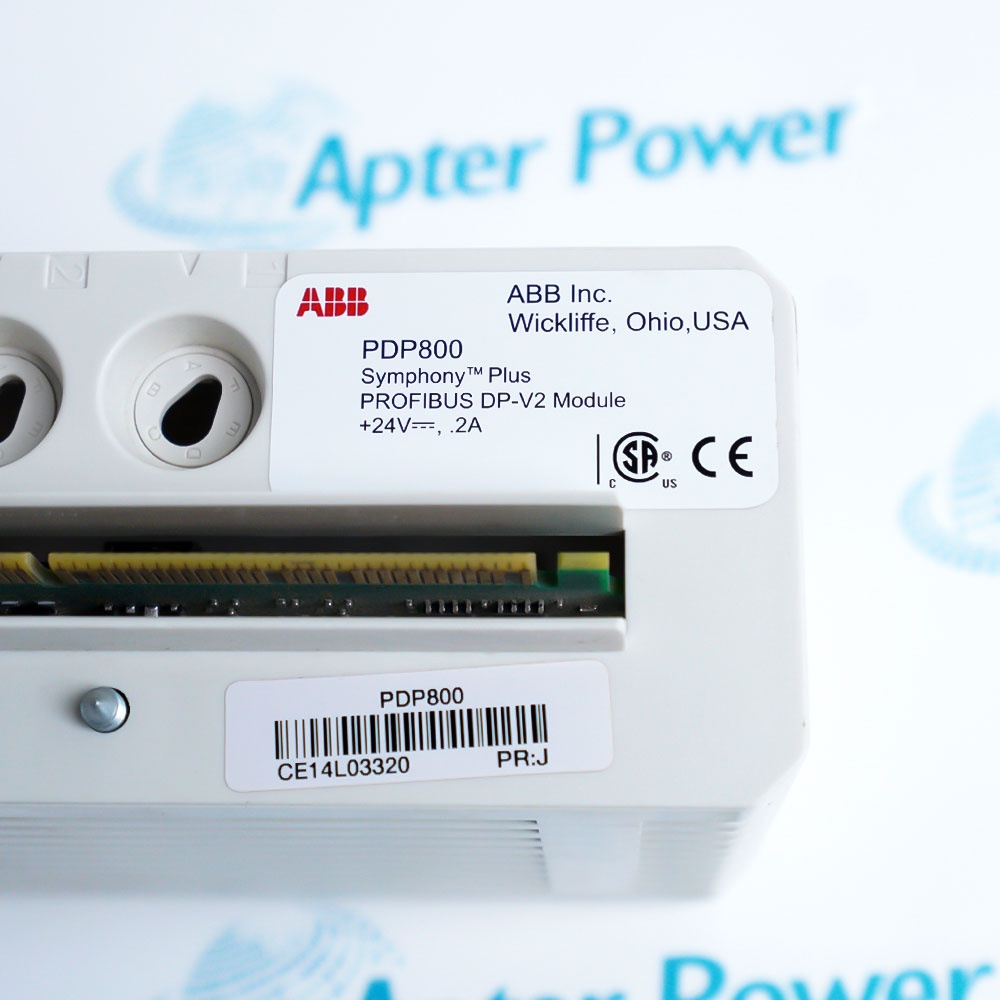

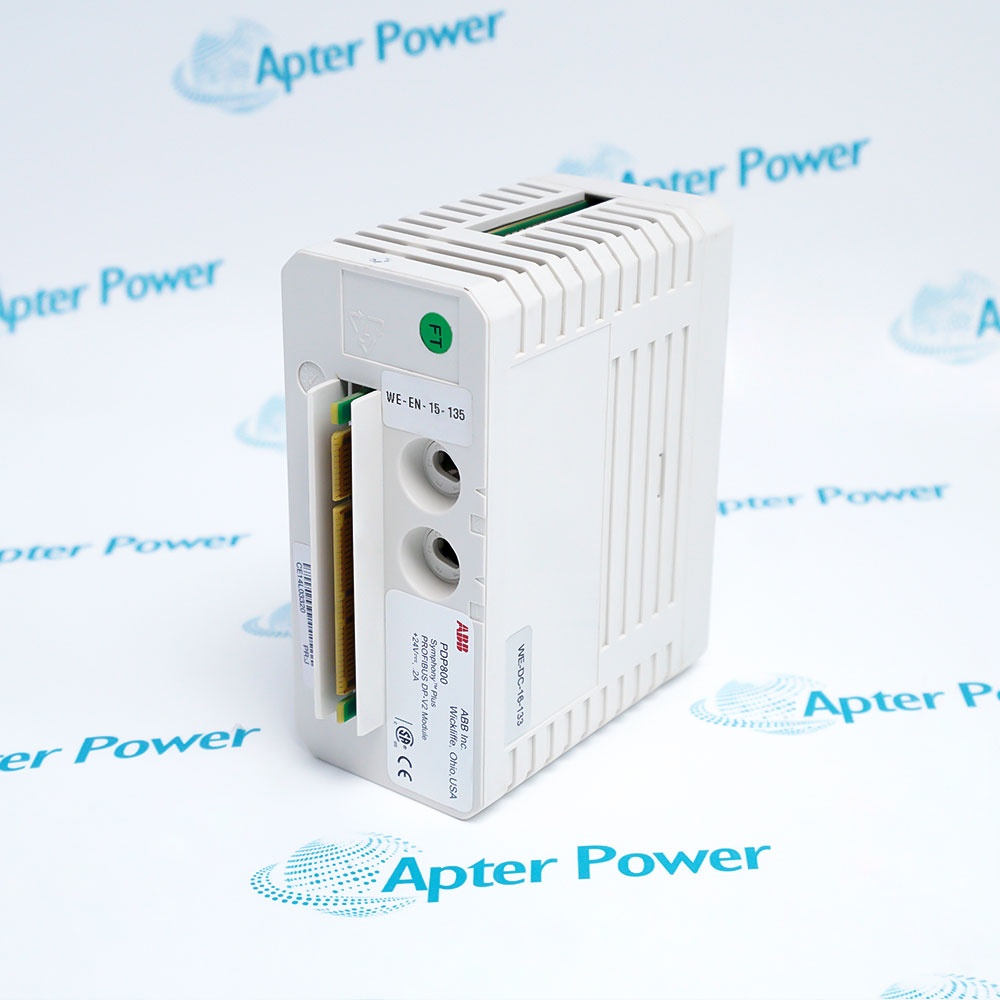

ABB PDP800 DP-V2 PROFIBUS DP Master Interface Module
General
- Manufacturer ABB
- Model PDP800 DP-V2
- Condition New Original ready stock
- Product Family PDP800 DP-V0,PDP800 DP-V1,PIO800K02
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- High-Performance Steam & Gas Turbine Governing: The module coordinates high-speed cyclic loops by linking central controllers with specialty turbine control solutions, such as TP800 turbine protection networks, VP800 valve positioning modules, and AS800 auto-synchronization frameworks.
- Municipal Wastewater and Water Distribution Plants: Manages large-scale field footprints by leveraging fiber-optic extensions to gather status signals from remote pumping stations, aeration basins, and smart field flow transmitters positioned up to 15 km away.
- Intelligent Motor Control Centers (MCC): Drives continuous data harvesting and control command delivery across smart motor starters and multi-vendor switchgear assemblies, feeding critical motor performance data back to centralized operator stations.
- Boiler Control & Burner Management Systems (BMS): Integrates vital boiler safety equipment, air-flow regulators, and flame scanners, using its deterministic protocol layer to send emergency status changes back to logic solvers within a 1 ms timeframe.
- Industrial Electromagnetic Field Resilience: Certified under the international IEC/EN 61000-6-2 standard, proving elite hardware resilience against destructive electrostatic discharge (ESD) impacts, fast transients, and heavy industrial voltage surges.
- RFI Shielding and Emission Mitigation: Complies with strict global emissions regulations including CISPR 11 Group 1 Class A and IEC/EN 61000-6-4, ensuring the module does not leak electromagnetic noise that could distort surrounding signal loops.
- Overvoltage Protection Standards: Engineered in full compliance with Overvoltage Category I for power lines as outlined by the IEC/EN 61010-1 standard, shielding internal microprocessor components from grid fluctuations or voltage dips.
- Mechanical Durability and Shock Resistance: Built to survive severe physical transport and operational stresses, achieving verified compliance certifications across operational sinusoidal vibration tests (IEC/EN 60068-2-6) and 15 G drop shock evaluations.
- Active Thermal Performance Limits: Guarantees full processing bandwidth and uninterrupted communication across a certified ambient operational temperature range of 0°C to +55°C (32°F to 131°F).
- Extreme Climate Storage Protections: Designed to withstand extreme unpowered conditions during warehouse storage or long-range shipping, surviving a wide temperature spread from -40°C to +85°C (-40°F to 185°F) under MIL-STD-810G testing.
- High-Altitude Atmospheric Compatibility: Certified to maintain complete structural and cooling integrity at high-elevation industrial installations, performing safely from sea level up to an altitude of 3,048 meters (10,000 ft.).
- Moisture and Relative Humidity Thresholds: Features advanced internal spacing layout to operate safely within a non-condensing relative humidity environment of 20% to 95% at 40°C, tested under strict IEC/EN 61298-3 parameters.
