1336-L6/B

/ 4.9
1001 reviews | Need a Specific Revision?
Allen-Bradley 1336-L6/B is reported as a 115 V AC control-interface board; official sources verify base catalog 1336-L6, not the /B suffix.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1336-L6/B
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1336-L6/B

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1336-L6/B
  • Product Family:
    1336 Drives
  • Product Type:
    115 V AC Control Interface Board
  • Stock:
    1
  • Programmable Inputs:
    9
  • Low-State Input:
    0–30 V AC; leakage less than 10 mA into 6.5 kΩ
  • High-State Input:
    90–115 V AC ±10%; approximately 20 mA per input
  • Encoder Terminals:
    Not provided on L6
  • Compatible PLC Outputs:
    1771-OW, 1771-OA, 1771-OWN, and 1771-OAD
  • Interface Logic:
    High-true discrete logic
  • Input Connection:
    TB3 control-interface terminal block
  • Input Isolation:
    Optically isolated from the drive’s internal control logic
  • Input Configuration:
    Functions assigned through host-drive programming
  • Compatible Drive Families:
    1336 PLUS, 1336 PLUS II, 1336 FORCE and 1336 IMPACT
  • Required External Signal:
    115 V AC control signal; approximately 20 mA per active input
  • Tariff Code:
    8504909000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Input Logic Wiring Compatibility Application
  • Reported /B variant of the verified 1336-L6 115 V AC interface board
  • Nine programmable control inputs on the L-option interface
  • L6 function excludes the encoder terminals provided by L6E variants

1336-L6/B is reported as a Series B or /B version of the 1336-L6 115 V AC control-interface board.

Official documents verify the base 1336-L6 function, nine programmable inputs, electrical thresholds, and compatible PLC output examples, but not the exact /B suffix.

Publication should wait for a readable product label or official order record confirming the complete suffix and the board's host-drive compatibility.

Availability, condition, price, and shipping time for 1336-L6/B are confirmed during quotation.

Allen-Bradley 1336-L6/B Product Series, Service, Industry Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The verified L6 base provides nine programmable control inputs
  • Use documented 115 V AC high- and low-state thresholds
  • Confirm every assigned input function in the drive parameters
  • Identify the external control supply and all return conductors
  • Check PLC-output leakage, commons, isolation, and protective devices
  • Follow stored-energy and lockout procedures before wiring changes
  • Verify the complete host-drive catalog number and series
  • Do not substitute L6E when encoder terminals are required or absent
  • Confirm the reported /B suffix from a readable label or official record
  • 115 V AC discrete command interfacing for a compatible Bulletin 1336 drive
  • PLC relay or AC output connection to programmable 1336 control inputs
  • 120 V AC enable and interlock signaling in verified 1336 drive or regeneration systems
Description

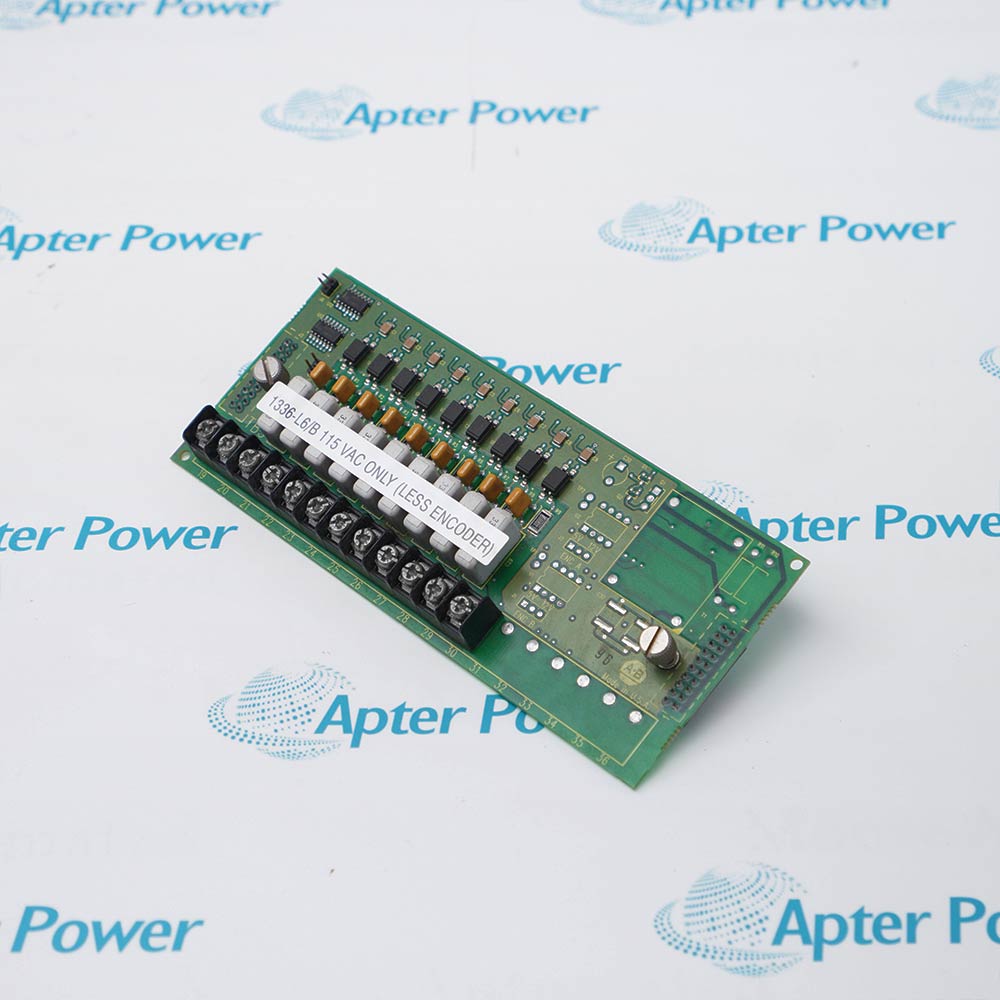

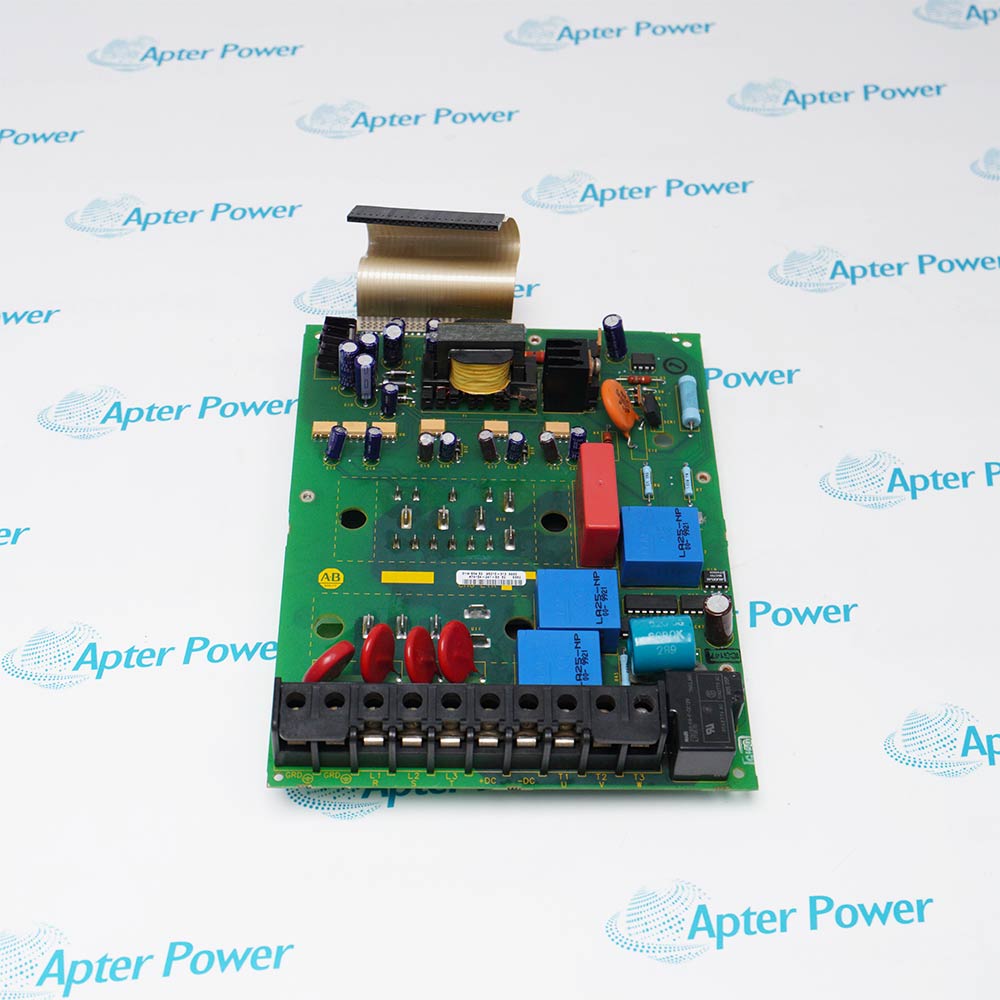

Allen-Bradley 1336-L6/B is a 115 V AC high-true logic control interface board for compatible Bulletin 1336 PLUS, PLUS II, FORCE, and IMPACT drive systems.

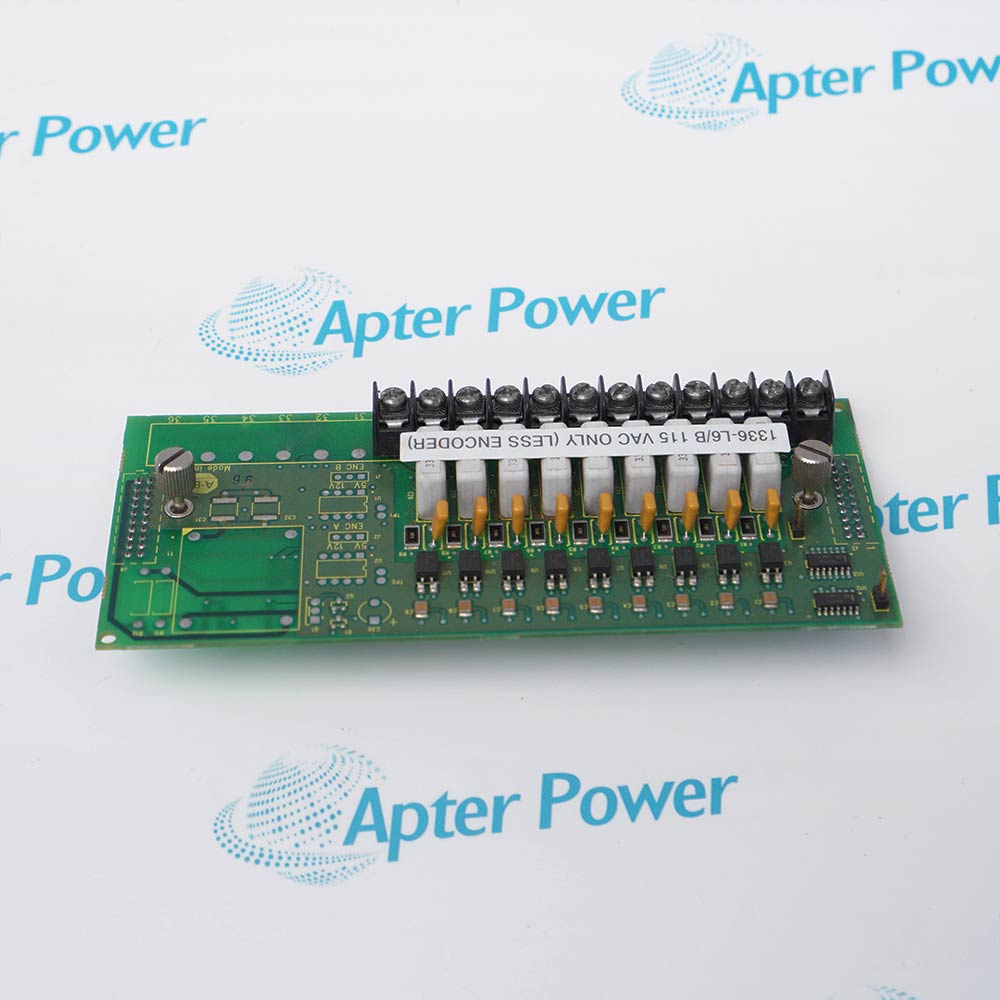

The board provides nine programmable discrete inputs connected through terminal block TB3. Its input circuits are optically isolated from the drive logic and can be assigned functions such as start, stop, reverse, jog, reset, enable, preset speed selection, alternate acceleration and deceleration, or local control selection. The L6 configuration does not provide encoder-feedback terminals.

Before installing or replacing 1336-L6/B, confirm the complete catalog number, compatible 1336 drive family, drive hardware and firmware, 115 V AC control supply, TB3 terminal assignments, external field wiring, programmed input functions, and required machine-safe response. Do not interpret the /B suffix as a confirmed hardware Series unless it is supported by the product label or model-specific manufacturer documentation.
Alternative Names
1336-L6/B 1336 L6/B 1336L6B Allen-Bradley 1336-L6/B Allen Bradley 1336-L6/B AB 1336-L6/B Rockwell Automation 1336-L6/B
Technical notes
Allen-Bradley 1336-L6/B remains pending until /B is verified; base 1336-L6 uses nine 115 V AC inputs without encoder terminals.
