1747-L20C

/ 4.9
1001 reviews | Need a Specific Revision?

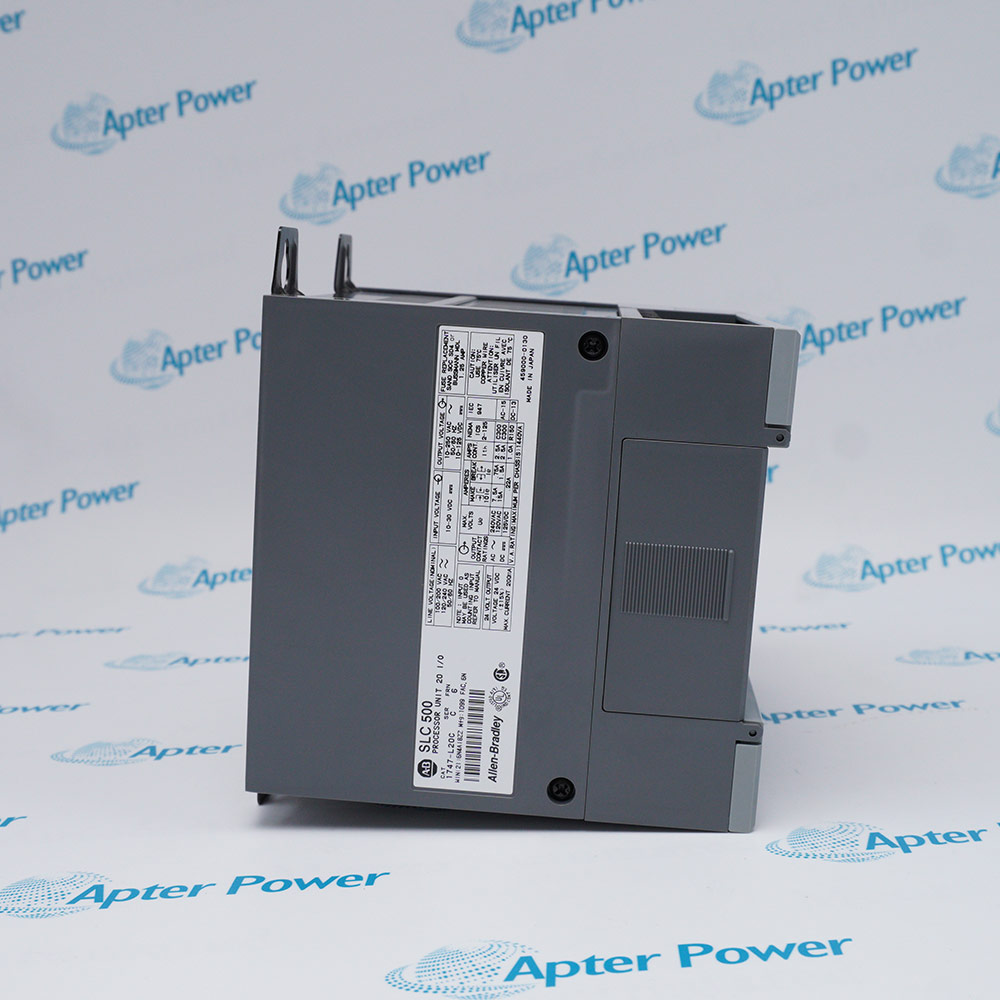

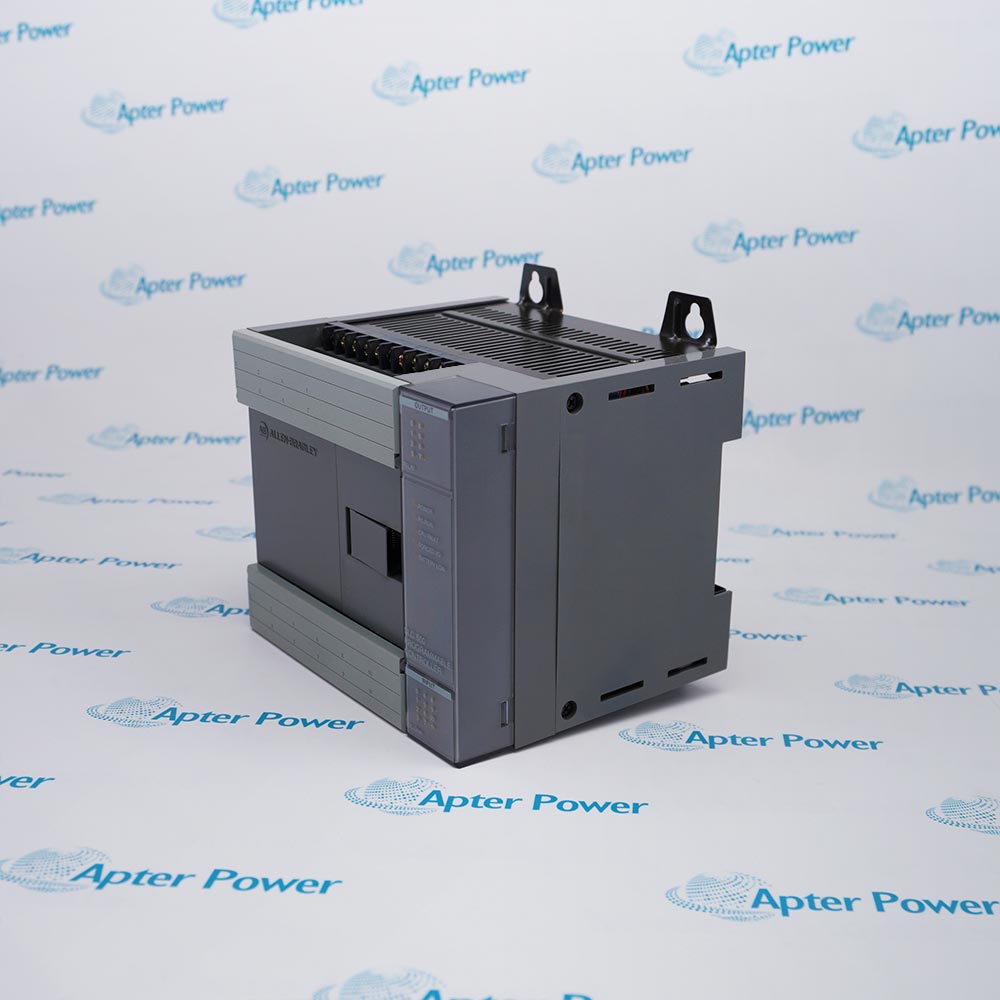

Allen-Bradley 1747-L20C is a fixed SLC 500 controller with 12 24 V DC sinking inputs, 8 AC/DC relay outputs, and a dedicated high-speed counter input.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1747-L20C
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1747-L20C

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1747-L20C
  • Product Family:
    SLC 500
  • Product Type:
    Fixed SLC 500 Controller
  • Stock:
    1
  • Inputs:
    12 × 24 V DC sinking inputs
  • Input 0:
    High-speed counter input
  • Outputs:
    8 × AC/DC relay outputs
  • User Memory:
    1K instruction capacity
  • Communication:
    DH-485 network; RS-232 requires a compatible interface module such as 1747-KE or 1770-KF3
  • Input Range:
    10–30 V DC
  • Input Delay:
    8 ms maximum on/off
  • Relay Output Range:
    5–265 V AC or 5–125 V DC
  • Relay Current:
    2.5 A per output; 8 A per group
  • 24 V DC User Power:
    200 mA
  • Maximum Heat Dissipation:
    21.0 W
  • Power Supply Range:
    21.6–26.4 V DC
  • Dimensions:
    16.50 × 17.10 × 14.50 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Integrated I/O High-Speed Input Communications Application
  • Fixed SLC 500 controller with 12 24 V DC sinking inputs and 8 AC/DC relay outputs
  • Input 0 provides the documented high-speed counter function
  • DH-485 controller networking; RS-232 requires compatible interface equipment

1747-L20C is an Allen-Bradley fixed SLC 500 controller with integrated 20-point I/O and a dedicated high-speed counter input.

The controller combines 24 V DC sinking inputs, AC/DC relay outputs, user 24 V DC power, and a fixed SLC 500 processor in one unit.

Use the documented DH-485 arrangement for controller networking; RS-232 connections require a compatible interface module such as 1747-KE or 1770-KF3.

Availability, condition, price, and shipping time for 1747-L20C are confirmed during quotation.

Allen-Bradley 1747-L20C Fixed SLC 500 Controller Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Match field devices to the documented sinking-input arrangement
  • Review relay contact load requirements before connecting loads
  • Keep input and output commons consistent with the wiring diagram
  • Use the high-speed input arrangement documented for the L20C
  • Separate pulse wiring from high-noise conductors where required
  • Confirm program scaling and counter operation before machine use
  • DH-485 network support for the fixed SLC 500 controller
  • RS-232 connectivity through compatible interface equipment such as 1747-KE or 1770-KF3
  • Verify node, baud, cabling, and protocol settings after replacement
  • Fixed SLC 500 machine control with integrated discrete I/O
  • Pulse or count applications using input 0 high-speed counter
  • DH-485-connected SLC 500 systems using compatible link equipment
Description
1747-L20C is an Allen-Bradley fixed SLC 500 controller with integrated 20-point I/O and a dedicated high-speed counter input.

The controller combines 24 V DC sinking inputs, AC/DC relay outputs, and DH-485 networking; RS-232 communication requires a compatible interface module such as 1747-KE or 1770-KF3.

Before replacement, verify field-device polarity, relay load and suppression, high-speed counter wiring, user-memory contents, DH-485 settings, RS-232 interface equipment, and the complete fixed-controller catalog number.
Alternative Names
1747-L20C 1747 L20C 1747L20C Allen-Bradley 1747-L20C Rockwell Automation 1747-L20C SLC 500 1747-L20C
Technical notes
1747-L20C combines sinking DC inputs, relay outputs, and high-speed input capability in a fixed controller. Verify field-device polarity, relay loads, program, and communications before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Does Allen-Bradley 1747-L20C accept sourcing sensors?
The L20C uses sinking DC inputs, so connected field devices must provide the compatible sourcing signal arrangement.
Can Allen-Bradley 1747-L20C relay outputs directly switch every load?
No. Check the documented relay contact ratings, load characteristics, suppression needs, and external protection for the actual circuit.
Why is a saved program essential before replacing Allen-Bradley 1747-L20C?
The replacement controller must contain the correct logic, communications, and I/O behaviour. Retain a verified copy before removing the original unit.
How does Allen-Bradley 1747-L20C connect to an RS-232 device?
The fixed controller is documented as a DH-485 network responder. An RS-232 connection requires a compatible interface module such as 1747-KE or 1770-KF3, plus the correct cable and DF1/DH-485 settings.
What should be reviewed when the high-speed input counts incorrectly on Allen-Bradley 1747-L20C?
Check sensor output type, pulse integrity, wiring route, program scaling, input configuration, and the machine’s actual event rate.
Can a later fixed SLC model be substituted for Allen-Bradley 1747-L20C without changes?
No. Compare I/O type, program support, communications, physical wiring, and field-load requirements before approving any substitution.
Why should relay and DC input wiring be documented for Allen-Bradley 1747-L20C?
Integrated I/O means a replacement can affect several field circuits. Accurate terminal records reduce wiring and control-behaviour errors.
