80190-520-01-R

/ 4.9
1001 reviews | Need a Specific Revision?

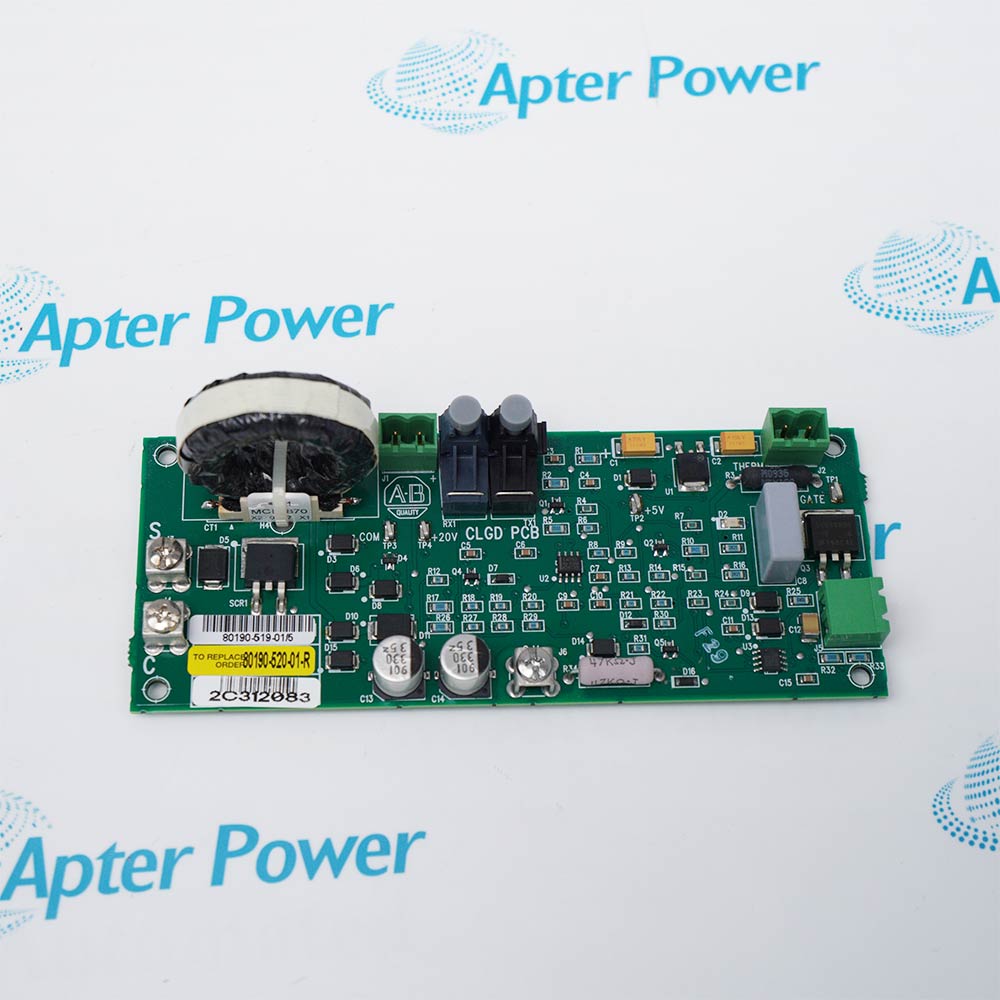

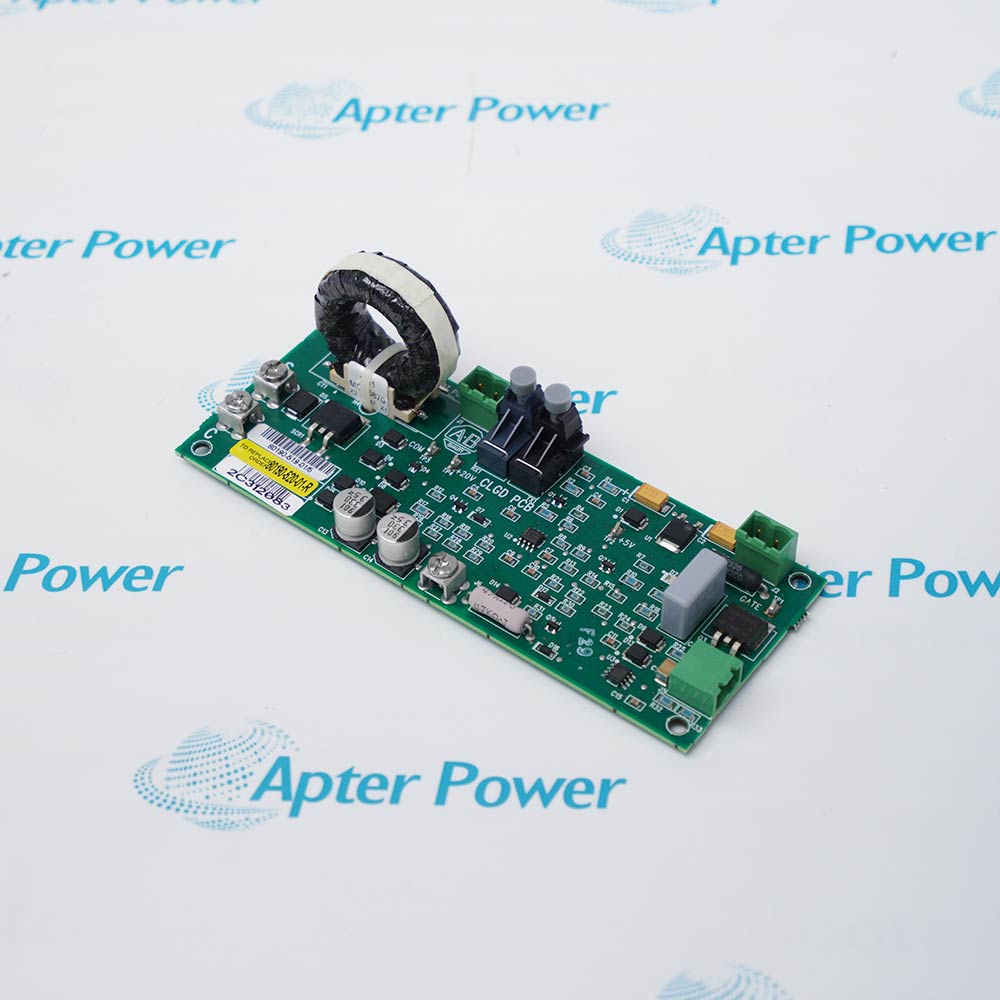

One Allen-Bradley 80190-520-01-R CLGD is specified per SCR in 1560/1562F medium-voltage starters, with the required board quantity determined by the controller’s voltage-dependent SCR count.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 80190-520-01-R
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 80190-520-01-R

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    80190-520-01-R
  • Product Family:
    Allen Bradley Drives
  • Product Type:
    Current Loop Self-Powered Gate Driver Board (CLGD)
  • Stock:
    1
  • Board Function:
    Current-loop self-powered gate-driver board
  • Starter Platform:
    1560 and 1562F medium-voltage starters
  • System Context:
    Starter control assembly
  • Service Role:
    Listed in the official medium-voltage starter spare-parts structure
  • Dimensions:
    15.2 x 6.2 x 4.5 cm
  • Spare part quantity:
    1 per SCR
  • Applicable starter context:
    1560 and 1562F Allen-Bradley medium-voltage starters
  • Weight:
    0.1 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals SCR Quantity Current-Loop Components Starter Documentation Boundary Application
  • Current-loop self-powered gate-driver board
  • One 80190-520-01-R is specified per SCR
  • Documented for Allen-Bradley 1560/1562F medium-voltage starters

80190-520-01-R is the Allen-Bradley current-loop self-powered gate-driver board listed in the common-parts table for 1560/1562F medium-voltage starters.

The manual specifies one board per SCR, while the number of SCRs per controller depends on controller voltage and configuration.

Confirm the starter type, voltage-dependent SCR count, board position, current-loop components, and applicable OEM documentation before ordering or service.

Availability, condition, price, and shipping time for 80190-520-01-R are confirmed during quotation.

Allen-Bradley 80190-520-01-R CLGD Gate Driver Board Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The official common-parts table specifies one 80190-520-01-R per SCR.
  • The number of SCRs per controller depends on the controller voltage.
  • Determine the required board quantity from the applicable controller configuration before ordering.
  • The starter parts structure includes the CLGD board, current-loop transformer, sense CT, and cable assemblies.
  • The documented total current-loop cable length is 21 ft for the applicable controller configuration.
  • Verify the installed cable lengths, fiber cables, and interface-board part number as a complete circuit.
  • 1560/1562F units are identified as Allen-Bradley manufactured starters.
  • For 1503 OEM equipment, the Rockwell manual directs users to OEM-supplied spare-parts documentation.
  • Do not extend the 1560/1562F parts table to an OEM starter without its equipment-specific record.
  • Replacement of one documented CLGD position per SCR in a 1560/1562F starter.
  • Voltage-dependent planning of the required CLGD board quantity for the controller.
  • Restoration of the documented current-loop gate-drive circuit with its matched cable and interface components.
Description
80190-520-01-R is an Allen-Bradley current-loop self-powered gate-driver board listed for 1560/1562F medium-voltage starters.

The official common-parts table specifies one 80190-520-01-R per SCR; the required quantity depends on the controller’s voltage-dependent SCR count and must be determined from the applicable controller table.

Use Allen-Bradley documentation for 1560/1562F manufactured starters, but use the OEM-supplied spare-parts documentation for 1503 OEM equipment; also verify the current-loop cable, transformer, sense CT, fiber cable, and interface-board configuration.
Alternative Names
80190-520-01-R Cat. No. 80190-520-01-R Allen-Bradley 80190-520-01-R Rockwell Automation 80190-520-01-R 80190-520-01-R Current-Loop Self-Powered Gate-Driver Board 80190-520-01-R 1560 and 1562F Gate-Driver Board
Technical notes
Before installing 80190-520-01-R, match the 1560 or 1562F starter, gate-driver position, and connection layout to service records.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Is Allen-Bradley 80190-520-01-R documented for 1560/1562F or 1503 OEM starters?
Rockwell’s common-parts table applies to Allen-Bradley manufactured 1560/1562F starters. For 1503 OEM equipment, the manual directs users to the OEM-supplied spare-parts documentation.
How many Allen-Bradley 80190-520-01-R boards are required per controller?
The official table specifies one board per SCR. The total quantity therefore depends on the controller’s voltage-dependent SCR count and must be taken from the applicable controller configuration.
Which current-loop components should be checked with Allen-Bradley 80190-520-01-R?
Verify the current-loop transformer, sense CT, cable assemblies, fiber-optic cables, interface board, and the installed board position; the CLGD board should not be treated as an isolated universal component.
Why is controller voltage relevant when ordering Allen-Bradley 80190-520-01-R?
Controller voltage determines the documented SCR configuration, and the manual specifies one 80190-520-01-R per SCR. Voltage therefore affects the required board quantity and associated interface configuration.
What cable-length condition applies when servicing Allen-Bradley 80190-520-01-R?
Rockwell notes that different cable lengths are used for different configurations and that the current-loop cable total must equal 21 ft. Verify the installed combination rather than selecting one cable by appearance.
Can Allen-Bradley 80190-520-01-R replace a PowerFlex 7000 XIO board?
No. 80190-520-01-R is a CLGD board listed one per SCR for 1560/1562F starters, while the PowerFlex 7000 XIO part has a different function and documented voltage-class identity.
How should Allen-Bradley 80190-520-01-R be commissioned after replacement?
Use the applicable 1560/1562F controller procedure, verify the correct SCR position and current-loop components, inspect all gate-drive and fiber connections, and complete the starter-specific checks before operation.
