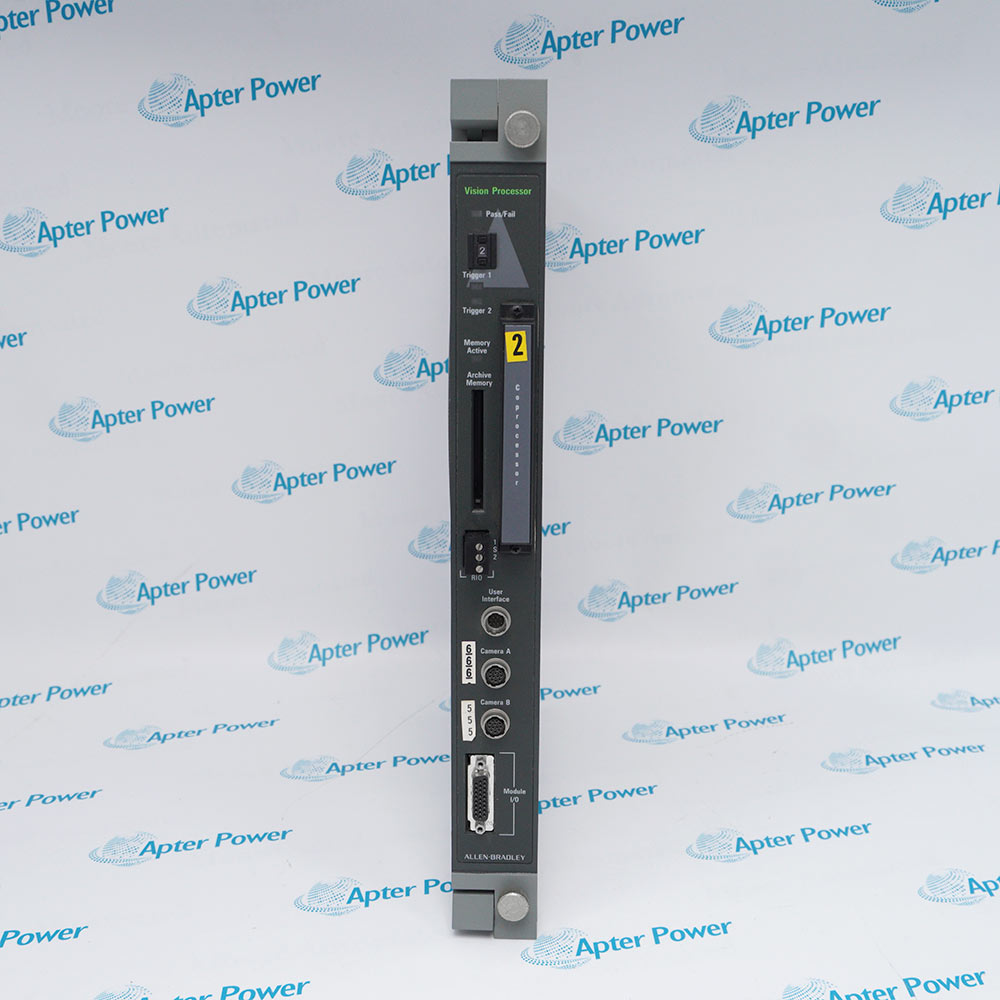

Allen-Bradley 5370-CVIM is the configurable vision-input module used within a 5370 CVIM inspection system.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 5370-CVIM
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 5370-CVIM

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    5370-CVIM
  • Product Family:
    Allen Bradley PLCs
  • Product Type:
    Configurable Vision Input Module
  • Stock:
    1
  • System Architecture:
    Machine-vision inspection system
  • Operator Interface:
    Monitor graphics and light pen
  • Configuration Function:
    Inspection setup, monitoring, and analysis tools
  • System Mode Context:
    Stand-alone or hosted system arrangements documented
  • Dimensions:
    4.3 x 25 x 40.6 cm
  • Module mounting:
    One chassis slot
  • RS-232 protocols:
    ASCII and DF1
  • Local I/O:
    16 discrete lines, including 14 outputs and 1 trigger input
  • Chassis power input:
    90 to 132 VAC or 180 to 264 VAC
  • Chassis DC outputs:
    5 VDC at 35 A, plus 12 VDC at 800 mA, minus 12 VDC at 800 mA
  • Weight:
    1.84 kg
  • Tariff Code:
    9031809090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals System Fit Vision Interface Commissioning Application
  • Configurable interface for a 5370 machine-vision system
  • Monitor and light-pen interaction for inspection configuration
  • Configuration retention is essential during replacement

The 5370-CVIM supports the operator-facing configuration path of a documented machine-vision installation.

Its operating context combines the inspection application, display graphics, and associated vision-system hardware rather than a standalone I/O role.

Replacement work should preserve the approved inspection setup and prove the original machine result before production use.

Availability, condition, price, and shipping time for 5370-CVIM are confirmed during quotation.

Allen-Bradley 5370-CVIM Configurable Vision Input Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Use within the documented 5370 CVIM system architecture.
  • Confirm the existing chassis and companion hardware before replacement.
  • Retain the accepted inspection configuration.
  • The official user interface uses monitor graphics and a light pen.
  • Verify the display path before editing any inspection setting.
  • Keep configuration changes under the documented maintenance procedure.
  • Run a controlled inspection check after replacement.
  • Compare results with the accepted machine application.
  • Do not return to production until the expected results are proven.
  • Machine-vision inspection systems with preserved application settings.
  • Legacy 5370 installations needing verified replacement planning.
  • Configuration-controlled restoration of vision inspection functions.
Description
Allen-Bradley 5370-CVIM forms the configurable interface of the 5370 CVIM machine-vision system.

Official documentation describes its monitor and light-pen interface for configuring and observing machine-vision inspection activity.

Before replacement, retain the established inspection configuration and verify the matched chassis, display connection, and commissioning procedure for the existing system.
Revisions

Revision Part #

Also known as

5370-CVIM Ser A
5370-CVIM/A, Series A, Rev A
5370-CVIM Ser B
5370-CVIM/B, Series B, Rev B
Alternative Names
5370-CVIM Cat. No. 5370-CVIM Allen-Bradley 5370-CVIM 5370 CVIM Allen-Bradley 5370 CVIM
Technical notes
5370-CVIM replacement requires the retained inspection configuration, matched CVIM chassis, monitor connection, and documented acceptance test; a changed vision setup can alter machine inspection decisions.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which components must remain matched when replacing Allen-Bradley 5370-CVIM?
Keep the documented CVIM chassis, monitor/display arrangement, inspection configuration, and connected vision hardware matched to the original installation before commissioning.
Can Allen-Bradley 5370-CVIM be installed without restoring the original inspection setup?
The official workflow uses the module interface to configure and monitor inspection activity, so restore the documented application settings before relying on sorting or pass/fail results.
How should a replacement Allen-Bradley 5370-CVIM be checked before production use?
Verify display operation and the retained inspection configuration, then run the documented inspection checks with representative parts before returning the machine to service.
What should be recorded before removing Allen-Bradley 5370-CVIM?
Record the inspection application, chassis location, display and light-pen connections, machine interface details, and the results of the last accepted verification.
Can a generic display module replace Allen-Bradley 5370-CVIM?
No. The CVIM is part of a specific vision-system architecture and must be evaluated with the original system hardware and configuration.
Why can an Allen-Bradley 5370-CVIM replacement affect inspection results?
A changed or missing inspection configuration can alter how the system evaluates images, so it must be restored and verified before production resumes.
How should Allen-Bradley 5370-CVIM configuration changes be controlled?
Use the established application procedure and keep a recoverable copy of the validated inspection configuration so any change can be reviewed and tested.
