Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Discontinued
    Discontinued date: 2019-05-31
    Replacement category: Engineering Replacement
    Engineering replacement: 1783-LMS5

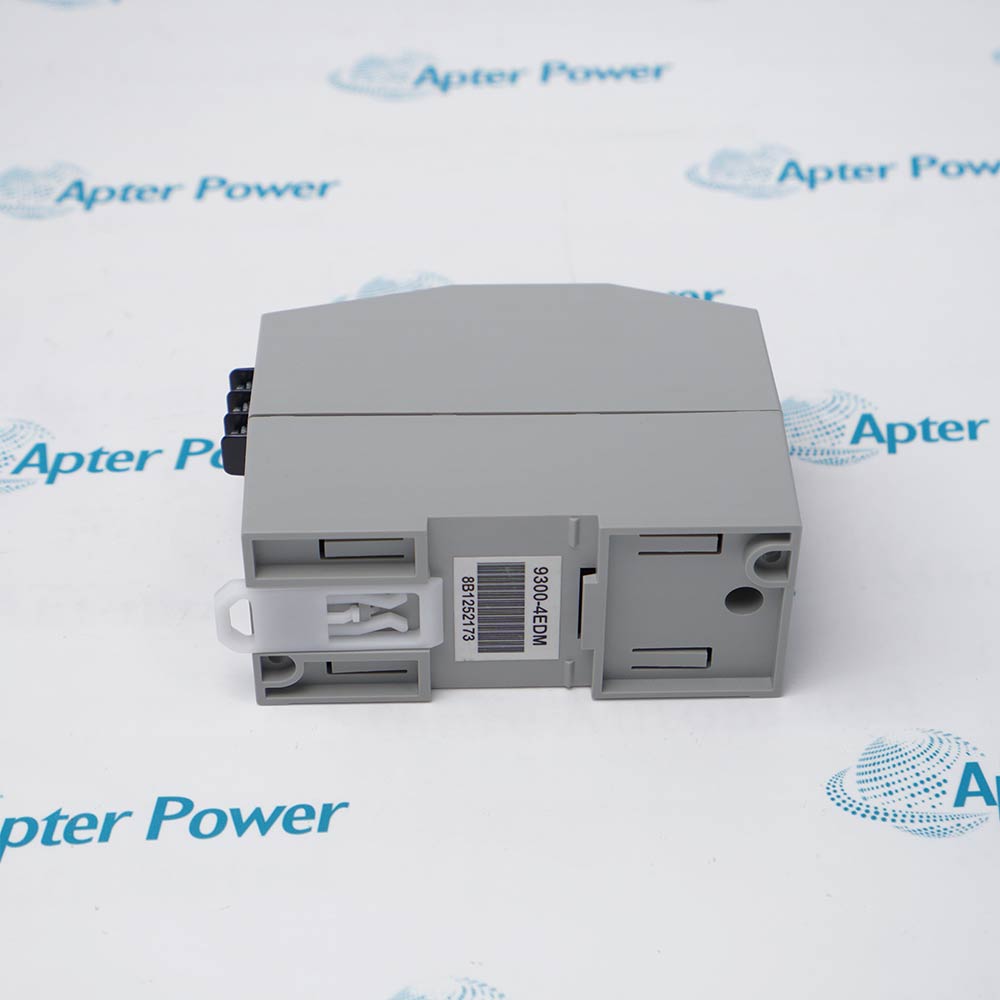

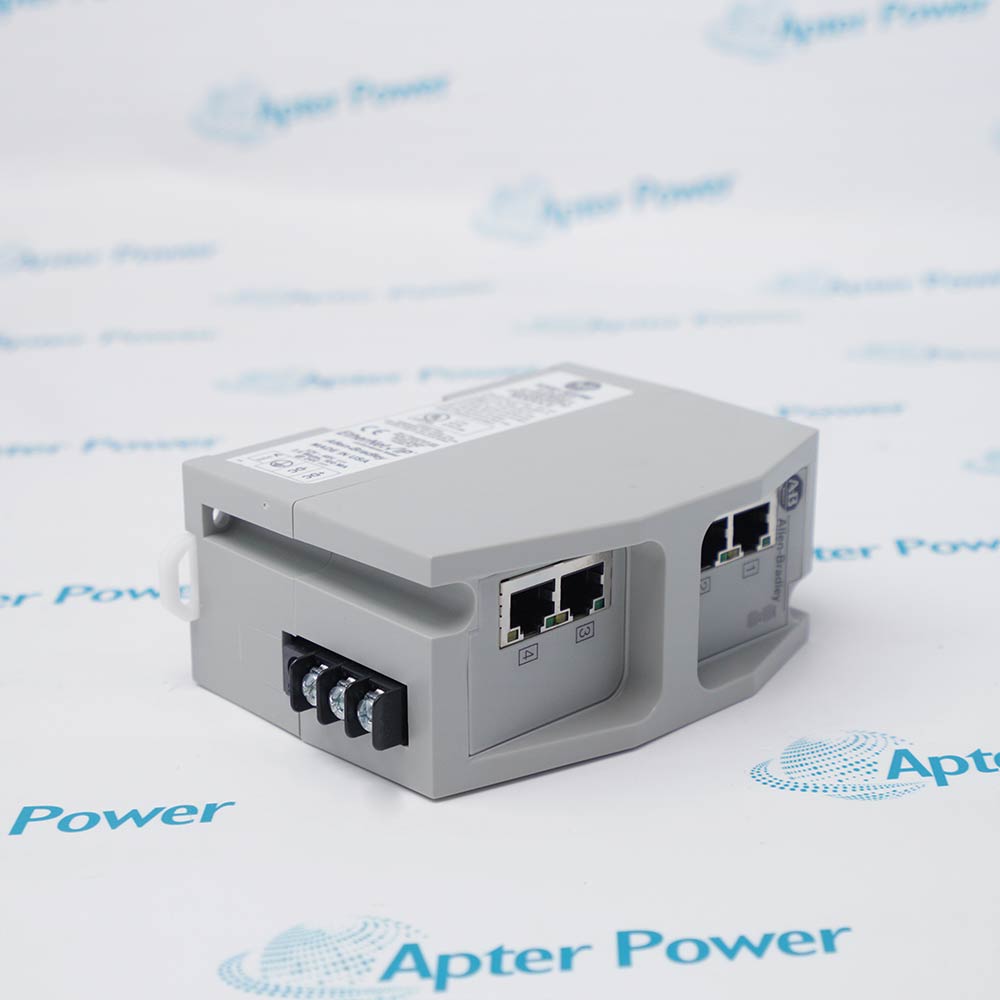

9300-4EDM

/ 4.9
1001 reviews | Need a Specific Revision?
Allen-Bradley 9300-4EDM is a four-port Ethernet diagnostic module for managed EtherNet/IP switching, Logix monitoring, and industrial network configuration.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 9300-4EDM
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 9300-4EDM

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    9300-4EDM
  • Product Family:
    Allen Bradley PLCs
  • Product Type:
    4-Port Ethernet Diagnostic Module
  • Stock:
    1
  • Network ports:
    4 × RJ45, 10/100 Mbps, full/half duplex
  • Power input:
    100 mA at 24 V DC; 12...48 V DC, Class 2/SELV
  • Maximum power dissipation:
    2.6 W
  • Supported protocols:
    TCP/IP, EtherNet/IP, Telnet, HTTP, DHCP, BOOTP, FTP, IGMP, SMTP
  • Indicators:
    8 port indicators; 2 status indicators
  • Switch functions:
    IGMP snooping, IGMP query V1/V2, DHCP server, BOOTP server, QoS, port mirroring
  • Maximum inrush current:
    2.2 A
  • Isolation voltage:
    50 V continuous, basic insulation, power-to-ground and power-to-network; no isolation between individual network channels
  • Environmental rating:
    IP20
  • Operating temperature:
    0 °C < Ta < 60 °C
  • Nonoperating temperature:
    -40...85 °C
  • Relative humidity:
    5...95%, noncondensing
  • Vibration:
    2 g at 10...500 Hz
  • Operating shock:
    15 g
  • Nonoperating shock:
    30 g
  • Dimensions:
    10.7 ×5.207 × 8.89 cm
  • Tariff Code:
    8517623990
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Network Services Diagnostics Integration Application
  • Four 10/100 Mbps RJ45 ports for managed industrial Ethernet connections
  • EtherNet/IP diagnostics, link status, bandwidth alarming, and Logix port control
  • IGMP snooping, DHCP/BOOTP services, QoS, and temporary port mirroring

9300-4EDM is an Allen-Bradley Ethernet diagnostic module designed for the Stratix 6000 four-port managed-switch platform.

It manages industrial Ethernet traffic while exposing switch identification, link, utilization, alarm, and port-control information to Logix applications and its web interface.

Before installation or replacement, verify the Series, firmware, AOP version, IP configuration, saved switch image, field power, port assignments, and vertical mounting clearance.

Availability, condition, price, and shipping time for 9300-4EDM are confirmed during quotation.

Allen-Bradley 9300-4EDM Ethernet Diagnostic Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • IGMP snooping restricts multicast I/O traffic to ports that belong to the intended group
  • DHCP and BOOTP server functions support planned address assignment for connected devices
  • QoS can prioritize packet delivery for a selected port or MAC address
  • Port mirroring copies selected traffic to an analyzer port for temporary packet capture
  • Bandwidth and MAC ID management alarms can be configured through Logix or the web interface
  • Port, link, utilization, active-connection, and switch-status information supports fault isolation
  • The switch can be added to a Logix project through the applicable 1783-EMS Add-on Profile
  • A Logix generic CIP message can request SMTP email delivery of controller or network conditions
  • A saved switch configuration can be uploaded and downloaded for repeatable replacement setup
  • Managed EtherNet/IP I/O cells that require multicast containment through IGMP snooping
  • Logix-integrated machine networks requiring switch status, alarms, and commanded port behavior
  • Industrial Ethernet troubleshooting that uses temporary port mirroring and protocol-analyzer capture
Description
9300-4EDM is an Allen-Bradley four-port Ethernet diagnostic module for the Stratix 6000 managed-switch platform.

The unit provides four 10/100 Mbps RJ45 ports, EtherNet/IP and TCP/IP services, IGMP snooping, QoS, port mirroring, DHCP/BOOTP services, Logix integration, and managed network diagnostics.

Before installation or replacement, confirm the complete catalog number, Series, firmware, Add-on Profile compatibility, saved switch configuration, power wiring, vertical mounting clearance, and required network services.
Revisions

Revision Part #

Also known as

9300-4EDM Ser A
9300-4EDM/A, Series A, Rev A
Alternative Names
9300-4EDM 9300 4EDM 93004EDM Allen-Bradley 9300-4EDM Allen Bradley 9300-4EDM Stratix 6000 1783-EMS04T
Technical notes
9300-4EDM is officially mapped to 1783-EMS04T. Verify Series A firmware, AOP compatibility, saved switch configuration, vertical mounting clearance, and engineering-replacement requirements before service.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Is Allen-Bradley 9300-4EDM the same cataloged hardware as 1783-EMS04T?
Yes. Rockwell Automation's official ATEX certificate explicitly lists `9300-4EDM (1783-EMS04T)`. When buying a replacement, still verify the label, Series, firmware, and saved configuration rather than relying only on the cross-reference.
How does Allen-Bradley 9300-4EDM limit multicast I/O traffic on an EtherNet/IP network?
Enable IGMP snooping so multicast packets are forwarded only to ports that need them. Rockwell recommends enabling it when I/O is running on the network, because uncontrolled multicast can slow devices that are not members of the intended group.
Why can port mirroring not be used with IGMP snooping on Allen-Bradley 9300-4EDM?
On the four-port switch, Rockwell documents port mirroring and IGMP snooping as mutually exclusive. Enabling port mirroring disables IGMP snooping, so use mirroring as a temporary diagnostic function and restore the production multicast configuration afterward.
Which firmware and Add-on Profile relationship must be checked for Allen-Bradley 9300-4EDM?
Rockwell's release notes identify firmware 0.09 for 9300-4EDM and require AOP version 1.03.0.0 with module version 1.002 for that release. Confirm the installed firmware before selecting a profile or restoring a project.
Can Allen-Bradley 9300-4EDM send a network or controller condition by email?
Yes. A Logix controller can send a generic CIP message that instructs the mapped 1783-EMS switch to send an email through an SMTP server. Configure the server, recipient, message tags, and delivery-status handling before relying on this notification path.
Is 1783-LMS5 a drop-in replacement for Allen-Bradley 9300-4EDM?
Rockwell lists 1783-LMS5 as an Engineering Replacement, not as an automatic drop-in substitution. Review the port plan, power and wiring, mounting, supported functions, firmware/AOP requirements, and configuration migration before conversion.
What can Allen-Bradley 9300-4EDM do with its ports if communication with the Logix controller is lost?
The switch can be configured to enable all ports, hold the last commanded state, or apply configured safe-state values. Select and test the intended communication-fault and Program-mode behavior before placing the network in service.
