1769-BA

/ 4.9
1001 reviews | Need a Specific Revision?

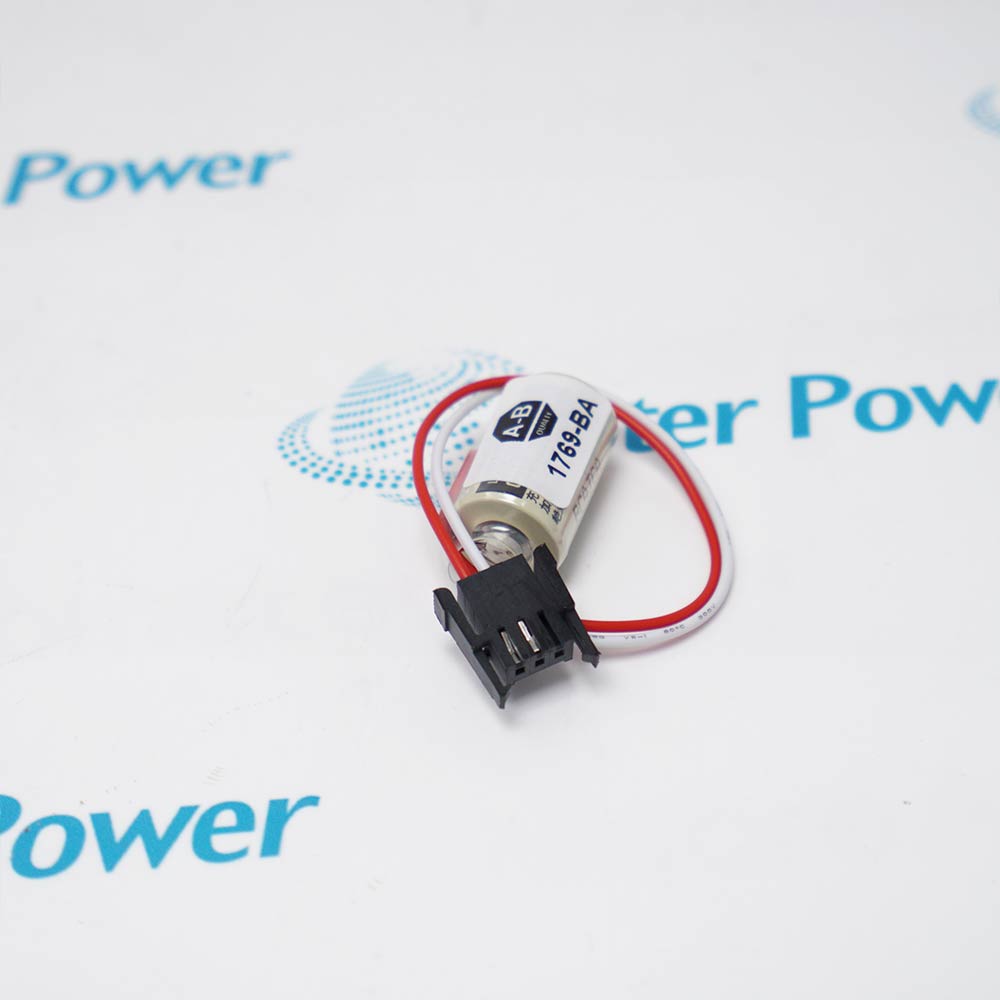

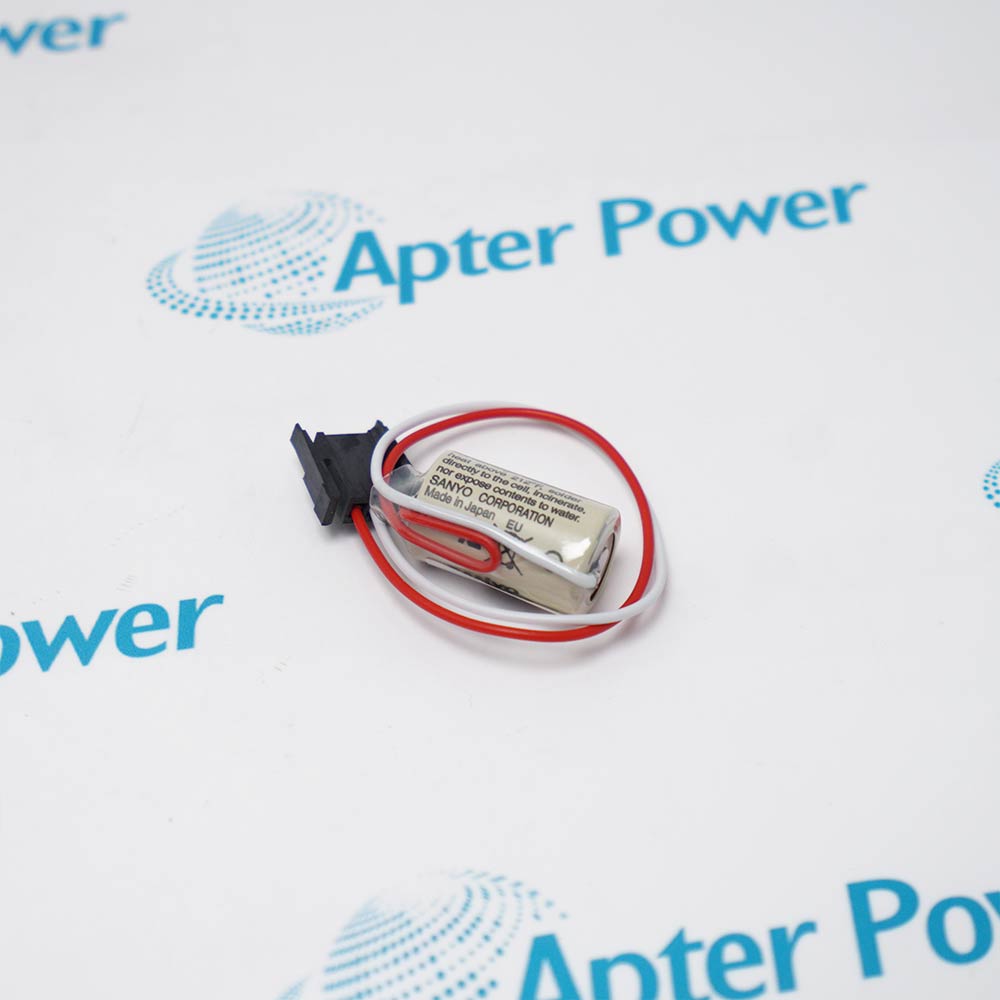

Allen-Bradley 1769-BA is the specified non-rechargeable memory-backup battery for selected CompactLogix controllers and must not be substituted with 1747-BA.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1769-BA
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1769-BA

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1769-BA
  • Product Family:
    CompactLogix
  • Product Type:
    3 V Lithium Replacement Battery
  • Stock:
    1
  • Battery Type:
    Sealed primary lithium cell; not rechargeable
  • Nominal Voltage:
    3 V
  • Controller Function:
    Retains controller memory after controller power is removed
  • Low-Battery Indication:
    Controller BAT indicator
  • Typical Life at 25°C, Controller Always Off:
    14 months
  • Typical Life at 25°C, Controller On 8 Hours/Day, 5 Days/Week:
    18 months
  • Typical Life at 25°C, Controller On 16 Hours/Day, 5 Days/Week:
    26 months
  • Normal Operating Temperature Range:
    0…60°C
  • Recommended Storage Environment:
    25°C and 40…60% relative humidity
  • Short-Term Transport/Storage Limit:
    -45…85°C for up to 30 days
  • Maximum Documented Storage Period:
    10 years
  • Controller Compatibility:
    1769-L23 controller family, 1769-L31, 1769-L32C, 1769-L35CR, 1769-L32E, and 1769-L35E
  • Tariff Code:
    8506500090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Battery Handling Controller Compatibility Maintenance Application
  • The controller BAT or BATT indicator provides the battery-condition warning while controller power is applied
  • Battery service life varies with ambient temperature and the controller power-on and power-off duty cycle
  • The controller program must be backed up before the installed battery is disconnected

1769-BA maintenance should begin by checking the controller battery indicator while the controller is powered; battery condition cannot be determined from this indicator when controller power is off.

Before replacement, save the controller program, prepare the correct new 1769-BA battery, and follow the controller-specific procedure so memory-retention time is not unnecessarily consumed.

Treat 1769-BA as a sealed primary lithium battery: do not recharge or dismantle it, and follow the official storage, transport, recycling, and disposal precautions.

Availability, condition, price, and shipping time for 1769-BA are confirmed during quotation.

Allen-Bradley 1769-BA 3 V Lithium Replacement Battery Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The sealed lithium cell is a primary battery and is not rechargeable
  • Store batteries in their original containers in a cool, dry, monitored area
  • Collect and recycle the battery separately from unsorted municipal waste
  • Rockwell identifies 1769-BA as the only battery for the documented CompactLogix controller group
  • The 1747-BA battery is not compatible with the specified CompactLogix controllers
  • Confirm the complete controller catalog number before ordering or installation
  • Use the controller BAT indicator to identify a low-battery condition
  • Preserve controller memory while following the controller-specific replacement procedure
  • Remove power or confirm a nonhazardous area before disconnecting the battery
  • Memory retention for 1769-L31 CompactLogix controllers
  • Memory retention for 1769-L32C and 1769-L35CR CompactLogix controllers
  • Memory retention for 1769-L32E and 1769-L35E CompactLogix controllers
Description
1769-BA is a sealed 3 V primary lithium replacement battery used to retain memory in supported CompactLogix controllers when controller power is removed.

Rockwell Automation specifies 1769-BA as the only battery for the supported 1769 CompactLogix controllers and documents battery-life estimates that vary with controller duty cycle and ambient temperature.

Before replacement, confirm the exact controller catalog number, observe the BAT indicator, preserve controller memory, follow hazardous-location precautions, and apply the official lithium-battery storage, handling, recycling, and disposal instructions.
Revisions

Revision Part #

Also known as

1769-BA Ser A
1769-BA/A, Series A, Rev A
Alternative Names
1769-BA 1769 BA 1769BA Allen-Bradley 1769-BA Allen Bradley 1769-BA Rockwell Automation 1769-BA CompactLogix 1769-BA
Technical notes
1769-BA is a non-rechargeable lithium memory battery for specified CompactLogix controllers; replace it only under the controller procedure while memory is protected, and never substitute 1747-BA, which Rockwell identifies as incompatible.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Is 1769-BA interchangeable with the 1747-BA battery?
No. Rockwell Automation states that 1769-BA is the specified battery for supported CompactLogix controllers and warns that 1747-BA is not compatible with those controllers.
When should 1769-BA be replaced in a CompactLogix controller?
Plan replacement when the controller BAT indicator reports a low battery, while following the controller manual procedure that preserves memory and avoids disconnecting equipment in a hazardous location.
How should a removed 1769-BA be handled after replacement?
Protect the battery from short circuits, keep it separate from general waste, and send it through an approved lithium-battery recycling or disposal route in accordance with applicable local requirements.
Which controllers should be verified before ordering 1769-BA?
Confirm the complete controller catalog number; Rockwell documentation lists supported 1769-L23 models, 1769-L31, 1769-L32C, 1769-L35CR, 1769-L32E, and 1769-L35E controllers.
How should an unused 1769-BA be stored before installation?
Keep 1769-BA in its original container in a cool, dry area, preferably around 25°C and 40…60% relative humidity, and control storage time on a first-in/first-out basis.
Can 1769-BA be replaced without losing the CompactLogix program?
Use the controller-specific replacement procedure while the project is backed up and controller memory is protected. Do not disconnect 1769-BA in a hazardous area, and confirm the BAT indication after installation.
What should be checked if a controller still reports a battery warning after fitting 1769-BA?
Verify the exact battery catalog number, connector seating, controller compatibility, and BAT indication procedure, then follow the controller troubleshooting instructions before assuming the replacement battery is faulty.
