        1769-IQ32T
        1769-IQ32T
        1769-IQ32T
        1769-IQ32T
        1769-IQ32T
        1769-IQ32T
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter Power provides Allen-Bradley 1769-IQ32T documentation, quotations, and product selection support.

        1769-IQ32T

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

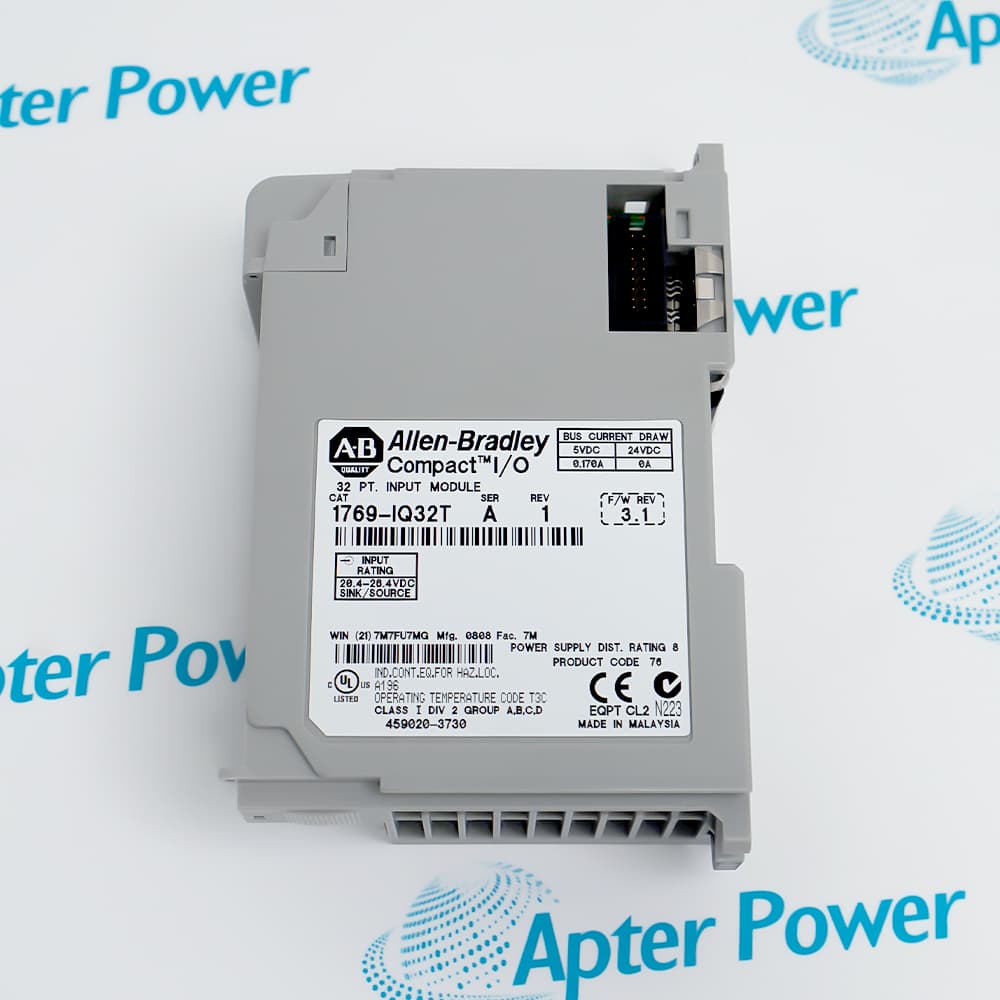

        Allen-Bradley 1769-IQ32T is a Compact I/O 32-point 24 V DC sink/source digital input module that receives field-device signals through four isolated groups of eight inputs.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for 1769-IQ32T
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 1769-IQ32T

        • Manufacturer:
          Allen-Bradley
        • Part Number:
          1769-IQ32T
        • Product Family:
          CompactLogix
        • Product Type:
          32-Point 24 V DC Terminated Digital Input Module
        • Stock:
          1
        • Input Count:
          32
        • Grouping:
          4 isolated groups of 8 inputs
        • Input Type:
          24 V DC sink/source
        • Operating Voltage Range:
          20.4–26.4 V DC at 60 °C
        • OFF-to-ON Filter:
          0, 0.1, 0.5, 1, 2, 4 or 8 ms
        • ON-to-OFF Filter:
          0, 0.1, 0.5, 1, 2, 4 or 8 ms
        • Hardware ON Delay:
          0.1 ms typical; 0.42 ms maximum
        • Hardware OFF Delay:
          0.25 ms typical; 1.0 ms maximum
        • Off-State Voltage, Maximum:
          11 V DC
        • Off-State Current, Maximum:
          1.7 mA
        • On-State Voltage, Minimum:
          19 V DC
        • On-State Current, Minimum:
          2 mA
        • Inrush Current, Maximum:
          5 mA
        • Input Impedance:
          5.6 kΩ
        • Bus Current Draw:
          170 mA at 5.1 V DC
        • Heat Dissipation:
          4.77 W maximum
        • Power Supply Distance Rating:
          8 modules
        • Group-to-Bus Isolation:
          1200 V AC for 1 s or 1697 V DC for 1 s
        • Group-to-Group Isolation:
          1200 V AC for 1 s or 1697 V DC for 1 s
        • Working Isolation Voltage:
          75 V DC
        • Field Connector:
          40-pin female connector to keyed male header
        • Mounting:
          Panel or 35 mm DIN rail
        • Operating Temperature:
          0 to +60 °C
        • Storage Temperature:
          -40 to +85 °C
        • Operating Humidity:
          5–95%, non-condensing
        • Weight:
          0.617 lbs (0.28 kg)
        • Estimated shipping dimensions:
          11.8x3.5x8.7cm
        • Tariff Code:
          8537101190
        • Country of origin:
          Malaysia
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Bank Layout Filter Timing Keyed Connector Isolation Paths

        Features:

        • Allen-Bradley 1769-IQ32T places 32 terminated 24 V DC inputs in one Compact I/O slot.
        • Four isolated banks allow sink or source field orientation at group level.
        • Separate OFF-to-ON and ON-to-OFF filter selections shape input response timing.
        A keyed 40-pin connector brings all field conductors to the module without using a conventional removable terminal block.

        Each bank has its own common and remains isolated from the Compact bus and from the other three banks.

        The chosen transition filters apply to the complete module and operate in addition to the hardware response time.

        The Allen-Bradley 1769-IQ32T 32-Point 24 V DC Terminated Digital Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Allen-Bradley 1769-IQ32T 32-Point 24 V DC Terminated Digital Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        Tracing thirty-two points across four commons

        • Bank one: Inputs 0–7 reference the first DC common.
        • Bank two: Inputs 8–15 remain electrically separate from the first bank.
        • Bank three: Inputs 16–23 use the third field reference.
        • Bank four: Inputs 24–31 complete the final isolated group.

        Relating software selection to the observed transition

        • Rising transition: The OFF-to-ON filter is selected independently from the falling transition.
        • Falling transition: The ON-to-OFF filter can use a different documented value.
        • Module scope: Each direction's selected value applies across all thirty-two points.
        • Total response: Hardware delay and digital filtering both contribute before the input image changes.

        Matching the terminated field interface

        • Header: A keyed male interface on the module receives the field connector.
        • Mating part: The 1746-N3 female connector provides forty terminal positions.
        • Prewired option: Documented 1492 cables and interface modules can route the same point groups.
        • Bank references: Connector pin assignment preserves the four independent DC commons.

        Where electrical separation is applied

        • Group to bus: Each eight-point bank is isolated from the Compact I/O backplane.
        • Group to group: The four banks are isolated from one another.
        • Inside a bank: Eight points share the same common and are not individually isolated.
        • Working level: The field grouping is limited by the documented 75 V DC working isolation voltage.
        Description

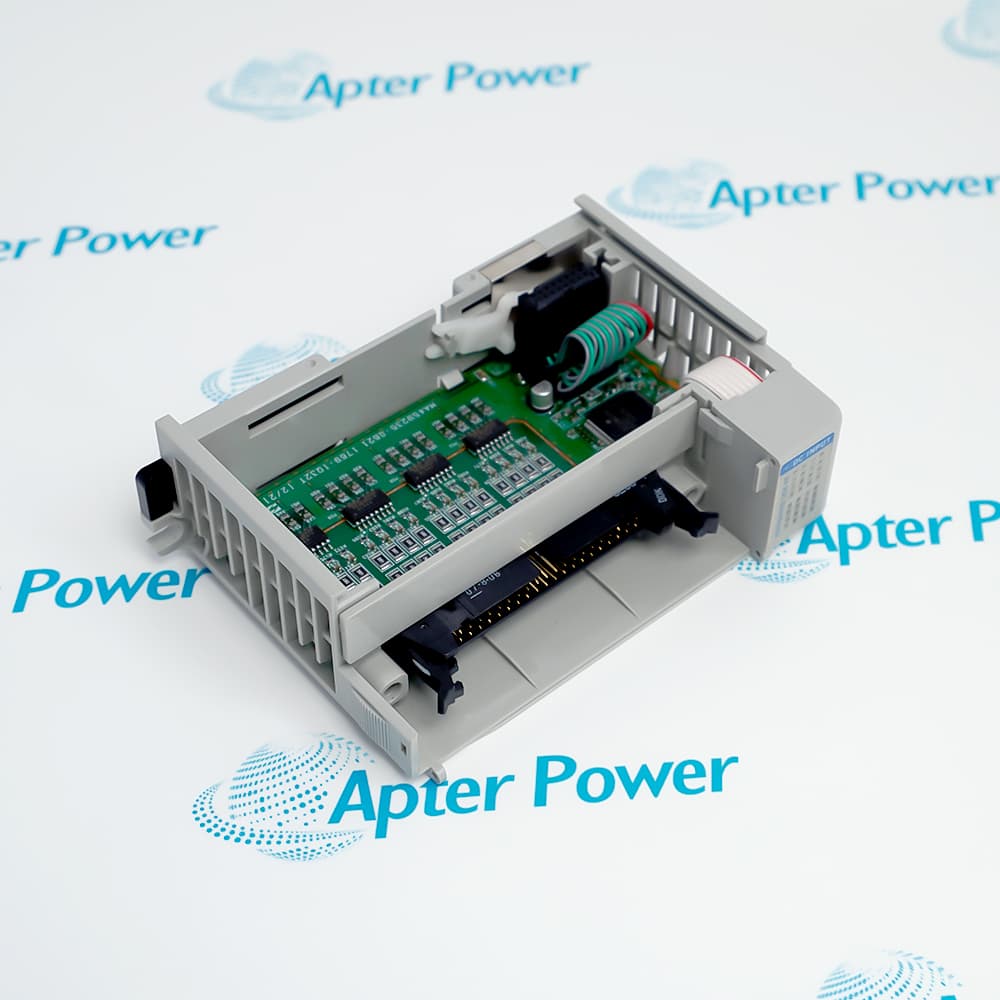

        A keyed 40-pin field interface gives Allen-Bradley 1769-IQ32T thirty-two terminated 24 V DC input points in a single-width Compact I/O module. The connector carries the field conductors while one side-bus connection transfers every input state into the controller image.

        Inputs 0–7, 8–15, 16–23 and 24–31 on 1769-IQ32T form four banks, each with its own DC common. A bank can be wired for sink or source operation, and the isolation structure separates each eight-point group from the bus and from the other three groups.

        Signal timing on 1769-IQ32T combines the fixed hardware response with independently selected OFF-to-ON and ON-to-OFF digital filters. The same selected filter applies across the complete module, so transition timing must be checked against both the hardware delay and the configured filter value.

        Installation of 1769-IQ32T can use a panel or 35 mm DIN rail, with the module kept inside the eight-position power-supply distance. The keyed header accepts the specified 1746-N3 connector and the documented 1492 prewired interface options without changing the four-bank electrical organization.
        Revisions

        Revision Part #

        Also known as

        1769-IQ32T Ser A
        1769-IQ32T/A, Series A, Rev A
        Get Parts Quote
        Alternative Names
        1769IQ32T 1769 IQ32T Allen-Bradley 1769 IQ32T Allen Bradley 1769-IQ32T 1769-1Q32T I769-IQ32T 1769-IQ32T 32-Point Input Module Compact I/O 1769 IQ32T
        Technical notes
        Allen-Bradley 1769-IQ32T routes 32 terminated DC inputs through four isolated eight-point banks with one configurable filter setting for each transition direction.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        How can the four commons on Allen-Bradley 1769-IQ32T prevent a wiring mix-up?
        Map Allen-Bradley 1769-IQ32T as four separate banks—0–7, 8–15, 16–23 and 24–31—and keep each bank with its own DC common.
        Can one Allen-Bradley 1769-IQ32T bank be sourced while another bank is sunk?
        Yes. Each eight-point group on Allen-Bradley 1769-IQ32T has its own common, so sink or source orientation is established at bank level.
        Why may an Allen-Bradley 1769-IQ32T state change later than the listed hardware delay?
        Allen-Bradley 1769-IQ32T adds the selected digital filter to its hardware response, and OFF-to-ON and ON-to-OFF settings can differ.
        Which connector should be verified for an Allen-Bradley 1769-IQ32T replacement?
        Confirm the keyed 40-pin interface used by Allen-Bradley 1769-IQ32T, including the 1746-N3 connector or the documented 1492 prewired option.
        Is every point on Allen-Bradley 1769-IQ32T individually isolated?
        No. Allen-Bradley 1769-IQ32T isolates each group of eight from the bus and the other groups, but points inside a bank share its common.
        What supply window must be maintained at 60 °C for Allen-Bradley 1769-IQ32T?
        Keep the field supply for Allen-Bradley 1769-IQ32T within 20.4–26.4 V DC at 60 °C so its input thresholds remain inside specification.
