    Apter Power keeps essential stock of this Allen-Bradley 12-point module, standing ready to fulfill your urgent maintenance or system upgrade orders with direct delivery guarantees.

1794-IE12

/ 4.9
1001 reviews | Need a Specific Revision?
The 1794-IE12 is a Rockwell Automation FLEX I/O analog input module with 12 single-ended, non-isolated channels, ±10V or 0-20mA inputs, 16-bit resolution, and 8 ms conversion rate.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1794-IE12
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1794-IE12

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1794-IE12
  • Product Family:
    Flex I/O
  • Product Type:
    I/O Analog Input Module
  • Stock:
    1
  • Number of Inputs:
    12 single-ended, non-isolated
  • Input Ranges (configurable):
    ±10V, 0-10V, 0-20mA, 4-20mA
  • Resolution (voltage):
    320 μV/cnt
  • Resolution (current):
    0.641 μA/cnt
  • Conversion Rate (all channels):
    8.0 ms
  • Absolute Accuracy (25°C):
    0.1% of full scale (voltage/current)
  • Input Impedance (voltage):
    >1 MΩ
  • Input Impedance (current):
    <100 Ω (with 24V DC applied)
  • External DC Power Supply Range:
    10.0...31.2V DC (includes 5% AC ripple)
  • Current Consumption (24V DC):
    30 mA
  • FlexBus Current:
    80 mA
  • Keyswitch Position:
    3
  • Nonoperating Temperature:
    -40...85°C
  • Weight:
    0.1 kg
  • Estimated shipping dimensions:
    9.3x5.4x4.8cm
  • Tariff Code:
    8517795000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Performance Application Scenarios

Features:

  • 12 single-ended, configurable inputs (voltage/current) in a single module; saves rack space and reduces system cost.
  • Accommodates power variations, long cable drops, and battery-backed systems; extended operating temperature (-20 to +60°C).
  • Per-channel configuration for ±10V, 0-10V, 0-20mA, or 4-20mA; eliminates separate module types for different sensors.
In a typical industrial control system, analog input points are required for pressure, temperature, flow, level, and other process variables. Using conventional 4 or 8-channel modules would consume multiple slots and require additional terminal bases, increasing panel space and cost. The 1794-IE12 consolidates up to 12 signals in one module, freeing rack space for other I/O types. Each channel is single-ended and non-isolated, suitable for applications where field devices share a common ground.

The 1794-IE12 is designed for real-world industrial power conditions. It accepts an external DC supply from 10.0 to 31.2V, including up to 5% AC ripple. This wide range provides several practical advantages. First, it accommodates nominal 12V or 24V systems. Second, it tolerates voltage drop on long cable runs between the power supply and the module – a common issue in distributed I/O installations. Third, it continues to operate even when the supply sags under heavy load or during motor starting. The tolerance for 5% AC ripple means the module will function correctly even if the DC supply has residual ripple from insufficient filtering – a common problem when adding I/O to an existing power supply.

The 1794-IE12 offers exceptional flexibility through per-channel input range configuration. Each of the 12 channels can be independently set for voltage (±10V or 0-10V) or current (0-20mA or 4-20mA). This eliminates the need to stock separate voltage-only and current-only modules, reducing spare parts inventory. The 4-20mA range is essential for industrial transmitters (pressure, temperature, flow) that use live-zero current loops. The 0-20mA range accommodates older or specialized devices. The ±10V range is common for speed references, position feedback, and many analog sensors.

The 1794-IE12 Allen-Bradley I/O Analog Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL)by the manufacturer (OEM).

Allen-Bradley 1794-IE12 I/O Analog Input Module Manuals, Datasheets,Drivers,Link Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
Allen-Bradley 1794-IE12 I/O Analog Input Module Specs

General

  • Manufacturer Allen-Bradley
  • Model 1794-IE12
  • Condition New Original ready stock
  • Product Family 1794-IE8,1794-IE4XOE2,1794-IE8XOE4
Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
  • Process Monitoring: Connects to field equipment such as pressure transmitters, flow meters, level gauges, and temperature sensors.
  • Distributed Control System (DCS): Remotely acquires signals via communication adapters (such as EtherNet/IP or ControlNet), reducing interference from long-distance analog cabling.
  • Mechanical Automation: Suitable for equipment racks requiring high-density I/O and with limited space, such as packaging machines and assembly lines.
  • High Resolution and Speed: Utilizing 16-bit resolution, all channels achieve a conversion rate of only 8.0 ms, enabling rapid response to minute process changes.
  • Low Power Consumption Design: Maximum power dissipation is only 1.2 W, helping to reduce heat buildup within the rack and improve overall system stability.
  • Electrical Protection: Equipped with 50V continuous isolation voltage protection, effectively preventing electromagnetic interference and fault crossings between channels or at the system level.
  • Equipment Retrofitting and Upgrading: Supports hot-swappable (RIUP) modules, allowing replacement without interrupting system power, significantly reducing maintenance and upgrade downtime.
  • Large-Scale System Integration: Enables online configuration with Studio 5000 Logix Designer, allowing adjustment of ranges or filtering parameters without changing hardware wiring.
Description

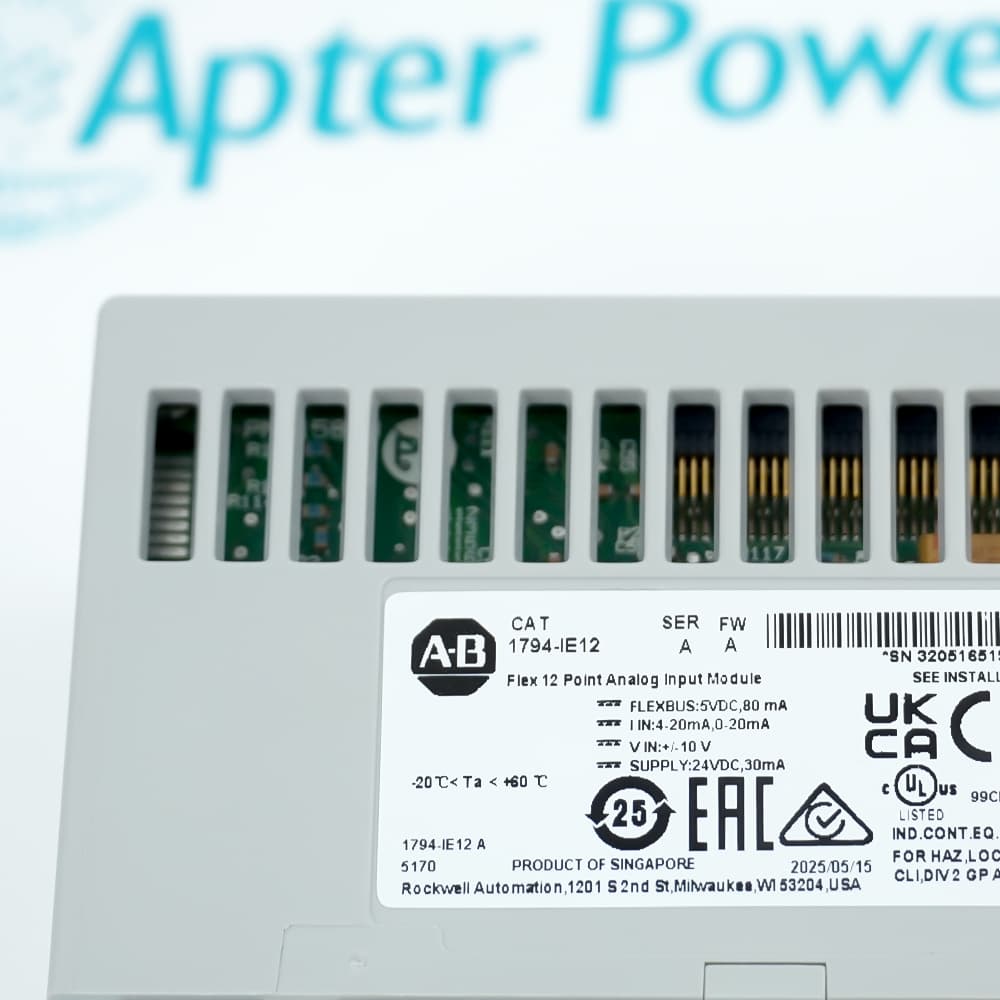

The 1794-IE12 is a high-density analog input module for the FLEX I/O system. It provides 12 single-ended, non-isolated input channels user-configurable for voltage (±10V, 0-10V) or current (4-20mA, 0-20mA). Resolution is 320 μV/cnt for voltage and 0.641 μA/cnt for current. The conversion rate for all channels is 8.0 ms. The module has a green/red power/status indicator.

When using the 1794-IE12, engineers can monitor up to 12 analog signals from field devices such as pressure transmitters, flow meters, or temperature sensors. The module has a step response of 1.3 seconds to 63% for voltage inputs and 0.09 seconds for current inputs. Absolute accuracy is 0.1% of full scale at 25°C for both voltage and current. Input impedance is >1 MΩ for voltage and <100 Ω for current.

The 1794-IE12 requires an external 24V DC power supply (10-31.2V DC including 5% AC ripple). Current consumption is 30 mA at 24V DC (45 mA at 10V DC). Power dissipation is 1.2 W at 31.2V DC. The module has 50V continuous isolation between user power and system, tested at 850V DC for 60 seconds. No isolation exists between individual channels.

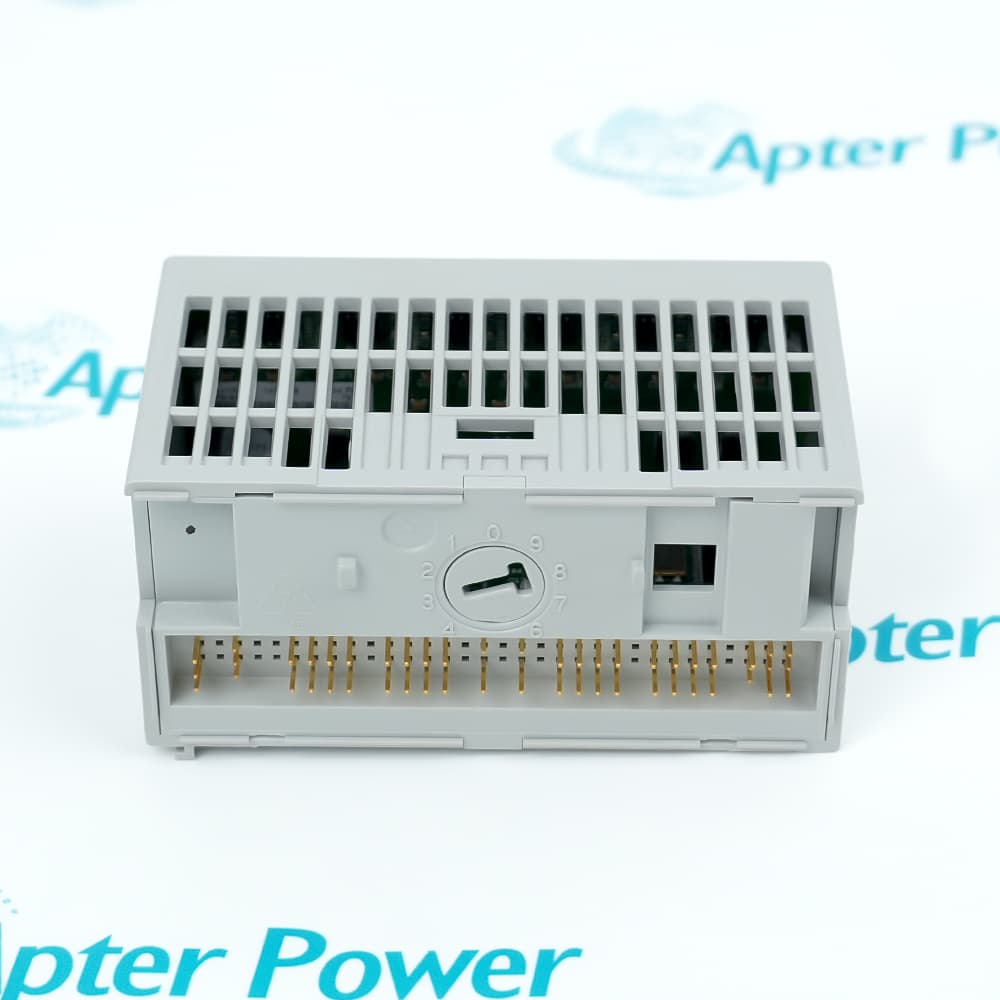

For legacy FLEX I/O system expansions, the 1794-IE12 provides high-density analog input capability. It uses a 1794-TB3G or 1794-TB3GS terminal base with a keyswitch position of 3.
Revisions

Revision Part #

Also known as

1794-IE12 Ser A
1794-IE12/A, Series A, Rev A
Alternative Names
1794-IE8 1794-IE4XOE2 1794-IE8XOE4
Technical notes
The 1794-IE12 has non-isolated single-ended inputs. There is no isolation between individual channels. If field devices have different ground potentials, ground loops can occur. Use isolated signal conditioners if necessary. Isolation between user power and system is 50V continuous (tested at 850V DC).
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How many inputs does the 1794-IE12 provide?
The 1794-IE12 provides 12 single-ended analog inputs – more than any other FLEX I/O analog input module. This high density allows monitoring of up to 12 field devices (transmitters, sensors) in a single 94 mm module, saving rack space and reducing hardware costs.
What signal types can the 1794-IE12 accept?
The 1794-IE12 is user-configurable per channel for voltage (±10V, 0-10V) or current (0-20mA, 4-20mA). This flexibility eliminates the need for separate modules for different sensor types. Resolution is 320 μV/cnt for voltage and 0.641 μA/cnt for current.
What DC power range does the 1794-IE12 accept?
The 1794-IE12 accepts an external DC supply from 10.0 to 31.2V DC (including 5% AC ripple). This wide range accommodates power supply variations, voltage drop on long cables, and battery-backed systems. Current consumption is 30 mA @ 24V DC, 45 mA @ 10V DC.
What is the temperature rating of the 1794-IE12?
The 1794-IE12 operates from -20 to +60°C (extended range) in addition to the standard 0-55°C range. This makes it suitable for outdoor cabinets, unheated enclosures, or high-temperature industrial environments. Storage temperature is -40 to +85°C.
