1762-IQ16

/ 4.9
1001 reviews | Need a Specific Revision?

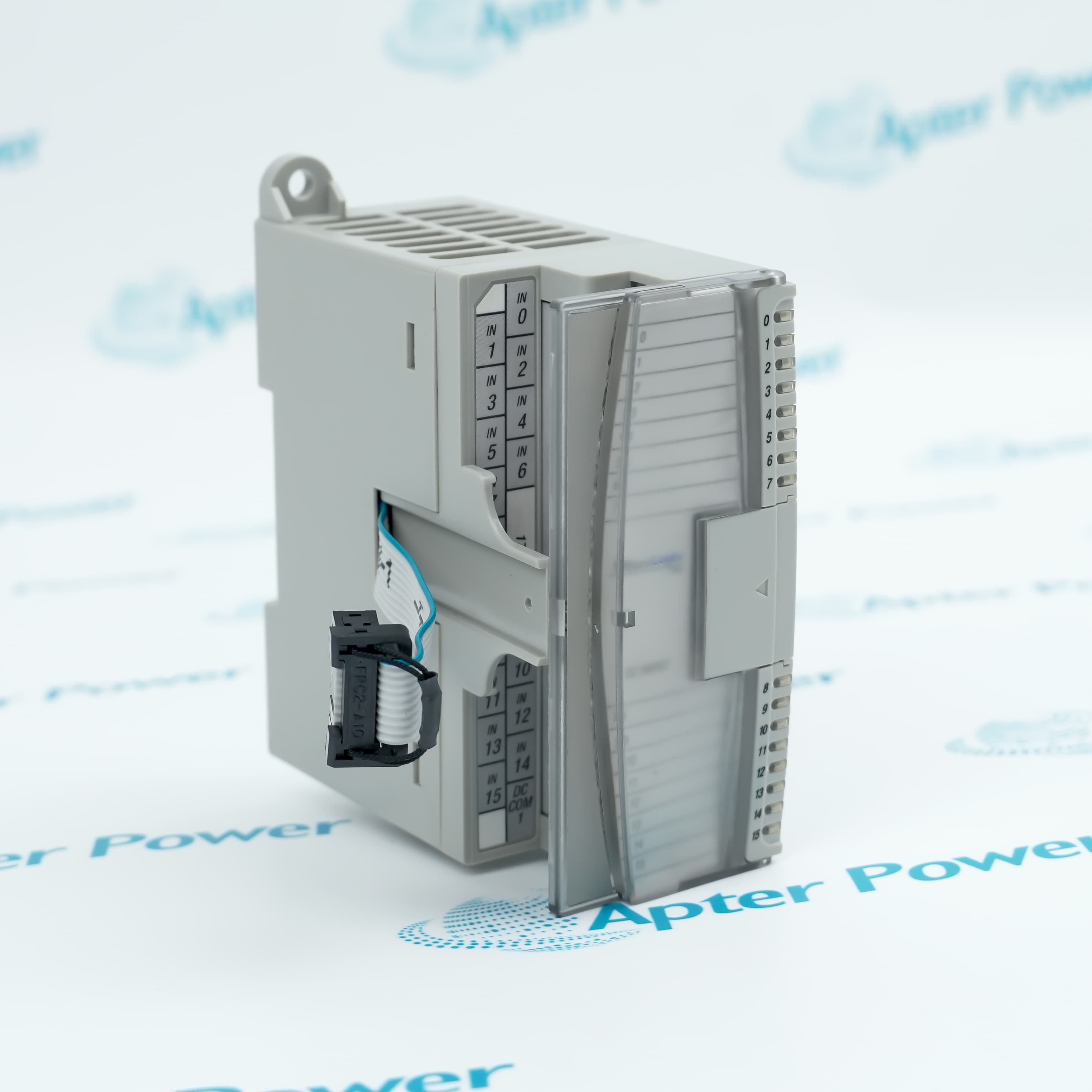

Allen-Bradley 1762-IQ16 is an Active Mature MicroLogix 16-point 24 V DC sink/source digital input module.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1762-IQ16
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1762-IQ16

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1762-IQ16
  • Product Family:
    MicroLogix
  • Product Type:
    MicroLogix 16-Point Digital Input Module
  • Stock:
    1
  • Input Points:
    16
  • Input Type:
    24 V DC sink/source
  • Input Voltage Range:
    10…30 V DC
  • Input Groups:
    Two isolated groups, inputs 0…7 and 8…15
  • Input Commons:
    2
  • Nominal Input Current:
    8 mA at 24 V DC
  • Maximum Input Current:
    12 mA at 30 V DC
  • Maximum Signal Delay:
    8 ms on; 8 ms off
  • Bus Current Draw:
    70 mA at 5 V DC
  • Maximum Heat Dissipation:
    5.4 W
  • Operating Temperature:
    −20…65 °C
  • Relative Humidity:
    5…95%, noncondensing
  • Dimensions:
    4.04 × 9.0 × 8.7 cm
  • Weight:
    0.23 kg
  • Tariff Code:
    8471800000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Thresholds Isolation Installation Application
  • Sixteen 24 V DC sink/source inputs for MicroLogix expansion I/O
  • Two isolated eight-point groups with separate input commons
  • Maximum on-state and off-state signal delay is 8 ms

1762-IQ16 adds sixteen discrete input points to a compatible MicroLogix controller system.

Its two isolated groups allow field wiring to be organized around separate commons while preserving the documented 10…30 V DC input range.

Confirm controller support, expansion position, bus-current capacity, device polarity, common wiring, addressing, and terminal identification before commissioning.

Availability, condition, price, and shipping time for 1762-IQ16 are confirmed during quotation.

Allen-Bradley 1762-IQ16 MicroLogix Digital Input Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Maximum off-state voltage is 5 V DC
  • Maximum off-state current is 1.5 mA
  • Minimum on-state current is 2.0 mA at 10 V DC
  • Input-group-to-backplane isolation is verified at 1200 V AC for 1 second
  • The alternative dielectric test is 1697 V DC for 1 second
  • Working voltage is 75 V DC with IEC Class 2 reinforced insulation
  • MicroLogix 1200 expansion I/O must be mounted horizontally
  • Maintain 50.8 mm clearance on all sides for ventilation
  • Use panel mounting instead of DIN-rail mounting where vibration or shock is a greater concern
  • Discrete 24 V DC field-input expansion for compatible MicroLogix controllers
  • Machine input groups that require two separately wired commons
  • Replacement projects that preserve the original I/O addresses and terminal map
Description
1762-IQ16 is an Allen-Bradley MicroLogix expansion I/O module with sixteen 24 V DC sink/source digital inputs.

The inputs operate from 10…30 V DC and are divided into two isolated groups, inputs 0…7 and inputs 8…15, with one common for each group. Maximum on-state and off-state signal delay is 8 ms.

Before installation or replacement, verify controller compatibility, available expansion-bus power, field-device polarity, the two common groups, terminal assignments, input addressing, and the saved controller program.
Revisions

Revision Part #

Also known as

1762-IQ16 Series A
1762-IQ16/A, Series A
1762-IQ16 Series B
1762-IQ16/B, Series B
1762-IQ16 Series C
1762-IQ16/C, Series C
Alternative Names
1762-IQ16 1762IQ16 1762 IQ16 Allen-Bradley 1762-IQ16 Allen Bradley 1762-IQ16 AB 1762-IQ16 Rockwell Automation 1762-IQ16 MicroLogix 1762-IQ16 Input Module
Technical notes
1762-IQ16 requires controller compatibility, expansion-bus current, field-device polarity, both isolated input commons, terminal assignments, and I/O addressing to be checked before installation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can Allen-Bradley 1762-IQ16 accept both sinking and sourcing field devices?
The module is specified for 24 V DC sink/source inputs, but each field circuit must be wired to the correct common and polarity shown in the installation instructions.
Does Allen-Bradley 1762-IQ16 require a power-budget check before installation?
Yes. Include its 70 mA draw at 5 V DC in the MicroLogix expansion-bus power calculation together with every other attached module.
Can Allen-Bradley 1762-IQ16 replace an input module without changing the PLC program?
Only when the controller, expansion position, I/O address, point count, electrical type, and terminal assignment match the original project.
What wiring information should be recorded before replacing Allen-Bradley 1762-IQ16?
Record every input terminal, both common connections, field-device polarity, wire labels, expansion position, and the current controller program.
How should a technician troubleshoot an inactive point on Allen-Bradley 1762-IQ16?
Check field voltage, device polarity, the correct group common, terminal continuity, the module status, and the corresponding input address in the controller.
Is Allen-Bradley 1762-IQ16 suitable for safety-rated input functions?
Do not treat a standard MicroLogix input module as a safety I/O device. Use a documented safety architecture when the machine function requires a safety rating.
What details should accompany a quote request for Allen-Bradley 1762-IQ16?

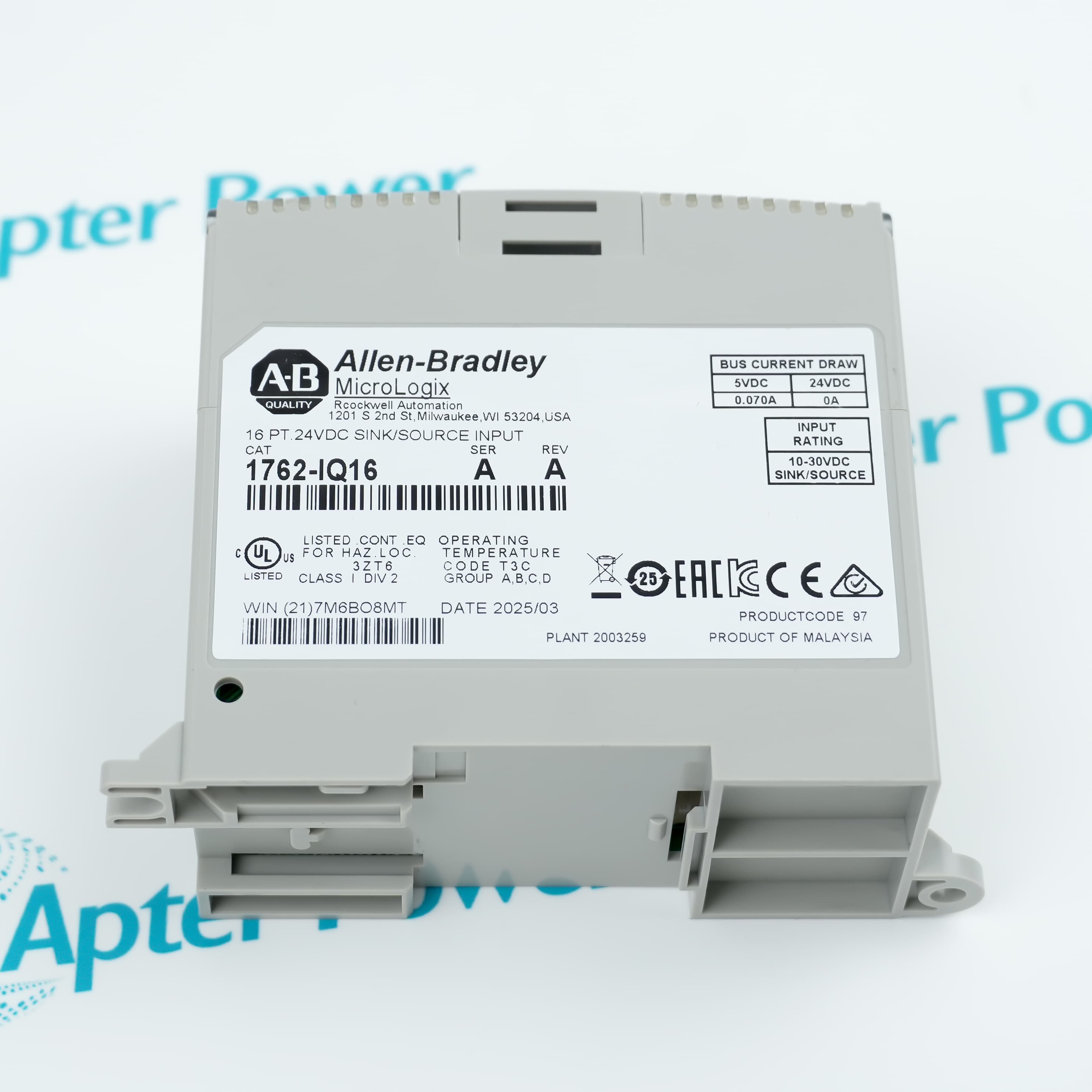

Provide the full catalog number, controller model, expansion position, supply voltage, quantity, required condition, and clear module-label photos.
