1771-HS3A

/ 4.9
1001 reviews | Need a Specific Revision?

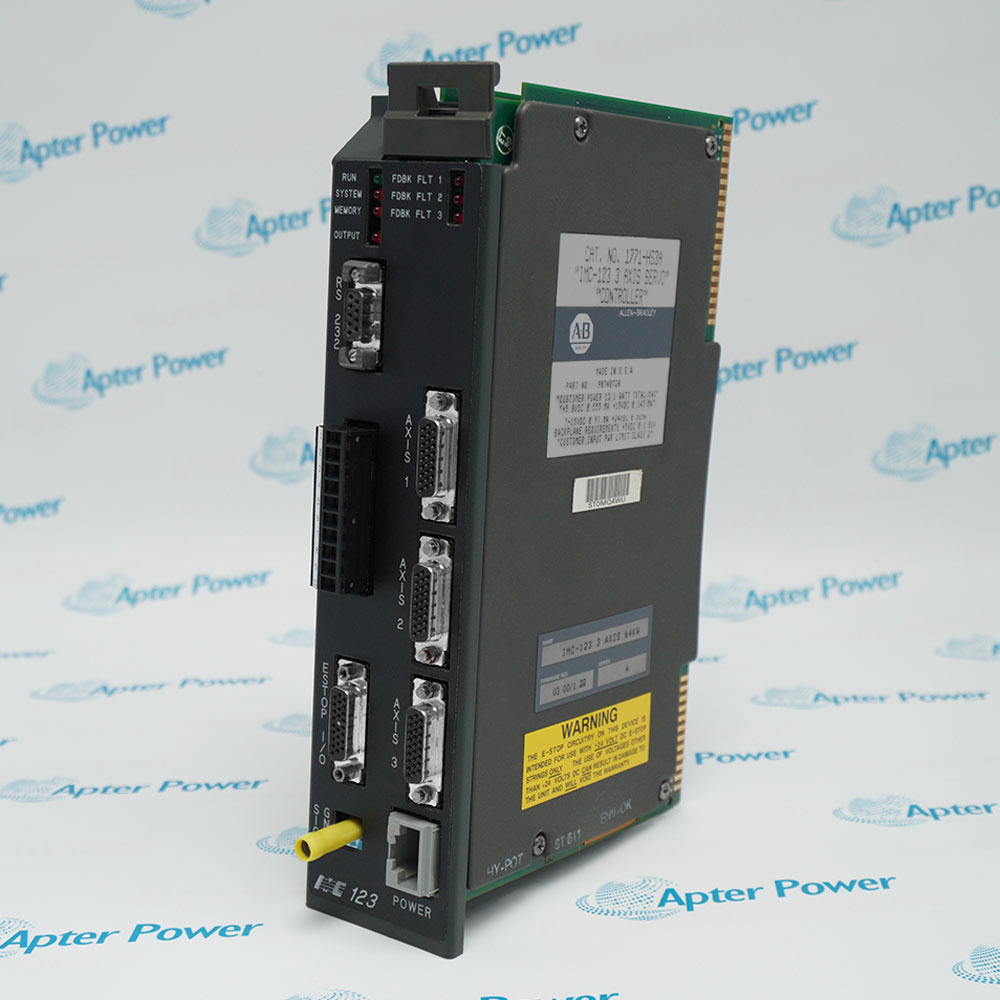

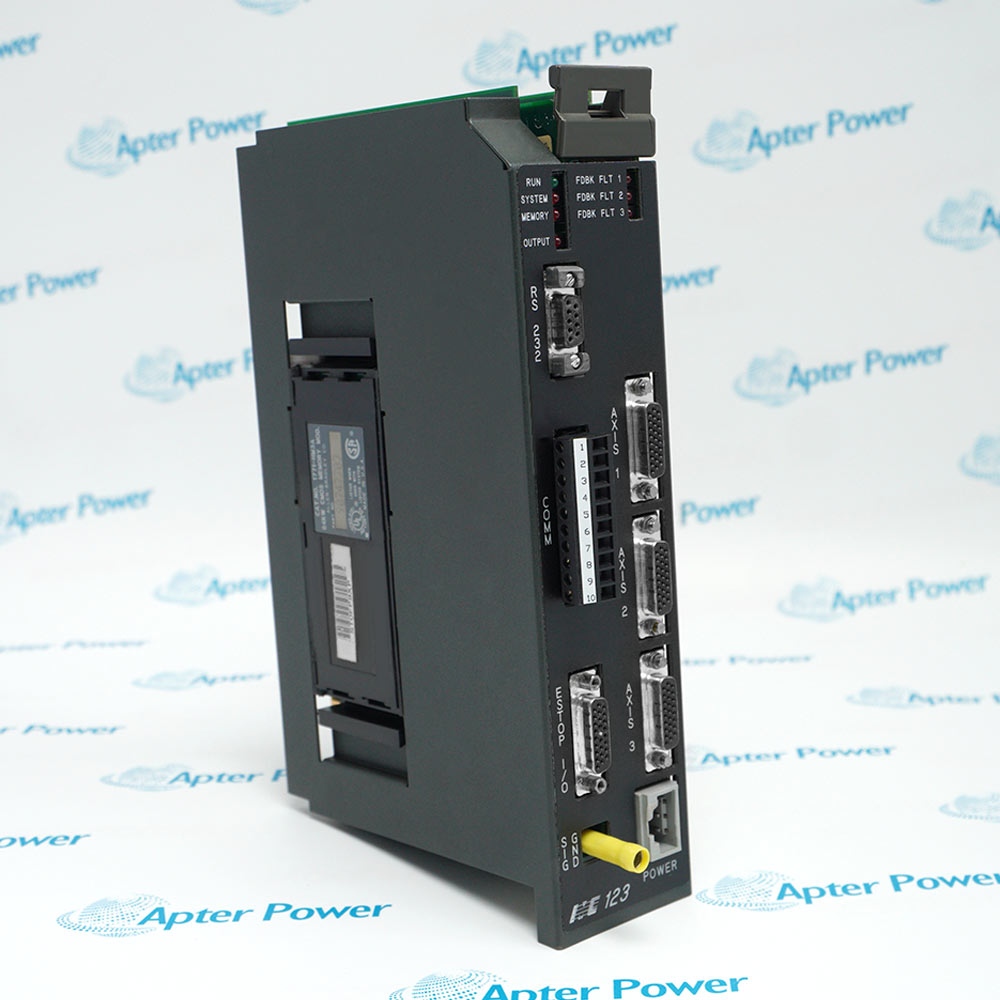

Allen-Bradley 1771-HS3A is an IMC 123 motion-control module used with 1771-series axis termination hardware and dedicated feedback connections.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1771-HS3A
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1771-HS3A

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1771-HS3A
  • Product Family:
    PLC-5
  • Product Type:
    IMC 123 Motion-Control Module
  • Stock:
    1
  • Motion-Control Platform:
    IMC 123
  • Axis Interconnect Cable:
    1771-CAE
  • Compatible Termination Panels:
    1771-HTE, 1771-HTR, and 1771-HTT
  • Cable Connector:
    26-pin subminiature D connector
  • Specified Cable Type:
    Belden 8774 or equivalent
  • Nominal Interconnect Length:
    120 in (+5.50 / -1.50 in)
  • Encoder Signal Groups:
    AX, BX, and ZX differential channels with shields
  • Feedback Signals:
    Feedback I/O, Drive X, returns, grounds, and shields
  • Cable Supply Conductors:
    +5 V and +15 V
  • Remote-I/O Compatibility Restriction:
    Not compatible with 1771-ASB adapters earlier than Series C, firmware revision D
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Axis Feedback Cable Interface Installation Application
  • Interfaces IMC 123 axis control with dedicated feedback and drive wiring
  • Uses the documented 1771-CAE cable and compatible axis termination panel
  • Requires feedback polarity, shielding and axis wiring to be preserved during service

1771-HS3A is an Allen-Bradley IMC 123 motion-control module for a 1771 I/O chassis.

Its axis connection depends on the specified 1771-CAE cable, termination hardware and differential feedback signals rather than general-purpose 1771 field wiring.

Before exchanging the module, identify the installed termination panel and record feedback polarity, shield connections, drive commands and machine-direction conventions.

Availability, condition, price, and shipping time for 1771-HS3A are confirmed during quotation.

Allen-Bradley 1771-HS3A IMC 123 Motion-Control Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Encoder feedback is carried through differential AX, BX, and ZX signal pairs
  • Feedback and drive conductors use dedicated returns, grounds, and shields
  • Preserve the installed axis assignments before disconnecting the module
  • The 1771-CAE cable links the module to the documented axis termination panel
  • Both cable ends use 26-pin subminiature D connector hardware
  • Inspect connector pins, cable shielding, and strain relief before reuse
  • Confirm remote-I/O adapter compatibility before installing the module
  • Match the termination-panel catalog number and cable orientation
  • Restore the verified IMC 123 application configuration before axis commissioning
  • IMC 123 multi-axis machine control
  • Legacy encoder and drive-feedback termination
  • Maintenance replacement in documented 1771 motion systems
Description
In an IMC 123 motion-control installation, the 1771-HS3A provides the module-side interface between the programmed axis functions and the machine’s feedback and drive-control hardware.

Field wiring is routed through a 1771-CAE interconnect cable to the applicable axis-termination panel. The documented arrangements include the 1771-HTE for encoder feedback, the 1771-HTR for resolver feedback, and the 1771-HTT for Temposonics feedback.

The selected termination panel, feedback device, interconnect cable, drive wiring, shielding, grounding, connector pinout, and saved IMC 123 configuration must correspond to the installed axis arrangement; choosing the module by catalog number alone does not establish a complete compatible system.
Alternative Names
1771-HS3A 1771 HS3A 1771HS3A Allen-Bradley 1771-HS3A Allen Bradley 1771-HS3A Rockwell Automation 1771-HS3A IMC 123 1771-HS3A
Technical notes
1771-HS3A requires the correct IMC 123 slot, 1771-CAE cable, termination panel, feedback wiring, and adapter firmware; mismatched interfaces can interrupt axis control.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What should be matched before replacing 1771-HS3A?
Confirm the IMC 123 application, chassis position, compatible remote-I/O adapter firmware, 1771-CAE cable, termination-panel catalog number, connector hardware, feedback wiring, and grounding before removing the installed module.
Which termination panels are documented for 1771-HS3A?
Rockwell Automation's 1771-CAE cable drawing identifies 1771-HTE, 1771-HTR, and 1771-HTT as the mating axis termination panels; verify the installed panel before ordering a replacement.
Which cable should connect 1771-HS3A to the axis termination panel?
Use the documented 1771-CAE interconnect cable and confirm both 26-pin connectors, cable condition, shield continuity, and conductor assignments before commissioning the axis.
Can 1771-HS3A be used with an early 1771-ASB remote-I/O adapter?
Rockwell Automation's compatibility table states that 1771-HS3A is not compatible with 1771-ASB adapters earlier than Series C with firmware revision D.
What wiring should be preserved when replacing 1771-HS3A?
Record the AX, BX, and ZX feedback pairs, shields, feedback I/O, Drive X, power conductors, returns, grounds, and the termination-panel end of the 1771-CAE cable.
Does 1771-HS3A require a compatible termination panel?
Yes. The official interconnect drawing routes the module through 1771-CAE to a documented 1771-HTE, 1771-HTR, or 1771-HTT panel rather than directly to loose field wiring.
Why can an installed 1771-HS3A fail after a like-for-like swap?
Check adapter firmware compatibility, cable orientation, bent connector pins, shield and ground continuity, axis-feedback assignments, and the restored IMC 123 configuration before suspecting the replacement module.
