    Apter Power stocks rigorously tested, hard-to-find Allen-Bradley 1784-KTX interface modules, enabling secure data collection and programming links for your mature industrial networks.

1784-KTX

/ 4.9
1001 reviews | Need a Specific Revision?

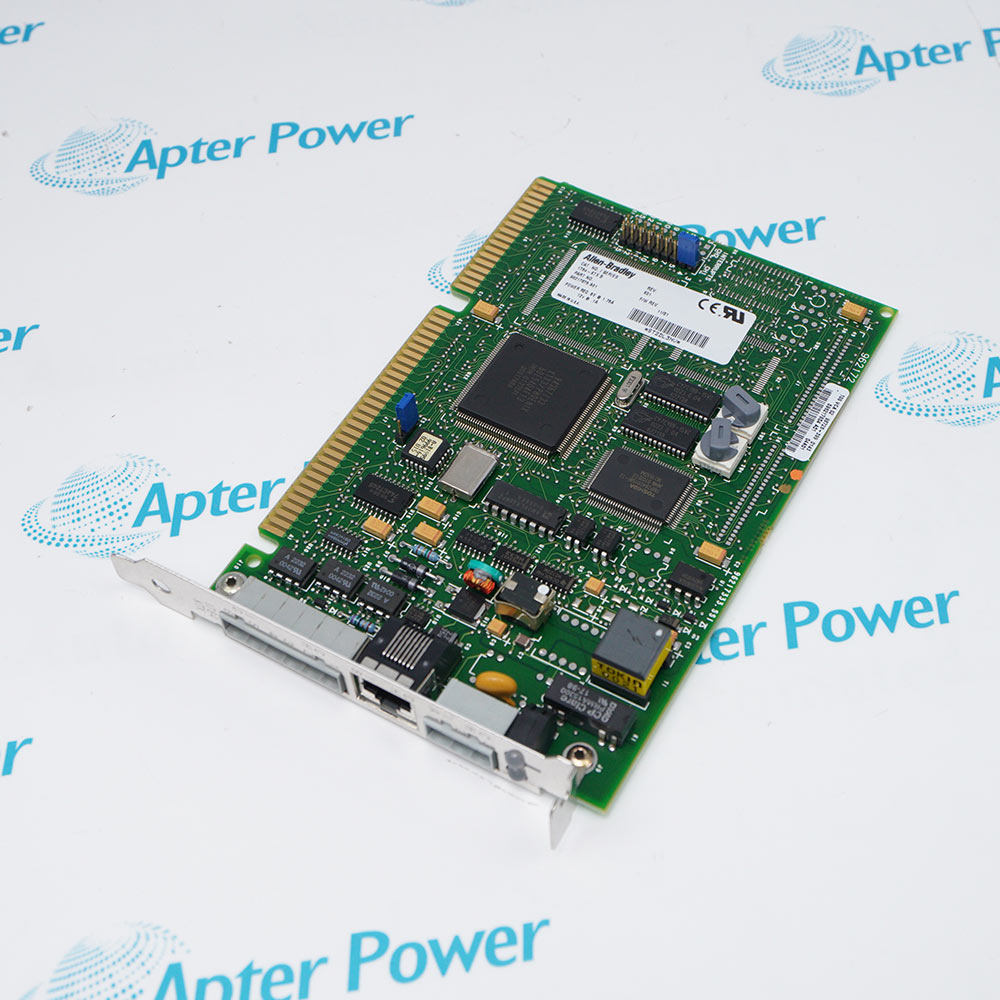

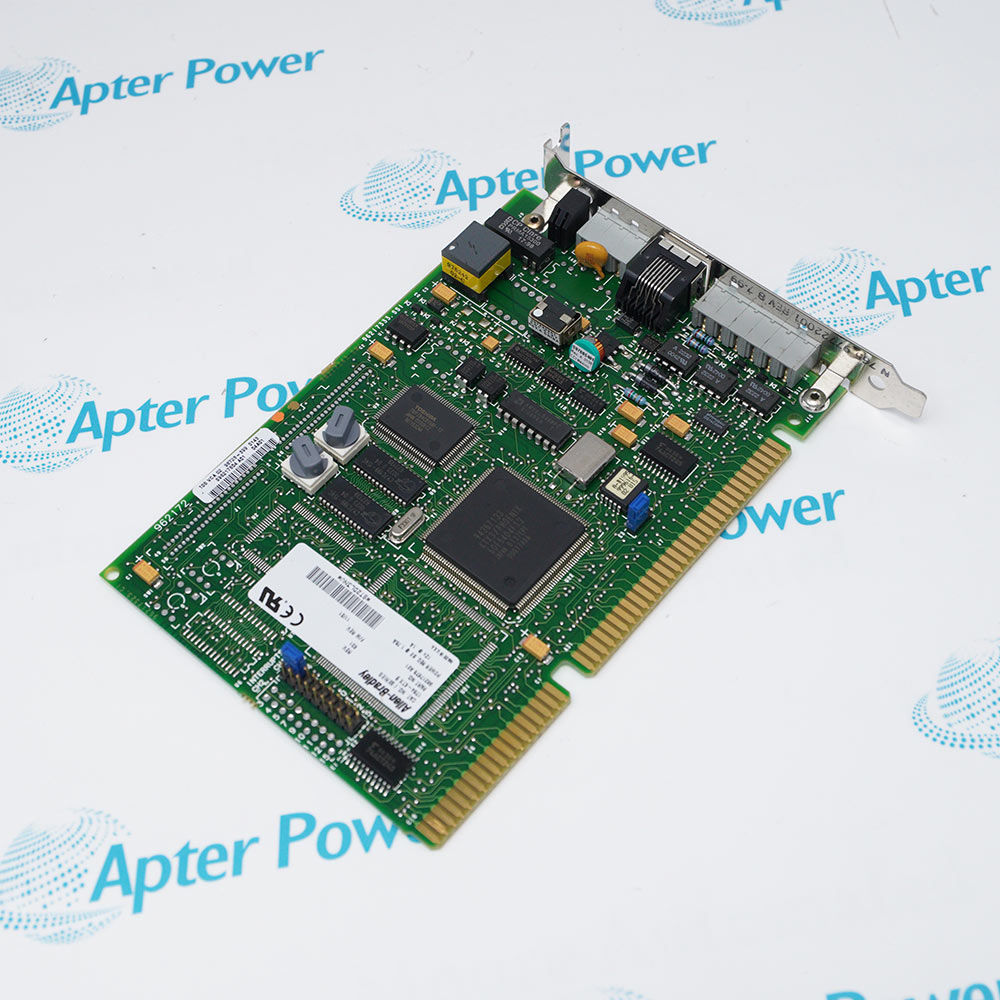

Allen-Bradley 1784-KTX is a single-channel ISA communication card for DH+, DH-485, remote I/O scanning, and supported direct PLC-2 or PLC-3 connections.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1784-KTX
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1784-KTX

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1784-KTX
  • Product Family:
    PLC-5
  • Product Type:
    Single-Channel DH+/DH-485 and Remote I/O Interface Card
  • Stock:
    1
  • Form Factor:
    Half-size ISA communication interface card
  • Host Slot:
    16-bit ISA or EISA
  • Communication Channels:
    One
  • Supported Networks:
    Data Highway Plus or Data Highway-485
  • Remote I/O Function:
    Scanner
  • Direct Connection:
    Supported for documented PLC-2 or PLC-3 connections
  • Compatible Processor Families:
    PLC-2, PLC-3, PLC-5, and SLC on supported networks
  • Operational Slot Temperature:
    0 to 60 °C
  • Non-operational Slot Temperature:
    -40 to 85 °C
  • Dimensions:
    2.2 × 17.1 × 12.6 cm
  • Weight:
    0.12 kg
  • Tariff Code:
    8517623990
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Host Configuration Network Modes Installation Application
  • Installs inside a compatible industrial computer through a 16-bit ISA or EISA expansion slot
  • Provides the host with one selectable interface for an Allen-Bradley control network
  • Uses assigned computer resources and adapter settings to establish the active communication path

1784-KTX gives a compatible industrial computer direct access to supported Allen-Bradley controllers and I/O equipment for programming, diagnostics, or host-based data exchange.

Because the card has one communication channel, its configured network role must match the intended connection before the host application is started.

When moving the card to another computer, reproduce the original resource assignment and adapter configuration, then confirm communication with every required station before returning the system to operation.

Availability, condition, price, and shipping time for 1784-KTX are confirmed during quotation.

Allen-Bradley 1784-KTX Single-Channel DH+/DH-485 and Remote I/O Interface Card Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Use a 16-bit ISA or EISA slot and remove computer power before installation.
  • Preserve the card's base-memory address and interrupt selection.
  • Check the host BIOS and other adapters for resource conflicts.
  • Configure the single channel for DH+, DH-485, or remote I/O scanner operation.
  • KTX can communicate with supported PLC-2, PLC-3, PLC-5, and SLC processors.
  • The documented direct PLC-2/PLC-3 connection applies to KTX, not KTXD.
  • Match the installed cable, connector, network polarity, and termination.
  • Restore the station address, baud rate, driver, and scanner parameters.
  • Run the documented diagnostics before reconnecting production equipment.
  • Programming and data exchange on Data Highway Plus networks.
  • Communication with supported SLC processors on Data Highway-485 networks.
  • PC-based remote I/O scanner operation for compatible Allen-Bradley I/O.
Description
Allen-Bradley 1784-KTX is a single-channel ISA communication card for DH+, DH-485, remote I/O scanning, and supported direct PLC-2 or PLC-3 connections.

The half-size card installs in a 16-bit ISA or EISA slot and can communicate with PLC-2, PLC-3, PLC-5, and SLC processors according to the selected network and driver configuration.

A replacement must preserve the base-memory address, interrupt, channel mode, network station and baud settings, cable and termination, host slot, driver, and any remote I/O scanner configuration.
Alternative Names
1784-KTX 1784KTX 1784 KTX Allen-Bradley 1784-KTX Allen Bradley 1784-KTX AB 1784-KTX
Technical notes
1784-KTX replacement requires a 16-bit ISA/EISA slot, matching base memory and interrupt, channel mode, station and baud settings, network wiring, termination, driver, and scanner configuration; KTXD is not automatically equivalent.
