1785-V80B

/ 4.9
1001 reviews | Need a Specific Revision?
Built for the largest PLC-5/VME configuration in Rockwell Automation’s comparison table, Allen-Bradley 1785-V80B provides 100K words, addresses up to 2,944 I/O points and supports as many as 23 remote-I/O racks.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1785-V80B
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1785-V80B

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1785-V80B
  • Product Family:
    PLC-5
  • Product Type:
    PLC-5/V80 VMEbus Processor
  • Stock:
    1
  • User Memory:
    100K words maximum
  • Total I/O Capacity:
    2,944 points in any mix
  • Complementary I/O Capacity:
    2,944 inputs and 2,944 outputs
  • Analog I/O Capacity:
    2,944 points maximum
  • DH+ or Remote I/O Ports:
    4
  • Remote I/O Racks:
    23 maximum
  • Remote I/O Chassis:
    92 maximum
  • RS-232 Ports:
    1
  • Backplane Current:
    3.3 A maximum; 2.7 A typical
  • Dimensions:
    4.1 × 18.8 × 26.2 cm
  • RIO Transmission Rate:
    57.6 / 115.2 / 230 kbit/s
  • Program Scan Time:
    0.5 ms per K word (bit logic); 2 ms per K word typical
  • Weight:
    0.67 kg
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals VMEbus Fit I/O Planning Network Recovery Application
  • 100K-word PLC-5/V80 controller with a 32K-word limit per data-table file
  • Addresses up to 2,944 I/O points across as many as 23 remote-I/O racks
  • Supports four DH+/remote-I/O ports, RS-232 and as many as 16 MCPs

1785-V80B is the high-capacity controller in the documented PLC-5/VME comparison table.

Its 92-chassis remote-I/O ceiling and VME communication functions suit installations whose rack map and memory demand exceed the smaller V40 configuration.

Commissioning must verify the per-file memory limit, all four channel roles, remote-rack assignments and the host-side VME address allocation.

Availability, condition, price, and shipping time for 1785-V80B are confirmed during quotation.

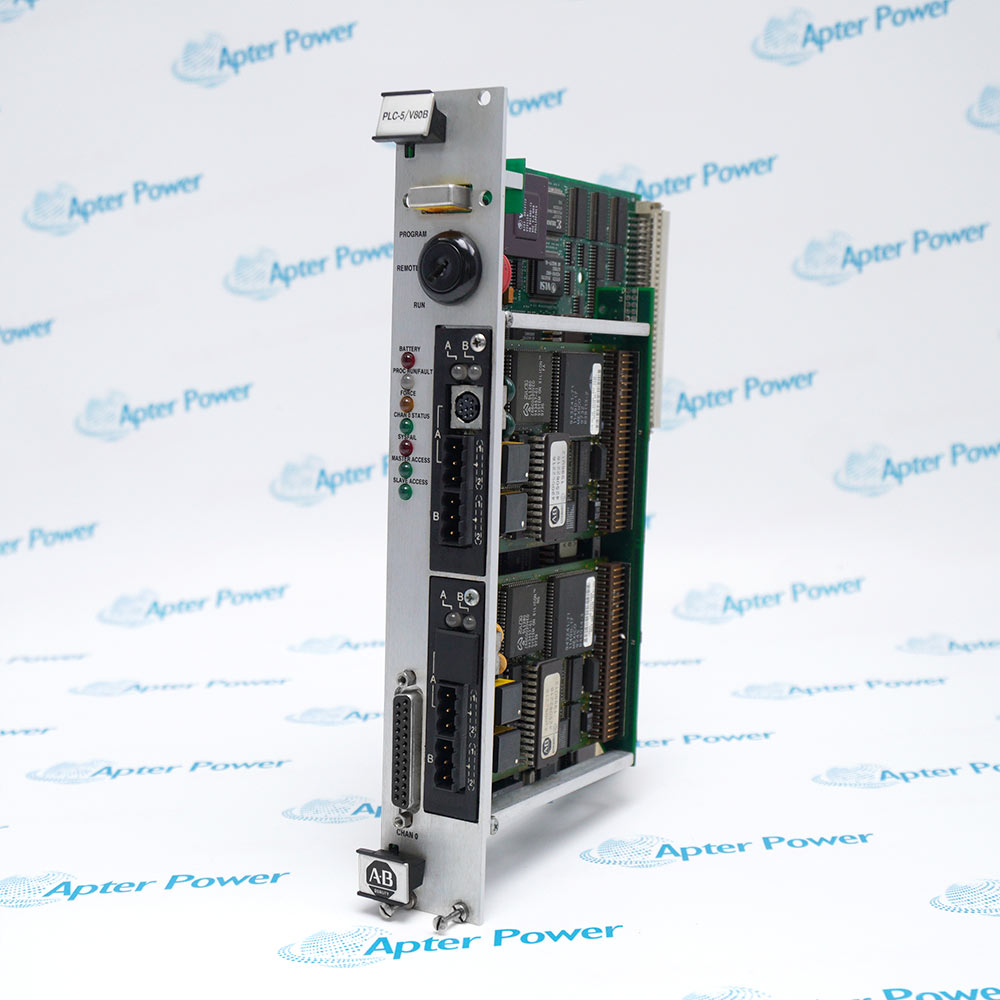

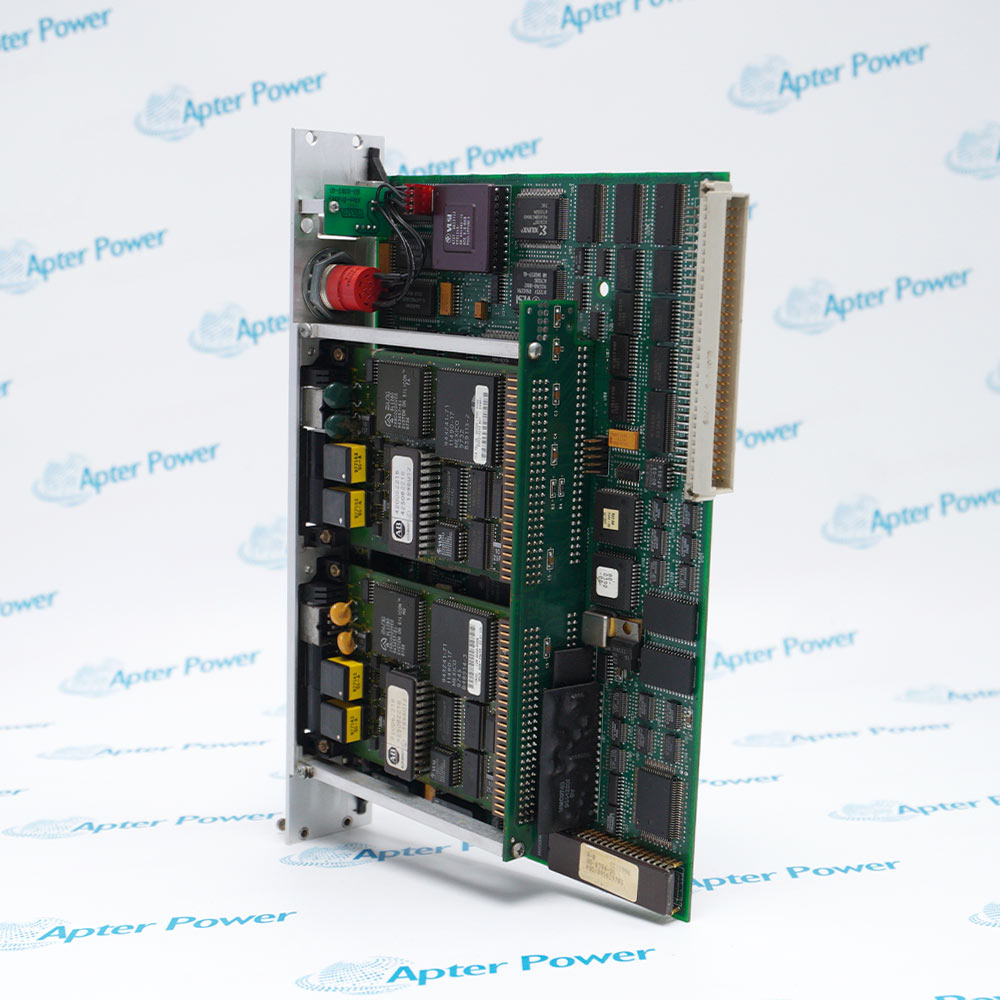

Allen-Bradley 1785-V80B PLC-5/V80 VMEbus Processor Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Use the 1785-V80B VME status file to monitor host-interface information
  • Account for A16 registers and the configured A24 general-purpose memory window
  • Verify VME message transfers, interrupt handling and host access before production startup
  • Keep the restored design within 2,944 I/O points and 23 remote-I/O racks
  • Map no more than 92 remote chassis across the four configurable network ports
  • Check the 32K-word limit separately for every required data-table file
  • Restore the documented 57.6, 115.2 or 230 kbit/s rate for every remote-I/O channel
  • Confirm that no project dependency assumes an extended-local I/O port
  • Validate RS-232, DH+, remote-I/O and VME-host communication as separate paths
  • High-capacity PLC-5/VME systems requiring up to 100K words of controller memory
  • Remote-I/O architectures approaching 2,944 points, 23 racks or 92 chassis
  • VME-host applications using PLC-5 status files, message transfers and interrupts
Description
Allen-Bradley 1785-V80B is the 100K-word PLC-5/VME controller and supports as many as 2,944 I/O points, 23 remote-I/O racks and 92 remote chassis.

The controller retains four configurable DH+ or remote-I/O ports and an RS-232 channel, while its VME status file and extended message functions support exchanges with the VME host.

Each data-table file remains limited to 32K words, and the catalog provides no extended-local I/O port; capacity, file layout and network topology must therefore be checked separately during replacement.
Alternative Names
1785-V80B Allen-Bradley 1785-V80B Rockwell Automation 1785-V80B PLC-5/V80 1785-V80B Allen-Bradley PLC-5/V80 1785-V80B PLC-5 VME 1785-V80B
Technical notes
1785-V80B provides 100K words but limits each data-table file to 32K words; replacement must preserve the 23-rack/92-chassis remote-I/O design, four channel roles, RS-232 settings, VME allocation, firmware and saved PLC-5 project.
