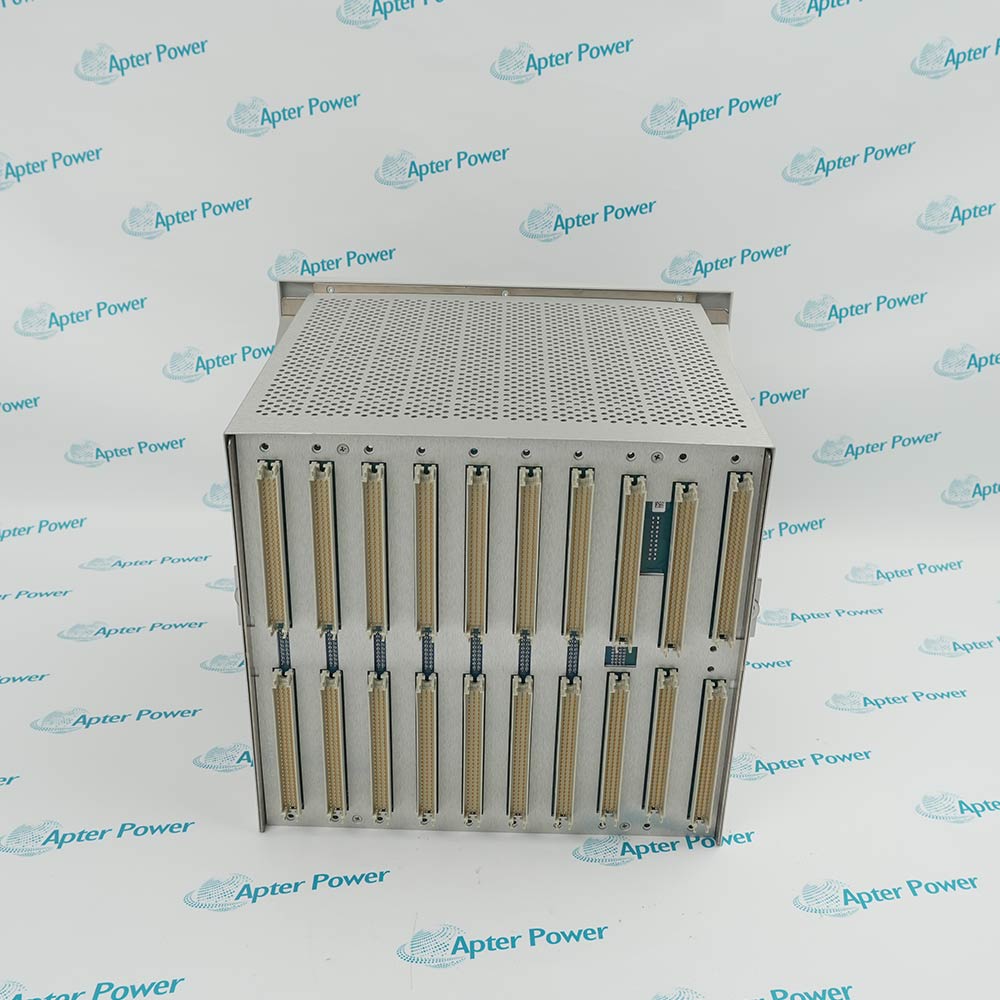

Bently Nevada 3500/05-02-04-00-00-01 system rack, showing the module guide rails and internal backplane construction

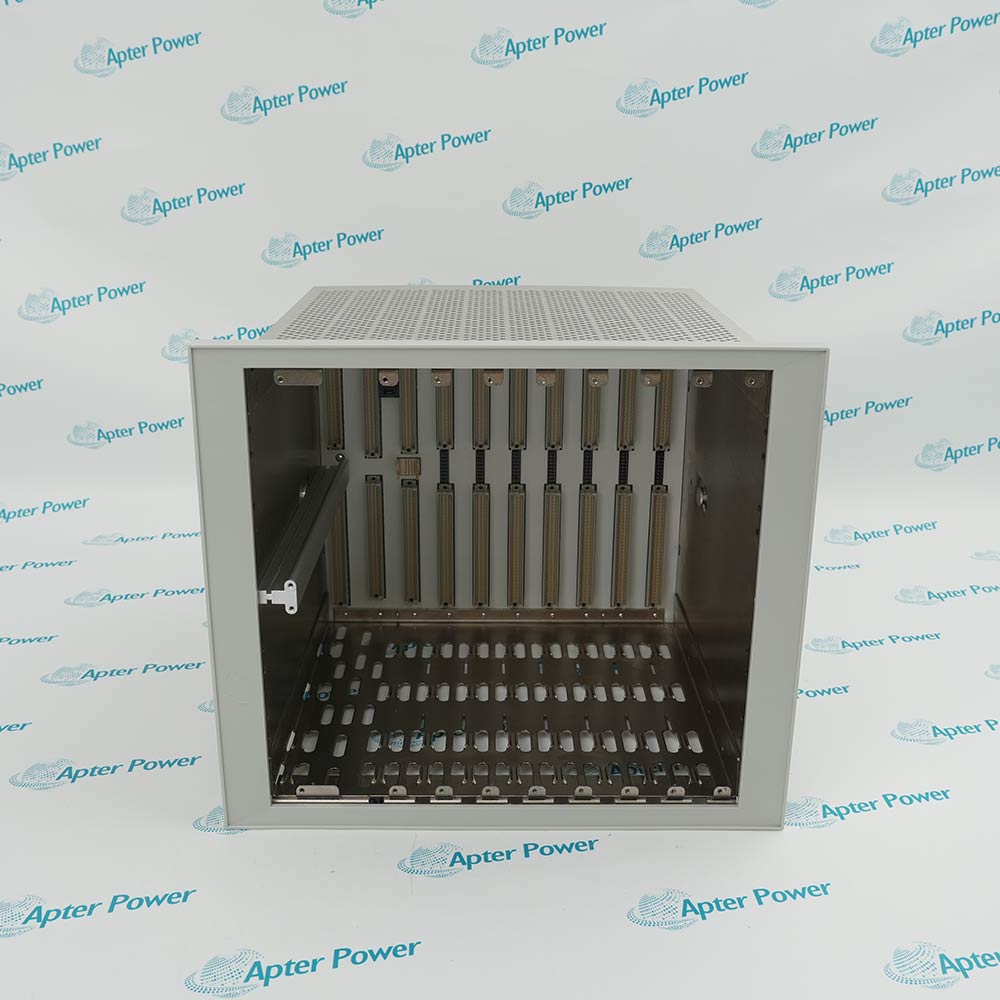

Bently Nevada 3500/05-02-04-00-00-01 rack chassis with rear connection area and industrial mounting hardware
Bently Nevada 3500/05-02-04-00-00-01 machinery monitoring rack with multiple card slots and heavy-duty metal chassis
Bently Nevada 3500/05-02-04-00-00-01 system rack, showing the module guide rails and internal backplane construction
Bently Nevada 3500/05-02-04-00-00-01 rack chassis with rear connection area and industrial mounting hardware
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com

3500/05-02-04-00-00-01

/ 4.9
1001 reviews | Need a Specific Revision?
The Bently Nevada 3500/05-02-04-00-00-01 System Rack is a 12-inch mini-rack with 7 module slots, designed to provide the structural and electrical backbone for the 3500 machinery protection system, ensuring reliable module integration and power distribution.
Get a quick price for 3500/05-02-04-00-00-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3500/05-02-04-00-00-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    3500/05-02-04-00-00-01
  • Product Family:
    3500 System
  • Rack Size:
    12-inch Mini-Rack (7 module slots)
  • Mounting Options:
    Panel Mount Option, Mini-Rack
  • Agency Approval Option:
    None
  • Reserved:
    None
  • European Compliance Option:
    CE
  • Weight:
    5.15 kg
  • Estimated shipping dimensions:
    30.5x26.5x26.5cm
  • Tariff Code:
    9025199090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Firmware Configuration & Programming Application

Features:

  • Supports Centralized Installation Of 3500 Monitoring Modules And Power Supplies For Integrated System Operation
  • Enables Efficient Module Communication Through Close-Proximity Arrangement Within The Rack Structure
  • Provides Flexible Configuration With Seven Available Slots And Dedicated Positions For Power Supply And Interface Modules
The Bently Nevada 3500/05-02-04-00-00-01 System Rack is designed to act as the installation platform for all 3500 series monitoring modules and associated power supplies. By organizing modules within a single enclosure, the rack ensures consistent system structure and simplifies overall integration in machinery protection applications.

This configuration adopts a 12-inch mini-rack format with seven module slots, offering a compact solution for installations where space is limited. The layout supports structured placement, with designated positions for the power supplies and rack interface module located on the far-left side, while the remaining slots allow flexible allocation for various monitoring modules.

The rack also supports a panel mount installation method, enabling secure mounting into panel cutouts using supplied clamps. With wiring connections and I/O modules accessible from the rear, it facilitates organized cable management and convenient maintenance, making it suitable for control cabinet environments requiring reliable and orderly system deployment.

The 3500/05-02-04-00-00-01 Bently Nevada System Rack may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3500/05-02-04-00-00-01 System Rack Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 3500/05-02-04-00-00-01 System Rack Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 3500/05-02-04-00-00-01
  • Condition New Original ready stock
  • Product Family 3500/05,3500/05-05-01-00-00-00,3500/05-04-04-00-00-01
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Identify the Frame Interface Module (TDI): The frame itself is a passive backplane. Firmware updates primarily target the 3500/22M (TDI) module inserted within it, which is the communication brain of the entire frame.
  • Obtain the Firmware File: Log in to the Baker Hughes official support portal and download the firmware package (usually a .bin or .fw file) that matches your 3500/01 configuration software version.
  • Connection Method: Connect the TDI module to its local port on the front panel using a USB cable or Ethernet adapter.
  • Perform the Update: Open the 3500 Configuration Software, go to the "Utilities" menu, select "Firmware Upgrade," and follow the wizard to flash the new firmware. Note: System protection functions will be disabled during the update.
  • Software Environment Installation: Install the Bently Nevada 3500/01 software. Because option 02 is a Mini-Rack, software version 2.70 or higher is required to recognize the 7-slot layout.
  • Rack Definition: Create a new project in the software, select 12-inch Rack as the rack type, and accurately drag in the corresponding module model for each slot (e.g., 3500/42M vibration module).
  • Channel Configuration: Set the type of each sensor (e.g., 3300 XL eddy current sensor), engineering units (mm/s, um), alarm point (Alert/Danger), and delay time.
  • Logic Programming: Configure voting logic (e.g., 2-out-of-2 logic) through the 3500/32 (relay module) to automatically trigger a shutdown interlock signal when vibration exceeds the limit.
  • Small to Medium Rotating Machinery Protection: With only 7 slots, this frame is ideal for monitoring single pumps, small fans, or centrifugal compressors, avoiding the cost waste associated with larger 14-slot frames.
  • Embedded Control Cabinet Integration: Option 04 (Panel Mount) is designed specifically for control cabinet doors. The frame embeds into the cabinet door via slots, allowing maintenance personnel to observe module indicator light status on the panel without opening the cabinet.
  • Space-Constrained OEM Equipment: Suitable for industrial sites with extremely limited installation space, such as oil stations and compressor skids.
  • Distributed Monitoring Network: In large factories, it acts as a distributed node to monitor motor bearing vibration at remote sites and transmits data back to System 1 condition monitoring software via Ethernet.
Description
The Bently Nevada 3500/05-02-04-00-00-01 System Rack serves as the central platform of the 3500 Series machinery protection system, integrating both mechanical mounting and electrical interconnection functions. Configured as a 12-inch mini-rack with seven available module slots, it enables compact deployment of monitoring modules and power supplies while maintaining efficient communication through the internal backplane bus.

This model supports a panel mount option, allowing installation into rectangular panel cutouts and secure fixation using supplied clamps. With rear access to wiring connections and I/O modules, it ensures straightforward installation and maintenance in control panels where space optimization is critical. The rack complies with CE (European Compliance) standards, ensuring suitability for international industrial environments, while the configuration includes no additional agency approvals or reserved options, maintaining a streamlined and application-focused design.

Functionally, the rack is designed to house all essential 3500 system components, including vibration, displacement, and temperature monitoring modules. The power supplies and rack interface module must be installed in the far-left positions, ensuring consistent power distribution and system communication. The remaining slots can be flexibly configured, allowing users to tailor the system based on monitoring requirements.

Compared with the Bently Nevada 3500/05 full-size 19-inch rack (14-slot configuration), this mini-rack version offers a more compact footprint while retaining full system functionality. It is particularly advantageous in applications where cabinet space is limited but reliable machinery protection is still required, making it ideal for localized monitoring installations or retrofit projects.

Overall, the 3500/05-02-04-00-00-01 provides a balanced combination of compact size, modular flexibility, and standardized installation, forming a dependable foundation for critical asset monitoring systems.
