  • Lifecycle status

    Discontinued
    Discontinued date: 2024-03-31
    Replacement category: Engineering Replacement
    Suggested replacement: 5069-AENTR (not a drop-in replacement)

1747-SN

/ 4.9
1001 reviews | Need a Specific Revision?

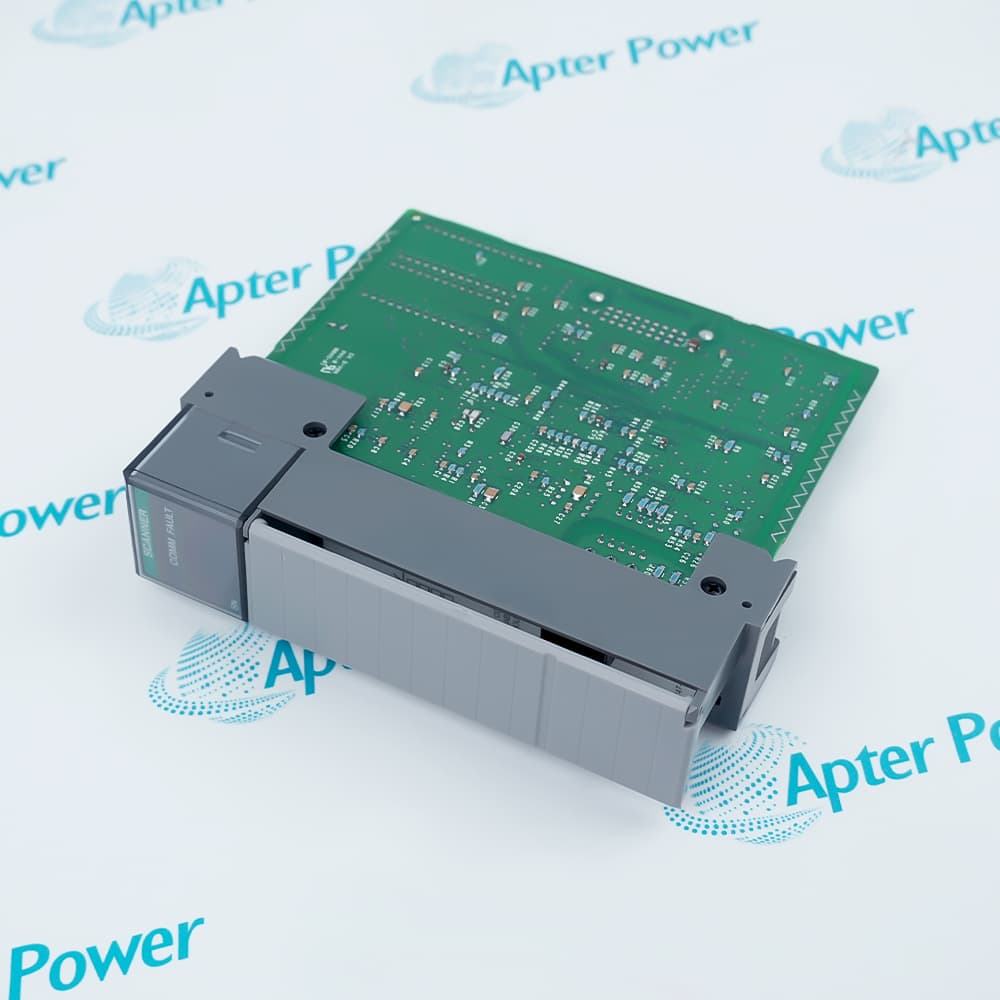

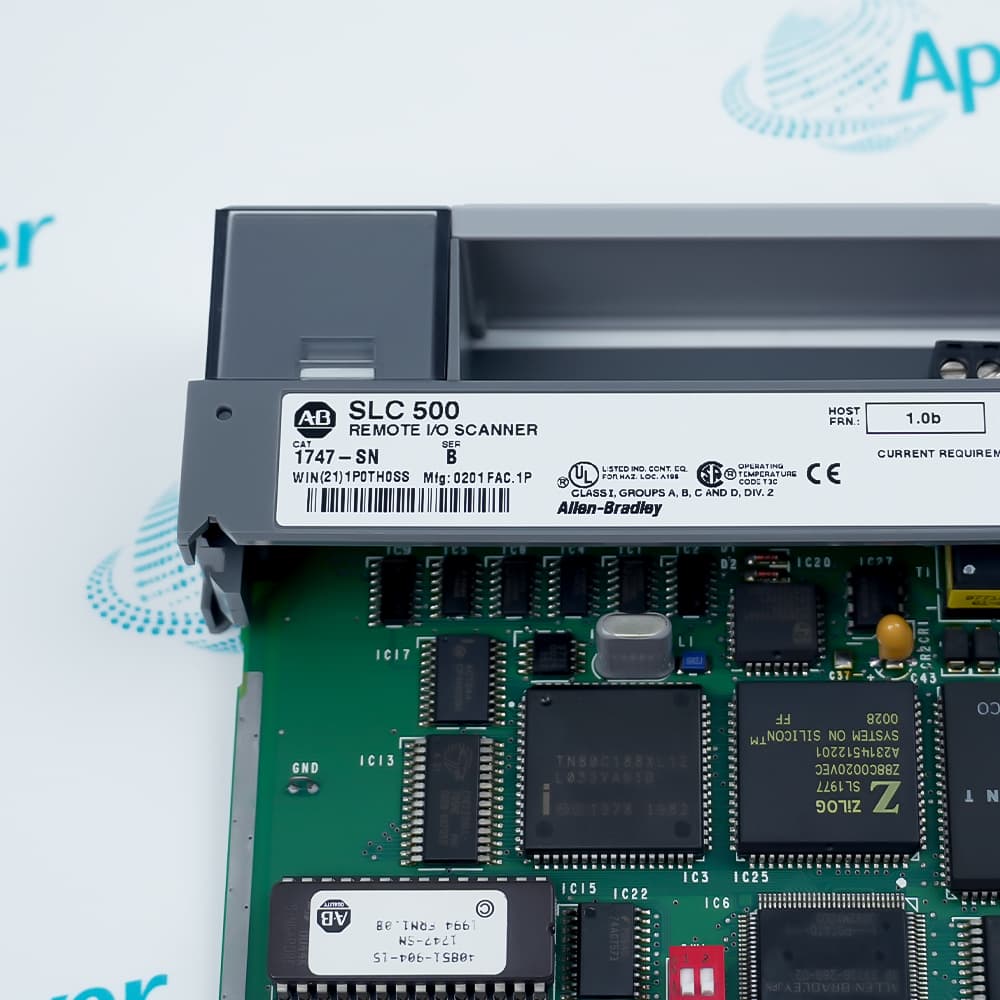

Allen-Bradley 1747-SN is an SLC 500 remote I/O scanner that links a supported SLC processor to Allen-Bradley remote I/O devices.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1747-SN
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1747-SN

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1747-SN
  • Product Family:
    SLC 500
  • Product Type:
    SLC Remote I/O Scanner Module
  • Stock:
    1
  • Logical rack capacity:
    4 logical racks
  • Communication isolation:
    500 VDC
  • Supported baud rates:
    57.6, 115.2 and 230.4 kbit/s
  • Maximum distance at 57.6 kbit/s:
    3048 m
  • Maximum distance at 115.2 kbit/s:
    1524 m
  • Maximum distance at 230.4 kbit/s:
    762 m
  • Device capacity:
    16 devices normal; 32 complementary
  • Backplane current at 5 V:
    600 mA
  • Power and heat dissipation:
    4.5 W
  • Installation instructions:
    1747-IN060
  • Compatible processors:
    SLC 5/02 or later
  • Operating temperature:
    0 to 60°C
  • Storage temperature:
    -40 to 85°C
  • Relative humidity:
    5 to 95%, non-condensing
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Remote I/O Network Capacity & Cabling Diagnostics Application
  • Connects supported SLC processors to Remote I/O devices
  • Supports three documented network baud rates
  • Series B supports block transfers up to 64 words

Allen-Bradley 1747-SN is the SLC 500 scanner for Allen-Bradley Remote I/O networks.

Selection depends on scanner Series, device count, rack addressing, block-transfer needs, baud rate and the installed cable length.

Before replacement, archive the scanner configuration and record rack sizes, device addresses, termination, cabling and active diagnostics.

Availability, condition, price, and shipping time for 1747-SN are confirmed during quotation.

Allen-Bradley 1747-SN SLC Remote I/O Scanner Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Supports 57.6, 115.2 and 230.4 kbit/s
  • Requires the documented cable and termination at the physical ends
  • Connects supported SLC and Allen-Bradley Remote I/O devices
  • Supports 16 normal or 32 complementary devices
  • Select baud rate against the documented total cable distance
  • Preserve rack-size and addressing assignments during replacement
  • Check scanner and adapter status before changing hardware
  • Investigate duplicate racks, incorrect baud and missing termination
  • Verify block-transfer behavior when the application uses Series B features
  • Distributed SLC 500 I/O over Allen-Bradley Remote I/O
  • SLC communication with compatible PanelView and drive devices
  • Legacy SLC systems linking 1746, 1771, FLEX or Block I/O racks
Description
Allen-Bradley 1747-SN provides the Remote I/O scanner interface for supported SLC 500 processors.

It scans configured remote racks and devices over the Allen-Bradley Remote I/O network and transfers discrete and, with supported Series B operation, block-transfer data to the SLC processor.

It is used in distributed SLC installations that connect compatible 1746, 1771, FLEX, Block I/O, PanelView, drive and monitoring devices over documented blue-hose cabling.
Revisions

Revision Part #

Also known as

1747-SN Ser A
1747-SN/A, Series A, Rev A
1747-SN Ser B
1747-SN/B, Series B, Rev B
Alternative Names
1747-SN 1747 SN 1747SN Allen-Bradley 1747-SN Allen Bradley 1747-SN Allen-Bradley 1747 SN Rockwell Automation 1747-SN SLC 500 1747-SN Allen-Bradley SLC 500 1747-SN
Technical notes
Allen-Bradley 1747-SN is an SLC 500 Remote I/O scanner whose Series, baud rate and rack configuration must match the installed network. Preserve addressing and termination details before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can Allen-Bradley 1747-SN replace another Remote I/O scanner without rebuilding the configuration?
Not automatically. Confirm the scanner Series, baud rate, logical-rack addressing, device list, block-transfer requirements and processor project before transferring the existing network.
Which SLC processors can operate with Allen-Bradley 1747-SN?
Rockwell Automation documents the 1747-SN for SLC 5/02 and later processors. Verify the exact processor model, operating-system revision and project requirements before use.
Why can Allen-Bradley 1747-SN show a scanner fault after wiring is transferred?
Check the baud-rate switches, logical-rack addresses, duplicate assignments, blue-hose conductor polarity, shield connection and terminating resistors at the two physical ends of the Remote I/O network.
How should cable length be checked for Allen-Bradley 1747-SN?
Calculate the complete Remote I/O trunk and drop length, then confirm that it remains within the published limit for the selected communication rate.
Can Allen-Bradley 1747-SN use block transfers with every hardware Series?
No. Block transfer is a documented Series B capability and supports transfers of up to 64 words. Also verify that the selected SLC processor and operating-system revision support the required block-transfer method.
What should be recorded before replacing Allen-Bradley 1747-SN?
Record the scanner Series, scanner slot, baud rate, logical-rack assignments and sizes, cable topology, terminating resistors, connected-device revisions and active fault codes.
How should Allen-Bradley 1747-SN be tested after installation?
Confirm that every configured logical rack responds, test discrete I/O and block-transfer data, review scanner status and fault indications, and verify network recovery during a controlled machine sequence.
