        1746-BTM

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

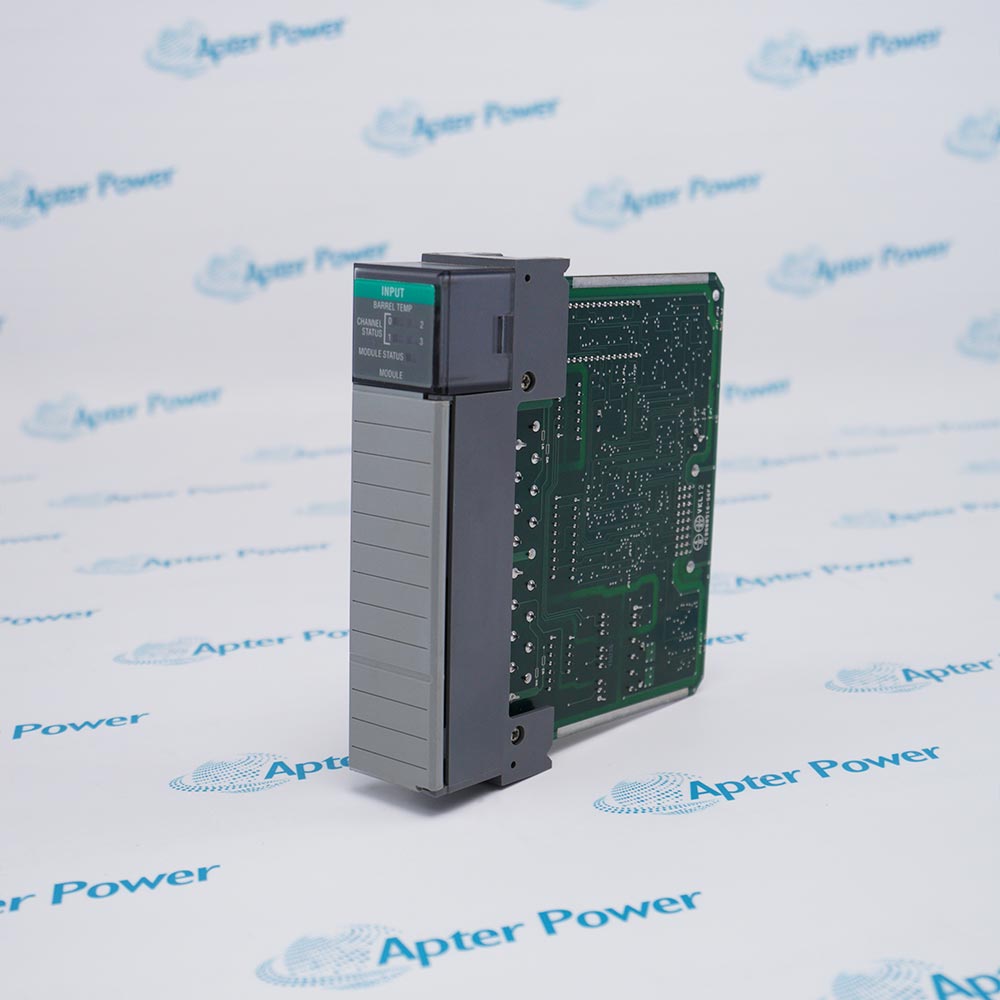

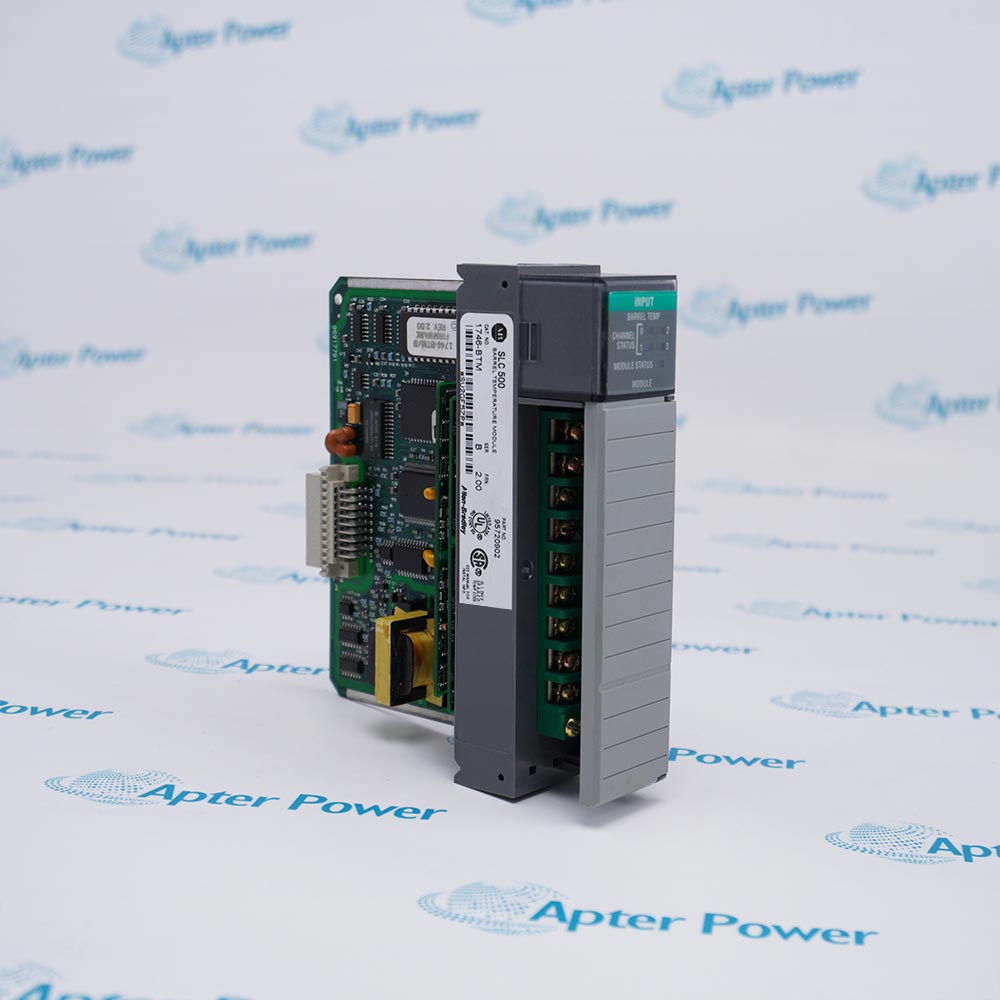

        Allen-Bradley 1746-BTM is an SLC 500 barrel-temperature module with four temperature inputs and four PID heat-or-cool control loops.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for 1746-BTM
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 1746-BTM

        • Manufacturer:
          Allen-Bradley
        • Part Number:
          1746-BTM
        • Product Family:
          SLC 500
        • Product Type:
          Barrel Temperature Control Module
        • Stock:
          1
        • Temperature Inputs:
          4, backplane and channel-to-channel isolated
        • Control Loops:
          4 PID heat/cool loops
        • Thermocouple Types:
          B, C, D, E, J, K, N, R, S, and T
        • Backplane Current at 5V DC:
          110 mA
        • Backplane Current at 24V DC:
          85 mA
        • Removable Terminal Block:
          1746-RT32
        • Input Voltage Range:
          −50 to +50 mV and −100 to +100 mV
        • Normal Mode Rejection:
          Greater than 50 dB at 50 Hz; greater than 60 dB at 60 Hz
        • Common Mode Rejection:
          Greater than 120 dB at 50/60 Hz with 1 kΩ imbalance
        • Channel Bandwidth:
          8 Hz at −3 dB
        • Input Resolution:
          16 bit or 15 bit plus sign
        • Data Format:
          16-bit signed integer, natural binary
        • Isolation Test Voltage:
          1000 V AC for 60 seconds
        • Calibration Interval:
          Once every six months
        • Operating Temperature:
          0 to 60°C
        • Storage Temperature:
          −40 to 85°C
        • Relative Humidity:
          5% to 95%, non-condensing
        • Wire Size:
          24 to 14 AWG
        • Terminal Torque:
          6 to 8 in-lb
        • Weight:
          0.3 kg
        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Sensor & Output Wiring Tuning & Maintenance Application
        • Four temperature inputs for documented thermocouple or millivolt signals
        • Four independent PID heat-or-cool control loops
        • Backplane integration with compatible local SLC 500 processors and chassis

        1746-BTM combines multi-zone temperature measurement and PID control in one SLC 500 module.

        Correct replacement depends on the local chassis, processor support, sensor type, thermocouple wiring, output hardware, loop tuning, alarms, calibration, and application program.

        Commissioning should prove every temperature input, heat and cool output, alarm, sensor-fault action, safe shutdown, and stable process response before production.

        Availability: Rockwell migration literature does not identify a direct replacement; condition and sourcing are confirmed during quotation.

        Allen-Bradley 1746-BTM Manuals, Datasheets, Links

        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        • Four temperature-input channels
        • Four PID heat-or-cool control loops
        • Uses removable terminal block 1746-RT32
        • Maintain thermocouple alloy, polarity and extension-wire compatibility
        • Separate low-level sensor wiring from power and switching conductors
        • Document every heat and cool output, interlock and protective device
        • Back up loop configuration and calibration before removing the old module
        • Retest autotune results under controlled process conditions
        • Verify alarms, sensor-fault behavior and safe shutdown before production
        • Plastic extrusion barrel temperature control
        • Injection-molding barrel temperature control
        • Multi-zone industrial heating and cooling control
        Description
        1746-BTM is an Allen-Bradley SLC 500 Barrel Temperature Control Module with four temperature inputs and four PID heat-or-cool control loops. It accepts thermocouple or documented millivolt inputs for multi-zone thermal control.

        The module exchanges status and command data through the SLC backplane and supports calibration, autotune, alarm, and loop-control functions described in the official user manual. It is intended for a local SLC chassis rather than remote I/O placement.

        Before replacement, preserve the application program, input types, thermocouple extension-wire details, loop tuning, setpoints, alarms, heat/cool outputs, calibration records, terminal assignments, and the complete processor and chassis configuration.
        Alternative Names
        1746-BTM 1746 BTM 1746BTM AB 1746-BTM Allen-Bradley 1746-BTM Rockwell Automation 1746-BTM
        Technical notes
        1746-BTM requires a local SLC chassis, correct thermocouple wiring, saved loop parameters, verified calibration, documented outputs, alarms, and safe process retesting.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Can 1746-BTM be installed in a remote SLC chassis?
        No. The official manual specifies a local SLC chassis for barrel-temperature control applications; confirm processor, chassis, slot and power capacity.
        What records are most important before replacing 1746-BTM?
        Save the SLC program, loop tuning, setpoints, input types, output assignments, alarms, calibration data, terminal schedule, and all thermocouple wiring details.
        Why might a 1746-BTM temperature channel drift after replacement?
        Check thermocouple type, extension wire, polarity, junctions, grounding, electrical noise, terminal temperature, calibration, scaling, and whether the channel configuration matches the sensor.
        When should autotune be repeated after replacing 1746-BTM?
        Repeat the documented autotune procedure when the heater, cooling device, temperature sensor, controlled mass or process response has changed, or when the restored tuning constants do not produce stable control. Perform it under controlled operating conditions and preserve the accepted constants.
        Why can a 1746-BTM temperature loop oscillate after the module is replaced?
        Check the selected thermocouple type and polarity, scaling, heat/cool output assignment, cycle time, PID constants and sensor location. A copied configuration can still be unsuitable if the process hardware or thermal response has changed.
        What should be checked when 1746-BTM reports an open or implausible temperature input?
        Inspect the thermocouple and extension wire for continuity, correct alloy and polarity, loose RTB terminals, grounded-junction conflicts, shield routing and electrical noise. Also confirm that the configured sensor type matches the connected thermocouple.
        What information should be provided when ordering a replacement 1746-BTM?
        Provide the complete 1746-BTM catalog number, series and revision, clear label photographs, local SLC chassis and processor details, sensor types, heat/cool output wiring, RTB condition, saved configuration and the present diagnostic code.
