2711-B6C1

/ 4.9
1001 reviews | Need a Specific Revision?

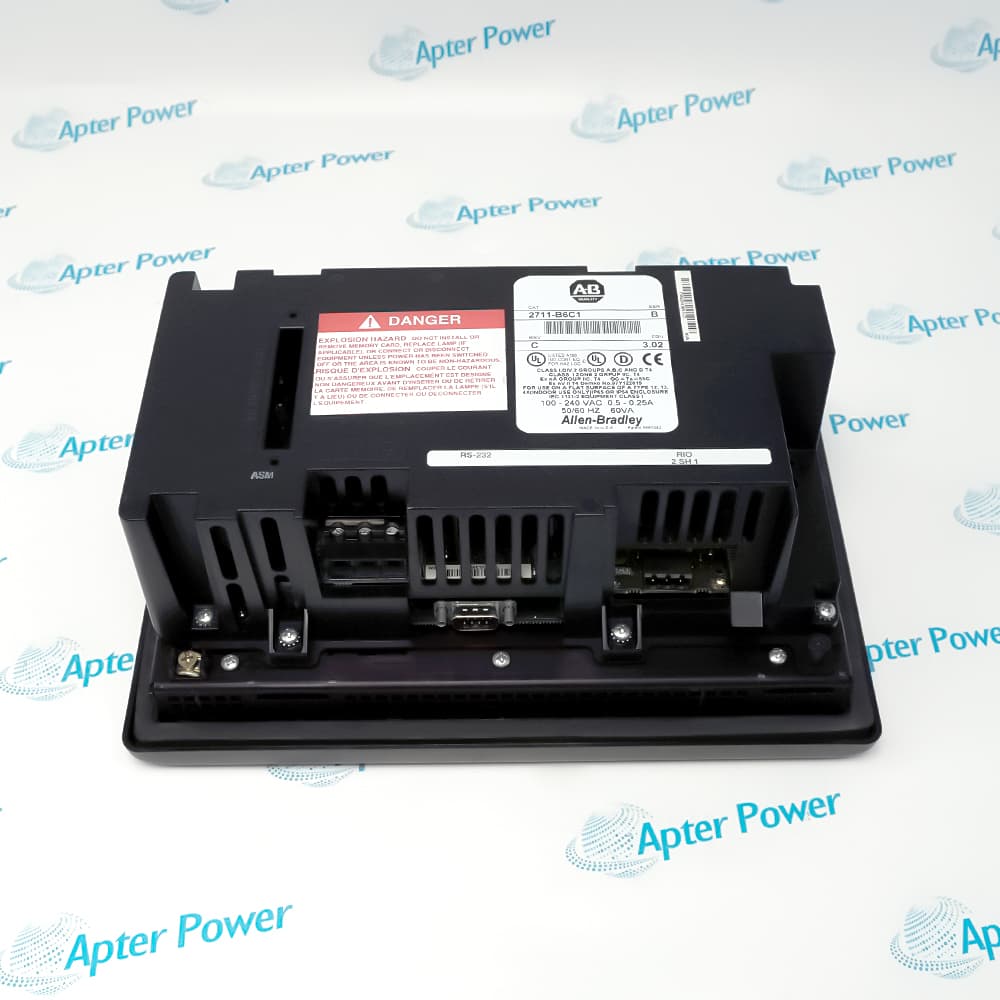

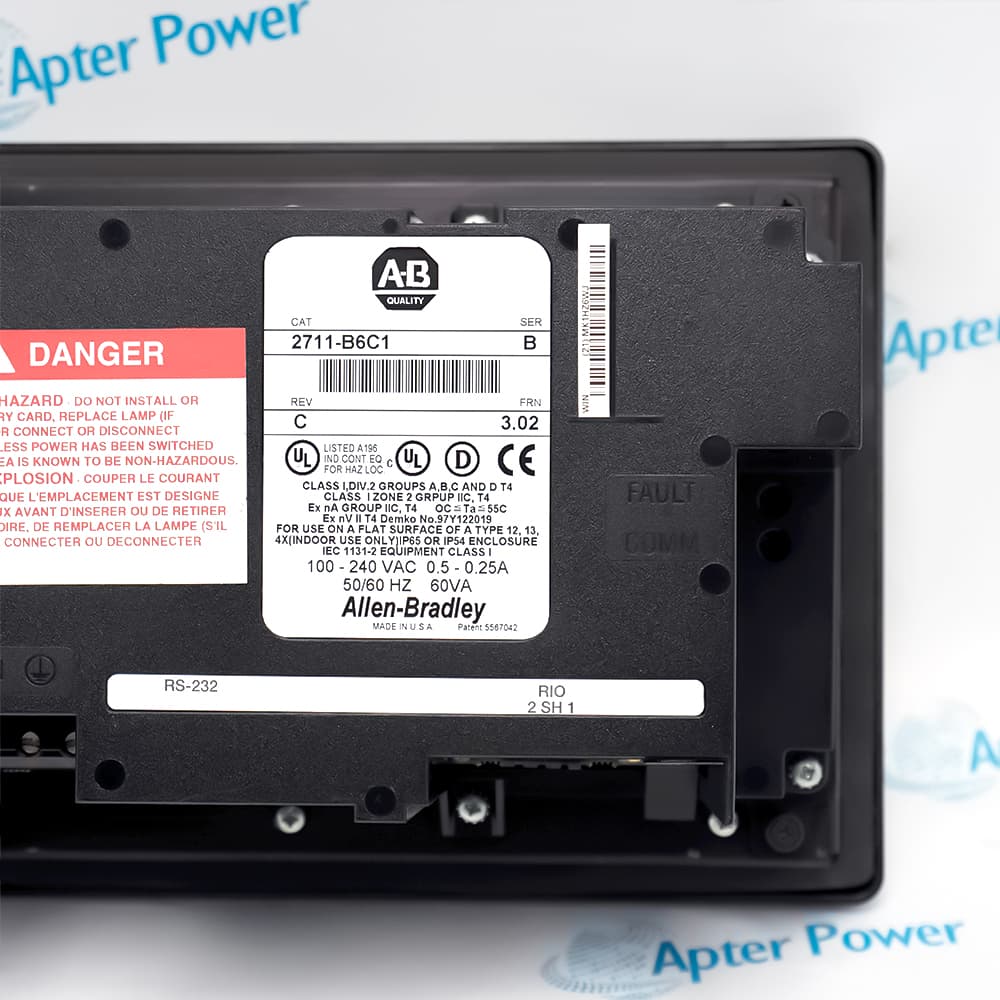

Allen-Bradley 2711-B6C1 is a PanelView Standard 600 color key/touch terminal with Remote I/O communication and an RS-232 printer port.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 2711-B6C1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 2711-B6C1

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    2711-B6C1
  • Product Family:
    Allen Bradley Panelviews
  • Product Type:
    Color Key/Touch Terminal
  • Stock:
    1
  • Operator Input:
    Keypad and touch screen
  • Display Type:
    Color active-matrix TFT
  • Display Area:
    115 × 86 mm
  • Resolution:
    320 × 234 pixels
  • Backlight:
    Field replaceable; 50,000-hour half-life at 25 °C
  • Touch Screen:
    128 touch cells; one million actuations
  • Function Keys:
    10 keys, F1...F10
  • Application Memory:
    240 KB nonvolatile; 170 KB runtime
  • Configuration Software:
    PanelBuilder32
  • Communication:
    Remote I/O
  • Printer Port:
    RS-232
  • Input Power:
    85...264 V AC, 47...63 Hz
  • Power Consumption:
    60 VA maximum
  • Dimensions:
    29.0 × 19.2 × 11.6 cm
  • Tariff Code:
    8470501000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Mounting Wiring Maintenance Application

Features:

  • PanelView Standard 600 color terminal with combined keypad and touch operator input
  • Remote I/O communication for the controller connection and a separate RS-232 printer port
  • PanelBuilder32 application storage with supported ATA memory-card handling

Allen-Bradley 2711-B6C1 provides the display and operator-input interface for a correctly configured Remote I/O control system.

The terminal combines keypad and touch operation, while the application file, Remote I/O addressing, and controller data mapping determine its machine function.

Before replacement or migration, preserve the PanelBuilder32 project and verify communication settings, power, cutout, terminal hardware, application conversion, and controller compatibility.

Availability, condition, price, and shipping time for 2711-B6C1 are confirmed during quotation.

Allen-Bradley 2711-B6C1 PanelView Standard 600 Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The required panel cutout is 264 mm wide × 167 mm high.
  • Installed depth is 99 mm, or 131 mm with the memory-card retainer.
  • Allow 220 mm rear clearance to insert or remove a memory card with its retainer.
  • Use 2.1...3.3 mm² (14...12 AWG) 90 °C copper conductors for protective earth and AC input power.
  • Tighten the AC input-power terminal screws to 0.57 N·m.
  • The functional-earth screw accepts 2.1...5.3 mm² (14...10 AWG) copper conductors and requires 1.13...1.36 N·m torque.
  • The keypad uses a stainless-steel domed membrane with navigation and function keys
  • The touch screen provides 128 touch cells rated for one million actuations
  • The real-time clock is battery backed for application timestamps
  • Use the terminal as the local operator interface for a correctly configured Remote I/O control system
  • Retain the PanelBuilder32 application and verify all Remote I/O addressing and controller data mappings
  • Complete any migration only after checking power, cutout, communication support, application conversion, and operator-interface requirements
Description
2711-B6C1 is an Allen-Bradley PanelView Standard 600 color operator terminal with combined keypad and touch input.

2711-B6C1 uses Remote I/O for controller communication, includes an RS-232 printer port, and provides a 115 × 86 mm TFT display with 320 × 234 resolution.

Before replacement or migration, back up the PanelBuilder32 application and verify the Remote I/O rack and group configuration, terminal power, enclosure cutout, controller mapping, communication support, and application conversion.
Alternative Names
2711-B6C1 2711B6C1 2711 B6C1 Allen-Bradley 2711-B6C1 Allen Bradley 2711-B6C1 AB 2711-B6C1 Rockwell Automation 2711-B6C1 PanelView Standard 600 2711-B6C1
Technical notes
2711-B6C1 requires the PanelBuilder32 application, Remote I/O rack and group settings, controller mapping, terminal power, cutout, and communication support to be verified before replacement or migration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which communication network does Allen-Bradley 2711-B6C1 use?
The complete catalog number identifies Remote I/O communication. It is not a DH+, DeviceNet, ControlNet, EtherNet/IP, or RS-232 application terminal; verify the installed Remote I/O configuration.
Does Allen-Bradley 2711-B6C1 include both keypad and touch input?
Yes. The B6 operator-input code identifies the combined keypad/touch version of the PanelView Standard 600 color terminal.
What should be backed up before replacing Allen-Bradley 2711-B6C1?
Preserve the PanelBuilder32 application, communication settings, Remote I/O rack and group assignments, terminal configuration, alarms, tags, and any ATA memory-card files.
Can the backlight in Allen-Bradley 2711-B6C1 be serviced?
The PanelView Standard 600 color specification identifies a field-replaceable backlight. Confirm the correct service part and isolate terminal power before maintenance.
Can Allen-Bradley 2711-B6C1 be replaced by a PanelView Plus terminal without changes?
No. Migration requires application conversion plus verification of display layout, Remote I/O support, wiring, enclosure cutout, power, and controller communication.
Which software is used for an Allen-Bradley 2711-B6C1 application?
PanelView Standard terminals are configured with PanelBuilder32. Retain the original project file and confirm the software and communication driver needed to upload or download the application.
What should a buyer provide when sourcing Allen-Bradley 2711-B6C1?
Provide the complete catalog number, Series and firmware from the nameplate, clear display and connector photos, application backup status, communication requirement, required condition, and quantity.
