Features:
- Signal link between the 190501 Velomitor CT Velocity Transducer and 3500/3300 monitoring system inputs
- Integrates 20 AWG twisted pair shielded transmission with Splash Proof MIL-C 5015 environmental sealing
- Deploys alongside the 190501 Velomitor CT, M Series and Standard 3500 Monitors, and Extension Cable Assemblies
The Bently Nevada CB2W100-112 provides reliable electrical connectivity between the field-mounted 190501 Velomitor CT sensor and rack-based monitoring modules, specifically serving cooling tower and air-cooled heat-exchanger fan assemblies operating at or above 90 rpm. CB2W100-112 continuously preserves signal integrity across its full 112 ft (34.1 m) span by employing 20 AWG twisted pair shielded conductors, effectively suppressing electromagnetic interference and ensuring accurate low-frequency vibration velocity data delivery from the 190501 transducer to the monitor input.
CB2W100-112 performs essential connectivity functions shared across the entire 190501 measurement chain, and serves as a critical element of the monitoring path, directly influencing the correct, normal operation of the overall vibration monitoring system. One CB2W100-112 cable is typically deployed per 190501 sensor channel depending on the physical separation between the probe location and the monitoring rack. CB2W100-112 occupies the interconnect position between the 190501 Velomitor CT transducer assembly and the system junction box or monitor input, and is always routed through designated cable trays or conduits to preserve shielding effectiveness.
For extended routing applications beyond the 190501 transducer mounting location, the Bently Nevada monitoring system may require CB2W100-112 to be combined with additional extension cable assemblies to achieve the total required cable length, up to the 305 m (1,000 ft) maximum supported by the 190501 Velomitor CT. Beyond standard single cable deployment, the robust construction of CB2W100-112 also supports integration into redundant sensor configurations. The CB2W100-112 cable assembly executes signal transmission through the internal conductor arrangement specified in the interconnect design.
The CB2W100-112 Bently Nevada Interconnect Cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada CB2W100-112 Interconnect Cable Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada CB2W100-112 Interconnect Cable Specs
General
- Manufacturer Bently Nevada
- Model CB2W100-112
- Condition New Original ready stock
- Product Family CB2W100-125,CB2W100-150,CB2W100-200
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Vibration Transducer Connection: It serves as the dedicated accessory cable for the Bently Nevada 190501 CT Velomitor Velocity Transducer, which measures casing vibration velocity on cooling towers and air-cooled heat exchangers.
- Industrial Machinery Monitoring: Used extensively across major power generation, oil and gas, manufacturing, and petrochemical facilities to link sensors with continuous monitoring suites like the Bently Nevada 2300 Series Vibration Monitor.
- Wiring Configuration: Built as a 20 AWG, shielded twisted pair system. The twisted pair design coupled with robust shielding minimizes electromagnetic noise and external signal interference.

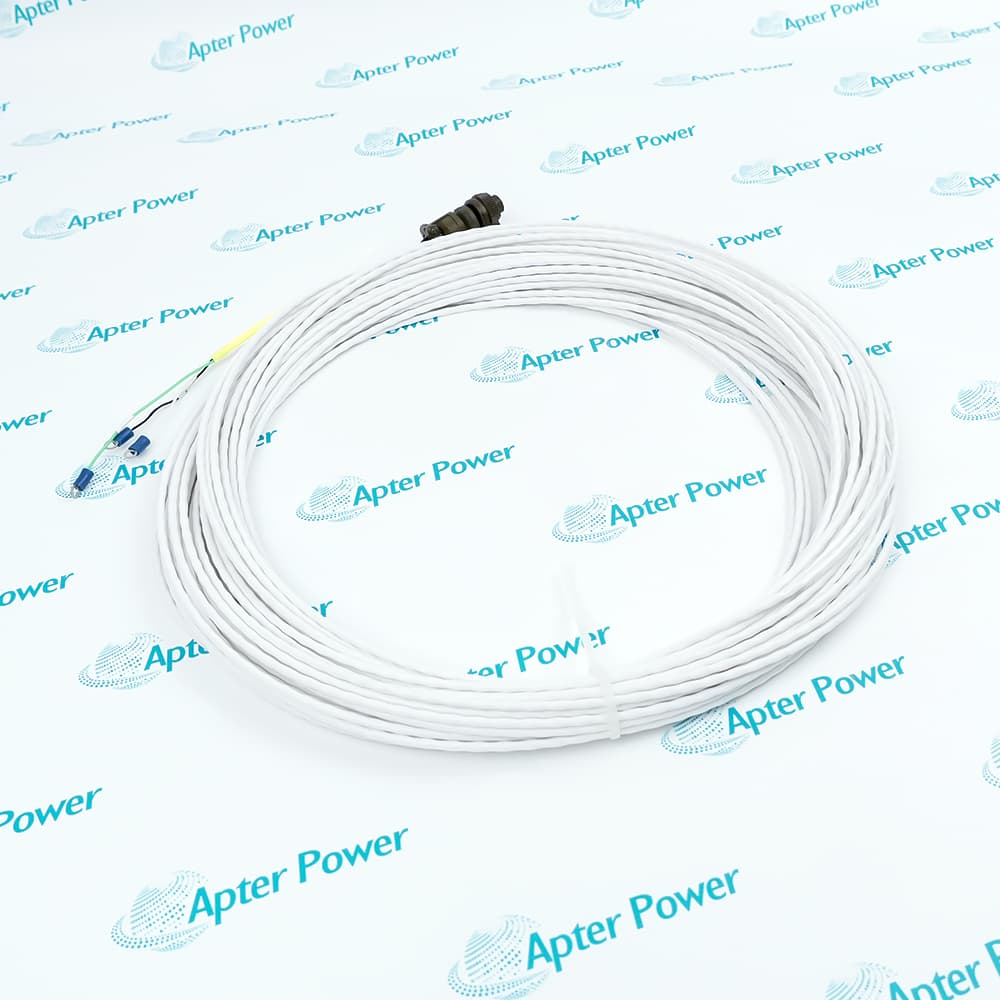

- Connectors & Termination: It features a heavy-duty MIL-C 5015 two-socket splash-proof connector at one end and terminates into an isolated-to-blunt cut at the other.
- Secured Interface: The assembly comes complete with a dedicated locking ring, adapter seal, and O-ring to ensure a mechanically locked, watertight connection to the transducer.
- Chemical & Heat Resistance: Wrapped in a high-visibility yellow Teflon® jacket, offering exceptional resistance to extreme heat, oils, moisture, and corrosive industrial chemicals.
- Mechanical Durability: The rugged casing prevents damage from high mechanical stress, physical abrasions, and structural vibrations inherent to cooling tower fan assemblies.
- Ingress Protection: Due to its specialized splash-proof connector assembly and internal sealing O-rings, the cable prevents moisture or water spray from penetrating electrical contacts.
