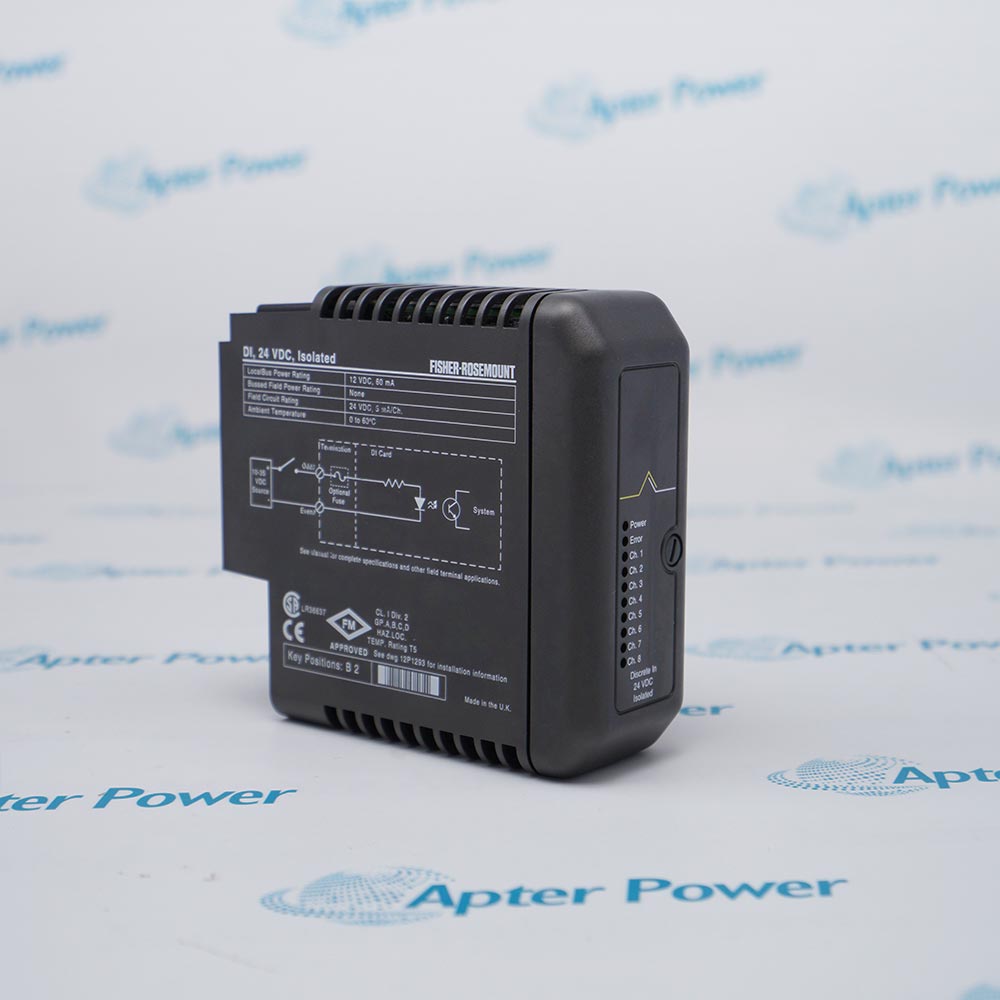

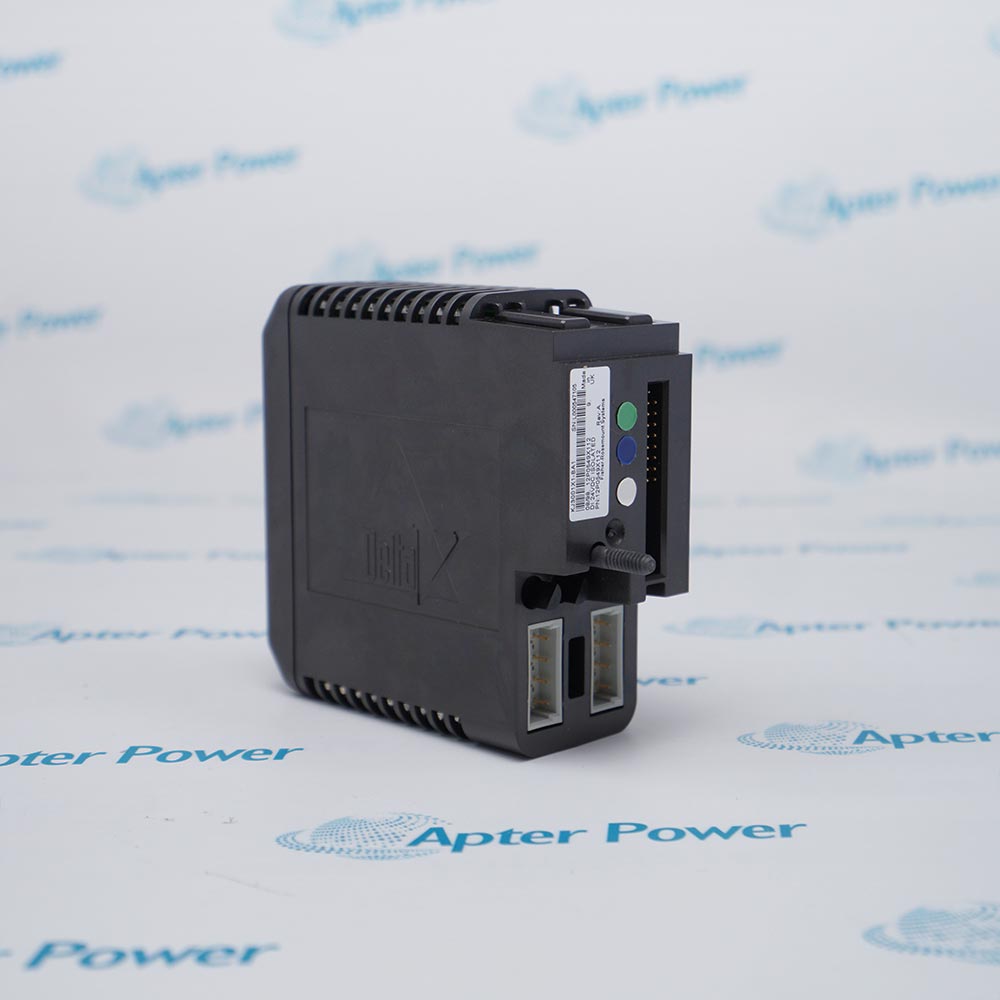

Emerson KJ3001X1-BA1 is an eight-channel 24 VDC isolated digital input card for DeltaV M-series Traditional I/O.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for KJ3001X1-BA1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for KJ3001X1-BA1

  • Manufacturer:
    Emerson
  • Part Number:
    KJ3001X1-BA1
  • Product Family:
    DeltaV
  • Product Type:
    8-Channel 24 VDC Isolated Digital Input Card
  • Stock:
    1
  • Channels:
    8
  • Input type:
    24 VDC isolated digital input
  • Isolation:
    Each channel is optically isolated from the system and from every other channel; factory tested at 1500 V DC
  • Input thresholds:
    On: greater than 10 V DC; off: less than 5 V DC
  • Input current:
    5 mA at 24 V DC
  • LocalBus power:
    12 V DC at 100 mA maximum
  • Terminal key:
    B2
  • Dimensions:
    4.1 × 10.7 × 10.5 cm
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Compatibility Indicators Termination Application
  • Eight 24 VDC digital-input channels are individually isolated from the system and from one another
  • Each channel is factory tested at 1500 V DC for the documented isolation boundary
  • B2 keying distinguishes the compatible terminal-interface arrangement

KJ3001X1-BA1 is an Emerson eight-channel 24 VDC isolated digital input card designed for DeltaV M-series Traditional I/O.

The card senses field-state signals while maintaining the documented optical isolation between each channel and the DeltaV system.

Before installation or replacement, verify the B2-keyed terminal interface, 24 VDC field wiring, channel isolation requirements, carrier compatibility, and installed DeltaV controller architecture.

Availability, condition, price, and shipping time for KJ3001X1-BA1 are confirmed during quotation.

Emerson KJ3001X1-BA1 8-Channel 24 VDC Isolated Digital Input Card Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • DeltaV M-series Traditional I/O hardware requires a compatible MQ, MX, or PK controller
  • The I/O interface can be installed on a compatible M-series horizontal or VerticalPlus carrier
  • M-series horizontal I/O carriers are not physically compatible with S-series horizontal controller carriers
  • The card includes power and internal-error indicators
  • Eight-channel Traditional I/O cards provide visible channel-status LEDs
  • The card housing is labeled with the installed I/O card type for identification
  • The card uses B2 terminal keying
  • Standard and fused terminal-block arrangements are documented for this isolated-input type
  • A 16-pin mass-termination arrangement is documented for the eight-channel card
  • Isolated 24 VDC field-status acquisition in DeltaV process-control systems
  • Eight-point digital monitoring where channel-to-channel isolation is required
  • M-series Traditional I/O installations using the documented B2-keyed termination
Description
KJ3001X1-BA1 is an Emerson eight-channel 24 VDC isolated digital input card for the DeltaV M-series Traditional I/O platform.

The card provides individually isolated channels with documented on/off thresholds, 5 mA input current at 24 V DC, and B2 terminal keying.

Before installation or replacement, confirm the complete catalog number, terminal block and keying, field voltage, channel wiring, carrier compatibility, and saved controller configuration.
Alternative Names
KJ3001X1-BA1 KJ3001X1BA1 KJ3001X1 BA1 Emerson KJ3001X1-BA1 DeltaV KJ3001X1-BA1 Emerson DeltaV KJ3001X1-BA1
Technical notes
KJ3001X1-BA1 requires the B2-keyed terminal interface, 24 VDC channel wiring, and channel-by-channel isolation requirements to be verified before installation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which terminal key is required for Emerson KJ3001X1-BA1?
Emerson documents B2 keying for KJ3001X1-BA1. Match the installed terminal block and carrier keying before fitting the card.
Are the channels of Emerson KJ3001X1-BA1 isolated from one another?
Yes. Each of the eight channels is optically isolated from the DeltaV system and from every other channel, with a documented 1500 V DC factory test.
What voltage levels switch Emerson KJ3001X1-BA1 on and off?
The documented thresholds are greater than 10 V DC for on and less than 5 V DC for off.
How much current does each Emerson KJ3001X1-BA1 input draw?
The documented input current is 5 mA at 24 V DC per channel.
Can Emerson KJ3001X1-BA1 replace a dry-contact input card directly?
Not automatically. KJ3001X1-BA1 is the isolated 24 VDC input type and uses B2 keying, so field circuitry, terminal hardware, and configuration must be matched.
Which DeltaV hardware should be checked before ordering Emerson KJ3001X1-BA1?
Confirm an M-series Traditional I/O carrier, the B2-keyed terminal interface, field voltage, channel wiring, and controller support.
What identification should be supplied when requesting Emerson KJ3001X1-BA1?
Provide the full KJ3001X1-BA1 catalog number, clear label photos, terminal-block type, carrier details, quantity, and required condition.
