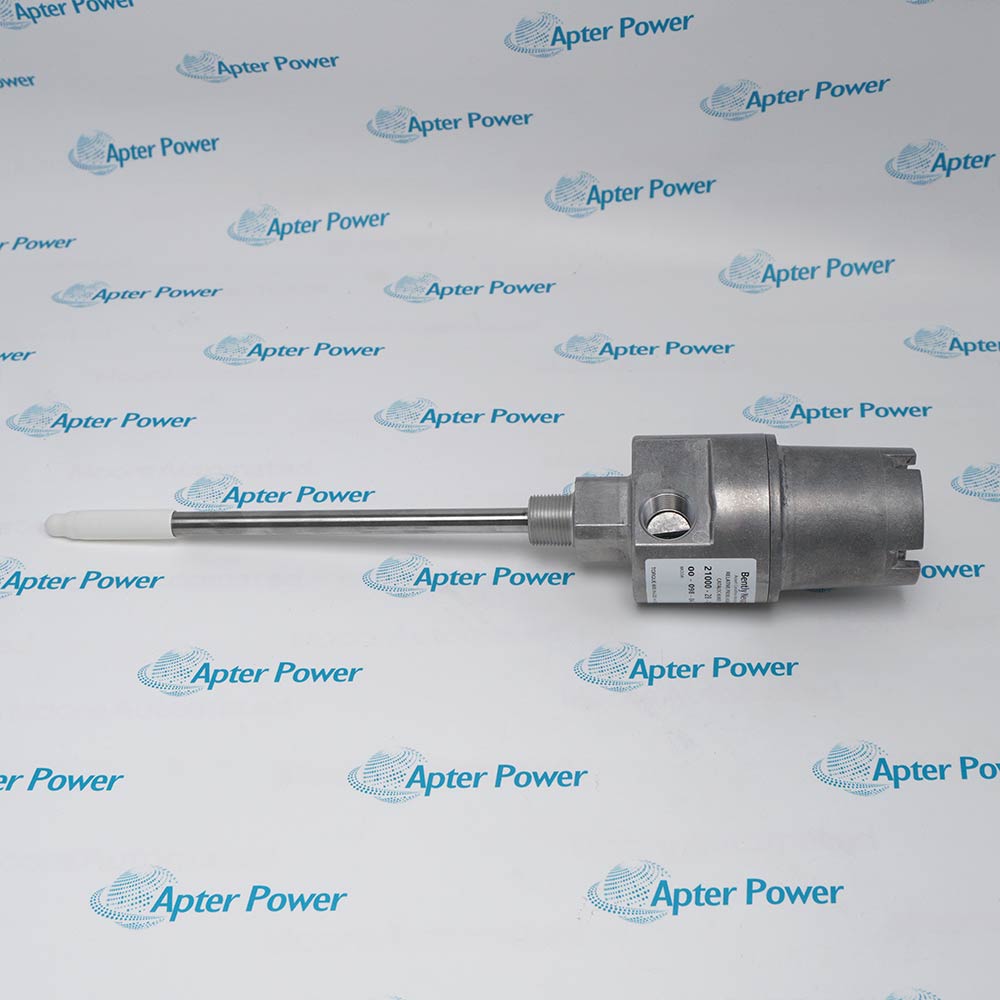

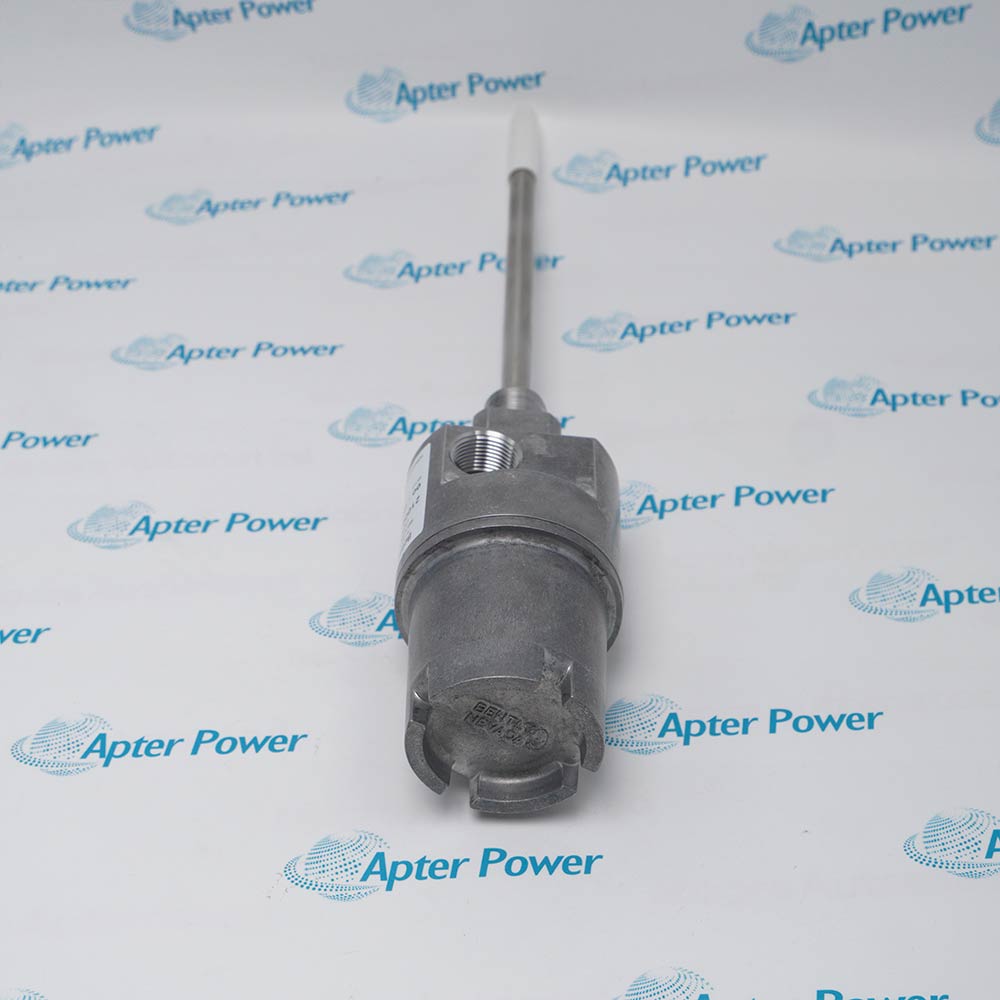

Bently Nevada 21000-28-10-00-098-04-02 Proximity Probe Housing Assembly ensures durable, explosion-proof performance with flexible sleeve and cable options for hazardous areas.
Get a quick price for 21000-28-10-00-098-04-02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 21000-28-10-00-098-04-02

  • Manufacturer:
    Bently Nevada
  • Part Number:
    21000-28-10-00-098-04-02
  • Product Family:
    21000, 24701, and 164818 Proximity Probe Housing A
  • Probe with Connector:
    3300 XL 8mm probe, selectable hazardous area approvals
  • Probe Cable Length:
    1.0 m (39 in)
  • Standoff Adapter (Option C Dimension):
    No standoff adapter
  • Probe Penetration (Option D Dimension):
    9.8 in
  • Fittings:
    One 3/4-14 NPT plug only
  • Mounting Thread:
    3/4-14 NPT
  • Material:
    Aluminum body with 304 stainless steel sleeve
  • Weight:
    1.34 kg
  • Estimated shipping dimensions:
    8.5x8.5x75.5cm
  • Tariff Code:
    8529102000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Efficiency Applications Environmental Ratings

Features:

  • Explosion-Proof Aluminum Housing With 304 Stainless Steel Sleeve For Long-Term Durability
  • Probe Penetration Of 9.8 Inches With 1.0 m (39 In) Cable For Flexible Installation
  • Compatible With CSA-Certified Intrinsically Safe Applications And Optional Standoff Adapters
Bently Nevada 21000-28-10-00-098-04-02 Proximity Probe Housing Assembly Is Designed For External Mounting Of 3300 XL 8mm Probes, Providing A Robust Aluminum Body With Stainless Steel Sleeve. Compared To The 24701 Stainless Steel Housing, The 21000 Offers Lighter Weight Without Compromising CSA Type 4 Certification Or Compliance With API 670 Standards. The Assembly Features One 3/4-14 NPT Plug And Threaded Ports For Conduit Connections, Ensuring Secure And Easy Installation.

The Housing Assembly Supports Probe Sleeve Lengths Up To 12 Inches, And Longer Sleeves Can Be Stabilized Using Bently Nevada Probe Support And Oil Seal (37948-01). This Provides Enhanced Vibration Reduction Compared To The Compact 164818 Housing, Which Is Better Suited For Restricted Spaces But Offers Less Sleeve Support Flexibility. Optional Conduit Fittings And Standoff Adapters Allow Adaptation To Specific Installation Requirements.

Bently Nevada 21000-28-10-00-098-04-02 Excels In Providing Reliable, Explosion-Proof Performance For Hazardous Areas While Maintaining Ease Of Use And Maintenance. Its Combination Of Aluminum And Stainless Steel Materials Improves Corrosion Resistance And Longevity, Making It A Superior Choice Over Other Housings Like 24701 And 164818 For Standard Industrial Applications.

The 21000-28-10-00-098-04-02 Bently Nevada Proximity Probe Housing Assemblies may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Bently Nevada 21000-28-10-00-098-04-02 Proximity Probe Housing Assemblies Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 21000-28-10-00-098-04-02 Proximity Probe Housing Assemblies Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 21000-28-10-00-098-04-02
  • Condition New Original ready stock
  • Product Family 21000-28-10-00-098-04-10,21000-28-20-00-098-04-02,21000-28-10-00-098-04-05
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Online Adjustment Capability: Allows for precise adjustment of the probe gap during machine operation (via an external cable seal), greatly improving maintenance efficiency without downtime.
  • Probe Protection: Provides a robust physical barrier for 8 mm and 5 mm eddy current probes, preventing environmental contaminants from interfering with measurements.
  • Standardized Connections: This configuration (-04-02) typically includes 3/4-14 NPT conduit connections and a standard external terminal box, ensuring high signal integrity.
  • Mechanical Stability: The aluminum housing (-28 code indicates aluminum) provides lightweight construction while ensuring the rigidity of the probe holder under long-term vibration.
  • Large Rotating Machinery: Widely used in steam turbines, gas turbines, centrifugal compressors, and large pumps.
  • External Bearing Housing Mounting: When it is not possible to mount the probe inside the machine, this housing is mounted externally, with the probe extending through mounting holes to monitor shaft vibration.
  • Oil and Chemical Facilities: Used in critical production lines requiring frequent probe gap calibration or preventative maintenance.
  • Multi-parameter Monitoring: Often installed in pairs (X-Y direction) for axis trajectory analysis.
  • Enclosure Material: ADC12 die-cast aluminum (code -28) with an epoxy resin coating for excellent resistance to atmospheric corrosion.
  • Hazardous Area Certification: Compliant with ATEX/IECEx and North American (CSA/NRTL) certifications, suitable for flammable and explosive environments such as Zone 0, 1, or 2 (depending on the internally installed probe and safety barrier configuration).
  • Protection Rating: The enclosure is typically designed to IP66 or Type 4X rating, effectively protecting against rain, spray, and dust intrusion.
  • Temperature Resistance: The mechanical components can withstand a typical wide industrial temperature range (typically -40°C to +100°C), with the upper limit limited by the internally installed probe and seals.
Description
Bently Nevada 21000-28-10-00-098-04-02 Proximity Probe Housing Assembly is engineered for robust external mounting of 3300 XL 8mm probes with selectable hazardous area approvals. Unlike the compact 164818 housing, this assembly provides a full aluminum body with 304 stainless steel sleeve, allowing optimal protection and longevity in industrial applications. The assembly includes one 3/4-14 NPT plug and matching mounting thread, providing secure and reliable installation.

Compared to the 24701 stainless steel housing, the 21000 aluminum housing offers lighter weight while maintaining CSA Type 4 certification and compliance with API 670 standards. Its dome cover screws directly into the housing body, and threaded ports support conduit connections, making it easier to integrate with existing systems. Optional standoff adapters and conduit fittings allow flexible configurations that adapt to space restrictions, though the 21000 excels in standard installations without requiring additional accessories.

The probe penetration option of 9.8 inches ensures precise placement, while the probe cable length of 1.0 m (39 in) provides sufficient lead length for most mounting locations. Sleeve lengths exceeding 304 mm (12 in) can be supported with Bently Nevada’s probe support and oil seal (37948-01), which helps reduce vibration for long-sleeve installations. In contrast, the 164818 Compact Proximity Probe Housing is better suited for highly restricted spaces but offers less flexibility in sleeve support.

Bently Nevada 21000-28-10-00-098-04-02 is designed for intrinsically safe applications, making it compatible with both standard and hazardous area installations. The combination of aluminum body and stainless steel sleeve ensures resistance to corrosion and wear, outperforming standard 24701 housings in ease of installation and maintenance. This assembly provides an ideal solution for applications requiring high reliability, long service life, and compliance with safety certifications.
Alternative Names
21000-28-05-00-098-04-02 21000-28-10-00-080-04-02 21000-28-10-00-120-04-02 21000-28-10-00-150-04-02 21000-28-15-00-098-04-02
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the probe cable length for the 21000-28-10-00-098-04-02?
The cable length is 1.0 m (39 in), providing sufficient lead for typical mounting requirements.
What type of mounting thread does this assembly use?
The housing uses a 3/4-14 NPT threaded connection for secure installation.
Why use aluminum with 304 stainless steel sleeve?
Aluminum provides lightweight structure while the stainless steel sleeve resists corrosion and mechanical wear, outperforming purely aluminum or purely stainless steel housings.
How does 21000 compare to 24701 or 164818 housings?
The 21000 combines lightweight aluminum with robust CSA-approved construction, offering easier installation and maintenance than 24701 stainless steel, and more flexibility than the compact 164818 housing.
