        Bently Nevada 2201/03-01 3300 system module, industrial monitoring component with front panel hardware details

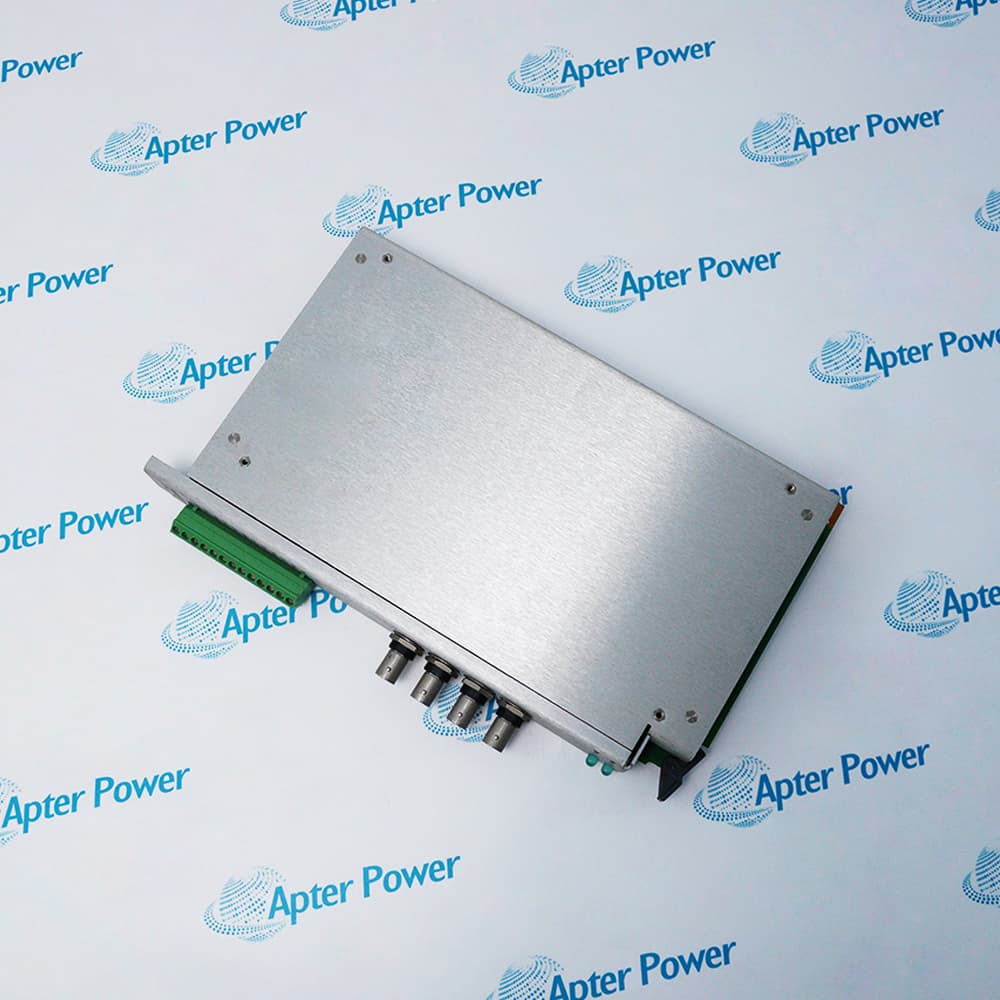

        Bently Nevada 2201/03-01 3300 system module, showing circuit board area and electronic component layout

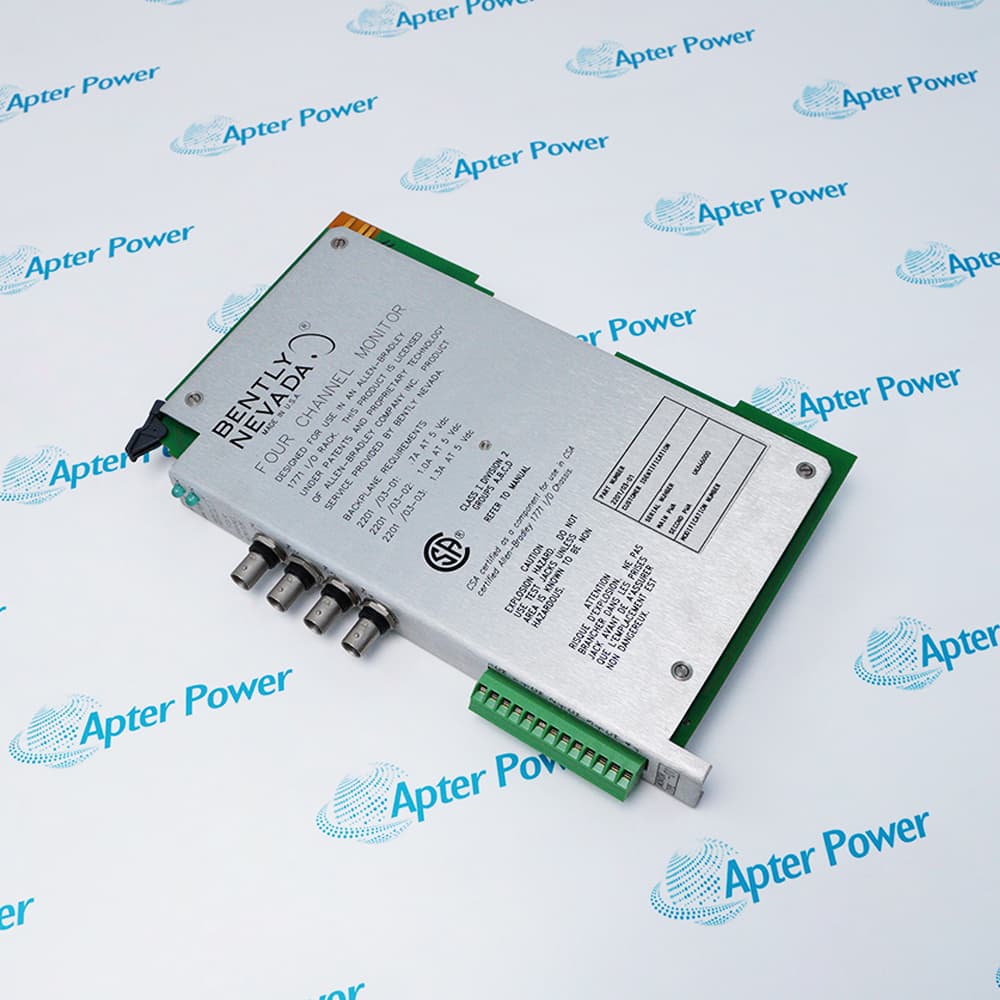

        Bently Nevada 2201/03-01 3300 system module, rack monitoring hardware with visible connector and board details
        Bently Nevada 2201/03-01 3300 system module, industrial monitoring component with front panel hardware details
        Bently Nevada 2201/03-01 3300 system module, showing circuit board area and electronic component layout
        Bently Nevada 2201/03-01 3300 system module, rack monitoring hardware with visible connector and board details
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        2201/03-01

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The Bently Nevada 2201/03-01 four-channel monitoring module is a core component of the 2201 monitoring system. It is designed to meet the continuous vibration monitoring needs of critical, important, and general-purpose mechanical equipment.
        Get a quick price for 2201/03-01
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 2201/03-01

        • Manufacturer:
          Bently Nevada
        • Part Number:
          2201/03-01
        • Product Family:
          3300 System
        • Applicable System:
          Bently Nevada 2201 Monitoring System
        • Backplane Interface:
          1771 Universal I/O Backplane
        • Channel Count:
          4 independent monitoring channels
        • Backplane Power Requirements:
          0.7 A @ 5V DC
        • System Scan Rate:
          24 channels every 40 milliseconds
        • Alarm Levels:
          2 levels per channel (Alert and Danger)
        • Input Signals:
          Vibration and Seismic transducer data
        • Weight:
          0.66 kg
        • Estimated shipping dimensions:
          27 cm x 17.2 cm x 3 cm
        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Applications Diagnostics & Protection Installation & Integration

        Features:

        • Connection Between Field-Mounted Vibration Sensors and 2201 System Backplane
        • Integrates Capability of Four-Channel Signal Processing with Programmable Alarm Management
        • Functions Alongside the System Monitor and Additional Four-Channel Modules
        The Bently Nevada 2201/03-01 serves as the dedicated Four-Channel Monitor module within the 2201 Monitoring System architecture, providing continuous vibration and seismic data acquisition for critical machinery protection. This Bently Nevada 2201/03-01 continuously processes incoming signals from proximity probes and seismic sensors, converting mechanical vibration data into calibrated measurements and distributing this information through the rack backplane to support steady state operation of the entire monitoring system. Seamless data integration is standard with the Bently Nevada 2201/03-01, however using multiple Bently Nevada 2201/03-01 modules in a single rack allows for expanded channel capacity up to 24 channels. The Bently Nevada 2201/03-01 has made improvements in several areas over previous monitoring system designs, including direct programmability from the PLC-5 controller rather than manual jumper configuration.

        The Bently Nevada 2201/03-01 provides essential monitoring functions common to the entire rack, and is a critical component of the machinery protection path, directly affecting the proper, normal operation of the overall monitor system. Up to six Bently Nevada 2201/03-01 modules are supported per rack depending on the required channel count. The Bently Nevada 2201/03-01 occupies a single slot in the rack and installs in any of the six available monitor positions alongside the System Monitor.

        For full 24-channel monitoring applications, the 2201 System requires multiple Bently Nevada 2201/03-01 modules installed in the available slots. In addition to standard measurement capabilities, the multi-module configuration also performs independent alarm detection on each channel. The Bently Nevada 2201/03-01 executes threshold monitoring using the internal circuitry specified in the system configuration. Using this method, each Bently Nevada 2201/03-01 continually monitors all four channels for Alert and Danger level violations. If the module detects that any channel measurement exceeds configured limits, it will immediately activate the corresponding alarm output and communicate the event to the System Monitor for logging and notification.

        The 2201/03-01 Bently Nevada Four-Channel Monitor module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Bently Nevada 2201/03-01 Four-Channel Monitor module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        Bently Nevada 2201/03-01 Four-Channel Monitor module Specs

        General

        • Manufacturer Bently Nevada
        • Model 2201/03-01
        • Condition New Original ready stock
        • Product Family 2201/01,2201-03-03,2201/02-02
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Critical Machinery: Large-scale equipment like steam turbines, gas turbines, and centrifugal compressors where failure leads to significant downtime.
        • Essential & General Purpose Equipment: Motors, pumps, and fans that require automated oversight to prevent secondary damage.
        • Seismic and Vibration Monitoring: Captures real-time data from proximity probes, velocity transducers, and accelerometers to monitor shaft vibration and casing stability.
        • Dual-Level Alarms: Provides independent Alert (early warning) and Danger (automatic shutdown or critical status) setpoints for each of its four channels.
        • Fault Detection: Monitors transducer signal integrity; if a sensor or cable fails, the module identifies the fault to prevent false trips.
        • Integrated Data Source: By combining vibration data with plant process data (such as temperature or pressure) in a single PLC-5 source, it allows for more sophisticated root-cause analysis compared to standalone systems.
        • PLC-5 Interface: It installs directly into a 1771 Universal I/O backplane, allowing it to reside in the same rack as the machine's control logic.
        • Software Configuration: Unlike older hardware (like the 3300 series) that required manual jumpers, the Bently Nevada 2201/03-01 is programmed directly via the PLC-5 controller, streamlining the setup process.
        • Communication Ports: Features dedicated RS-232 ports—SDIX for local troubleshooting and DDIX for connection to external Bently Nevada communication processors for advanced data management.
        View as PDF
        Description
        The Bently Nevada 2201/03-01 is a specialized Four-Channel Monitor module designed as a core component of the 2201 Monitoring System. This Bently Nevada 2201/03-01 module is purpose-built to address the need for continuous vibration monitoring of critical, essential, and general-purpose machinery. By integrating the Bently Nevada 2201/03-01 into your infrastructure, you can effectively manage machinery vibration and plant process data from a single, convenient programmable source, which significantly reduces overall equipment, installation, and operating costs.

        Specifically, the Bently Nevada 2201/03-01 is designed to handle the challenge of monitoring complex seismic and vibration information across multiple points. This Bently Nevada 2201/03-01 provides four independent channels of data, contributing to a total system capacity of 24 channels. It solves the problem of delayed fault detection by providing two distinct levels of alarm—Alert and Danger—for every individual channel. The Bently Nevada 2201/03-01 ensures that operators receive immediate notification of mechanical deviations before they lead to costly equipment failure.

        In terms of operational efficiency, the Bently Nevada 2201/03-01 eliminates the tedious manual jumper configurations found in older systems like the 3300 series. This Bently Nevada 2201/03-01 allows machine operators to program parameters directly from a PLC-5 controller, solving the issue of rigid hardware setups and allowing for faster system adjustments. By offering features superior to earlier systems, the Bently Nevada 2201/03-01 allows for the direct combination of vibration data with the machine process control system, creating a more cohesive and responsive monitoring environment.
        Alternative Names
        2201/01 2201-03-03 2201/02-02
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What is the Bently Nevada 2201/03-01 module?
        The Bently Nevada 2201/03-01 is a specialized Four-Channel Monitor designed as a core component of the Bently Nevada 2201 Monitoring System. It is developed to provide continuous vibration monitoring for critical, essential, and general-purpose machinery, helping operators maintain equipment reliability and performance.
        What problem does the Bently Nevada 2201/03-01 solve?
        The Bently Nevada 2201/03-01 addresses the need for centralized and continuous monitoring of machinery vibration and process data. By integrating this module, users can manage both vibration and plant data from a single programmable source, reducing equipment complexity as well as installation and operational costs.
        How does the module handle complex vibration monitoring?
        The Bently Nevada 2201/03-01 is designed to process complex seismic and vibration signals across multiple measurement points. It offers four independent monitoring channels, contributing to a total system capacity of up to 24 channels, making it suitable for multi-point monitoring in industrial environments.
