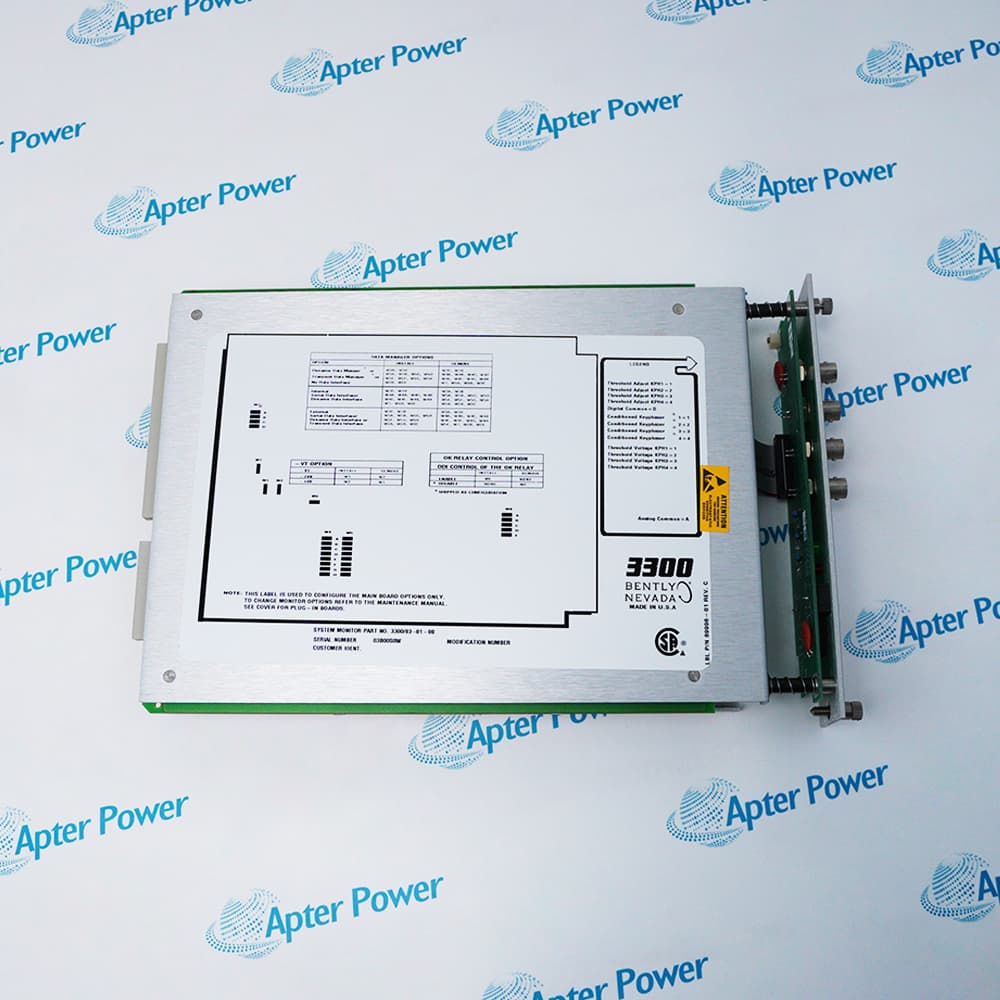

Bently Nevada 3300/03-01-00 3300 system module, showing circuit board components and connector area

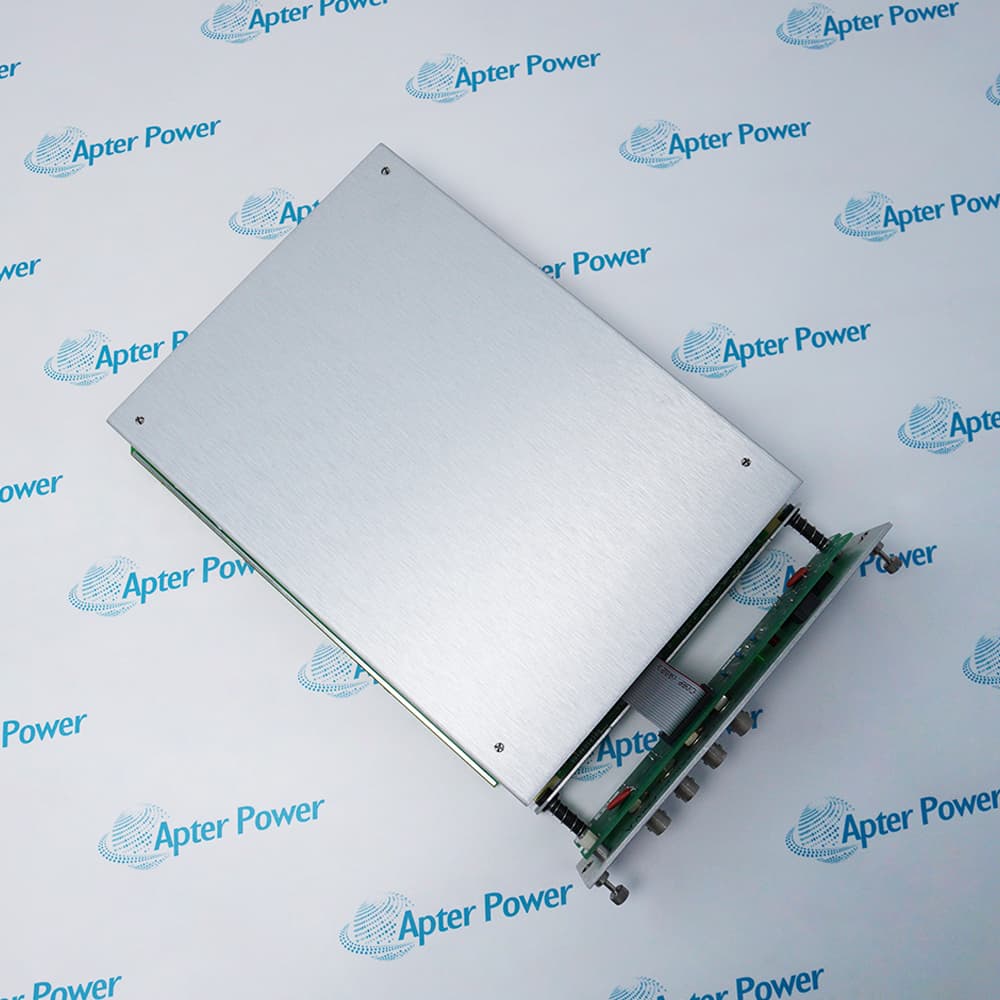

Bently Nevada 3300/03-01-00 3300 system module, industrial monitoring hardware with front panel and casing details
Bently Nevada 3300/03-01-00 3300 system module, rack-mounted industrial monitoring component
Bently Nevada 3300/03-01-00 3300 system module, showing circuit board components and connector area
Bently Nevada 3300/03-01-00 3300 system module, industrial monitoring hardware with front panel and casing details
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com

3300/03-01-00

/ 4.9
1001 reviews | Need a Specific Revision?
The 3300/03-01-00 is a 3300 System Monitor providing setpoint adjust, system reset, OK relay, Trip Multiply (2X/3X), Keyphasor power for 4 transducers, and DDM/TDM data interface support.
Get a quick price for 3300/03-01-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3300/03-01-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    3300/03-01-00
  • Product Family:
    3300 System
  • Product Type:
    System Monitor
  • Supply Voltages:
    +VRH: 23.65±6.35V; +VRL: 11.22±3.09V; +7.5V: 7.5±0.1V; +5V: 5.00±0.05V; REF: 5.00±0.009V; -7.5V: 7.5±0.1V
  • -VT Option (-24V):
    -23.75±0.45V
  • -VT Option (-18V):
    -17.9±0.4V
  • Power-Up Inhibit Delay:
    2.1±1 seconds
  • Keyphasor Outputs:
    4 channels, short-circuit protected
  • Trip Multiply:
    2X or 3X (ordering option)
  • Data Interface Support:
    DDM/TDM, SDI, DDI, TDI
  • Operating Temperature:
    0°C to +65°C
  • Key Benefit:
    Solves centralized rack management with setpoint adjust, OK relay, Trip Multiply, and Keyphasor distribution—power-up inhibit prevents false alarms during startup.
  • Weight:
    1 kg
  • Estimated shipping dimensions:
    24x2x25cm
  • Tariff Code:
    8537109090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Operating Environment Monitoring and Control Functions

Features:

  • Trip Multiply function (2X or 3X) prevents false alarms during startups, coast-downs, and resonant speed crossings.
  • Four short-circuit protected Keyphasor transducer inputs with buffered outputs for DDI and front-panel monitoring.
  • Centralized setpoint adjustment, system reset, OK relay, and DDM/TDM data interface support.
The 3300/03-01-00 is the command center for your 3300 rack. From its front panel, you adjust alarm setpoints up or down across every monitor in the rack—no need to open individual monitors. The system reset function clears latched alarms after faults are resolved, getting your machinery back online faster. The OK relay continuously monitors every transducer in the rack; if any probe or cable fails, the relay changes state to annunciate the problem.

During startups and coast-downs, rotating machinery often passes through resonant speeds where vibration levels temporarily exceed normal operating limits. Without Trip Multiply, these transient vibrations would trigger false alarms and unnecessary shutdowns. The 3300/03-01-00 solves this by increasing alarm setpoints by 2X or 3X when activated by an external contact closure. A red LED on the front panel confirms Trip Multiply is active.

The 3300/03-01-00 powers up to four Keyphasor transducers with short-circuit protected DC voltage (-18V or -24V jumper-selectable). Two Keyphasor signals are distributed to rack monitors for speed and phase measurement; all four are available to the Dynamic Data Interface (DDI) for advanced analysis. Buffered Keyphasor outputs on the front panel let you connect portable analyzers without disturbing field wiring.

The 3300/03-01-00 Bently Nevada System Monitor may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Bently Nevada 3300/03-01-00 System Monitor Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 3300/03-01-00 System Monitor Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 3300/03-01-00
  • Condition New Original ready stock
  • Product Family 3300/03-02-00,3300/03-02-01,3300/03-03-02,3300/03-03-03
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Key Rotating Equipment: Such as large steam turbines, gas turbines, centrifugal/reciprocating compressors, pumps, fans, and generators.
  • Power Plants: Status monitoring of thermal and hydroelectric power generation equipment.
  • Chemical and Petrochemical Industries: Mechanical integrity assurance for core production lines.
  • Steel and Mining: Online protection for large air separation units and transmission gearboxes.
  • Relative Humidity: Up to 95%, non-condensing environment.
  • Environmental Protection: If installation is required outdoors or in hazardous areas (such as Class I, Div 2), it must be placed in an ATEX-compliant protective cover or weather-resistant enclosure.
  • Alarm Adjustment: Adjust the alarm settings (setpoints) of all modules within the rack via front panel buttons or software.
  • Rack Inhibit: Disable alarm outputs from all modules within the rack at once via the rear PIM terminal, suitable for maintenance and repair.
  • Trip Multiply: Temporarily amplify alarm thresholds by a preset ratio during equipment startup to prevent accidental shutdown.
  • Communication Interface: Equipped with RS-232 or RS-422 interfaces, supporting SDI (Serial Data Interface) and DDI (Dynamic Data Interface) protocols.
Description
The 3300/03-01-00 is the enhanced basic system monitor for 3300 racks, offering setpoint adjustment, system reset, OK relay, and Trip Multiply functions. It powers and monitors four Keyphasor transducers with short-circuit protected outputs.

The 3300/03-01-00 features front-panel controls for upscale and downscale alarm setpoint adjustments across all monitors in the rack. Seven internal LEDs indicate supply voltages (+VRH, +VRL, +7.5V, +5V, REF, -7.5V, -VT) with a green front-panel SUPPLIES OK LED. The OK relay is normally energized and de-energizes on any transducer fault or power loss.

The 3300/03-01-00 supports rack inhibit and system reset functions through external contacts on the Power Input Module (PIM). It provides buffered Keyphasor signals at front-panel coaxial connectors and distributes four Keyphasor inputs to monitors and DDI.

This monitor solves the pain point of centralized rack management in 3300 systems. The 3300/03-01-00 delivers essential functions—setpoint adjust, system reset, OK relay, Trip Multiply, and Keyphasor distribution—while supporting DDM/TDM data acquisition.
Alternative Names
3300/03-02-00 3300/03-02-01 3300/03-03-02 3300/03-03-03
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the power-up inhibit delay on the 3300/03-01-00?
Approximately 2.1 seconds. This prevents monitors from alarming while power supplies stabilize after startup.
How many Keyphasor transducers does the 3300/03-01-00 support?
Four transducers. Two are available to rack monitors; all four are available to the Dynamic Data Interface (DDI).
What happens when Trip Multiply is activated?
Alarm setpoints (Alert and Danger) increase by 2X or 3X. This prevents false alarms during startups, coast-downs, or resonant speed crossings.
Does the OK relay indicate rack power loss?
Yes. The OK relay is normally energized. If rack power is lost or interrupted, the relay changes state—annunciating power failure.
