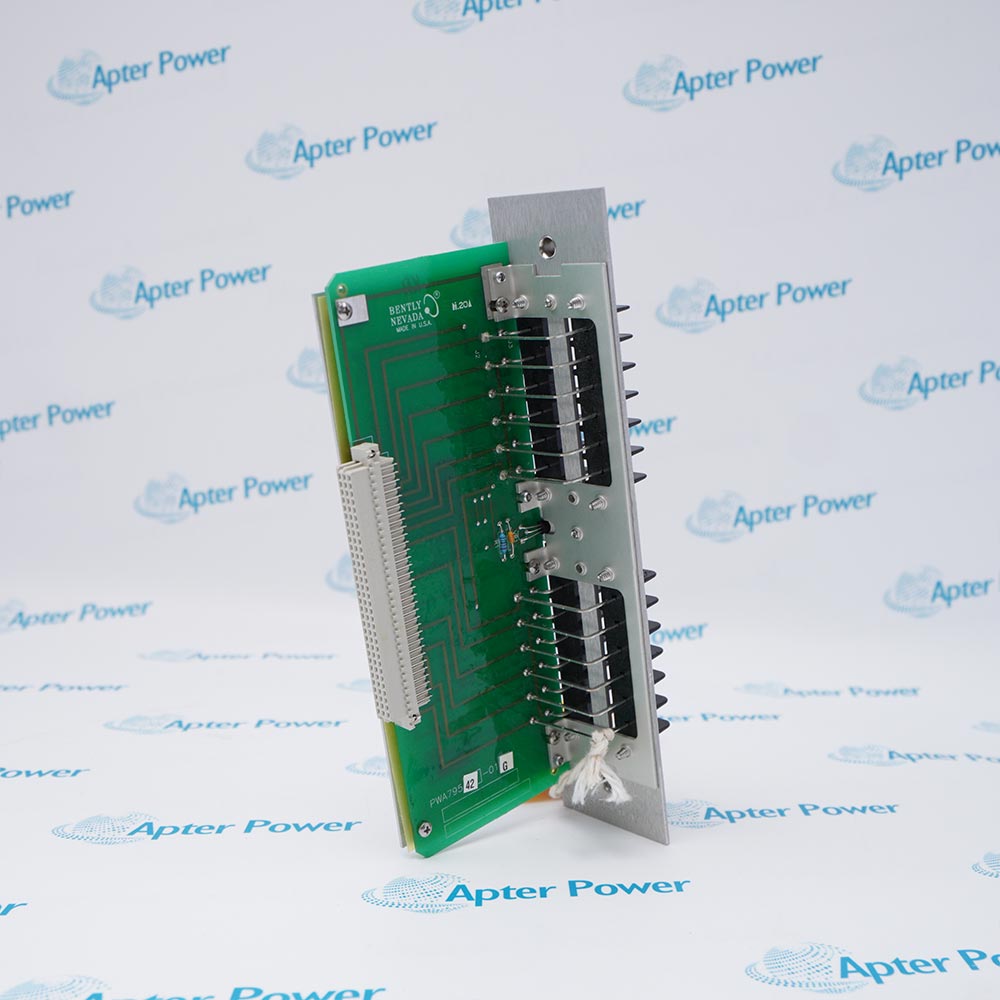

Bently Nevada 82367-01

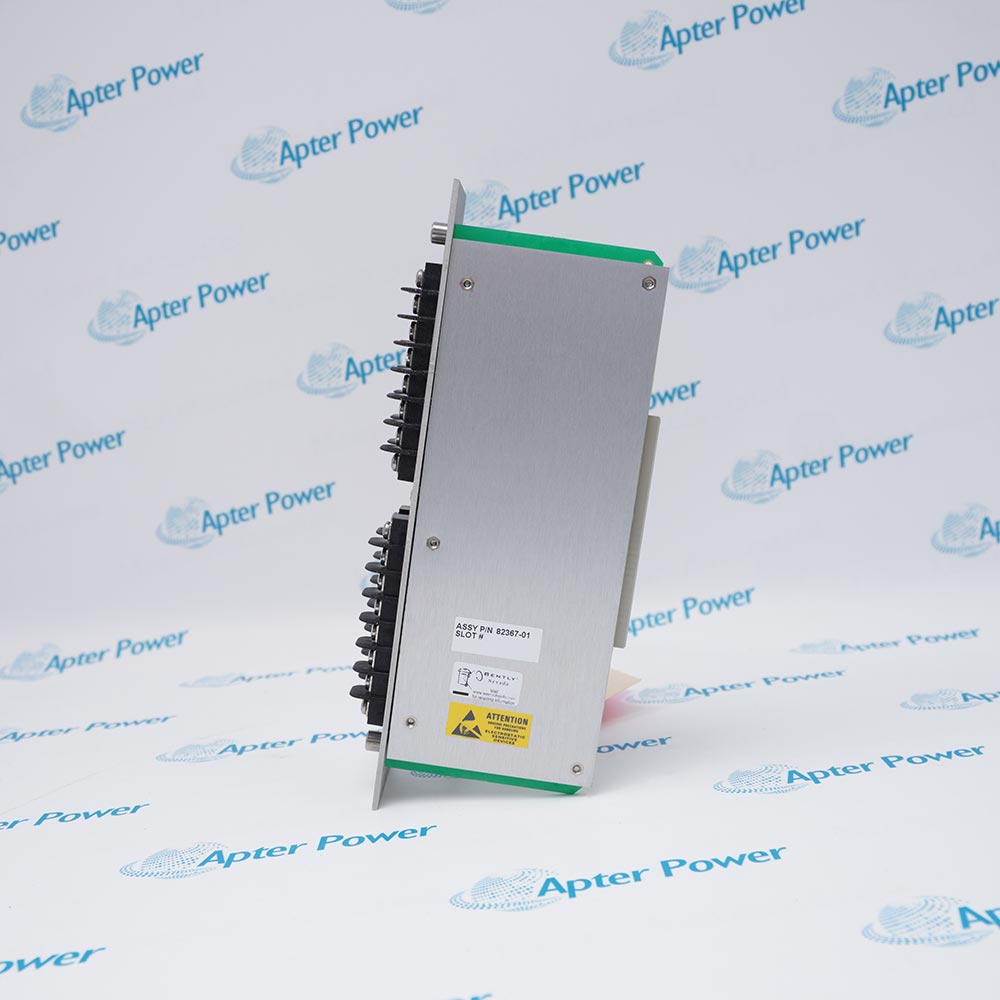

Bently Nevada 82367-01
Bently Nevada 82367-01
Bently Nevada 82367-01
Bently Nevada 82367-01
Bently Nevada 82367-01
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com

82367-01

/ 4.9
1001 reviews | Need a Specific Revision?
The Bently Nevada 82367-01 is a six-channel thermocouple input module designed for precise temperature monitoring in industrial applications. It seamlessly integrates with the 3300/30 temperature monitor for reliable signal acquisition and processing.
Get a quick price for 82367-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 82367-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    82367-01
  • Product Family:
    3300 System
  • Number of channels:
    Supports 6 independent channels
  • Installation location:
    Installed in the corresponding position at the rear of the 3300 series rack.
  • Compatibility:
    Specifically designed for use with the Bently Nevada 3300/30 temperature monitor.
  • Type J:
    500°C, 1000°F
  • Type K:
    500°C, 1000°F
  • Type T:
    250°C, 500°F
  • Type E:
    250°C, 500°F
  • Operating Temperature:
    0°C to +65°C (+32°F to +150°F).
  • Storage Temperature:
    -40°C to +85°C (-40°F to +185°F).
  • Relative Humidity:
    To 95%, non-condensing.
  • Weight:
    0.28 kg
  • Estimated shipping dimensions:
    5x9.8x22.8cm
  • Tariff Code:
    3902100090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Performance Certifications Applications

Features:

  • Supports Six Independent Thermocouple Channels For Accurate Multi-Point Monitoring.
  • Engineered For Rear-Rack Installation With Direct Integration To The 3300/30 Monitor.
  • Operates In High-Humidity Environments With Reliable Temperature Signal Transmission.
The Bently Nevada 82367-01 module enhances the 3300 series’ capability by providing precise, multi-channel temperature data. It is ideal for applications where high accuracy and reliability are critical, such as rotating machinery or process control systems.

By supporting multiple thermocouple types, the module offers flexibility for diverse industrial setups. Its robust design ensures stable operation under varying environmental conditions, including high humidity and temperature fluctuations.

The module’s integration with the 3300/30 monitor simplifies system configuration and maintenance. Operators benefit from real-time temperature monitoring, reduced downtime, and improved overall equipment efficiency.

The 82367-01 Bently Nevada TC Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 82367-01 TC Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 82367-01 TC Input Module Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 82367-01
  • Condition New Original ready stock
  • Product Family 3300/30,84152-01,84141-01
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Six Independent Channels: A single module supports six independent thermocouple inputs, each independently isolated to prevent signal interference.
  • Multi-Type Compatibility: Supports various industrial standard thermocouples, including J, K, T, and E types, configurable via software through a front-end monitor.
  • High-Precision Signal Conditioning: Built-in cold junction compensation ensures accurate measurements even with changes in ambient temperature.
  • Real-Time Status Monitoring: Equipped with an OK monitoring circuit to detect open circuits in thermocouples or input signals exceeding their legal range in real time.
  • Fast Response: Designed for continuous monitoring of rotating machinery, the signal update frequency is sufficient to detect abnormal temperature rises and prevent mechanical damage.
  • CSA/NRTL/C: Compliant with North American electrical safety standards, applicable to Class 1, Division 2 hazardous areas.
  • ATEX/IECEx: Complies with European and international explosion-proof standards (usually requires the use of an isolation barrier), suitable for potentially explosive environments.
  • CE Mark: Complies with EU Electromagnetic Compatibility (EMC) and Low Voltage Directive (LVD).
  • GOST Certification: Complies with import and technical safety guidelines of Russia and CIS countries.
  • Turbine Machinery Bearing Monitoring: Real-time monitoring of bearing alloy temperature (babbitt temperature) in steam turbines, gas turbines, or pump sets to prevent bearing burnout.
  • Motor Winding Protection: Monitors the stator winding temperature of large electric motors or generators to prevent fires caused by insulation aging or overload.
  • Process Medium Monitoring: Measures the fluid temperature at compressor outlet, lubrication oil circuit, or cooling water system as auxiliary data for machine health diagnosis.
  • Exhaust Temperature Analysis: Used in gas turbines to monitor exhaust cylinder temperature distribution to help determine combustion equilibrium.
Description
The 82367-01 thermocouple input module is part of the Bently Nevada 3300 series, engineered to handle six independent channels simultaneously. Mounted at the rear of the 3300 series rack, it receives raw temperature signals from Type J, K, T, and E thermocouples and forwards them to the 3300/30 front monitor for accurate analysis.

Designed for robust industrial environments, the module operates within a temperature range of 0°C to +65°C and can be stored safely between -40°C and +85°C. Its relative humidity tolerance reaches up to 95% non-condensing, making it suitable for challenging conditions such as high-humidity or partially enclosed installations.

The module supports thermocouples rated for high-temperature applications, including Type J and K up to 500°C, and Type T and E up to 250°C. This flexibility allows for versatile integration across different industrial sensors, ensuring precise temperature monitoring.

With the 82367-01, operators can rely on consistent and accurate temperature readings, which are critical for predictive maintenance and process safety. Its compatibility with the 3300/30 temperature monitor provides seamless integration, enhancing the overall reliability of the Bently Nevada 3300 monitoring system.

This input module contributes to extended system longevity by ensuring accurate field data acquisition and maintaining seamless communication with the 3300/30 monitor. Its installation at the rear of the rack simplifies wiring management and minimizes operational downtime during maintenance.
Alternative Names
82365-01 82368-01 81228-01 84137-01 84140-01
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the main purpose of the 82367-01 module?
It collects temperature signals from up to six independent thermocouples and transmits them to the 3300/30 monitor for precise monitoring.
Which thermocouples are compatible with the module?
Type J, K, T, and E thermocouples are supported, each rated for specific temperature ranges (up to 500°C for J/K and 250°C for T/E).
Where should the module be installed in the system?
It is installed at the rear of the 3300 series rack, directly connecting field thermocouples to the 3300/30 monitor.
What are the advantages of rear-rack installation?
This setup simplifies cable routing, minimizes electrical interference, and allows easier access for maintenance without disturbing the front panel.
