330701-00-30-10-01-00

/ 4.9
1001 reviews | Need a Specific Revision?

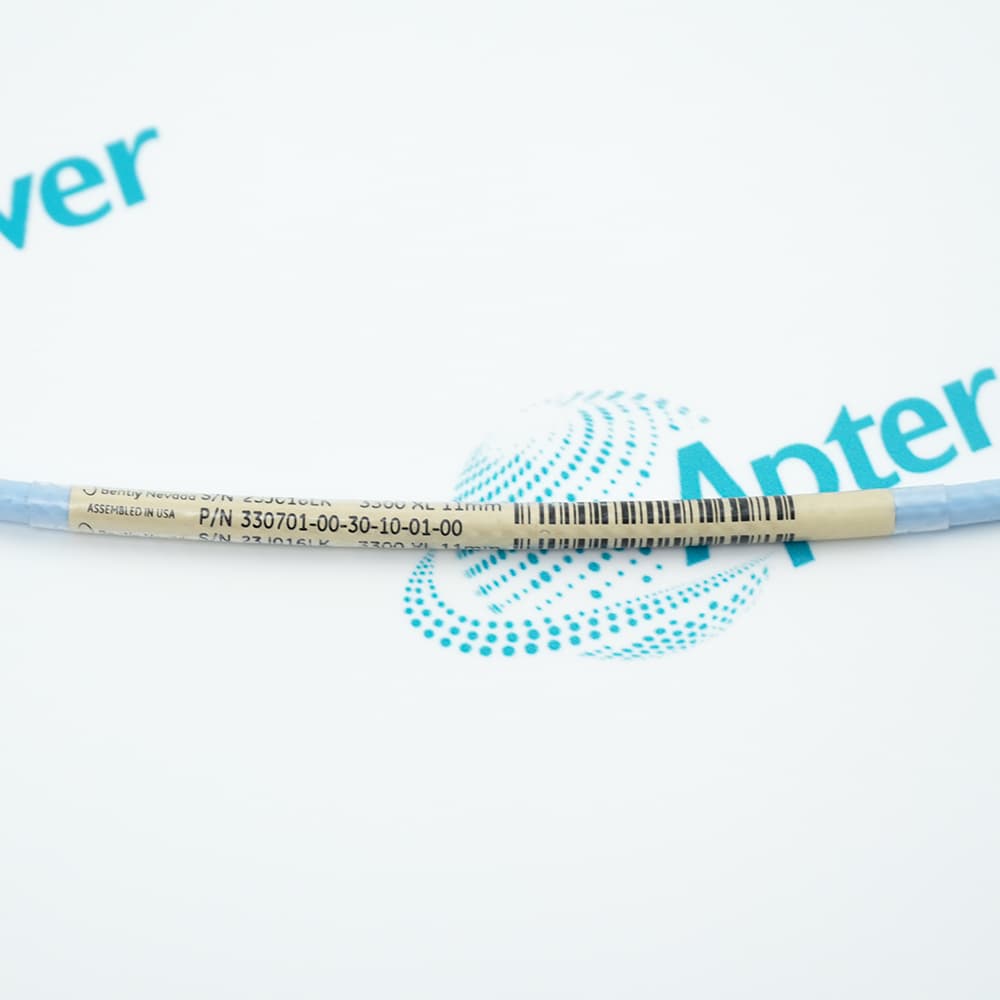

The Bently Nevada 330701-00-30-10-01-00 3300 XL 11 mm Proximity Probe is a industrial transducer designed for precise machinery monitoring.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330701-00-30-10-01-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330701-00-30-10-01-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330701-00-30-10-01-00
  • Product Family:
    3300 XL 11mm Proximity Transducer System
  • Product Type:
    3300 XL 11 mm Proximity Probe
  • Stock:
    1
  • Unthreaded Length Option:
    0.0 in
  • Overall Case Length Option:
    3.0 in
  • Total Length Option:
    1.0 meter (3.3 feet)
  • Connector and Cable-Type Option:
    Miniature coaxial ClickLocconnector with connectorprotector, standard cable
  • Agency Approval Option:
    Not required
  • Proximitor Sensor Material:
    A380 aluminum
  • Operating andStorageTemperature:
    -52°C to +177°C (-62°F to+351°F)
  • Weight:
    0.1 kg
  • Estimated shipping dimensions:
    2x1.8x117cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Installation Compatibility

Features:

  • Extended 11 mm sensing tip provides a longer linear measurement range for demanding displacement and position monitoring applications.
  • Patented TipLoc and CableLoc technologies enhance mechanical durability with secure probe construction and 330 N (75 lb) cable pull strength.
  • Gold-plated ClickLoc connectors with optional environmental protection deliver dependable long-term connections in industrial installations.
Bently Nevada 330701-00-30-10-01-00 is developed for continuous condition monitoring of critical rotating equipment used throughout power generation, oil and gas, petrochemical, and process industries. Non-contact sensing technology allows accurate measurement without physical contact with moving machine components. Extended measurement capability makes the probe particularly valuable for applications where standard sensing ranges are insufficient. Reliable machine protection contributes to improved maintenance planning and equipment availability.

The transducer system combines an 11 mm proximity probe, extension cable, and Proximitor Sensor into a complete measurement solution. Factory calibration for AISI 4140 steel supports consistent output performance, while the A380 aluminum Proximitor Sensor provides durable construction. Multiple probe thread configurations are available within the product family, allowing flexible installation across different machinery designs.

Installation reliability is strengthened through locking ClickLoc connectors, robust probe construction, and optional FluidLoc cable technology that helps prevent fluid migration through the cable interior. Connector protectors further improve environmental resistance in humid locations, and the included locknut with pre-drilled safety wire holes supports secure installation practices. These features make Bently Nevada 330701-00-30-10-01-00 a dependable solution for long-term industrial vibration and position monitoring.

The 330701-00-30-10-01-00 Bently Nevada 3300 XL 11 mm Proximity Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330701-00-30-10-01-00 3300 XL 11 mm Proximity Probe Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330701-00-30-10-01-00 3300 XL 11 mm Proximity Probe Specs

General

  • Manufacturer Bently Nevada
  • Model 330701-00-30-10-01-00
  • Condition New Original ready stock
  • Product Family 330701-00-30-10-01-05,330701-00-30-05-01-00,330701-00-30-10-02-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Screen Vibration: Widely deployed in the radial shaft vibration monitoring of large industrial steam turbines and gas turbines, tracking the rotor's movement trajectory within the bearing bush in real time.
  • Axial Displacement: Installed on the high-speed spindle end face of heavy-duty volute centrifugal compressors for precise measurement of axial movement to prevent fatal impeller scuffing.
  • Eccentricity Measurement: Deployed in the rotor bearing section of ultra-large hydro-generator units or large wind turbines to monitor eccentric bending deformation of the main shaft during the unit's turning gear phase.
  • Speed ​​Detection: Used in conjunction with axial keyways or measuring gears as a high-precision non-contact speed sensor input to achieve overspeed protection and phase acquisition for turbine units.
  • Physical Tightening: A torque wrench must be used to secure the probe to the housing surface strictly according to the torque recommended in the manual. Over-tightening can cause thread deformation.
  • Gap Fine-tuning: The static gap of the eddy current probe must be precisely adjusted to approximately 2.0 mm using an installation gap gauge or by monitoring the initial DC voltage value output by the preamplifier.
  • Cable Protection: When wiring the armored external extension cable, a minimum bending radius of 30 mm must be maintained, and it must be securely fixed inside a stainless steel conduit.
  • Mechanical Anti-loosening: After installing the positioning lock nut at the probe tip, medium-strength thread-locking adhesive must be applied to resist the strong high-frequency vibrations of the unit within the bearing housing over the long term.
  • Preamplifier Matching: This probe must be strictly matched with the 3300 XL series 11 mm preamplifier. It must never be used with electronic boards from other 5 mm or 8 mm systems.
  • Cable Length: The total system length of the probe and extension cable must be precisely rated at 5.0 meters or 9.0 meters to ensure the linearity of the preamplifier output curve.
  • Material Limitations: The probe's factory calibration characteristics are based entirely on AISI 4140 standard-calibrated low-alloy steel. If used with other metal rotors, the coefficients must be readjusted.
  • Frame System: The output eddy current signal is perfectly compatible with the Bentley 3500/25 vibration monitoring frame, the earlier 3300 system, and various mainstream distributed acquisition systems.
Description
The Bently Nevada 330701-00-30-10-01-00 is a 3300 XL 11 mm Proximity Probe engineered specifically for precision vibration and position measurement in critical rotating machinery applications. This 330701-00-30-10-01-00 probe features a 1/2-20 UNF thread configuration and comes without armor, making the 330701-00-30-10-01-00 an ideal choice for installations where standard environmental conditions prevail and where flexible cable routing is required. The 330701-00-30-10-01-00 is designed to address the challenge of reliable, non-contact displacement monitoring in high-speed rotating equipment, providing accurate and repeatable measurements that are essential for predictive maintenance and machinery protection systems.

The 330701-00-30-10-01-00 is widely applied across multiple industrial sectors, including power generation, oil and gas, petrochemical processing, and pulp and paper manufacturing. In these environments, the 330701-00-30-10-01-00 is typically installed on turbomachinery such as steam turbines, gas turbines, compressors, pumps, and motors to monitor shaft vibration, thrust position, and eccentricity. The 330701-00-30-10-01-00 integrates seamlessly with Bently Nevada 3300 XL monitoring systems, connecting via gold-plated brass ClickLoc connectors that lock securely into place to prevent loosening under operational vibration. The 330701-00-30-10-01-00 also features a patented TipLoc molding method that ensures a robust bond between the probe tip and probe body, along with a patented CableLoc design that delivers 330 N (75 lb) pull strength for secure cable attachment.

For installation and integration of the 330701-00-30-10-01-00, users should ensure proper mounting torque and alignment to maintain measurement accuracy. The 330701-00-30-10-01-00 comes standard with a locknut that includes pre-drilled safety wire holes, facilitating secure mechanical fastening. For applications involving humid or moist environments, adding the connector protector option to the 330701-00-30-10-01-00 is recommended to enhance environmental protection. Additionally, the FluidLoc cable option can be specified for the 330701-00-30-10-01-00 to prevent oil and other liquids from leaking through the cable interior, which is particularly valuable in oil-flooded machinery housings. When upgrading existing monitoring systems, the 330701-00-30-10-01-00 is fully compatible with the broader 3300 XL transducer system architecture, allowing for straightforward replacement and system expansion without requiring changes to existing monitoring electronics or software configurations.

Alternative Names
33O7O1-OO-3O-1O-O1-OO 33070I-00-30-I0-0I-00 3307010030100100 330701-00-30-10-01-BR 330701-00-30-10-01-RU 330701-00-30-10-01-CN 330701-00-30-10-01-05 330701-00-30-10-11-00
Technical notes
The Bently Nevada 330701-00-30-10-01-00 probe is renowned for its reliability. All system components utilize gold-plated brass ClickLoc connectors, ensuring a secure lock-in and preventing loosening over time.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What problems does the 330701-00-30-10-01-00 solve?
The probe improves the accuracy of proximity measurements in demanding industrial environments while reducing the risk of machinery downtime caused by undetected shaft movement and vibration.
Which types of machinery can the 330701-00-30-10-01-00 monitor?
It is commonly installed on fluid-film bearing machines to continuously monitor shaft displacement and vibration in critical rotating equipment.
Which industries commonly use the 330701-00-30-10-01-00?
The probe is widely used in power generation, oil and gas, chemical processing, and other heavy industries that depend on reliable monitoring of turbines, compressors, pumps, and similar rotating machinery.
How is the 330701-00-30-10-01-00 installed?
The probe features an unarmored 1/2-20 UNF threaded design that allows direct installation into compatible machine housings or mounting brackets for secure positioning.
Can the 330701-00-30-10-01-00 help prevent oil leakage?
Yes. When equipped with the optional FluidLoc cable, the probe helps prevent oil and other process fluids from leaking through the interior of the cable, improving system reliability.
