    Achieve superior diagnostic capabilities with this reliable Bently Nevada component, sourced by Apter Power to ensure your rotating machinery remains protected and fully operational.

330104-08-15-05-01-05

/ 4.9
1001 reviews | Need a Specific Revision?

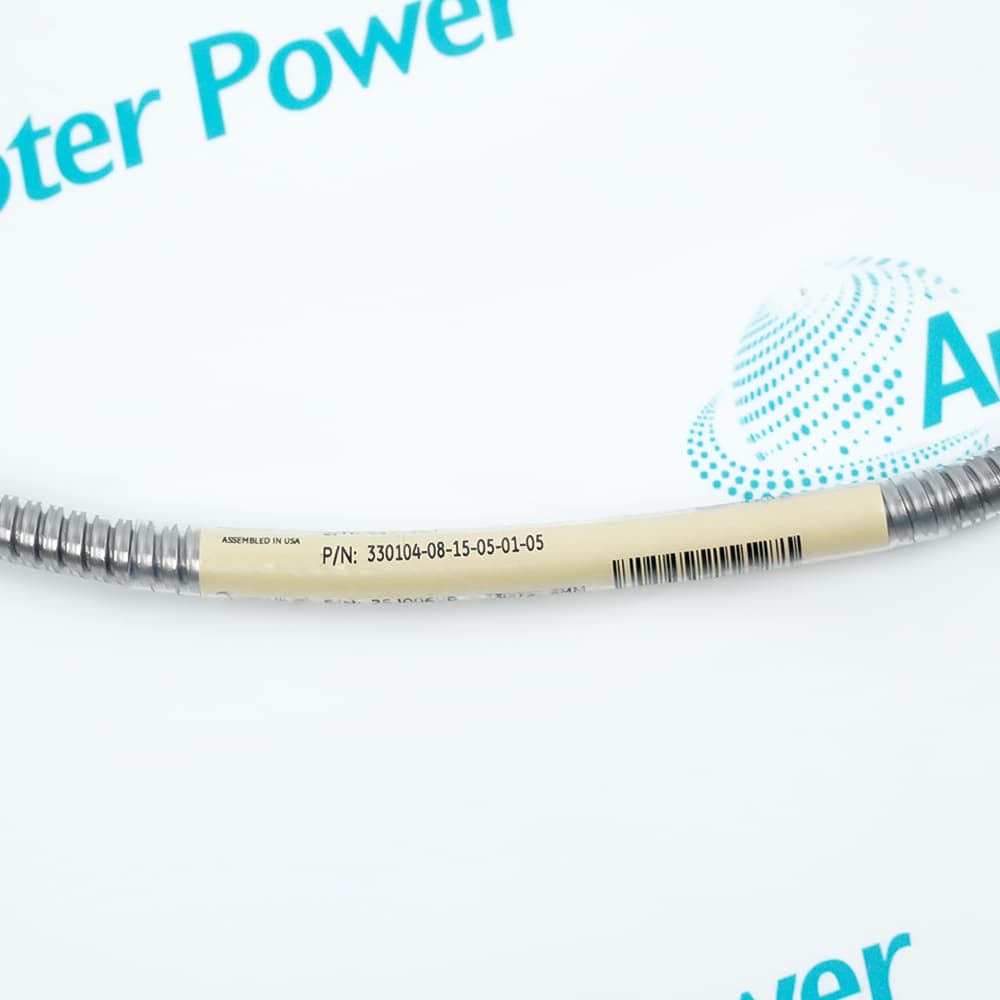

The 330104-08-15-05-01-05 is a 3300 XL 8 mm proximity probe featuring an M10 x 1 metric thread with armor protection. This model includes a 0.5 meter (1.6 feet) total length with an unthreaded length of 80 mm and overall case length of 150 mm.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330104-08-15-05-01-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330104-08-15-05-01-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330104-08-15-05-01-05
  • Product Family:
    3300 XL 8 mm Probe
  • Product Type:
    3300 XL 8 mm Proximity Probes
  • Stock:
    1
  • Unthreaded Length:
    80 mm
  • Overall Case Length:
    150 mm
  • Connector Type:
    Miniature coaxial ClickLoc™ with connector protector
  • Cable Type:
    Standard cable
  • Agency Approvals:
    CSA, ATEX, IECEx
  • Thread Type:
    M10 x 1 (with armor)
  • Total Length:
    0.5 meter (1.6 feet)
  • Weight:
    0.14 kg
  • Estimated shipping dimensions:
    1.8x1.6x114cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Operating Environment Monitoring

Features:

  • 150 mm overall case length with 80 mm unthreaded section provides the longest reach in the 8 mm series for deep-well applications.
  • Armor protection shields the probe during conduit routing and rough field handling, preventing cable damage.
  • CSA, ATEX, and IECEx approvals cover hazardous areas across North America, Europe, and international sites.
The 330104-08-15-05-01-05 is built for situations where the measurement point sits far behind thick machine walls. Its 150 mm overall case length gives it the reach to get past heavy compressor casings or multiple layers of insulation, while the 80 mm unthreaded section lets you accommodate varying wall thicknesses without chasing custom threads.

The armor on the 330104-08-15-05-01-05 earns its keep when cables have to snake through restrictive conduit or past sharp edges. It takes the scrapes and impacts that would otherwise cut into standard cable jackets, protecting the internal wiring from damage.

With CSA, ATEX, and IECEx approvals, the 330104-08-15-05-01-05 covers the hazardous area requirements for most industrial regions. A single part number serves a refinery in Texas, a chemical plant in Germany, or an offshore platform in the North Sea. This simplifies procurement for multinational projects and keeps spare parts inventory lean.

The 330104-08-15-05-01-05 Bently Nevada 300 XL 8 mm Proximity Probes may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330104-08-15-05-01-05 3300 XL 8 mm Proximity Probes Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330104-08-15-05-01-05 3300 XL 8 mm Proximity Probes Specs

General

  • Manufacturer Bently Nevada
  • Model 330104-08-15-05-01-05
  • Condition New Original ready stock
  • Product Family 330104-08-15-05-02-05,330104-08-15-05-12-05,330104-08-15-05-01-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Reverse Installation Scenarios: Specifically designed for use inside bearing housings or in confined spaces, allowing technicians to adjust the probe clearance to the shaft from outside the machine.
  • Radial Vibration: Measures the dynamic displacement of the shaft within the bearing.
  • Axial Displacement: Monitors the thrust position of the rotor to prevent collisions between moving and stationary parts.
  • Temperature Range: Operating temperature from -51°C to +177°C (-60°F to +350°F).
  • Sealing: The probe head is sealed with PPS (polyphenylene sulfide) plastic and stainless steel, capable of withstanding high-pressure oil environments.
  • FluidLoc Technology (-01 Option): The cable is liquid-proof, preventing oil from leaking into the junction box.
  • Proximitor: The probe must be connected to the 3300 XL proximitor. The "05" in the model number indicates a probe length of 0.5 meters, requiring a proximitor system with a total length of 5 meters or 9 meters.
  • Output Signal: The proximitor converts displacement into a negative voltage (standard sensitivity 7.87 V/mm or 200 mV/mil).
  • System Integration: The signal is typically transmitted to the Bently Nevada 3500 monitoring system for real-time data acquisition and trend analysis.
Description
The 330104-08-15-05-01-05 pairs a 150 mm case with an 80 mm unthreaded section, making it one of the longest-reach options in the 8 mm lineup. The armor wrap takes the punishment when routing through conduit or threading past sharp casing edges. M10 x 1 threads drop into standard metric ports, and the pre-installed connector protector eliminates the need for field sealing.

When the measurement target sits deep behind thick walls or multiple insulation layers, the 330104-08-15-05-01-05 gets there without standoffs. The 80 mm unthreaded span handles varying casing thicknesses—you thread until the shoulder seats, and the unthreaded length does the rest.

The 8 mm platform gives the 330104-08-15-05-01-05 a thicker PPS jacket around the coil than 5 mm probes, so it shrugs off accidental tool strikes. The larger body diameter adds stiffness, helping it hold calibration when the machine vibrates.

This probe slips into existing 3300 series systems without fuss—it backs into ports that used to hold 5 mm probes, as long as the hole fits the larger body.
Alternative Names
330104-08-15-05-02-05 330104-08-15-05-12-05 330104-08-15-05-11-05 330104-08-15-05-01-00 330104-08-15-05-01-CN 3301040815050105 330I04-08-I5-05-0I-05 33O1O4-O8-15-O5-O1-O5
Technical notes
The Bently Nevada 330104-08-15-05-01-05 premium 8 mm probe includes a 0.5-meter armored case cable and a miniature coaxial connector with a click-lock design for maximum mechanical survival. Designed for full calibration interchangeability, it integrates seamlessly into standard 3300 XL extension cables and 3500 series monitoring racks.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which connector comes with Bently Nevada 330104-08-15-05-01-05?
Bently Nevada 330104-08-15-05-01-05 features a miniature coaxial ClickLoc™ connector with a connector protector, providing a secure and reliable connection.
Can Bently Nevada 330104-08-15-05-01-05 be installed in hazardous locations?
Yes. CSA, ATEX, and IECEx certifications allow Bently Nevada 330104-08-15-05-01-05 to be used in approved hazardous-area applications when installed according to applicable requirements.
Why choose Bently Nevada 330104-08-15-05-01-05 with an 80 mm unthreaded length?
An 80 mm unthreaded section allows the probe to pass through thicker machine walls, insulation, or mounting brackets while providing greater installation flexibility.
What applications benefit from Bently Nevada 330104-08-15-05-01-05?
Bently Nevada 330104-08-15-05-01-05 is commonly used for shaft vibration and position monitoring on rotating machinery such as turbines, compressors, pumps, motors, and generators.
