330130-080-03-05

/ 4.9
1001 reviews | Need a Specific Revision?

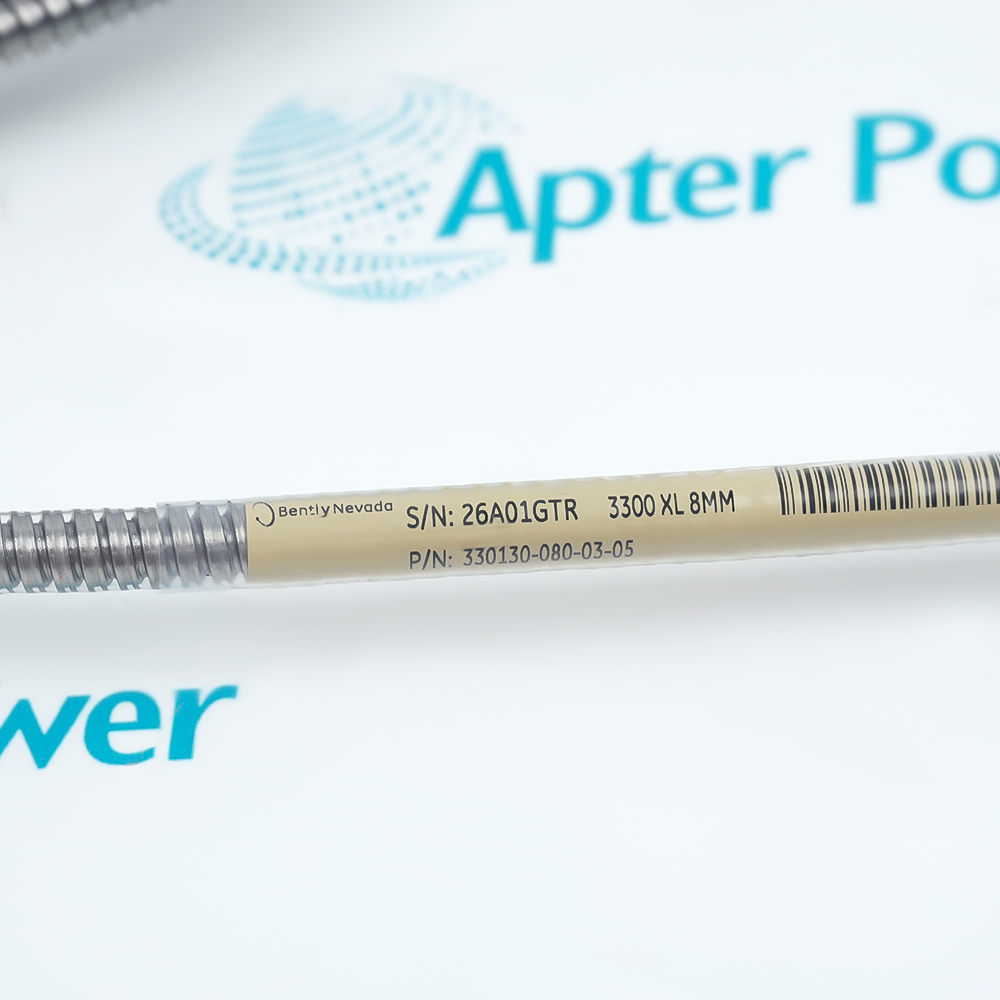

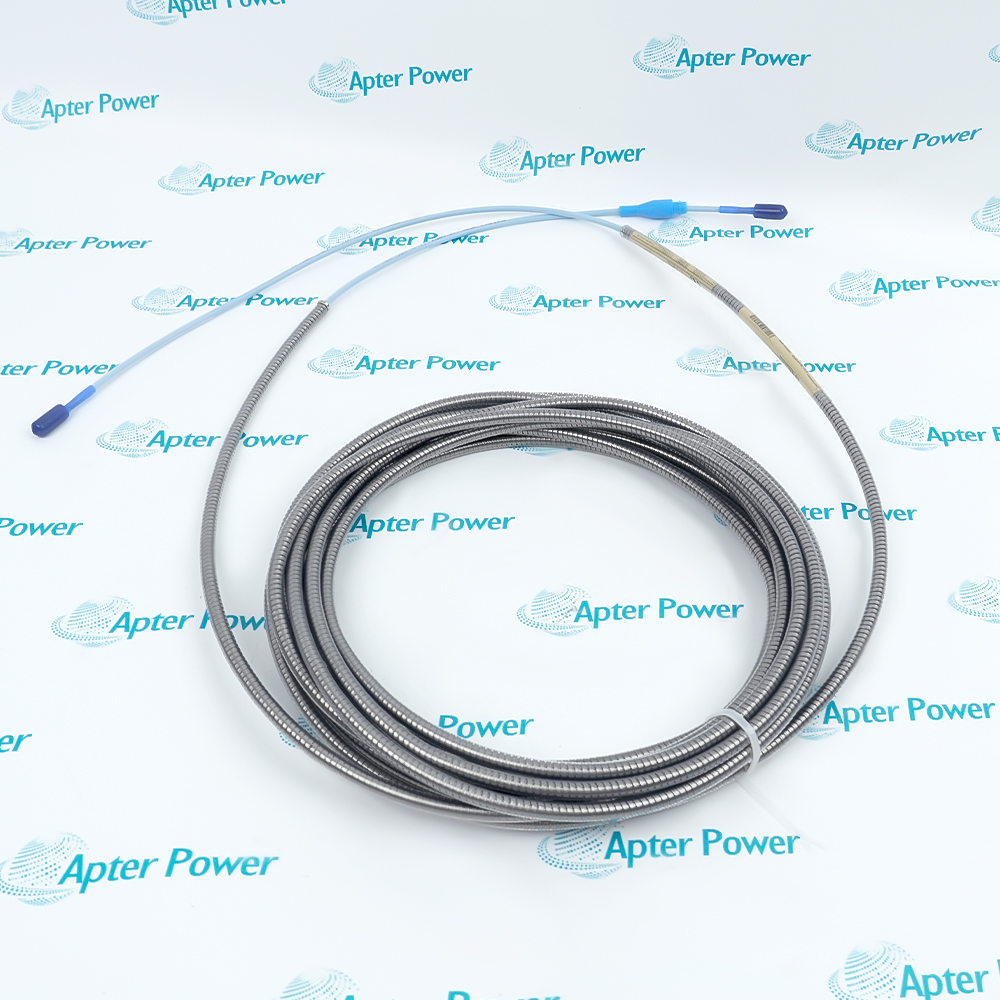

Bently Nevada 330130-080-03-05 is an 8.0 m armored 3300 XL 8 mm extension cable with connector protector and approval option.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330130-080-03-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330130-080-03-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330130-080-03-05
  • Product Family:
    3300 XL Extension Cable
  • Product Type:
    3300 XL 8 mm armored extension cable
  • Stock:
    1
  • System family:
    3300 XL 8 mm
  • Component:
    Armored extension cable
  • Cable length:
    8.0 m
  • Cable construction:
    Armored
  • Connector protector:
    Included
  • Approval option:
    CSA, ATEX and IECEx ordering option
  • Order code:
    330130-080-03-05
  • Weight:
    0.85 kg
  • Estimated shipping dimensions:
    27 x 27 x 4 cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Armored Routing Connector Assembly System Integration Product Applications

Features:

  • Armored eight-metre lead: The extension cable protects an 8.0 m run between probe and monitoring electronics.
  • Protected connector: Option 03 combines cable armor with a connector protector.
  • Approval configuration: Suffix 05 selects the specified agency-approval option.
Mechanical protection: Armor supports harsher routing conditions than the standard cable while the connector protector covers the detachable joint.

Length role: The extension forms part of the calibrated total transducer-system length.

Selection role: Construction, length and approval suffix all need to remain in the purchasing identity.

Apter Power supports Bently Nevada 330130-080-03-05 3300 XL 8 mm armored extension cable sourcing with quotations, technical documentation and configuration review.
Bently Nevada 330130-080-03-05 3300 XL 8 mm armored extension cable Manuals,Datasheets,LinkImportant Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Cable armor: The selected construction provides continuous mechanical protection along the extension lead.
  • Route planning: The armored profile needs enough bend and termination space in the machine path.
  • Eight-metre reach: Code 080 provides the specified 8.0 m extension segment.
  • System cable: The lead is electrically matched to the 3300 XL 8 mm transducer family.
  • Joint protector: The 03 option includes local protection around the detachable connector.
  • Separate roles: Armor protects the run while the protector addresses the connector area.
  • Mating identity: The installed probe must use the corresponding 3300 XL connector style.
  • Service access: The route should leave sufficient space to separate and reconnect the protected joint.
  • Nine-metre configuration: A 1.0 m probe lead and this 8.0 m extension create the nominal 9 m chain.
  • Electronics match: The selected Proximitor sensor must correspond to the complete system length.
  • Approval context: The 05 option is interpreted with the complete certification and site conditions.
  • Mixed-family boundary: An XL/non-XL combination is limited to non-XL system performance.
  • Mechanically exposed runs: Armor supports probe-extension routing where added cable protection is needed.
  • Protected joints: The connector protector covers the detachable connection in the transducer chain.
  • Nine-metre monitoring channels: The cable supports documented 9 m systems with the appropriate probe and Proximitor.
  • Approved configurations: The suffix identifies projects that require the specified agency-option version.
Description
For cable routes exposed to greater mechanical stress, the Bently Nevada 330130-080-03-05 combines an 8.0 m extension length with armored construction. It remains an electrical component of the 3300 XL 8 mm measurement chain while giving the cable run more physical protection than the standard-jacket alternative.

Option 03 gives 330130-080-03-05 both armor and a connector protector. The two features serve different parts of the installation: armor follows the lead, while the protector covers the detachable joint where the probe and extension cable meet.

The final 05 option adds the listed agency-approval configuration to 330130-080-03-05. Its 8.0 m length is commonly paired with a 1.0 m probe lead for a 9 m transducer system, with the Proximitor sensor selected for the same electrical length.
Alternative Names
3301300800305 330130 080 03 05 330130-080-03-O5 330130-080-O3-05 330130-O80-03-05 330130-080-03-OS 330130 8m armored cable 3300 XL armored 330130
Technical notes
Suffix 05 selects the listed approval option for 330130-080-03-05, but certification applies within the complete documented transducer installation. The armored jacket and connector protector add mechanical protection; they do not by themselves authorize every hazardous-area location or replace the project’s installation conditions.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Is 330130-080-03-05 preferable for an extension run exposed to mechanical damage?
Yes. This configuration uses armored cable and also protects the connector joint, making it the stronger choice than a standard-jacket lead where the route is vulnerable to impact or abrasion. The routing design should still respect the installed bend and termination space.
Will 330130-080-03-05 form a 9 m channel with a 1 m probe cable?
Yes. Its 8.0 m extension length combines with a 1.0 m probe lead for the nominal 9 m transducer length. The associated Proximitor sensor should be the version intended for that complete length.
Does the connector protector on 330130-080-03-05 cover the entire cable?
The protector is local to the detachable connector. Continuous protection along the run comes from the armored cable construction, so both order-code elements contribute differently to the installed mechanical arrangement.
Can 330130-080-03-05 replace a standard unarmored 8 m extension without any layout review?
The electrical length is the same, but armor changes flexibility, routing space and handling at the joint. It can be a suitable upgrade only when the cable path and connector access accommodate the armored construction.
Can 330130-080-03-05 be used with a non-XL 8 mm component already installed?
Bently Nevada permits defined mixed 5 m and 9 m systems, but their performance is limited to the non-XL specification. A full XL chain is preferable when the published XL response and interchangeability are required.
What should a buyer state when requesting 330130-080-03-05?
Include the full code, 8.0 m length, armored construction, connector protector and approval option. That description avoids substitution with the visually similar standard-cable versions offered under the same 330130 base model.
