330130-085-00-05

/ 4.9
1001 reviews | Need a Specific Revision?

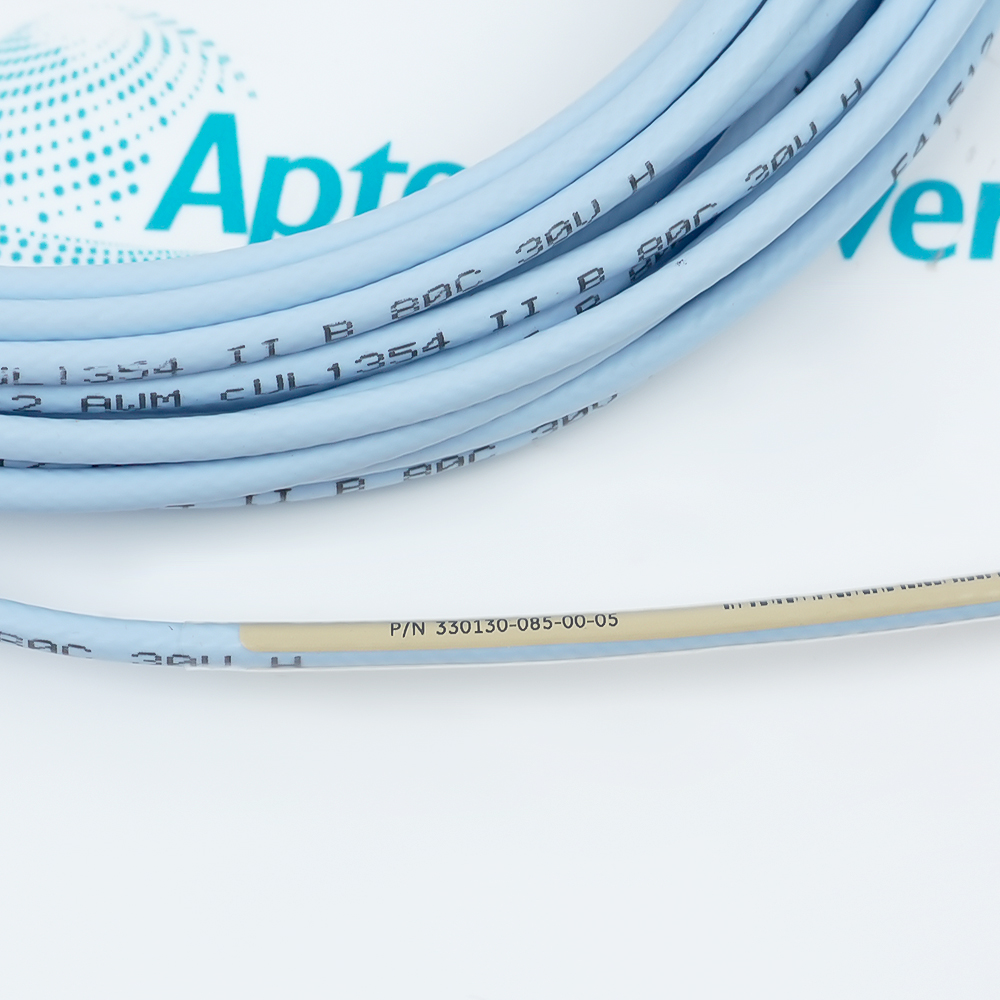

Bently Nevada 330130-085-00-05 is an 8.5 m standard 3300 XL 8 mm extension cable without a connector protector and with an approval option.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330130-085-00-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330130-085-00-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330130-085-00-05
  • Product Family:
    3300 XL Extension Cable
  • Product Type:
    3300 XL 8 mm extension cable
  • Stock:
    1
  • System family:
    3300 XL 8 mm
  • Component:
    Extension cable
  • Cable length:
    8.5 m
  • Cable construction:
    Standard
  • Connector protector:
    Not included
  • Approval option:
    CSA, ATEX and IECEx ordering option
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    19 x 19 x 2.5 cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Length Selection Standard Cable Approval Context Product Applications

Features:

  • Eight-and-a-half-metre length: The extension is sized for system combinations that need an 8.5 m cable segment.
  • Flexible standard cable: The unarmored construction suits protected routing paths.
  • Approval-option configuration: Suffix 05 identifies the specified agency-approval version.
Length planning: The 8.5 m segment is particularly useful with a 0.5 m probe lead in a nominal 9 m channel.

Connector planning: This configuration omits the separate connector protector, so the joint depends on the installation for mechanical coverage.

System planning: The cable, probe and Proximitor sensor remain a matched electrical chain.

Apter Power supports Bently Nevada 330130-085-00-05 3300 XL 8 mm extension cable sourcing with quotations, technical documentation and configuration review.
Bently Nevada 330130-085-00-05 3300 XL 8 mm extension cable Manuals,Datasheets,LinkImportant Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Extension length: Code 085 provides an 8.5 m cable segment.
  • Nine-metre pairing: A 0.5 m probe lead and this extension form the nominal 9 m length.
  • Electronics match: The Proximitor sensor should be selected for the same completed system length.
  • Electrical role: Cable length contributes to transducer scaling and cannot be treated only as spare routing allowance.
  • Unarmored construction: The standard jacket keeps the extension flexible for protected paths.
  • No protector option: Code 00 omits the separate cover around the detachable connector.
  • Protected routing: Conduit or cabinet routing can provide the mechanical protection not included in the order code.
  • FluidLoc boundary: The selected construction is not a FluidLoc cable.
  • Approval option: Suffix 05 selects the published agency-approval configuration.
  • System certification: The cable is considered with the probe, Proximitor and installation documentation.
  • Site decision: Area classification and installation conditions remain project-specific.
  • Identity value: Keeping the suffix on the RFQ separates this cable from the no-approval version.
  • Half-metre probe combinations: The 8.5 m extension supports a nominal 9 m chain with a 0.5 m probe lead.
  • Protected machine routes: Standard cable suits runs with enclosure or conduit protection.
  • Approved transducer configurations: The order code serves projects that require the specified approval option.
  • Configured spares: The uncommon length is preserved when the complete identifier is used for replacement sourcing.
Description
The unusual 8.5 m length is the defining feature of the Bently Nevada 330130-085-00-05 extension cable. It allows a 0.5 m probe lead to complete a nominal 9 m 3300 XL 8 mm transducer system without adding excess cable or changing the electronics selected for that total length.

Standard, unarmored construction keeps 330130-085-00-05 flexible for protected routes inside machinery and conduit. Option 00 leaves the detachable connector without the added protector supplied on other 330130 configurations, making connector placement and local mechanical protection part of the installation plan.

Approval suffix 05 identifies the specified agency-option configuration of 330130-085-00-05. The cable still performs as a matched transducer-system component; approvals, total electrical length and the selected probe/Proximitor combination should be considered together rather than as independent purchasing details.
Alternative Names
3301300850005 330130 085 00 05 330130-085-00-O5 330130-085-OO-05 330130-O85-00-05 330130-085-00-OS 330130 8.5m extension cable 3300 XL 8.5m cable
Technical notes
Option 00 leaves the connector joint on 330130-085-00-05 without the separate protector used by other 330130 configurations. This is suitable for a protected route, but an exposed joint needs installation-level mechanical protection rather than an assumption that the approval suffix or cable jacket covers physical impact.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Will 330130-085-00-05 complete a 9 m system with a 0.5 m probe lead?
Yes. The 8.5 m extension is intended to combine with a 0.5 m probe cable for the nominal 9 m electrical length. The Proximitor sensor should also be the 9 m system version.
Is 330130-085-00-05 an armored cable for open machinery routing?
It uses standard, unarmored cable. It is best placed in a protected path or suitable conduit; a 330130 armored configuration is more appropriate where the lead itself needs continuous mechanical protection.
Does 330130-085-00-05 use FluidLoc cable construction?
No. The 00 cable option is the standard extension construction. Where fluid migration through the lead is a project concern, a FluidLoc order code should be selected rather than relying on this configuration.
How should the approval option on 330130-085-00-05 be used during compliance review?
Treat suffix 05 as the cable’s listed approval configuration and then review it with the complete transducer certification and site classification. The suffix supports component selection but does not replace the installation approval process.
Can 330130-085-00-05 be combined with an older non-XL component?
Defined mixed 5 m and 9 m systems are supported, but Bently Nevada limits the resulting channel to non-XL specifications. An all-XL probe, extension cable and Proximitor chain is the better choice when XL performance is required.
What details should an RFQ retain for 330130-085-00-05?
Keep the full order code together with the 8.5 m length, standard construction, no-protector option and approval suffix. This prevents a supplier from quoting the more common 8.0 m or protected-connector variant.
