    For harsh thermal environments, Apter Power supplies certified Bently Nevada ETR cabling, providing the high-end durability necessary to keep your critical machinery protection systems fully operational.

330190-040-01-05

/ 4.9
1001 reviews | Need a Specific Revision?

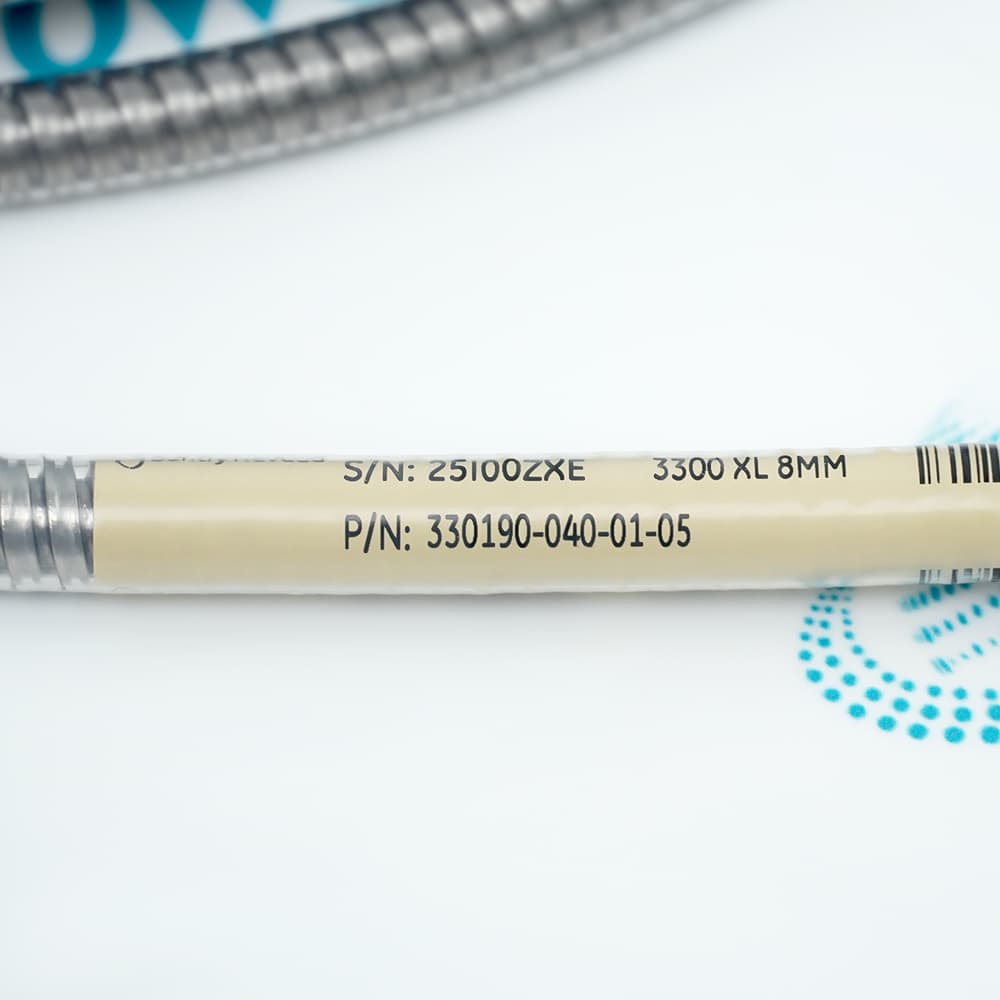

330190-040-01-05 is a Bently Nevada 3300 XL series Extended Temperature Range (ETR) extension cable, suitable for extreme temperatures and harsh industrial environments.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330190-040-01-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330190-040-01-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330190-040-01-05
  • Product Family:
    3300 XL Extension Cable
  • Product Type:
    3300 XL Extended Temperature Range (ETR) Extension Cable
  • Stock:
    4
  • Cable length:
    4.0m (040 code)
  • Optimal operating temperature:
    52°C to +260°C (ETR design)
  • Capacitance:
    Approx. 69.9pF/m
  • Maximum cabling length:
    Up to 305m (1000ft)
  • Maximum torque:
    0.565N·m (5in·lbf)
  • Weight:
    0.25 kg
  • Estimated shipping dimensions:
    20x20x2.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Protection Compliance Application Scenarios

Features:

  • Armored cable construction with 4.0 m length and CSA, ATEX, IECEx approvals ensures standardized compliance and installation reliability.
  • Stable electrical performance is maintained through 0.88 ± 0.13 Ω DC resistance and approximately 69.9 pF/m capacitance characteristics.
  • Extended installation capability supports up to 305 m cabling length with controlled mechanical torque of 0.565 N·m (5 in·lbf).
Bently Nevada 330190-040-01-05 is designed as part of the 3300 XL ETR extension cable series, providing a defined armored structure and standardized approvals including CSA, ATEX, and IECEx. Bently Nevada 330190-040-01-05 supports operation within a wide temperature range from 52°C to +260°C, maintaining consistent electrical behavior under specified resistance and capacitance conditions. The configuration of Bently Nevada 330190-040-01-05 allows integration within extended cabling systems reaching up to 305 m while maintaining controlled installation torque limits.

In industrial wiring layouts, the defined structure of Bently Nevada 330190-040-01-05 ensures stable signal transmission parameters based on its specified DC resistance and capacitance values. Bently Nevada 330190-040-01-05 is applied where extended cable routing requirements demand consistent electrical characteristics across long distances. The armored design of Bently Nevada 330190-040-01-05 supports mechanical stability while maintaining compliance with its stated electrical and temperature specifications.

Within system-level configurations, Bently Nevada 330190-040-01-05 provides a structured extension solution aligned with 3300 XL system requirements. Bently Nevada 330190-040-01-05 maintains performance consistency under defined temperature and installation constraints, ensuring predictable electrical behavior. The Bently Nevada 330190-040-01-05 therefore functions as a standardized extension component based strictly on its listed technical parameters.

The 330190-040-01-05 Bently Nevada 3300 XL Extended Temperature Range (ETR) Extension Cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330190-040-01-05 3300 XL Extended Temperature Range (ETR) Extension Cable Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330190-040-01-05 3300 XL Extended Temperature Range (ETR) Extension Cable Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 330190-040-01-05
  • Condition New Original ready stock
  • Product Family 330190-040-01-00,330190-040-00-05,330190-070-01-05
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Connection Stability: The cable features a patented ClickLoc gold connector, which locks in place with a simple fingertightening, effectively preventing loosening in machine vibration environments and ensuring continuous signal transmission.
  • Tensile Mechanical Strength: The cable is designed with a connector tensile strength of up to 270 N (60 lbf), capable of withstanding physical pulling during installation or operation and preventing cable detachment.
  • Corrosion Protection: The connector is made of gold-plated brass, offering extremely high corrosion resistance and maintaining good electrical contact performance even in humid or corrosive industrial environments.
  • Armored Protection: This specific model (Option 01) is equipped with a stainless steel armor sheath, protecting the cable from mechanical abrasion, compression, or foreign object impact, extending its service life under harsh conditions.
  • Explosion-proof Safety Certification: This model (Option 05) has obtained multiple mainstream global explosion-proof certifications, including CSA, ATEX, and IECEx, allowing installation in flammable and explosive hazardous areas.
  • Standard Compatibility: As a member of the 3300 XL series, this system fully complies with API 670 (Revision 4) standards in terms of mechanical configuration, linear range, and temperature stability.
  • Electromagnetic Compatibility (EMC): The system is designed to meet European CE marking requirements, possessing extremely high immunity to radio frequency interference and operating stably in complex electromagnetic environments without the need for special shielded conduits.
  • Performance Consistency: This extension cable maintains stringent incremental scaling factor (ISF) and linear deviation (DSL) accuracy requirements across a temperature range of -35 °C to +260 °C, ensuring that monitoring data meets industry compliance standards.
  • Steam Turbine Monitoring: Used to monitor differential expansion (DE) in large or medium-sized steam turbine generators, accurately capturing displacement changes between the rotor and stator (casing) due to different rates of thermal expansion.
  • High-Temperature Environment Displacement: Specifically designed for environments where probe leads or extension cables may be exposed to temperatures exceeding the standard upper limit of 177 °C (this cable can withstand up to 260 °C), such as inside gas turbines or in hot air areas.
  • Bearing Vibration Analysis: In hydrodynamic bearing machinery (such as centrifugal compressors), Proximitor sensors are used to measure radial vibration and radial position, aiding in the diagnosis of rotor operating conditions.
  • Speed ​​and Phase Reference: As part of the Keyphasor system, it provides accurate speed signals and phase references for the monitoring system, supporting synchronous monitoring and fault analysis of multiple units.
Description
The Bently Nevada 330190-040-01-05 extension cable is designed for the 3300 XL Proximity Transducer System. Featuring an ETR (Extended Temperature Range) design, it maintains high signal integrity and mechanical strength in extreme environments. The cable is 4.0 meters long (code 040) and equipped with an armored protective layer (code 01) for enhanced shock resistance. It is also CSA, ATEX, and IECEx certified (code 05) for installation in hazardous areas.

The Bently Nevada 330190-040-01-05 employs a high-performance triple EMI/RFI shielding structure combined with high-temperature resistant insulation. It exhibits excellent resistance characteristics (e.g., typical center conductor resistance is approximately 0.66Ω ±0.10Ω @ 3m) and capacitance of approximately 69.9pF/m, ensuring accurate and stable signal transmission over long distances. The cable is compatible with 3300 XL series probes and monitors and performs exceptionally well in applications requiring probe-to-monitor distances of hundreds of meters.

The Bently Nevada 330190-040-01-05 uses high-temperature insulation materials such as PFA (perfluoroalkoxy), ensuring excellent performance even in extreme temperature ranges. Its operating temperature range is -52°C to +260°C (according to ETR design standards), making it suitable for complex industrial environments with high or low temperatures, vibration, or electromagnetic interference. Its robust and durable armor plating makes it suitable for installation in online monitoring systems for critical equipment such as power plants, oil refineries, compressor units, and turbine monitoring systems.
Alternative Names
33O19O-O4O-O1-O5 330I90-040-0I-05 3301900400105 330190-040-01-00 330190-040-00-05 330190-030-01-05 330190-035-01-05 330190-045-01-05
Technical notes
The Bently Nevada 330190-040-01-05 is a 4.0-meter 3300 XL ETR extension cable designed to sustain reliable proximity probe signals under severe temperature conditions. It expands operation capabilities with an extended temperature rating up to 177°C (350°F) to ensure maximum signal accuracy for high-heat industrial applications.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What applications can Bently Nevada 330190-040-01-05 support?
Bently Nevada 330190-040-01-05 is used as a 3300 XL Extended Temperature Range (ETR) extension cable for proximity transducer systems operating in demanding high-temperature environments.
How does 330190-040-01-05 perform under elevated temperatures?
The ETR design allows 330190-040-01-05 to operate across an extended temperature range from -52°C to +260°C, making it suitable for harsh industrial conditions.
Can 330190-040-01-05 be used in long-distance monitoring installations?
Yes. The transducer system supports a maximum cabling length of up to 305 m (1000 ft), allowing flexible installation for large industrial facilities.
Which cable length does Bently Nevada 330190-040-01-05 provide?
Bently Nevada 330190-040-01-05 is supplied with a 4.0 m extension cable identified by the 040 length code.
