    Apter Power supplies top-grade Siemens SIMATIC 6ES7212-1AE40-0XB0 replacement hardware, offering industrial facilities a trusted source for critical automation components to maintain continuous and efficient plant operations.

6ES7212-1AE40-0XB0

/ 4.9
1001 reviews | Need a Specific Revision?

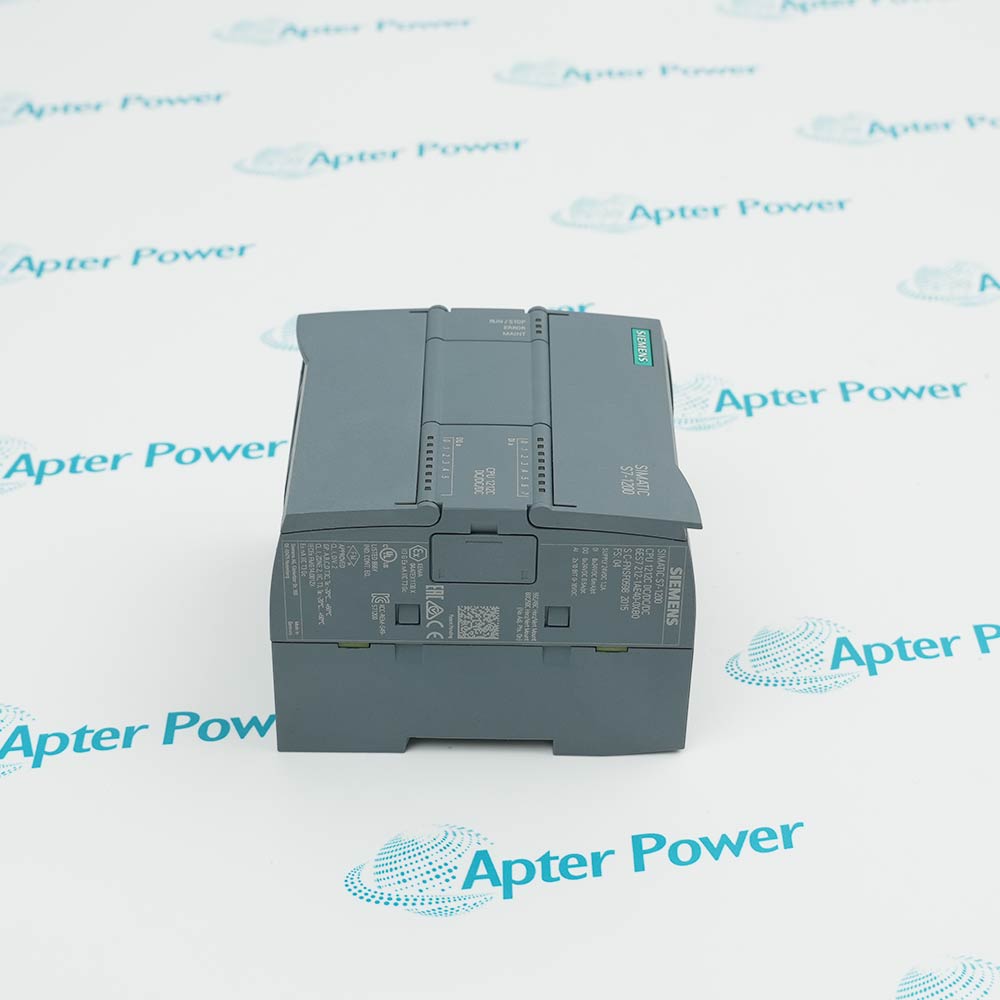

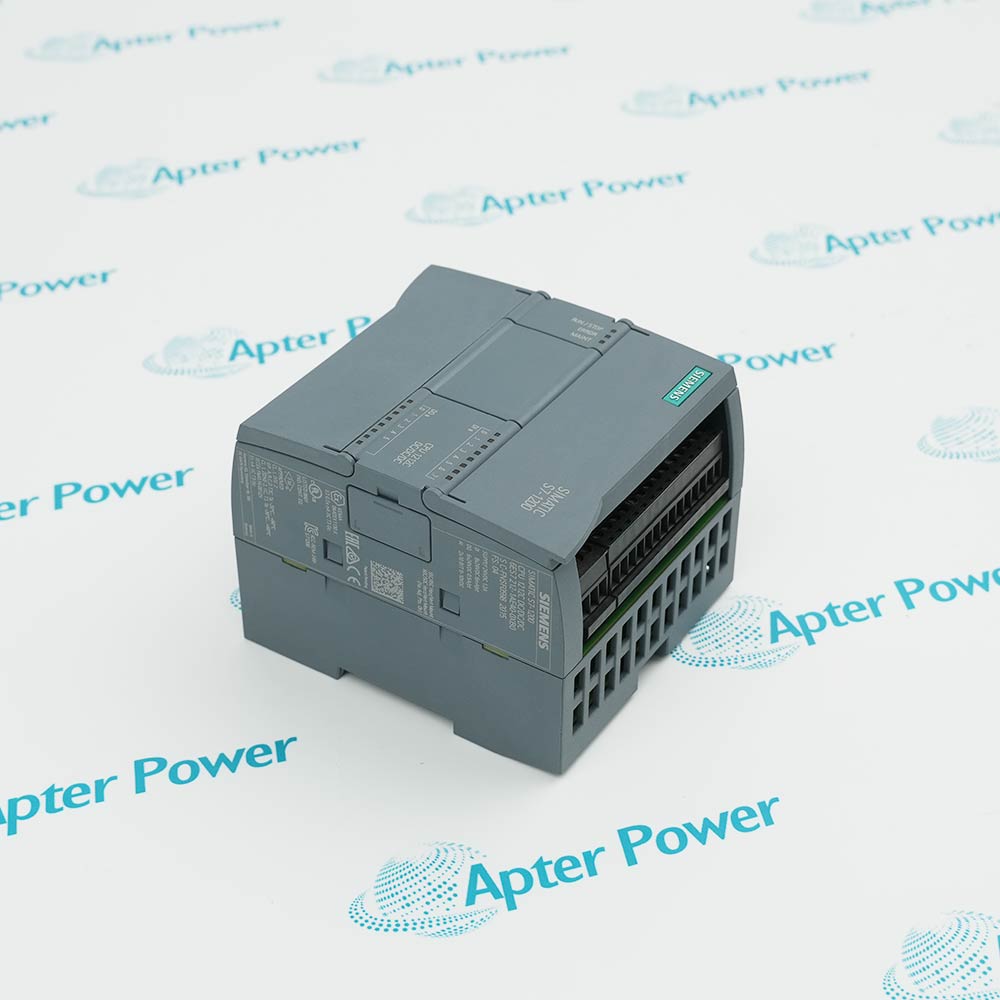

The 6ES7212-1AE40-0XB0 is a SIMATIC S7-1200 CPU 1212C DC/DC/DC with 8 DI, 6 DO (0.5A), 2 AI (0-10V), 75 KB program memory, and PROFINET port.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 6ES7212-1AE40-0XB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7212-1AE40-0XB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7212-1AE40-0XB0
  • Product Family:
    Siemens Simatic S7-1200
  • Product Type:
    CPU 1212C DC/DC/DC
  • Stock:
    1
  • Work Memory (code):
    50 KB
  • Load Memory:
    1 MB (expandable to 2 GB via memory card)
  • Bit Operation Time:
    0.085 µs
  • Word Operation Time:
    1.7 µs
  • Digital Inputs:
    8 (6 usable as HSC up to 100 kHz)
  • Analog Inputs:
    2 (0-10V, 10-bit resolution)
  • Supply Voltage:
    24V DC (20.4-28.8V)
  • Current Consumption (typ.):
    400 mA
  • Inrush Current (max.):
    12 A
  • Power Loss (typ.):
    9 W
  • Retentive Data:
    max. 10 KB
  • I/O Address Area:
    1,024 bytes each
  • Operating Temperature:
    -20°C to 60°C
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    9x7.5x10cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Firmware and Updates Configuration

Features:

  • SIMATIC S7-1200 CPU 1212C DC/DC/DC with 8 DI, 6 transistor DO, 2 AI and onboard PROFINET.
  • 6 high‑speed counters (HSC) up to 100 kHz; 4 high‑speed pulse train outputs (PTO) at 100 kHz; suitable for stepper/servo control.
  • Supports up to 3 communication modules, 1 signal board, 2 signal modules; memory expandable to 2 GB via SD card.
The 6ES7212-1AE40-0XB0 is a complete control solution in a 90 mm wide package. It integrates 8 digital inputs (24V DC), 6 digital outputs (0.5A each), and 2 analog inputs (0‑10V). This eliminates the need for separate I/O modules for basic applications, saving cabinet space and reducing hardware costs. The CPU has 50 KB of work memory for code and 1 MB of load memory, expandable to 2 GB via a SIMATIC memory card. Bit operation time is an impressive 0.085 µs, allowing fast ladder logic execution. The onboard PROFINET port (Ethernet) supports programming, HMI communication, and CPU‑to‑CPU data exchange.

The 6ES7212-1AE40-0XB0 includes built‑in high‑speed counters (HSC) and pulse train outputs (PTO), making it suitable for basic motion control without additional modules. Six of the digital inputs can be configured as HSC – three single‑phase inputs up to 100 kHz and three differential inputs up to 80 kHz. These can be used to measure speed, position, or frequency from incremental encoders. Four of the digital outputs can be configured as PTO at 100 kHz, directly controlling stepper drives or servo drives with pulse/direction signals. This capability is ideal for simple positioning tasks, such as indexing conveyors, cut‑to‑length machines, or pick‑and‑place units. The fast output delay (1 µs turn‑on, 3 µs turn‑off) ensures precise pulse timing.

Despite its compact size, the 6ES7212-1AE40-0XB0 offers significant expansion capabilities. It supports up to 3 communication modules (e.g., RS232, RS485, PROFIBUS, AS‑i), 1 signal board (e.g., additional analog I/O, digital I/O, or RS232 port), and 2 signal modules (standard S7-1200 I/O modules). This allows the system to grow from a small standalone PLC to a distributed control node. The load memory can be expanded to 2 GB using a SIMATIC memory card (SD card format), storing large programs, recipes, or data logs.

The Siemens 6ES7212-1AE40-0XB0 CPU 1212C DC/DC/DC is available for quotation, official-document access and sourcing support from Apter Power. OEM status and lead time are confirmed at inquiry.
Siemens 6ES7212-1AE40-0XB0 CPU 1212C DC/DC/DC Manuals, Datasheets, Link Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
Siemens 6ES7212-1AE40-0XB0 CPU 1212C DC/DC/DC Specs

General

  • ManufacturerSiemens
  • Model6ES7212-1AE40-0XB0
  • ConditionNew Original ready stock
  • Product FamilySIMATIC S7-1200 CPU 1212C
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Small Machinery Control: Such as packaging machines, conveyor belts, automatic gate systems, and small pump stations.
  • Building Automation: Lighting control, ventilation systems (HVAC), and energy monitoring.
  • OEM Equipment Integration: Due to their compact size and high integration, they are often used as embedded control units in standardized equipment.
  • Firmware Version: This model currently primarily runs firmware V4.x. Versions V4.2 and above add support for OPC UA servers and MQTT (requires library support), significantly enhancing Internet of Things (IoT) capabilities.
  • TIA Portal: Online upgrades can be performed directly within the software via a wired connection.
  • Web Server: If web functionality is enabled, firmware can be uploaded via a browser.
  • Memory Card: Firmware can be copied to the CPU using a Siemens memory card.
  • Programming Software: TIA Portal software is required. Step 7 Basic or Professional version is recommended (V13 SP1 or higher recommended, V16/V17/V18 recommended for maximum hardware performance).
  • Programming Language: Supports standard LAD (Ladder Diagram), FBD (Function Block Diagram), and SCL (Structured Text Diagram).
  • Communication Configuration: Integrates a PROFINET (RJ45) interface, supporting communication with HMIs, frequency converters, or other PLCs.
  • Expansion Capabilities: Although compact, it still supports expansion to a maximum of 2 signal modules (SM), 1 signal board (SB), and 3 communication modules (CM).
Description
The 6ES7212-1AE40-0XB0 is a compact CPU 1212C for SIMATIC S7-1200 systems. It operates on 24V DC (20.4-28.8V) and features onboard I/O: 8 digital inputs, 6 digital outputs (0.5A each), and 2 analog inputs (0-10V).

When using the 6ES7212-1AE40-0XB0, engineers benefit from 6 high-speed counters (HSC) on the inputs and 4 high-speed outputs (100 kHz pulse train) for motion control. Bit operation time is 0.085 µs.

The 6ES7212-1AE40-0XB0 has a PROFINET interface with integrated Ethernet port supporting auto-negotiation and autocrossing. Programming requires STEP 7 V13 SP1 or higher. The CPU supports LAD, FBD, and SCL languages. It has 1,024 bytes each for I/O address area and adjustable process image.

For small to medium automation tasks, the 6ES7212-1AE40-0XB0 provides a cost-effective solution.  Operating temperature is -20°C to 60°C horizontally (derated for vertical mounting). The CPU has no short-circuit protection on digital outputs – external fusing is required. It is ideal for conveyor control, packaging machines, and basic motion applications.
Alternative Names
6ES72121AE400XB0 6ES72I2-IAE40-0XB0 6ES7212-1AE40-0X80 6ES7212-1AE4O-OXBO 6ES7288-3AQ02-0AA0 6ES7221-1BF32-0XB0 6ES7288-3AR04-0AA0
Technical notes
The 6ES7212-1AE40-0XB0 has no short‑circuit protection on its digital outputs. External fusing (0.5A per channel) is mandatory to prevent module damage from wiring faults. This is a cost‑optimized design.The CPU supports 6 high‑speed counters (HSC) – three single‑phase inputs up to 100 kHz and three differential inputs up to 80 kHz. It also supports 4 pulse train outputs (PTO) at 100 kHz for stepper or servo control.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What I/O is integrated in the 6ES7212-1AE40-0XB0?
The 6ES7212-1AE40-0XB0 includes 8 digital inputs, 6 digital outputs (0.5A), and 2 analog inputs (0‑10V). It also has 6 high‑speed counters and 4 high‑speed pulse train outputs, eliminating separate modules for basic applications.
Does the 6ES7212-1AE40-0XB0 support high‑speed counting?
Yes. The 6ES7212-1AE40-0XB0 has 6 inputs that can be used as high‑speed counters (HSC) – single‑phase up to 100 kHz and differential up to 80 kHz. This allows direct connection of incremental encoders for speed and position measurement.
How much memory does the 6ES7212-1AE40-0XB0 have?
The 6ES7212-1AE40-0XB0 has 50 KB of work memory for code and 1 MB of load memory. It can be expanded to 2 GB using a SIMATIC memory card (optional). Retentive data area is 10 KB. For larger programs, consider CPU 1214C.
Are the outputs on the 6ES7212-1AE40-0XB0 short‑circuit protected?
No. The 6ES7212-1AE40-0XB0 has no internal short‑circuit protection on its digital outputs. External fusing (e.g., 0.5A fast‑blow fuses) must be provided to prevent damage from field wiring faults. This is a cost‑saving design choice.
