    Apter Power provides 330904-00-10-05-01-BR quotations, product manuals, and 3300 XL NSv matching support.

330904-00-10-05-01-BR

/ 4.9
1001 reviews | Need a Specific Revision?

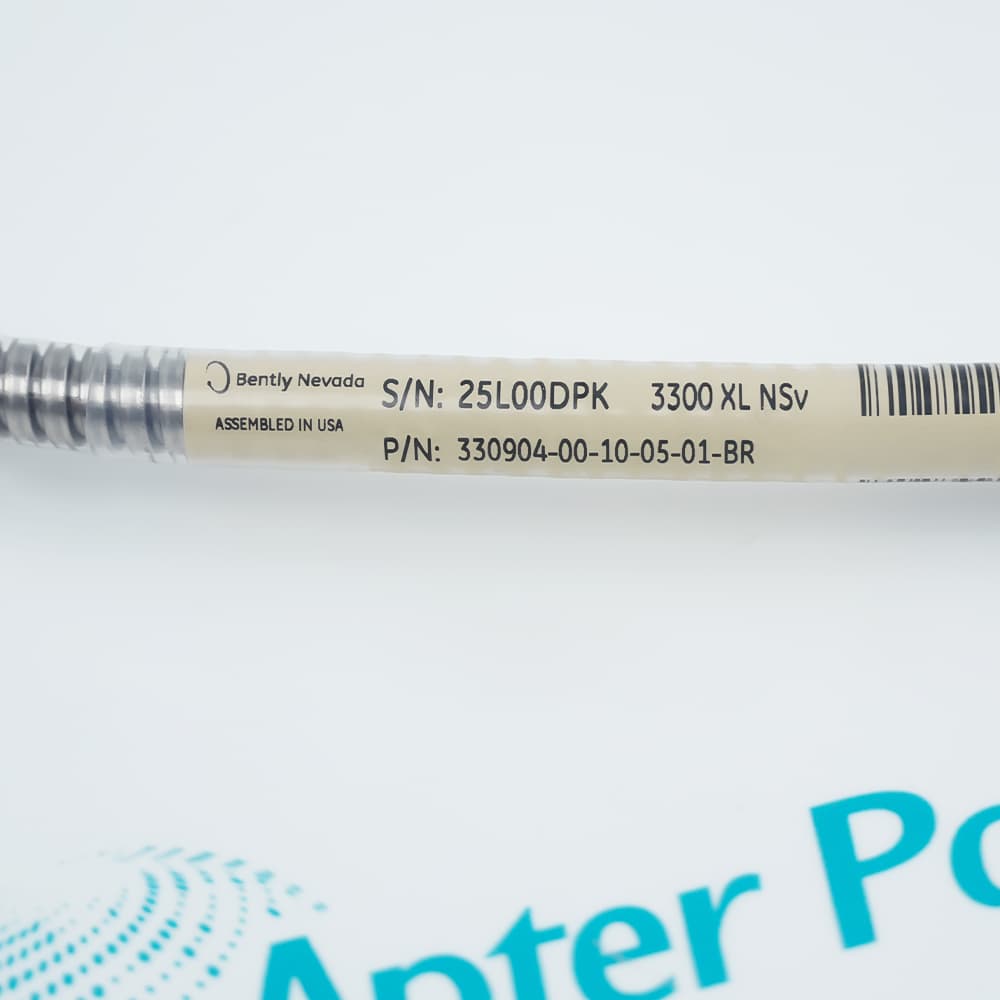

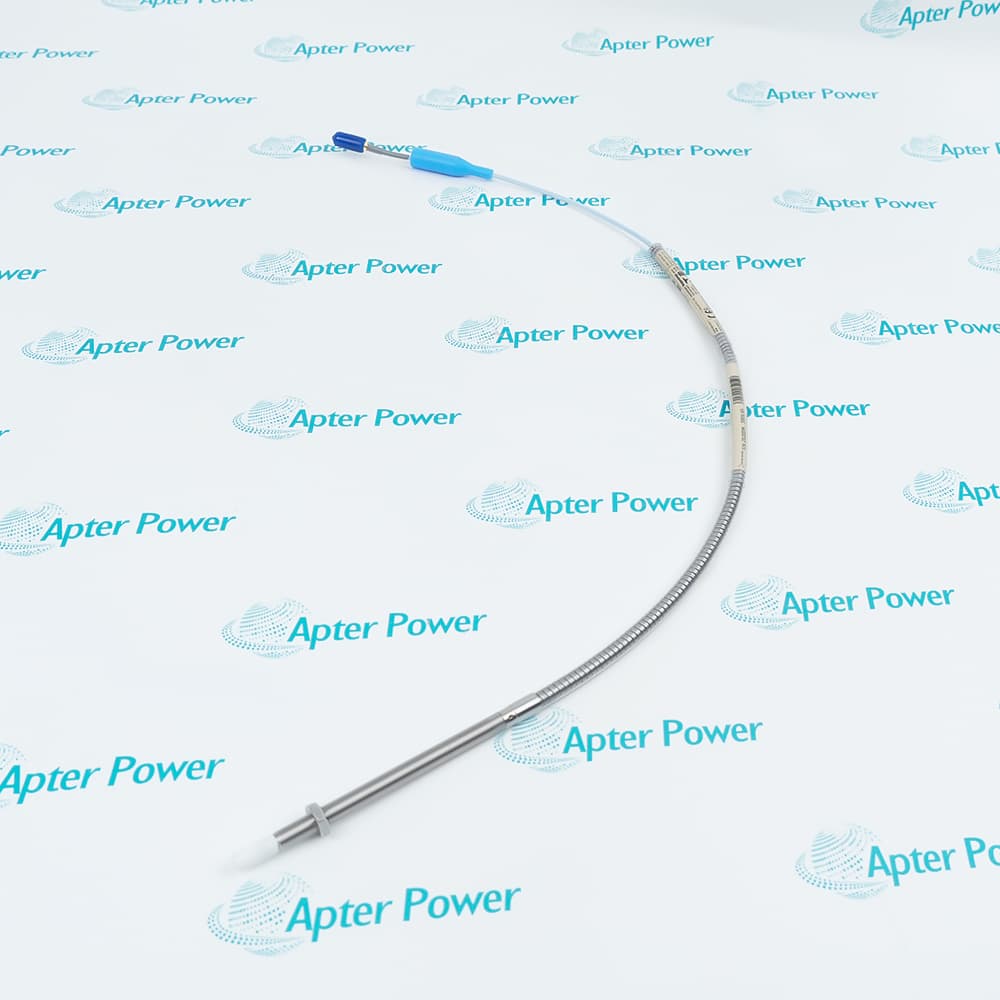

Bently Nevada 330904-00-10-05-01-BR is an armored M8×1 NSv probe with a 100 mm case, 0.5 m lead and protected ClickLoc connection.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330904-00-10-05-01-BR
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330904-00-10-05-01-BR

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330904-00-10-05-01-BR
  • Product Family:
    NSV Probe
  • Product Type:
    3300 XL NSv Proximity Probe
  • Stock:
    1
  • Probe Case:
    M8×1 thread with armor
  • Unthreaded Length:
    0 mm
  • Case Length:
    100 mm
  • Probe Lead Length:
    0.5 m
  • Connector:
    Miniature coaxial ClickLoc with connector protector
  • Cable Option:
    Standard 75 Ω FEP-insulated probe cable
  • Maximum Thread Engagement:
    12 mm
  • Recommended Mounting Torque:
    5.1 N·m
  • Maximum Mounting Torque:
    7.3 N·m
  • Linear Range:
    1.5 mm, approximately 0.25 to 1.75 mm
  • Recommended Gap:
    1.0 mm
  • Average Scale Factor:
    7.87 V/mm, +12.5%/-20% including interchangeability
  • Frequency Response:
    0 to 10 kHz, +0/-3 dB typical
  • Minimum Flat Target:
    8.9 mm diameter
  • Recommended Flat Target:
    13 mm diameter
  • Minimum Probe Separation:
    25 mm axial; 23 mm radial
  • Probe Tip Material:
    Polyphenylene sulfide (PPS)
  • Probe Case Material:
    AISI 304 stainless steel
  • Minimum Bend Radius:
    25.4 mm
  • Cable Tensile Strength:
    220 N from probe case to lead
  • Armor Tensile Strength:
    220 N from probe case to armor
  • Probe Temperature Range:
    -52°C to +177°C
  • Weight:
    0.22 lbs (0.1 kg)
  • Estimated shipping dimensions:
    1.3×1.1×69 cm
  • Tariff Code:
    9031809090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Case Geometry Gap Scaling Cross-Talk Control Cable Protection

Features:

  • Bently Nevada 330904-00-10-05-01-BR combines an armored M8×1 case with a 100 mm case length.
  • A 0.5 m, 75 Ω FEP lead ends in a protected miniature coaxial ClickLoc connector.
  • TipLoc and CableLoc retention protect the probe tip and cable attachment from pull forces.
The probe forms the sensing end of a 3300 XL NSv system, where changes in the tip-to-target gap become the displacement signal handled by the matching extension cable and Proximitor sensor.

Its small metric case fits restricted mounting locations, but thread engagement, mounting torque and cable-bend limits still define the mechanical installation.

System performance depends on a suitable target, a gap near 1.0 mm and correct spacing from adjacent probes, rather than on the probe element alone.

The Bently Nevada 330904-00-10-05-01-BR 3300 XL NSv Proximity Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330904-00-10-05-01-BR 3300 XL NSv Proximity Probe Manuals,Datasheets,LinkImportant Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

How the coded case dimensions affect mounting:

  • Thread: 330904-00-10-05-01-BR uses an M8×1 case with armor.
  • Unthreaded section: The 0 mm value means the thread begins at the sensing end.
  • Case reach: The 100 mm body length determines where the lead exits the mounting point.
  • Engagement limit: No more than 12 mm of thread should enter the mounting hole.

Relationship between target clearance and output:

  • Reference point: The recommended working gap for 330904-00-10-05-01-BR is 1.0 mm.
  • Linear window: The NSv system covers approximately 0.25 to 1.75 mm.
  • Conversion: Average system sensitivity is 7.87 V/mm within the specified interchangeability tolerance.
  • Target size: A 13 mm flat target is recommended so edge effects do not dominate the gap signal.

Keeping nearby probe fields from interacting:

  • Axial layout: Two 330904-00-10-05-01-BR tips require at least 25 mm separation when they face along the same axis.
  • Radial layout: Side-by-side probe tips require at least 23 mm separation.
  • Target boundary: The minimum flat target diameter is 8.9 mm, with 13 mm recommended.
  • Setup result: Correct spacing lets each probe respond to its own target gap instead of a neighbouring probe field.

Protecting the path from probe case to connector:

  • Retention: CableLoc on 330904-00-10-05-01-BR withstands a 220 N pull from case to lead.
  • Armor: The case-to-armor connection is also rated to 220 N.
  • Routing: A 25.4 mm minimum bend radius prevents an overly tight cable turn.
  • Connector seal: The protector blocks most liquid entry at the miniature coaxial ClickLoc connection.
Description
At the sensing end of a 3300 XL NSv Proximity Transducer System, Bently Nevada 330904-00-10-05-01-BR converts the gap between its probe tip and a conductive target into the signal used by the matched extension cable and Proximitor sensor. The probe provides non-contact displacement measurement within the NSv system architecture.

The metric M8×1 case of 330904-00-10-05-01-BR has no unthreaded length and a 100 mm case length. Armor protects the probe lead, the threaded engagement must not exceed 12 mm, and the recommended mounting torque is 5.1 N·m so installation does not load the small case beyond its mechanical limit.

A 0.5 m, 75 Ω FEP-insulated lead carries the output from 330904-00-10-05-01-BR to a miniature coaxial ClickLoc connector with a connector protector. When combined with the matching cable and Proximitor sensor, the NSv system provides a 1.5 mm linear range, a recommended 1.0 mm gap and an average scale factor of 7.87 V/mm.

Mechanical retention is built into 330904-00-10-05-01-BR through the TipLoc probe-tip design and CableLoc cable attachment, each rated to 220 N of pull force. The protected connector keeps most liquids away from the contact surfaces, the armored lead must retain a minimum 25.4 mm bend radius, and the probe temperature range is -52°C to +177°C.
Alternative Names
33O9O4-OO-1O0-O5-O1-BR 33090400100501BR 330904 00 10 05 01 BR Bently Nevada 330904-00-I0-05-0I-BR Bently Nevada 330904 M8×1 NSv Probe 330904-00-10-05-01-BR BN Probe 330904-00-10-05-01-BR 330904-00-10-05-01-8R
Technical notes
Bently Nevada 330904-00-10-05-01-BR is an armored M8×1 NSv probe with a 100 mm case, 0.5 m lead and protected miniature coaxial ClickLoc connection.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why can the 330904-00-10-05-01-BR case bind after installation?
The M8×1 thread on 330904-00-10-05-01-BR allows no more than 12 mm of engagement; a deeper threaded hole can load the case instead of locating the probe correctly.
How can the mechanical code of 330904-00-10-05-01-BR be checked before fitting?
For 330904-00-10-05-01-BR, the coded geometry corresponds to 0 mm unthreaded length, a 100 mm case, a 0.5 m lead and an armored M8×1 construction.
What should be checked if 330904-00-10-05-01-BR does not reach the expected scale factor?
Confirm that 330904-00-10-05-01-BR faces a suitable conductive target, that the gap is near 1.0 mm, and that the extension cable and Proximitor sensor belong to the matched NSv system.
How should two 330904-00-10-05-01-BR probes be spaced to limit cross-talk?
Keep 330904-00-10-05-01-BR probe tips at least 25 mm apart axially or 23 mm apart radially when nearby probes could influence one another.
What does the connector protector do for 330904-00-10-05-01-BR?
The protector on 330904-00-10-05-01-BR keeps most liquids away from the ClickLoc connection; silicone tape is an alternative only where turbine oil is not present.
Which routing limits matter most for 330904-00-10-05-01-BR?
Install 330904-00-10-05-01-BR at the recommended 5.1 N·m torque and keep the armored lead above its 25.4 mm minimum bend radius.
