125388-01

/ 4.9
1001 reviews | Need a Specific Revision?

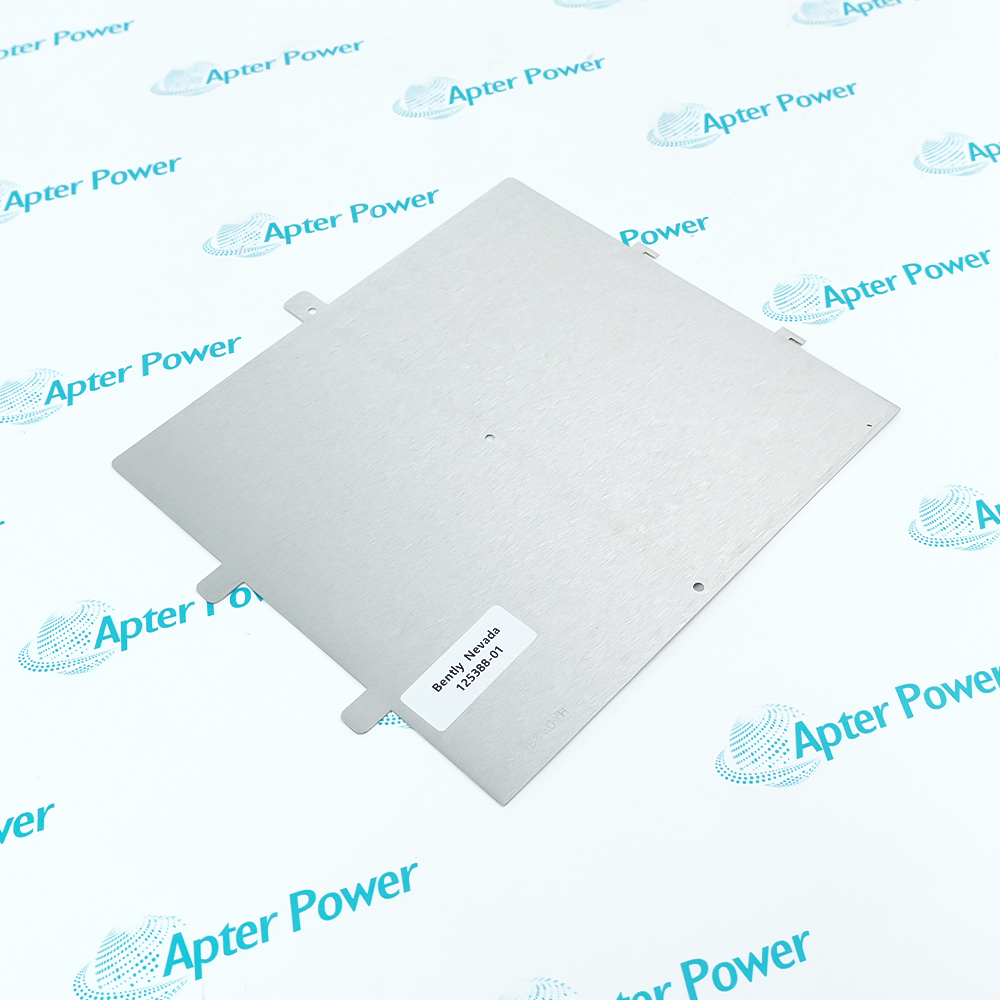

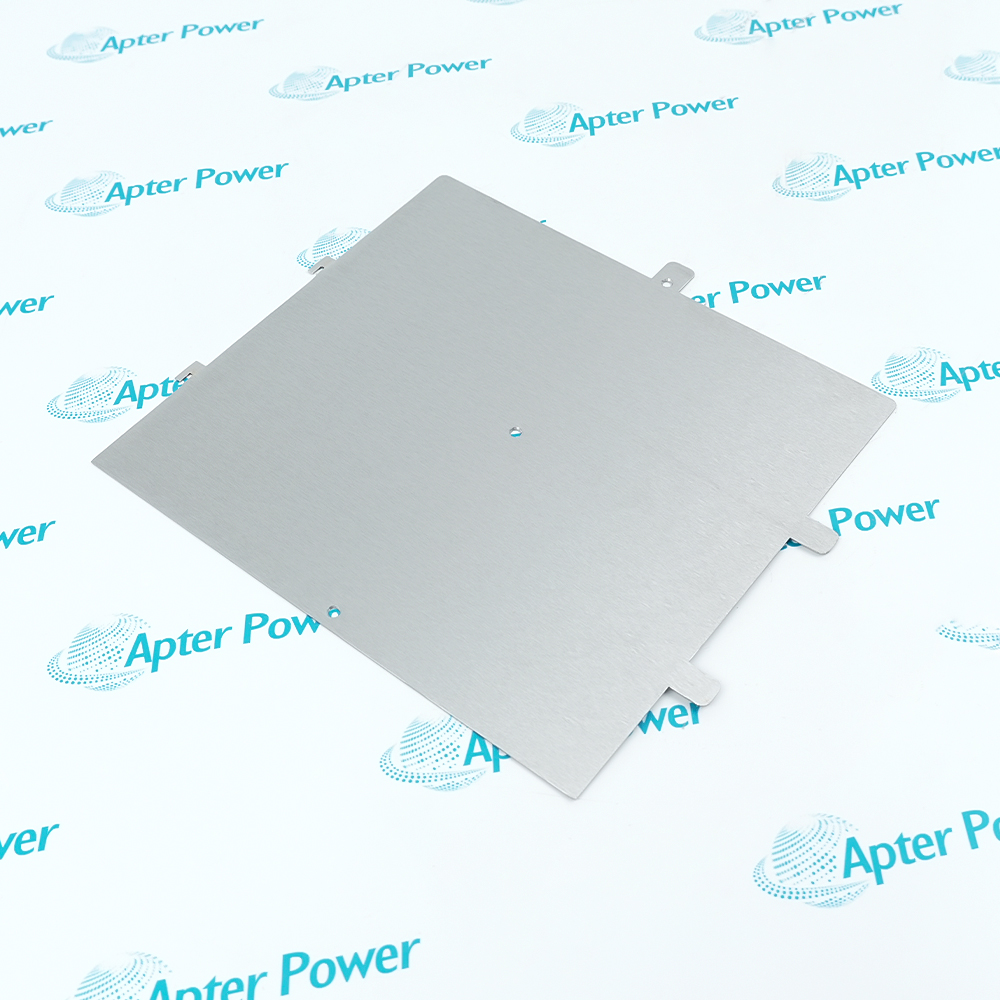

Bently Nevada 125388-01 is the internal chassis component used with the documented 3500/05 and 3500/25 half-height module adapter arrangements.
In Stock
Ships by Monday, October 26
Fast Shipping Available
Get a quick price for 125388-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 125388-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    125388-01
  • Product Family:
    3500 System
  • Product Type:
    Half-Height Module Internal Chassis
  • Stock:
    1
  • Component Role:
    Half-height module internal chassis
  • Quantity in Documented Adapter Assembly:
    1
  • Companion Card Guide:
    125565-01; quantity 1
  • Assembly Screws:
    04300111; order quantity 3
  • Mounting Function:
    Supports half-height main-module mounting in a full-height 3500 rack slot
  • Supported Half-Slot Arrangement:
    Top or bottom half-slot as documented for half-height main modules
  • Dimensions:
    4.5 × 22.2 × 0.1 cm
  • Weight:
    0.1 kg
  • Tariff Code:
    9031900090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Fitment Assembly Selection Application
  • Identified in official 3500 documentation as the half-height internal chassis.
  • Used with card guide 125565-01 and three 04300111 assembly screws.
  • Supports the documented adapter arrangement for half-height 3500 main modules.

125388-01 is a Bently Nevada half-height internal chassis designed for documented 3500 System module-adapter assemblies.

The component provides the chassis portion of the mechanical adapter used to support a half-height module in an applicable 3500 rack position.

Before installation or replacement, verify the rack format, module position, companion card guide, assembly screws, existing adapter orientation, and supplied-item scope.

Availability, condition, price, and shipping time for 125388-01 are confirmed during quotation.

Bently Nevada 125388-01 Half-Height Module Internal Chassis Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The chassis belongs to the documented half-height adapter arrangement.
  • The adapter permits a half-height main module to occupy part of a full-height rack slot.
  • The 3500/25 arrangement supports upper and lower half-slot positions.
  • The official assembly list specifies one 125388-01 internal chassis.
  • One 125565-01 card guide is the documented companion component.
  • Three 04300111 screws complete the listed mechanical assembly.
  • The part is a mechanical chassis rather than a monitor or I/O module.
  • 3500/05 identifies it within the Half-height Module Adapter spares group.
  • 3500/25 identifies it within the Half-height Card Adapter spares group.
  • Upper half-slot mounting arrangement for a 3500/25 Enhanced Keyphasor main module in a full-height 3500 rack slot.
  • Lower half-slot mounting arrangement for a 3500/25 Enhanced Keyphasor main module in a full-height 3500 rack slot.
  • Half-height Module Adapter assembly documented for the 3500/05 System Rack.
Description
125388-01 is a Bently Nevada half-height internal chassis for documented 3500 System module-adapter arrangements.

The chassis forms the mechanical adapter assembly with card guide 125565-01 and three 04300111 screws so a half-height module can be supported in the applicable rack position.

Before installation or replacement, confirm the complete part number, rack and module arrangement, upper or lower half-slot position, companion card guide, assembly screws, and the supplied-item scope.
Alternative Names
125388-01 12538801 125388 01 Bently Nevada 125388-01 3500/05 125388-01 3500/25 125388-01
Technical notes
Bently Nevada 125388-01 is the half-height chassis for the 3500/25 card adapter; confirm the 125565-01 card guide, three 04300111 screws, and rack slot, because incomplete hardware may prevent correct installation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can a buyer confirm that Bently Nevada 125388-01 is the correct replacement for the installed chassis?
Compare the complete part marking, physical chassis profile, rack series, installed half-height module arrangement, card-guide position, and screw locations. Clear photos of the original part and its surrounding rack position should be checked before ordering.
Can Bently Nevada 125388-01 be used with any full-height 3500 monitor module?
No. It is documented as the chassis for a half-height adapter arrangement; confirm that the intended module and rack position use that arrangement before ordering.
What companion hardware must be checked when buying Bently Nevada 125388-01?
Confirm the presence and condition of card guide 125565-01 and the three specified 04300111 assembly screws, because they are listed separately from the chassis.
Can Bently Nevada 125388-01 support either half-slot position used by a 3500/25 arrangement?
The 3500/25 documentation permits half-height main modules in top and bottom half-slots. Verify the existing adapter orientation and available rack position before installation.
Is Bently Nevada 125388-01 intended to repair a damaged 3500 rack backplane?
No. It is an internal chassis component of the half-height adapter; rack backplane, connector, or structural damage requires separate assessment and parts.
What must be visually verified before ordering Bently Nevada 125388-01?
Verify the complete part marking, chassis form, installed half-height arrangement, card-guide condition, screw locations, and whether the quotation covers an individual chassis or the full assembly.
Does Bently Nevada 125388-01 include the Enhanced Keyphasor electronic module?
No. The 3500/25 electronic module is a separate orderable item; 125388-01 is only the mechanical chassis component of the adapter.
