3500/40M 176449-01

/ 4.9
1001 reviews | Need a Specific Revision?

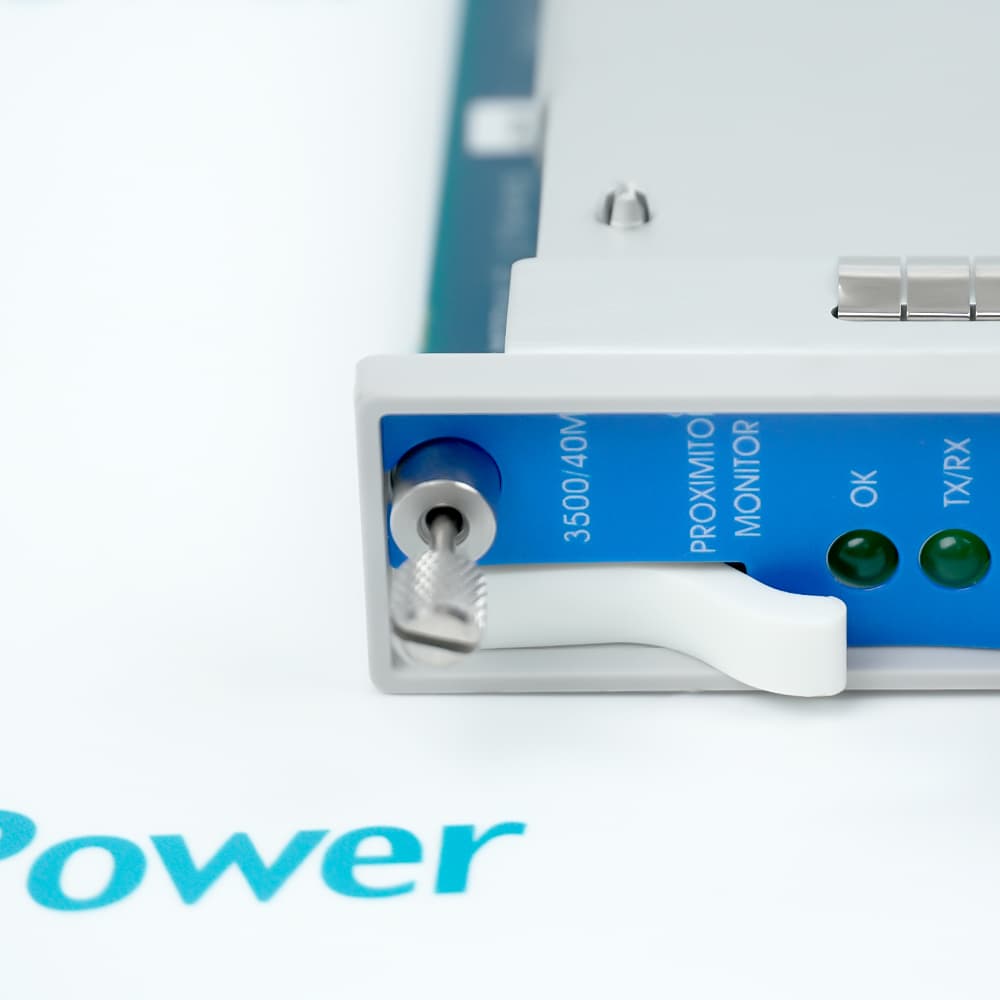

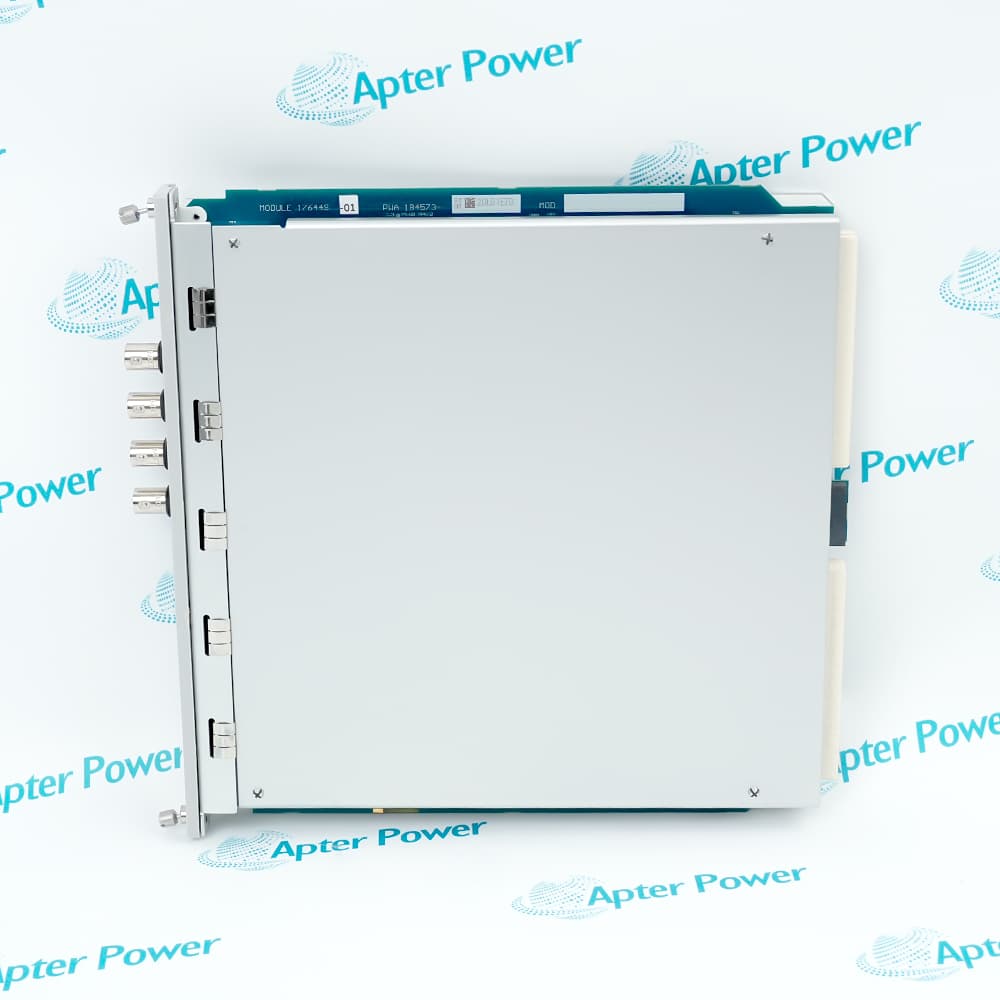

The Bently Nevada 3500/40M 176449-01 is a Proximitor Monitor designed for use in vibration and position monitoring systems.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 3500/40M 176449-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3500/40M 176449-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    3500/40M 176449-01
  • Product Family:
    3500 System
  • Product Type:
    Proximitor Monitor
  • Stock:
    1
  • Application:
    Used for processing signals from eddy current proximity probes in machinery condition monitoring systems.
  • Number of Channels:
    1 to 4 channels (depending on configuration)
  • Input Type:
    Compatible with eddy current proximity probes and other displacement sensors Power consumption
  • Power consumption:
    7.7 Watts, typical
  • Standard I/O:
    10 kΩ
  • Output Impedance:
    550 Ω
  • Transducer Power Supply:
    24 Vdc
  • Weight:
    0.84 kg
  • Estimated shipping dimensions:
    2.5x25.6x24cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Communication & Connectivity Monitoring & Control

Features:

  • Receives proximity transducer input signals and conditions them for machinery vibration and position measurements
  • Supports paired channel configuration enabling simultaneous execution of two distinct monitoring functions
  • Continuously compares processed static values against user-programmable alert and danger setpoints
The 3500/40M 176449-01 operates as the Proximitor Monitor in a 3500 rack, accepting input signals from Bently Nevada proximity transducers and conditioning them to provide vibration and position measurements for machinery protection. It continuously processes incoming transducer signals and compares the conditioned static values against user-programmable alert and danger setpoints to support continuous monitoring of rotating equipment. Seamless integration with the 3500 system is standard with the 3500/40M, however using paired channel configuration will allow channels 1 and 2 to perform one monitoring function while channels 3 and 4 perform another function simultaneously. The 3500/40M has made improvements in signal processing accuracy and functional flexibility over previous proximitor monitor designs in addition to incorporating multi-function capability within the 3500 rack.

The 3500/40M provides essential machinery protection functions common to the monitoring path, and is a critical component of the condition monitoring system, directly affecting the proper, normal operation of the overall machinery protection scheme. One or more 3500/40M monitor modules may be installed per rack depending on the number of channels required. The 3500/40M occupies a single half-height slot in the rack and can be installed in any available monitor slot position.

For paired monitoring applications, the 3500/40M supports grouping channels 1-2 and channels 3-4 into two independent function pairs. In addition to standard single-function operation per channel pair, the paired configuration also performs simultaneous multi-function monitoring. The 3500/40M executes signal processing using the internal circuitry specified in the monitor configuration. Using this method, the proximitor monitor continually evaluates measured static values against configured alarm thresholds. If the monitor detects that any channel measurement exceeds the programmed alert or danger setpoints, it will automatically activate the corresponding alarm output and place an event in the System Event List.

The 3500/40M 176449-01 Bently Nevada Proximitor Monitor may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3500/40M 176449-01 Proximitor Monitor Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 3500/40M 176449-01 Proximitor Monitor Specs

General

  • Manufacturer Bently Nevada
  • Model 3500/40M 176449-01
  • Condition New Original ready stock
  • Product Family 3500/40M 125680-01,3500/40M 126615-01,3500/40M 135489-04
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Radial Vibration: Measures dynamic shaft displacement to detect unbalance, misalignment, or shaft rubbing.
  • Thrust Position: Monitors axial shaft movement to prevent catastrophic internal contact.
  • Eccentricity: Measures shaft bow or bend during machine startup or coast-down phases.
  • Differential Expansion: Tracks the relative thermal expansion difference between the machine shaft and casing.
  • REBAM: Monitors high-frequency acoustic emissions to detect early defects in rolling-element bearings.
  • Software Integration: Relays critical vibration data directly to Bently Nevada's System 1 Condition Monitoring and Diagnostic Software.
  • Network Protocols: Supports industrial communications like Modbus RTU and Ethernet via rack communication gateway modules.
  • Buffered Outputs: Features front-panel coaxial connectors providing short-circuit-protected, buffered transducer signals for oscilloscopes and FFT analyzers.
  • Status Indicators: Includes physical front-panel LEDs (OK, TX/RX, and Bypass) for real-time sensor, communication, and maintenance status tracking.
  • Alarm Thresholds: Configures user-defined Alert and Danger (Trip) setpoints used to trigger automated emergency relay loops.
  • Signal Conditioning: Transforms raw transducer signals into distinct static values, applying 1X and 2X vector filtering for phase and amplitude tracking.
  • Software Configuration: Programmed and calibrated using the 3500 Rack Configuration Software.
  • Note on Outputs: The 3500/40M focuses on digital architecture and does not provide individual direct 4–20 mA proportional analog outputs.
Description
The Bently Nevada 3500/40M 176449-01 is a Proximitor Monitor designed for use in vibration and position monitoring systems. This model is part of the 3500 series of machine condition monitoring equipment by Bently Nevada, which is widely recognized for its high reliability in industrial environments. The 3500/40M 176449-01 is a spare module specifically intended to replace existing units in a 3500 monitoring system.

The Bently Nevada 3500/40M 176449-01 is a rugged, high‑performance Proximitor monitoring module designed for precision condition monitoring of critical rotating machinery as part of the industry‑standard 3500 Series Machinery Protection System. Engineered to accept signals from multiple proximity transducers, this module delivers accurate real‑time vibration, position, and diagnostic data that empower predictive maintenance strategies and help prevent costly unplanned equipment failures in demanding industrial environments such as power generation, oil & gas, manufacturing, and petrochemical facilities.

Built to support four independent input channels, the3500/40M 176449-01 conditions raw signals from Bently Nevada proximity probes and transducers to generate key measurement parameters including radial vibration, thrust position, differential expansion, eccentricity, and other static values.

Users can configure each channel’s monitoring function and alarm setpoints using the 3500 Rack Configuration Software, enabling tailored protection logic such as alert and danger thresholds that interface with external alarm or shutdown systems.

Alternative Names
35OO/4OM I76449-OI 3500-40M 176449-01 176449-01 3500/40M 35OO/4OM I76449-0I 125680-01 126615-01 135489-04
Technical notes
The Bently Nevada 3500/40M 176449-01 Proximitor Monitor occupies a full-height slot in the 3500 rack and can receive input signals from up to four proximity sensors, providing high-accuracy signal processing (±0.5% of full scale) over a wide input voltage range of ±1V to ±20V DC.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the function of the 3500/40M 176449-01 Proximitor Monitor?
The 3500/40M 176449-01 is designed to process signals from eddy current proximity probes to measure shaft displacement and vibration in rotating machinery. It helps monitor machine health and detect early signs of failure.
What types of probes are compatible with the 3500/40M 176449-01?
The 3500/40M 176449-01 is compatible with eddy current proximity probes and other types of displacement sensors that are used to measure machine shaft position and vibration.
Is the 3500/40M 176449-01 module used for new installations or as a spare part?
The 3500/40M 176449-01 is a spare part module designed to replace an existing unit within a 3500 series machinery condition monitoring system. It is ideal for upgrading or maintaining existing systems.
