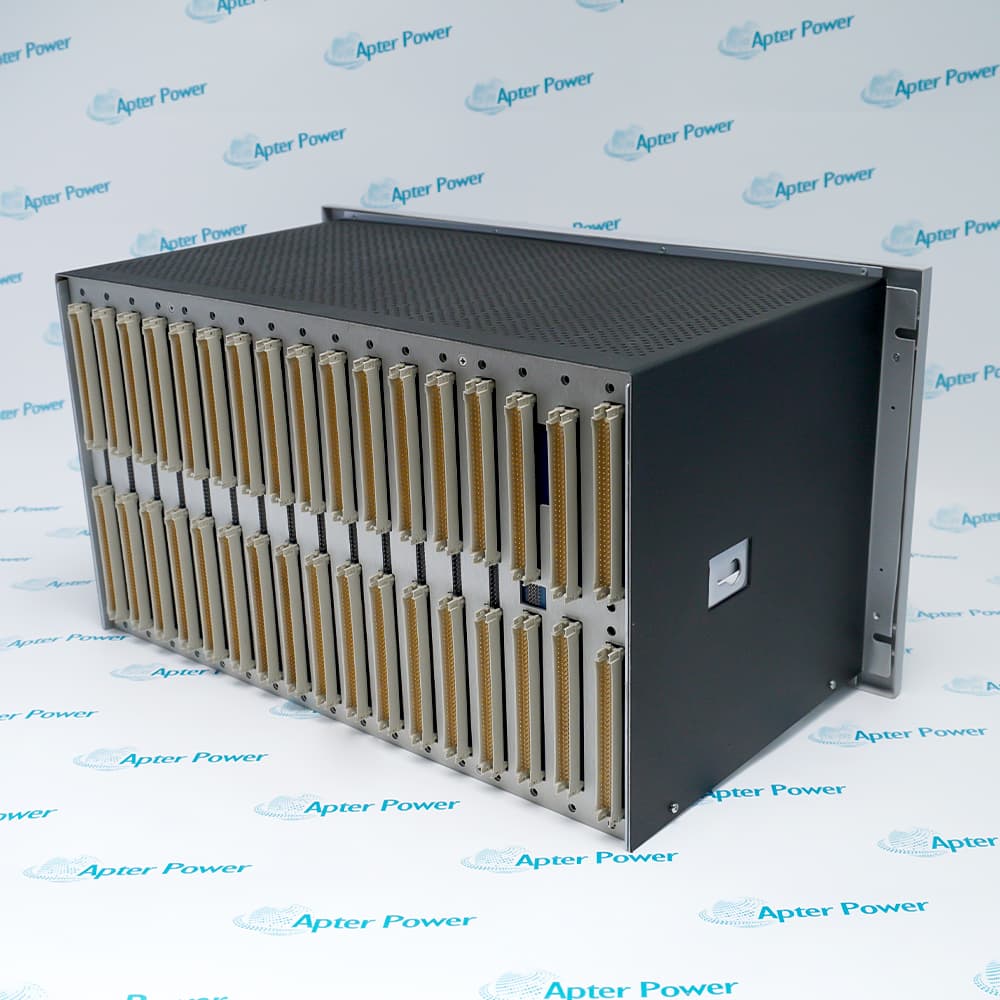

Bently Nevada 3500/05-01-01-00-00-00 system rack, showing the card cage, backplane, and module guide structure

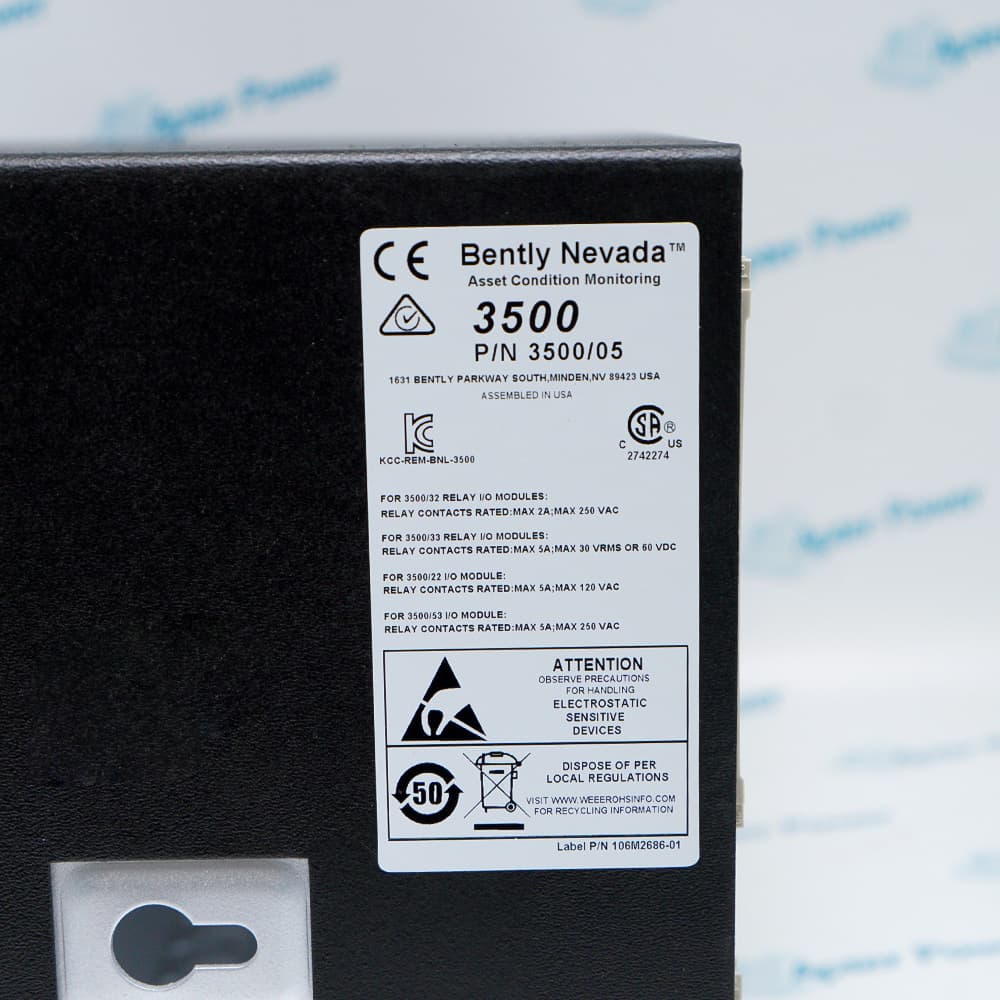

Bently Nevada 3500/05-01-01-00-00-00 industrial monitoring rack with rear backplane connections and mounting frame
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Apter Power distributes factory-original Bently Nevada racks to build reliable central machinery protection systems.

3500/05-01-01-00-00-00

/ 4.9
1001 reviews | Need a Specific Revision?
Bently Nevada 3500/05-01-01-00-00-00 Full-Size 19-Inch System Rack with 14 module slots and panel mount option for seamless integration of 3500 monitor modules and power supplies.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 3500/05-01-01-00-00-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3500/05-01-01-00-00-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    3500/05-01-01-00-00-00
  • Product Family:
    3500 System
  • Product Type:
    19-Inch System Rack
  • Stock:
    1
  • Rack Size:
    01=19-inch Rack (14 module slots)
  • Mounting Options:
    01=Panel Mount Option, Full-Size Rack
  • Agency Approval Option:
    00=None
  • Reserved:
    00=None
  • Belongs to series:
    3500/05 series
  • Weight:
    5.95 kg
  • Estimated shipping dimensions:
    48.2x28x26.5cm
  • Tariff Code:
    85389000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Protection Functions System Upgrades

Features:

  • Accepts 85‑264 VAC rms for global industrial applications.
  • Supports dual power supplies for high‑availability systems.
  • CSA, ATEX, IECEx certified for explosive atmospheres.
The 3500/05-01-01-00-00-00 is a rack power supply module providing regulated DC power to all modules in the 3500 Series Machinery Protection System. It operates on a universal AC input of 85‑264 VAC rms (85‑250 VAC rms in hazardous areas) with a frequency of 47‑63 Hz, ensuring compatibility with global power grids. The 3500/05-01-01-00-00-00 has a maximum current draw of 2.8 A rms for a full rack and includes reverse polarity protection.

The 3500/05-01-01-00-00-00 supports redundant power supply configurations, allowing two power supplies to be installed in the designated slots on the left side of the 3500 rack. In a redundant configuration, if one power supply fails, the other continues to provide power without interruption, eliminating single points of failure. The 3500/05-01-01-00-00-00's redundant capability is essential for critical machinery monitoring applications where system availability is paramount.

The 3500/05-01-01-00-00-00 carries CSA, ATEX, and IECEx certifications for hazardous area installations, making it suitable for use in refineries, chemical plants, and offshore platforms where explosive gases or dust may be present. The 3500/05-01-01-00-00-00 operates from -30°C to +65°C, ensuring reliable performance in demanding industrial environments.

The 3500/05-01-01-00-00-00 Bently Nevada 19-Inch System Rack may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Bently Nevada 3500/05-01-01-00-00-00 19-Inch System Rack Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 3500/05-01-01-00-00-00 19-Inch System Rack Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 3500/05-01-01-00-00-00
  • Condition New Original ready stock
  • Product Family 3500/05-02-04-00-00-01,3500/05-01-02-00-00-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Power Generation: Used on steam turbines, gas turbines, hydro turbines, generators, and cooling tower fans.
  • Oil & Gas (Upstream/Downstream): Applied to centrifugal compressors, reciprocating compressors, pumps, and turboexpanders.
  • Chemical & Petrochemical: Protects large-scale mixers, extruders, and process air compressors.
  • Vibration Monitoring: Supports radial vibration, axial thrust position, casing expansion, and eccentricities through specialized Bently Nevada Monitor Modules.
  • Early Fault Detection: Captures steady-state and transient dynamic waveform data via the 3500/22M Transient Data Interface (TDI). This helps diagnose unbalance, misalignment, rubbing, or bearing defects.
  • Automated Machine Tripping: Interfaces with 3500/32M or 3500/33 Relay Modules to execute hardware-level, emergency machinery shutdowns when pre-set vibration or position levels are breached.
  • Panel Mounting Mechanicals: The -01 mounting option means this rack is designed for rectangular panel cut-outs. It must be secured using the specialized clamps supplied with the rack.
  • Clearance & Wiring Accessibility: Wiring connections and I/O modules are fully accessed from the rear of the rack. Ensure sufficient cabinet depth is allocated for sensor field-wiring bundles.
  • Slot Allocation Requirements: The far-left positions of the backplane are reserved exclusively for the 3500/15 Power Supplies and the Rack Interface / TDI modules. The remaining 14 slots can be populated with any mixture of monitors and relays.
Description
The Bently Nevada 3500/05-01-01-00-00-00 System Rack is engineered to mount all 3500 monitor modules and power supplies efficiently. Its 19-inch full-size design provides 14 available module slots, enabling modules to be positioned close to one another for seamless communication and optimal performance.

3500/05-01-01-00-00-00 features a panel mount format that secures to rectangular cutouts using the supplied clamps, making it ideal for installations where rear access is available for wiring connections and I/O modules. It ensures easy integration and organization of 3500 system components.

The 3500/05-01-01-00-00-00 requires the power supplies and rack interface module to occupy the far-left positions, with the remaining slots flexible for any combination of modules. This configuration guarantees consistent power distribution and system reliability across all installed modules.

Available in multiple formats, including panel mount, rack mount, and bulkhead mount (except for mini-rack), the 3500/05-01-01-00-00-00 is a versatile solution for industrial monitoring environments where module placement, accessibility, and secure mounting are critical.
Alternative Names
35OO/O5-O1-O1-OO-OO-OO 3500/05-0I-0I-00-00-00 3500/05 01 01 00 00 00 3500/05-02-04-00-00-01 3500/45 176449-04 3500/33 149986-01 3500/20 125744-02 3500/45 140072-04
Technical notes
The Bently Nevada 3500/05-01-01-00-00-00 is a 3500 Series rack power supply module designed for the 3500 Machinery Protection System. It provides regulated DC power to all modules installed in the 3500 rack, operating on a universal AC input of 85‑264 VAC rms (hazardous areas: 85‑250 VAC rms) with a frequency of 47‑63 Hz.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which mounting option does 3500/05-01-01-00-00-00 use?
This model features the panel mount option, full-size rack.
What is the rack size of the 3500/05-01-01-00-00-00?
It is a full-size 19-inch EIA rack with 14 module slots.
Where is the 3500/05-01-01-00-00-00 manufactured?
Manufactured by Bently Nevada, USA.
Is this 3500/05-01-01-00-00-00 rack brand new?
Yes, it is supplied as a new and unused system rack.
