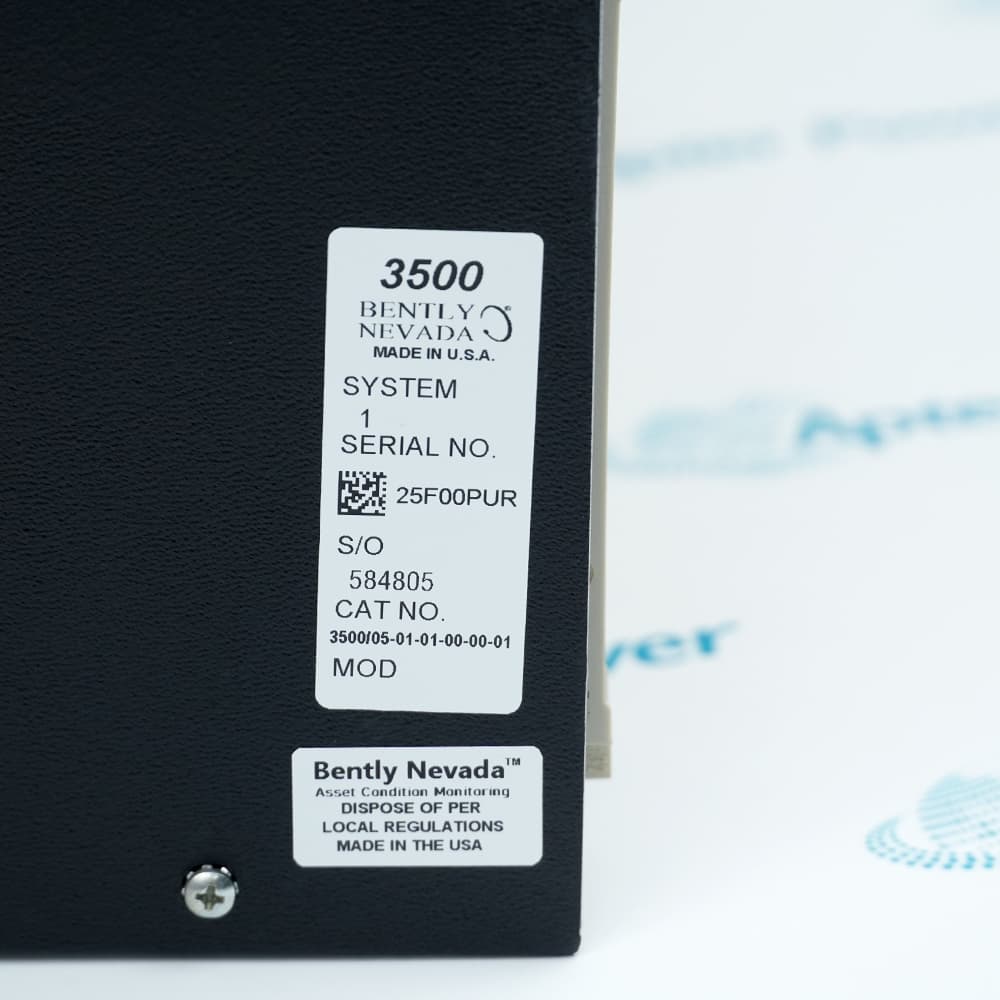

Bently Nevada 3500/05-01-01-00-00-01 monitoring system rack with rear connectors, mounting flanges, and metal enclosure
Bently Nevada 3500/05-01-01-00-00-01 machinery protection system rack with metal frame and plug-in module slots

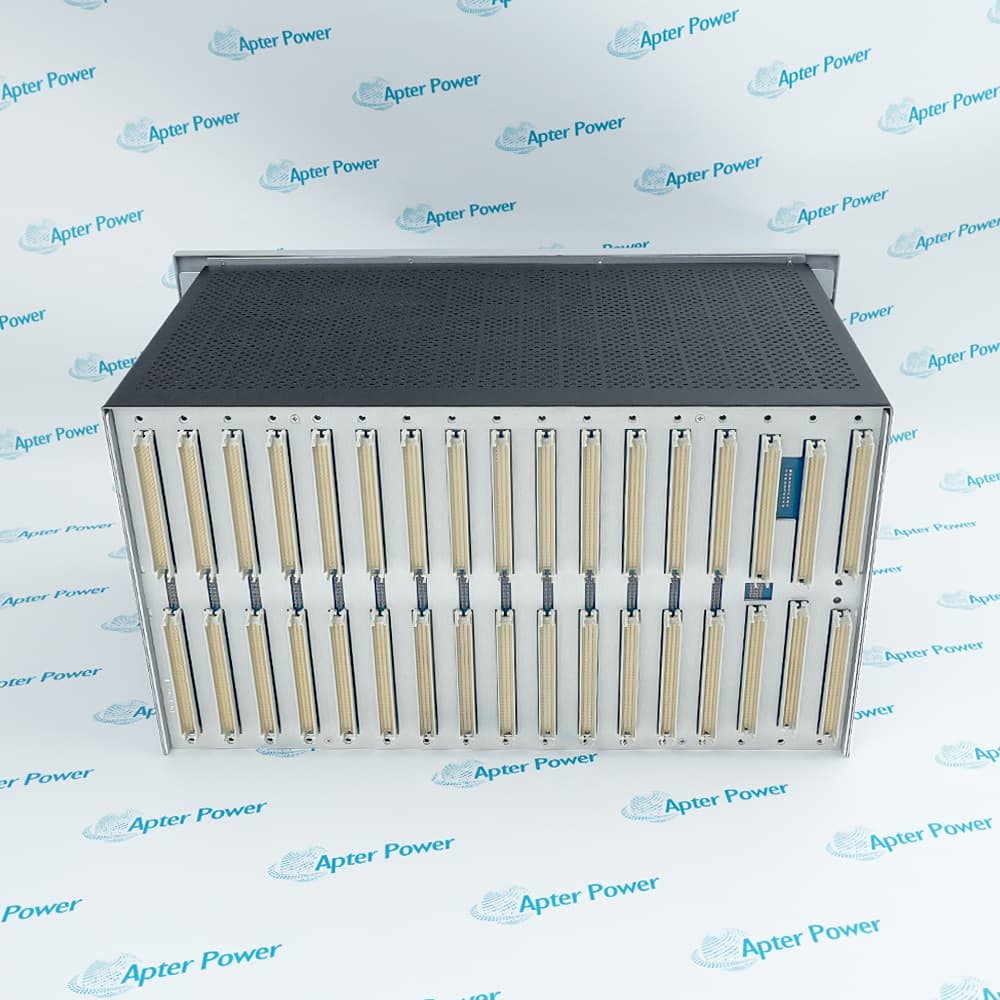

Bently Nevada 3500/05-01-01-00-00-01 rack chassis, showing the internal card guides and system backplane arrangement
Bently Nevada 3500/05-01-01-00-00-01 monitoring system rack with rear connectors, mounting flanges, and metal enclosure
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Apter Power supplies this 19-inch, 14-slot 3500/05 panel-mount rack configuration with CE option 01. Confirm the final module population, power supplies, TDI, grounding and panel dimensions before ordering.

3500/05-01-01-00-00-01

/ 4.9
1001 reviews | Need a Specific Revision?
Bently Nevada 3500/05-01-01-00-00-01 is a 19-inch full-size 14-slot 3500 System Rack configured for panel mounting and CE compliance.
In Stock
Ships by Saturday, October 31
Fast Shipping Available
Get a quick price for 3500/05-01-01-00-00-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3500/05-01-01-00-00-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    3500/05-01-01-00-00-01
  • Product Family:
    3500 System
  • Product Type:
    3500 System Rack
  • Stock:
    1
  • Ordering reference:
    3500/05-01-01-00-00-01
  • Current order template:
    3500/05-AA-BB-CC-DD-EE
  • Product family:
    Bently Nevada 3500 System
  • Component type:
    System Rack
  • Rack size option:
    01, 19-inch full-size 14-slot rack
  • Mounting option:
    01, panel mount
  • Approval / reserved fields:
    00, no agency approval / 00, reserved
  • European compliance:
    01, CE
  • Weight:
    5.95 kg
  • Estimated shipping dimensions:
    48.2x28x26.5cm
  • Tariff Code:
    8518290000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Ordering Code System Matching Installation

Product overview:

  • 19-inch full-size Bently Nevada 3500 System rack with 14 module slots
  • Panel-mount rack configuration
  • No hazardous-area approval option, reserved field 00 and CE option 01

Bently Nevada 3500/05-01-01-00-00-01 is the full-size panel-mount rack that houses 3500 monitor modules, power supplies and the rack interface. Its backplane distributes power and provides communications between the installed protection and condition-monitoring modules.

This configuration provides 14 module slots in a 19-inch rack. Confirm the panel cutout, power-supply arrangement, TDI position, module loading, grounding and CE requirements before assembling the rack.

Verified resources for 3500/05-01-01-00-00-01:

Technical specifications:

  • Overall rack width: 482.60 mm
  • Overall rack height: 265.94 mm
  • Recommended panel cutout: 452.1 +/- 1.5 mm by 251.5 +/- 1.5 mm
  • Maximum panel-cutout corner radius: 3.2 mm
  • Panel-mount wiring connections and I/O modules are accessed from the rear

Ordering code:

  • Current template: 3500/05-AA-BB-CC-DD-EE
  • AA 01 identifies the 19-inch 14-slot rack
  • BB 01 identifies panel mounting
  • CC 00 and DD 00 identify no approval and the reserved field
  • EE 01 identifies CE

System matching:

  • Install compatible 3500/15 power supplies in the designated left-side positions
  • Use the required TDI and 3500 monitor/I/O module pairs for the configured system
  • Check rack-space and internal-barrier requirements before finalizing module placement

Installation check:

  • Verify panel cutout, support and ventilation clearances
  • Bond the rack and panel ground according to the current installation manual
  • Confirm supply, TDI and monitor slot positions before energizing
  • Check CE documentation and all field wiring against the final rack configuration
Description

3500/05-01-01-00-00-01 is a Bently Nevada 3500 System Rack. Current ordering literature identifies option 01 as a 19-inch full-size 14-slot rack and mounting option 01 as panel mount.

The remaining fields identify no agency approval, a reserved 00 field and CE compliance option 01. Confirm rack mounting, power-supply arrangement, installed monitor modules, I/O layout and site certification requirements before replacement or expansion.

Alternative Names
3500/05-01-01-00-00-01 3500 05 01 01 00 00 01 Bently Nevada 3500/05-01-01-00-00-01 Baker Hughes 3500/05-01-01-00-00-01 Bently Nevada 3500 05 01 01 00 00 01 3500 System 3500/05-01-01-00-00-01 3500/05-01-01-00-00-01 14-Slot Rack Bently Nevada 3500/05 Rack 01-01-00-00-01
