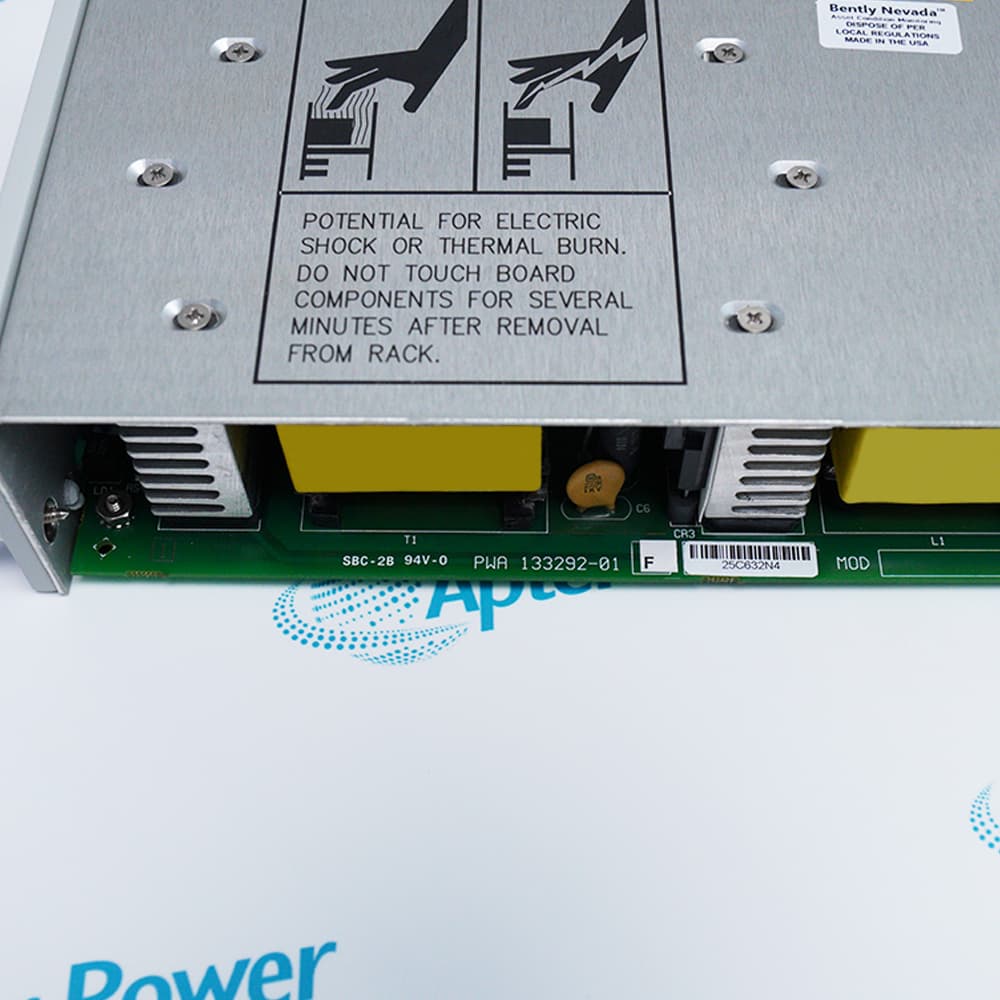

Bently Nevada 3500/15 133292-01 rack power component with electrical terminals and rear mounting hardware
Bently Nevada 3500/15 133292-01 power supply input module for the 3500 machinery protection system
Bently Nevada 3500/15 133292-01 power input module, showing terminal connections, circuit board, and identification label
Bently Nevada 3500/15 133292-01 rack power component with electrical terminals and rear mounting hardware
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Apter Power can supply 133292-01 for legacy 3500/15 Low Voltage DC rack-power applications. Confirm the matching legacy PIM, 20 to 30 Vdc source, rack revision and replacement strategy before ordering.

3500/15 133292-01

/ 4.9
1001 reviews | Need a Specific Revision?
Bently Nevada 133292-01 is a legacy 3500/15 Low Voltage DC Power Supply Module for 20 to 30 Vdc input.
In Stock
Ships by Saturday, October 31
Fast Shipping Available
Get a quick price for 3500/15 133292-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3500/15 133292-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    3500/15 133292-01
  • Product Family:
    3500 System
  • Product Type:
    3500/15 Low Voltage DC Power Supply Module
  • Stock:
    1
  • Ordering reference:
    3500/15 133292-01
  • Verified spare part:
    133292-01
  • Product family:
    Bently Nevada 3500/15
  • Component type:
    Low Voltage DC Power Supply Module
  • Input voltage:
    20 to 30 Vdc
  • Rack role:
    Primary or secondary power-supply position
  • Redundancy:
    Dual supplies supported when configured
  • Lifecycle context:
    Legacy spare module
  • Weight:
    1.14 kg
  • Estimated shipping dimensions:
    5.1x25.2x12cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Ordering Code System Matching Installation

Product overview:

  • Legacy Low Voltage DC Power Supply Module for the Bently Nevada 3500/15
  • 20 to 30 Vdc input power class
  • Requires the matching legacy Low Voltage DC Power Input Module and rack verification

Bently Nevada 133292-01 is the legacy Low Voltage DC Power Supply Module used in 3500/15 rack-power applications. The module occupies a half-height power-supply position and supports primary or redundant rack-power arrangements when correctly matched.

Because this is identified as a legacy spare, verify the installed rear Power Input Module, 20 to 30 Vdc source, rack revision and replacement strategy before quotation. Do not substitute a current DC supply without checking the complete front-and-rear module pair.

Verified resources for 3500/15 133292-01:

Technical specifications:

  • Power-supply module dimensions: 120.7 x 50.8 x 251.5 mm
  • Power-supply module weight: 1.39 kg
  • Rear PIM position: directly behind the associated power supply
  • Operating temperature: -30 to +65 degrees C
  • Storage environment: -40 to +85 degrees C at up to 95% non-condensing humidity

Ordering code:

  • 133292-01 is listed in current literature as a legacy Low Voltage DC Power Supply Module spare
  • The matching legacy Low Voltage DC Power Input Module is a separate component
  • Confirm the installed front module and rear PIM part numbers together
  • Evaluate current replacement options before changing the legacy pair

System matching:

  • Use only with the compatible legacy Low Voltage DC Power Input Module
  • Confirm a regulated 20 to 30 Vdc source and available rack-power slot
  • Check rack revision and redundant-supply combinations
  • Replacement by a different DC supply requires verification of the full power subsystem

Installation check:

  • Record the existing front supply and rear PIM part numbers before removal
  • Isolate the DC source and verify polarity and grounding
  • Inspect fuse, connector-cover and wiring requirements
  • Confirm Supply OK indication and rack diagnostics after replacement
Description

3500/15 133292-01 identifies a legacy Bently Nevada Low Voltage DC Power Supply Module for the 3500 machinery protection system. The documented input range is 20 to 30 Vdc.

The module installs in a designated 3500 rack power position and may be used in a redundant supply arrangement when correctly configured. Confirm input wiring, rack revision, partner supply, connector and backplane compatibility and replacement strategy before installation.

Alternative Names
3500/15 133292-01 3500 15 133292-01 133292-01 Bently Nevada 133292-01 Baker Hughes 133292-01 Bently Nevada 3500/15 133292-01 3500/15 Low Voltage DC 133292-01 Bently Nevada 3500 15 133292 01
Technical notes
3500/15 133292-01 is a legacy Low Voltage DC Power Supply Module for 20 to 30 Vdc input. Verify the rack power wiring and primary/secondary supply arrangement before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is 133292-01?
It is a legacy Bently Nevada 3500/15 Low Voltage DC Power Supply Module.
What input voltage does it use?
The documented input range is 20 to 30 Vdc.
Where is the module installed?
It occupies a designated power-supply position in a compatible 3500 System Rack.
Can it operate in a redundant rack?
Yes, when the rack is correctly configured with primary and secondary power supplies.
What should be verified before replacement?
Check DC input wiring, rack revision, partner supply, connector and backplane compatibility and site approvals.
Can a universal AC supply replace it?
Not directly; input wiring and the approved rack power configuration must be reviewed before any conversion.
Where is the product documentation?
The Manuals tab provides the Apter-hosted 3500/15 133292-01 datasheet.
What is required for a quotation?
Provide the spare number, rack model and revision, measured input voltage, redundancy arrangement, quantity and destination.
