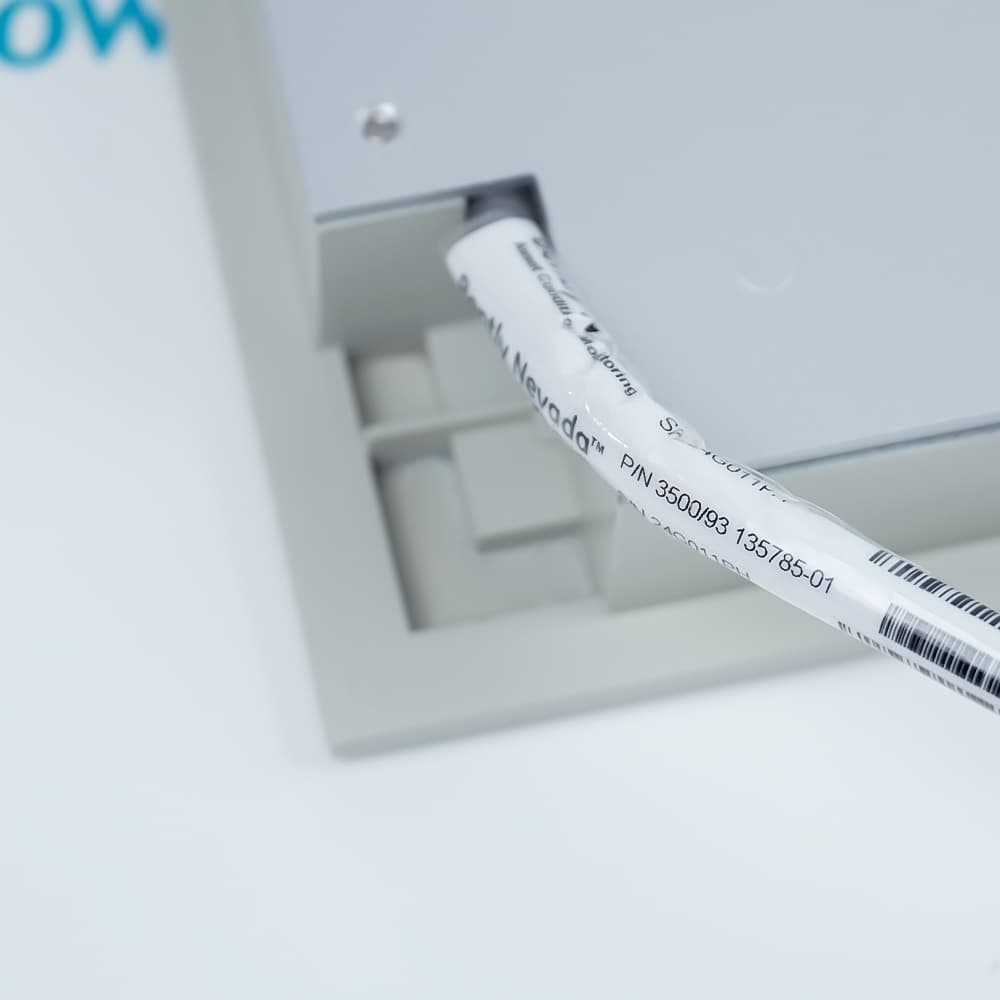

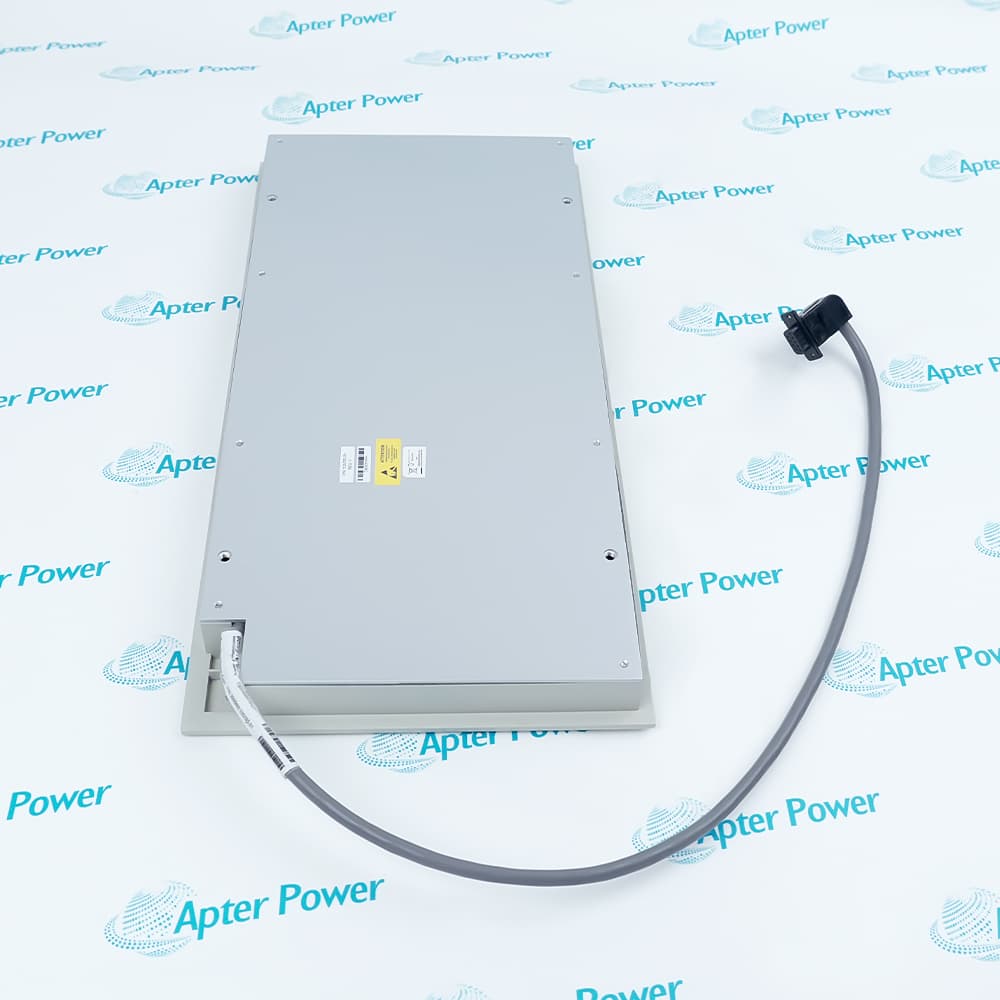

Bently Nevada 3500/93 135785-01 is the non-backlit 3500 System Display Unit that presents rack measurements, alarms and status information through a local LCD interface.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 3500/93 135785-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3500/93 135785-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    3500/93 135785-01
  • Product Family:
    3500 System
  • Product Type:
    Non-Backlit System Display Unit
  • Stock:
    1
  • Display Variant:
    135785-01 non-backlit Display Unit
  • LCD Format:
    640 × 200 pixel reflective FSTN monochrome display
  • Display Power:
    5.6 W maximum
  • Rack Interface:
    Proprietary RS-422 connection to the Display Interface Module
  • Typical Update Rate:
    1 second for channel data
  • Rack Capacity:
    Maximum 2 displays per 3500 rack
  • Interface Module Position:
    Slot 15 of a full-size 3500 rack
  • Operating Temperature:
    -20 to +65 °C
  • Storage Temperature:
    -30 to +80 °C
  • Relative Humidity:
    95% non-condensing
  • Weight:
    4.63 lbs (2.1 kg)
  • Estimated shipping dimensions:
    41.28×3.12×20.32cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Rack Data Flow Display Status Mounting Layout Remote Cabling

Features:

  • Displays 3500 rack, monitor and channel information
  • Uses a reflective non-backlit 640 × 200 LCD
  • Connects to a slot-15 Display Interface Module
Bently Nevada 3500/93 135785-01 is the operator-display portion of the 3500/93 arrangement, not the interface or I/O module.

The display presents measurements, system events, alarm states and Keyphasor or tachometer information received through its RS-422 connection.

Because 135785-01 is non-backlit, the viewing environment and the correct display database are both part of a successful installation.

The Bently Nevada 3500/93 135785-01 Non-Backlit System Display Unit may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3500/93 135785-01 Non-Backlit System Display Unit Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

From monitoring rack to the display

  • Rack measurements: Monitor and channel values remain generated by the 3500 rack rather than by the display.
  • Interface module: The Display Interface Module gathers the rack information required by 3500/93.
  • Serial link: A proprietary RS-422 path carries the data between the interface hardware and Display Unit.
  • Display database: Rack Configuration Software defines the pages and points presented to the operator.

Separating rack condition from display condition

  • Unit OK: The display-unit health indication concerns the local display hardware and link.
  • Rack OK: Rack status reflects the health information received from the monitoring system.
  • Alarm LEDs: Channel Alert and Danger indications show the alarm state transmitted from the rack.
  • New Alarm: The New Alarm indication remains associated with an event that has not yet been acknowledged.

Installation layout determines the required hardware

  • Rack face: A hinged full-front arrangement supports installation directly on a full-size 3500 rack.
  • Panel position: Panel mounting uses the documented cutout and interface-hardware arrangement.
  • Independent mount: A separately located display needs the specified enclosure, cable and power provisions.
  • Rack limitation: The 3500 Mini-Rack does not provide the required 3500/93 display-interface arrangement.

Distance changes the power and cable arrangement

  • Normal run: Standard rack-face or nearby installations use the specified RS-422 display cable.
  • Long run: Distances beyond 100 ft require the documented external-power and cable-adapter combination.
  • Grounding path: Cable routing and enclosure grounding must follow the selected mounting configuration.
  • Commissioning check: Verify display communication and page data before treating a blank screen as an LCD fault.
Description
Bently Nevada 3500/93 135785-01 is the non-backlit Display Unit for the 3500 machinery protection system. It provides an operator view of rack, monitor and channel information without changing the measurements or alarm logic maintained by the monitoring rack.

A 640 × 200 pixel reflective FSTN LCD in 3500/93 135785-01 presents vibration values, Keyphasor or tachometer information, system events and Alert or Danger states. The non-backlit display relies on ambient white illumination and is intended for office or indirect-sunlight viewing conditions rather than dark locations.

Communication between 3500/93 135785-01 and its Display Interface Module uses a proprietary RS-422 link. The interface module occupies slot 15 in a full-size 3500 rack, and the display database is configured through 3500 Rack Configuration Software.

Mounting for Bently Nevada 3500/93 135785-01 depends on the selected installation hardware: the unit may be arranged for rack-face, panel, independent or EIA-rail placement. Longer remote runs require the specified external power and cable-adapter arrangement, and the display is not intended for the 3500 Mini-Rack.
Alternative Names
3500/93-135785-01 3500 93 135785 01 135785-01 3500/93 BN 135785-01 Display Unit Bently 3500 93 Non-Backlit Display 3500 System Display 13578501 Bently Nevada 3500-93 135785-01 3500/93 Reflective LCD Display Unit
Technical notes
Bently Nevada 3500/93 135785-01 identifies the non-backlit Display Unit only. Keep the Display Interface Module, I/O module, mounting hardware and cable requirements separate when matching the assembly.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can the non-backlit version of Bently Nevada 3500/93 135785-01 be identified?
The complete Bently Nevada 3500/93 135785-01 number identifies the reflective non-backlit Display Unit; the backlit version uses a different part number.
Why might Bently Nevada 3500/93 135785-01 show no rack data after installation?
For Bently Nevada 3500/93 135785-01, verify that the Display Interface Module is in slot 15, the RS-422 cable is connected and the configured display database matches the rack.
Can Bently Nevada 3500/93 135785-01 be mounted more than 100 ft from the rack?
Yes, but Bently Nevada 3500/93 135785-01 requires the specified external power and cable-adapter arrangement for the longer remote distance.
Is Bently Nevada 3500/93 135785-01 suitable for a 3500 Mini-Rack?
No. The Bently Nevada 3500/93 135785-01 installation arrangements require a full-size 3500 rack and its display interface hardware.
Which part should not be confused with Bently Nevada 3500/93 135785-01 during replacement?
Bently Nevada 3500/93 135785-01 is the Display Unit; the Display Interface Module and I/O module have separate part numbers and functions.
