    Apter Power offers reliable Bently Nevada 3500 series machinery protection modules, supplying high-performance monitoring hardware to ensure continuous plant-wide asset safety.

3500/65 145988-02

/ 4.9
1001 reviews | Need a Specific Revision?

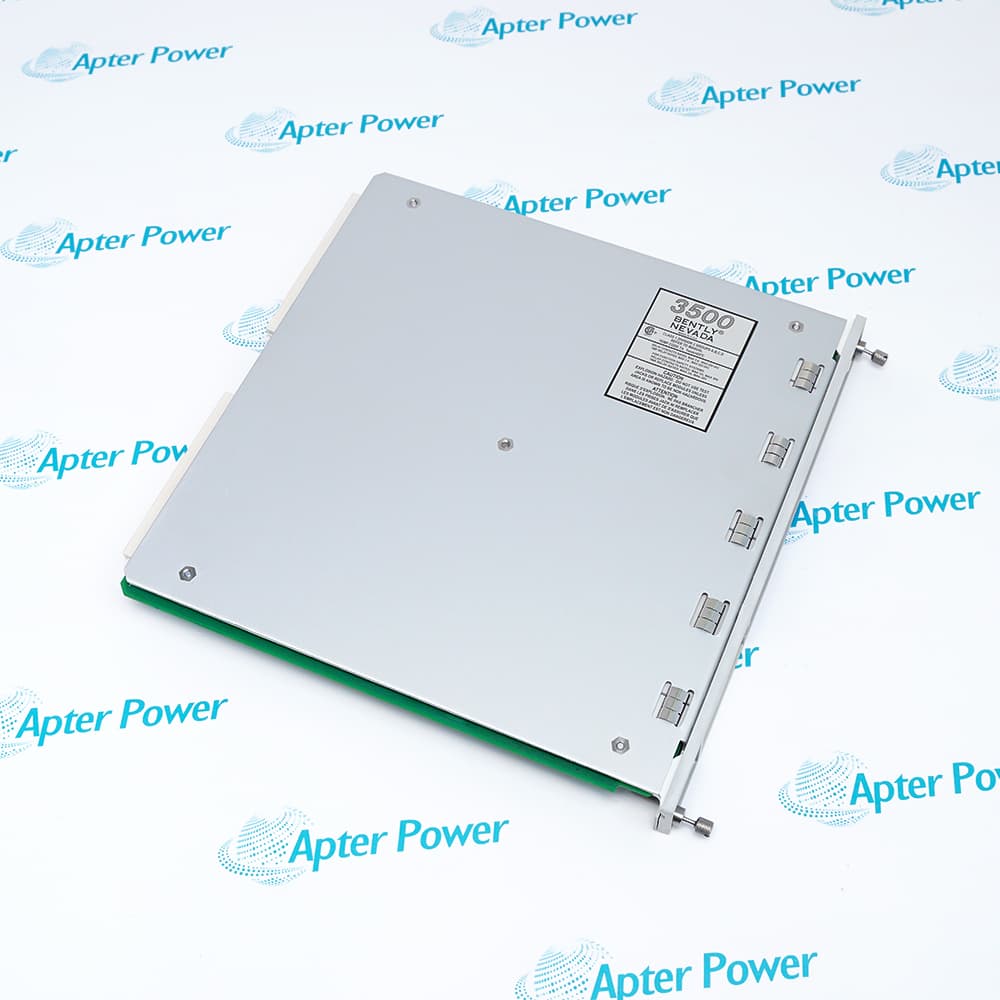

Bently Nevada 3500/65 145988-02 provides 16-channel temperature monitoring with RTD or isolated thermocouple inputs and ±3°C accuracy.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 3500/65 145988-02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3500/65 145988-02

  • Manufacturer:
    Bently Nevada
  • Part Number:
    3500/65 145988-02
  • Product Family:
    3500 System
  • Product Type:
    16-Channel Temperature Monitor
  • Stock:
    1
  • Power Consumption:
    3 watts nominal
  • Signal:
    Accepts from 1 to 16 RTD or isolated tip TC transducer signals
  • Input:
    Impedance Greater than 1 MΩ for each lead input
  • OK LED:
    Indicates when the 3500/65 is operating properly
  • TX/RX LED:
    Indicates when the 3500/65 is communicating with other modules in the 3500 rack
  • Bypass LED:
    Indicates when the 3500/65 monitor is in Bypass Mode
  • RTD Current Source Value:
    913 ± 7 µA @ 25°C per transducer (1 supply for the 4 wire RTD and 2 supplies for the 3-wire)
  • Resolution:
    1°C or 1 °F
  • Accuracy:
    Bulkhead Rack: ±3°C at +25°C (±5.4°F at +77°F); Standard Rack: ±3°C at +25°C (±5.4°F at +77°F)
  • Operating Temperature:
    -30°C to +65°C (-22°F to +150°F)
  • Storage Temperature:
    -40°C to +85°C (-40°F to +185°F)
  • Weight:
    0.72 kg
  • Estimated shipping dimensions:
    2.5x25x24cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Scenarios Safety Configuration

Features:

  • Supports up to 16 RTD or isolated tip TC input channels with stable signal handling under defined impedance conditions.
  • Bently Nevada 3500/65 145988-02 operates with 3 watts nominal power consumption and maintains precise current sourcing at 913 ± 7 µA per transducer.
  • Status monitoring is clearly indicated through OK, TX/RX, and Bypass LEDs for system operating, communication, and mode state visibility.
Bently Nevada 3500/65 145988-02 is designed as a multi-channel temperature monitoring module used in structured industrial measurement systems. It integrates up to 16 input channels for RTD or isolated tip TC signals under defined electrical conditions. The unit maintains stable signal handling through controlled input impedance above 1 MΩ per lead. Bently Nevada 3500/65 145988-02 ensures consistent data acquisition across multiple temperature points within a unified monitoring framework.

In operational configuration, Bently Nevada 3500/65 145988-02 provides signal resolution of 1°C or 1°F with defined accuracy levels at standard reference conditions. It includes LED-based status indicators to reflect operational state, communication activity, and bypass mode conditions. The module supports controlled current sourcing per transducer to maintain measurement consistency. Bently Nevada 3500/65 145988-02 is structured for integration within rack-based monitoring environments requiring organized channel management.

From a system perspective, Bently Nevada 3500/65 145988-02 operates within specified temperature ranges for both working and storage conditions. It is applied in environments where multi-point temperature data acquisition is required under standardized monitoring architecture. The module maintains defined electrical and signal parameters without deviation from its specified configuration. Bently Nevada 3500/65 145988-02 provides a consistent monitoring structure for temperature signal processing within its designed framework.

The 3500/65 145988-02 Bently Nevada 16-Channel Temperature Monitor may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3500/65 145988-02 16-Channel Temperature Monitor Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 3500/65 145988-02 16-Channel Temperature Monitor Specs

General

  • Manufacturer Bently Nevada
  • Model 3500/65 145988-02
  • Condition New Original ready stock
  • Product Family 3500/65,3500/65 172109-01,3500/65 172115-01
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Steam Turbine Unit Monitoring: Real-time monitoring of temperature changes in the bearings and lubrication system of high-power steam turbines to prevent equipment damage due to overheating.
  • Compressor Protection: Monitoring the temperature of cylinders and exhaust gases in large centrifugal or reciprocating compressors to ensure safe operation.
  • Motor Bearing Protection: Widely used for monitoring the stator windings and bearing temperatures of large industrial motors to prevent insulation failure caused by excessive temperature rise.
  • Auxiliary Equipment Monitoring: Integrated into the protection systems of critical auxiliary machinery such as pumps and fans, as part of the overall condition monitoring of the 3500 frame.
  • Self-Check: The module has continuous self-monitoring capabilities, identifying internal circuit faults and transducer connection anomalies, and providing real-time feedback via an "OK" status LED indicator.
  • Triple Redundancy (TMR): Supports operation in a triple-modal redundancy mode within the TMR architecture, eliminating single points of failure through an internal voting mechanism to improve the highest level of system availability.
  • Alarm Protection: Each channel can be independently configured with "Alert" and "Danger" thresholds. Upon detecting overheating, a relay will be immediately triggered for a protective shutdown.
  • Area Certification: Certified for Hazardous Areas, supporting safe operation in explosive environments such as Class I, Div 2, or Zone 2.
  • Software Definition: Digital setup via dedicated 3500 Rack Configuration Software, allowing parameter changes without physical hardware jumpers.
  • Mixed Inputs: Supports flexible configuration of different types of sensors on the same module, including RTDs (platinum, nickel, copper) and various types of thermocouples (TC).
  • Alarm Delay: Allows setting a time delay function for alarms (1 to 60 seconds), effectively filtering false alarms caused by transient fluctuations or noise, ensuring the accuracy of shutdown logic.
  • Firmware Maintenance: Supports firmware upgrades via update packages provided by Bently Nevada, ensuring protocol compatibility with the latest TDI module and management system versions.
Description
The Bently Nevada 3500/65 145988-02 16-Channel Temperature Monitor is engineered for industrial and process applications, providing precise temperature monitoring across 16 independent channels. It accepts inputs from resistance temperature detectors (RTD) or isolated tip thermocouples (TC), enabling flexible configurations for various plant setups.

Each input features an impedance greater than 1 MΩ, ensuring accurate signal conditioning. The Bently Nevada 3500/65 145988-02 also provides a dedicated RTD current source of 913 ± 7 µA at 25°C per transducer, with one supply for 4-wire RTDs and two supplies for 3-wire RTDs. The module operates with a nominal power consumption of only 3 watts, making it energy-efficient.

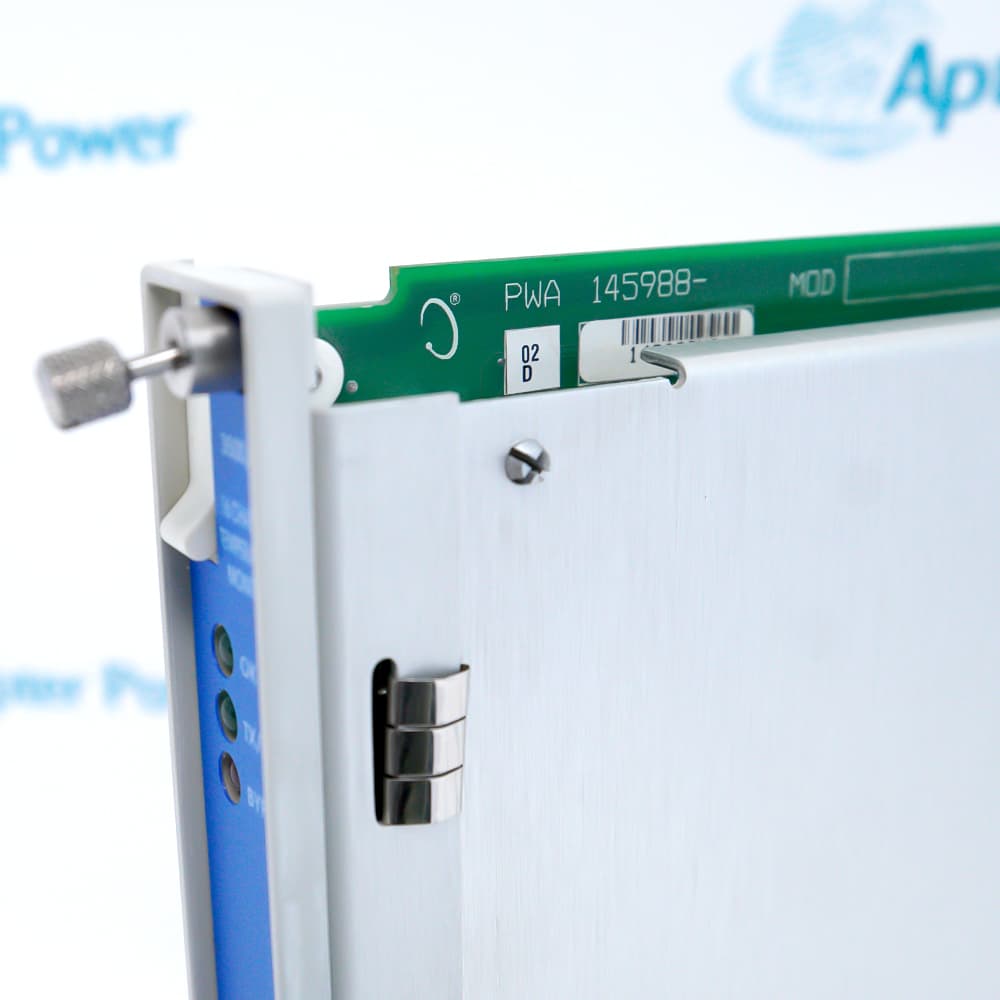

Operational status is communicated via three LEDs: OK indicates proper operation, TX/RX confirms communication with other modules in the 3500 rack, and Bypass signals when the Bently Nevada 3500/65 145988-02 is in bypass mode. Resolution is 1°C or 1°F, with accuracy ±3°C at +25°C (±5.4°F at +77°F) for both bulkhead and standard racks.

Programming is performed using the 3500 Rack Configuration Software, allowing each channel to be configured for isolated tip thermocouples, 3-wire RTDs, 4-wire RTDs, or a combination of TC and RTD inputs. In Triple Modular Redundant (TMR) setups, the Bently Nevada 3500/65 145988-02 must be installed in groups of three adjacent units, using two types of voting to ensure accurate operation and eliminate single point failures. The module is designed for harsh environments, operating from -30°C to +65°C and storing safely from -40°C to +85°C with up to 95% non-condensing humidity.
Alternative Names
35OO/65 145988-O2 3500/65 I45988-02 3500/65 145g88-02 3500/65 1459BB-02 3500/65 145988-0Z 3500-65 145988-02 350065 14598802
Technical notes
Bently Nevada 3500/65 145988-02 is a 16-channel temperature monitor from Bently Nevada 3500/65 145988-02, with 3 watts nominal power consumption and input support for 1 to 16 RTD or isolated tip TC transducer signals. The device features an input impedance greater than 1 MΩ for each lead input and provides RTD current source value of 913 ± 7 µA at 25°C per transducer. It offers 1°C or 1°F resolution with accuracy of ±3°C at +25°C in both bulkhead rack and standard rack conditions. Status indication includes OK LED, TX/RX LED, and Bypass LED for operational, communication, and bypass mode states. Operating temperature ranges from -30°C to +65°C with storage temperature from -40°C to +85°C. Bently Nevada 3500/65 145988-02 is designed with structured signal handling and monitoring parameters strictly defined by its configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the accuracy of the 3500/65 145988-02?
±3°C at +25°C (±5.4°F at +77°F) for both bulkhead and standard racks.
Does the Bently Nevada 3500/65 145988-02 have visual status indicators?
Yes, it has OK, TX/RX, and Bypass LEDs to indicate operational status.
How does the Bently Nevada 3500/65 145988-02 ensure high reliability in Triple Modular Redundant (TMR) configurations?
In TMR configurations, three monitors must be installed in adjacent slots. The monitor uses two types of voting to ensure accurate operation and eliminate single-point failures, ensuring that a single faulty channel does not cause a false trip.
Is the Bently Nevada 3500/65 145988-02 hot-swappable, especially during firmware upgrades?
While standard module replacement may support hot-swapping, firmware upgrades do not. You must remove the I/O module before upgrading the main monitor firmware. Failure to do so results in an "I/O Module Mismatch" error and a "562 ADC Failure" in the system event list.
