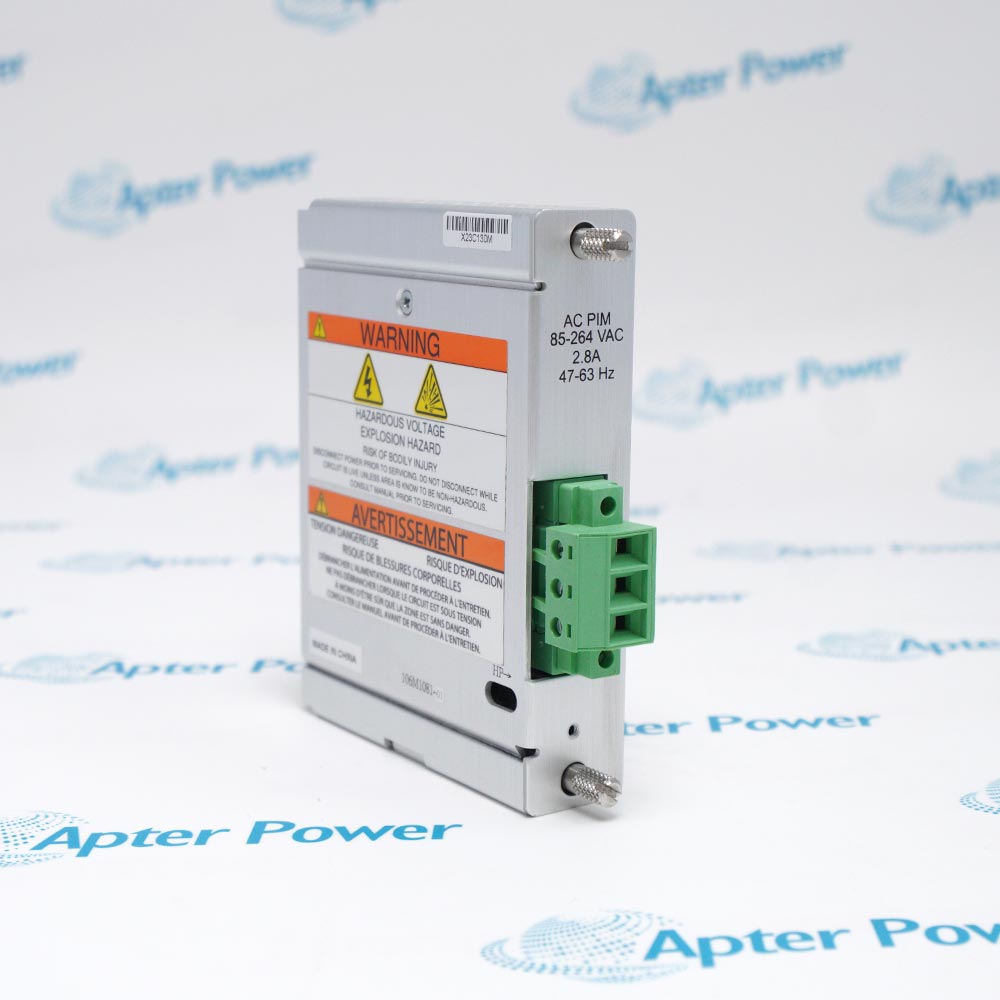

Bently Nevada 106M1081-01 Universal AC Power Input Module, product label

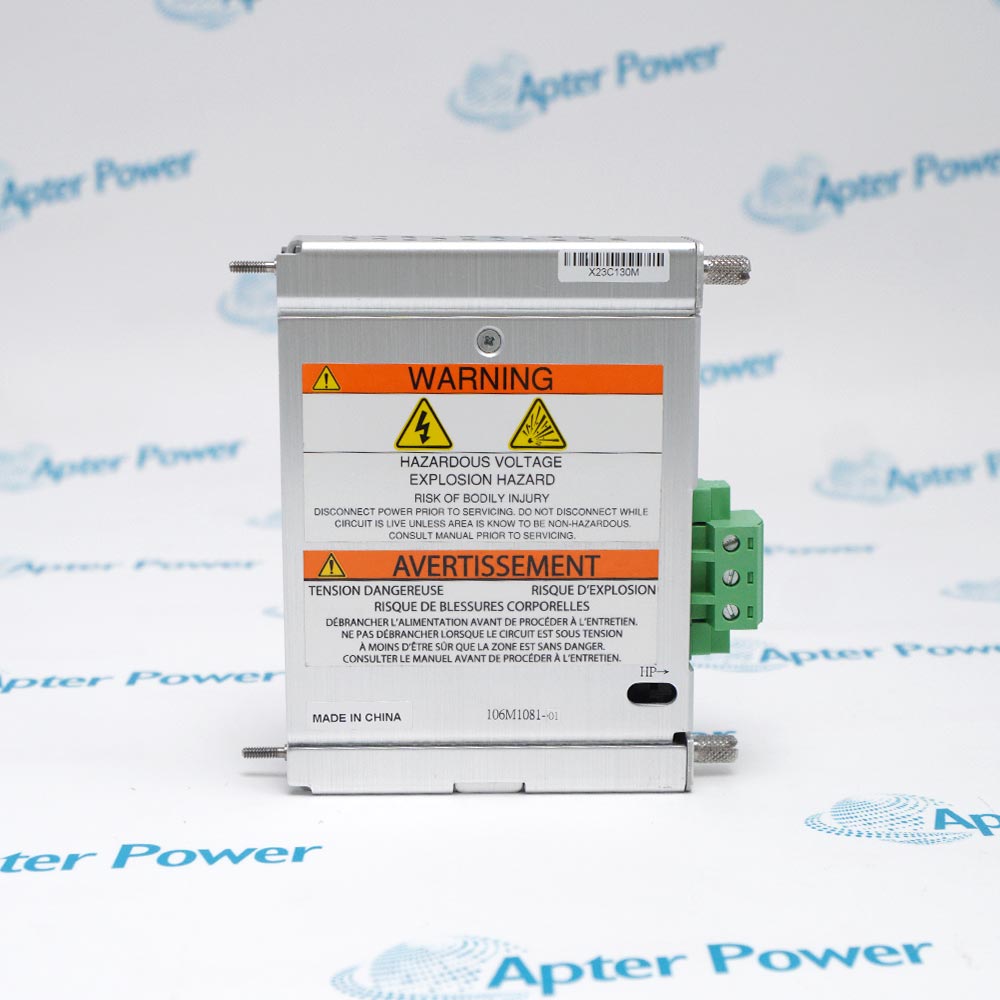

Bently Nevada 106M1081-01 Universal AC Power Input Module, terminal connector view
Bently Nevada 106M1081-01 3500/15 Universal AC Power Input Module, overall view
Bently Nevada 106M1081-01 Universal AC Power Input Module, product label
Bently Nevada 106M1081-01 Universal AC Power Input Module, terminal connector view
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Apter Power supplies quotations, official documents, sourcing assistance, and 3500 rack power-input matching.

106M1081-01

/ 4.9
1001 reviews | Need a Specific Revision?
Bently Nevada 106M1081-01 Universal AC PIM for 3500/15 racks with 110 to 220 Vac nominal input.
In Stock
Ships by Saturday, October 31
Fast Shipping Available
Get a quick price for 106M1081-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 106M1081-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    106M1081-01
  • Product Family:
    3500 System
  • Product Type:
    Universal AC Power Input Module
  • Stock:
    1
  • Input Type:
    Universal AC
  • Nominal Input:
    110 to 220 Vac
  • Input Frequency:
    47 to 63 Hz
  • Rack Current:
    2.8 A rms maximum at full load
  • Operating Temperature:
    -30 to +65 deg C
  • Weight:
    0.75 lbs (0.34 kg)
  • Estimated shipping dimensions:
    120.7 x 25.4 x 114.3 mm
  • Tariff Code:
    8538900000
  • Country of origin:
    United States
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Power Input Rack Pairing AC Limits

Product overview:

  • Universal input: 110 to 220 Vac nominal operation for 3500/15 rack power.
  • Rack interface: rear power-input module for the matching Universal AC supply.
  • Redundant use: supports primary or secondary power positions in a dual-supply rack.
106M1081-01 is the current Universal AC PIM used with the matching 3500/15 Universal AC power supply.

Verify rack input voltage, supply-module type, and primary or secondary position before ordering.
Bently Nevada 106M1081-01 3500/15 Power Supplies Specs

General

  • Manufacturer Bently Nevada
  • Model 106M1081-01
  • Condition New and factory sealed
  • Product Family 3500/15 Power Supplies

Official AC input data

  • Nominal voltage: 110 to 220 Vac.
  • Permitted range: 85 to 264 Vac rms for non-hazardous installations.
  • Frequency: 47 to 63 Hz.
  • Full-rack current: 2.8 A rms maximum.

Use site and approval limits stated in the official 3500/15 documentation.

3500/15 pairing checks

  • Supply match: pair with the Universal AC Power Supply Module.
  • Rear location: install the PIM behind the selected power-supply slot.
  • Dual supplies: either supply can power the rack when two compatible units are installed.
  • Mixed sources: the two rack supplies may use different supported input sources.

Confirm the installed supply-module part number before replacing the PIM.

Environmental and input limits

  • Operating range: -30 to +65 deg C.
  • Storage range: -40 to +85 deg C.
  • Humidity: 95% non-condensing.
  • Module weight: 0.34 kg typical.
  • Module size: 120.7 x 25.4 x 114.3 mm.

Apply hazardous-area input limits where the rack approval requires them.

Description

Bently Nevada 106M1081-01 is the Universal AC Power Input Module for the 3500/15 rack power-supply system. It accepts 110 to 220 Vac nominal input at 47 to 63 Hz.

The module installs behind the corresponding 3500/15 power supply and provides the rack-side AC input interface. Official dimensions are 120.7 x 25.4 x 114.3 mm, and typical weight is 0.34 kg.

A 3500 rack can use one or two compatible power supplies. When two supplies are installed, either unit can support the rack if the other is removed or fails.

Alternative Names
Bently Nevada 106M1081-01 Bently 106M1081-01 Baker Hughes Bently Nevada 106M1081-01 106M1081-01 Universal AC Power Input Module 106M1081-01 Bently Nevada 106M108101 Bently part 3500/15 Power Supplies 106M1081-01 Bently Nevada part number 106M1081-01
Technical notes
106M1081-01 is the rear Universal AC PIM for the 3500/15 supply. Match voltage, approval, and rack power position.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What does Bently Nevada 106M1081-01 do in a 3500 rack?
It is the rear Universal AC Power Input Module for the matching 3500/15 supply.
Which nominal voltage is specified for 106M1081-01?
The official datasheet specifies 110 to 220 Vac nominal input.
What frequency range does 106M1081-01 accept?
The documented input frequency is 47 to 63 Hz.
Can 106M1081-01 be used in a redundant power arrangement?
Yes. A 3500 rack may use two compatible supplies in primary and secondary positions.
What is the maximum full-rack AC current for this PIM?
The published maximum is 2.8 A rms at full rack load.
How large is the 106M1081-01 module?
Official dimensions are 120.7 x 25.4 x 114.3 mm.
Does 106M1081-01 replace legacy AC input modules?
It is the current Universal AC PIM; confirm the matching replacement supply and rack wiring before migration.
What should be checked before requesting a 106M1081-01 quote?
Confirm input voltage, rack approval, supply-module part number, and required power position.

Product Browsing History
