136188-02

/ 4.9
1001 reviews | Need a Specific Revision?

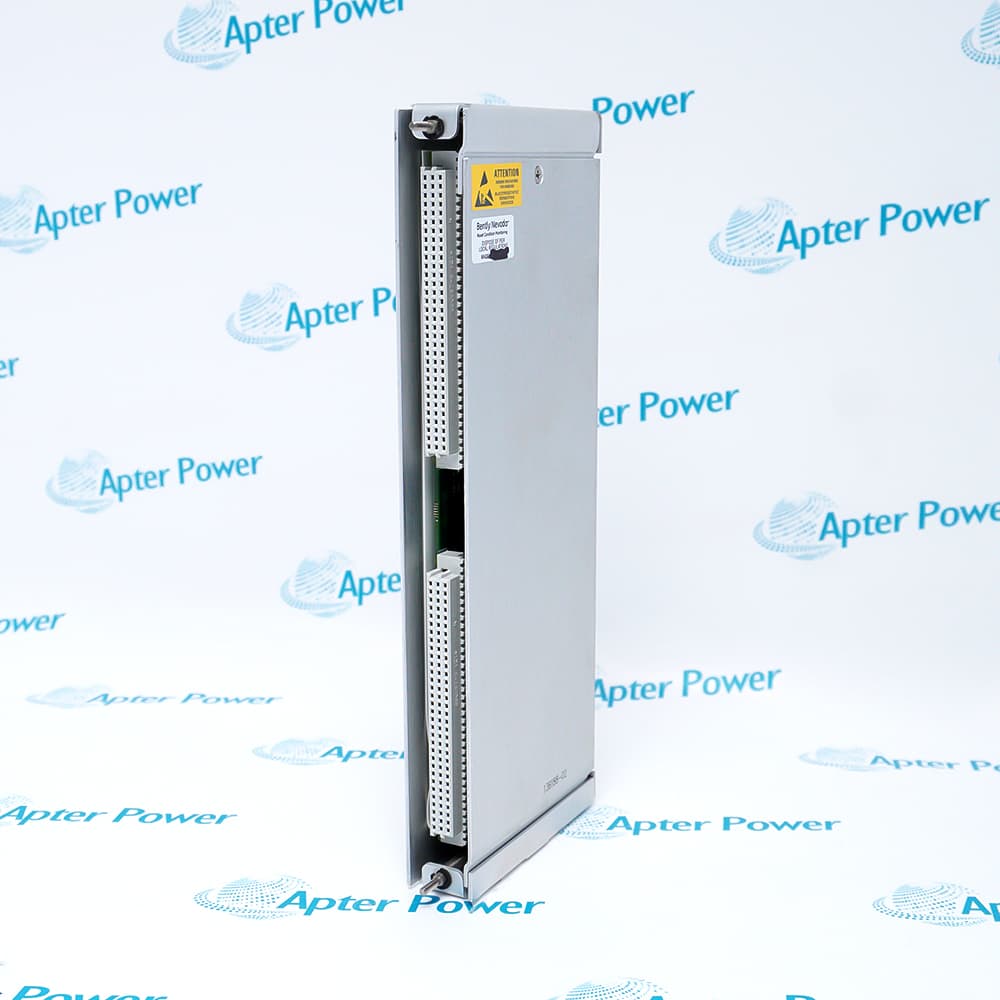

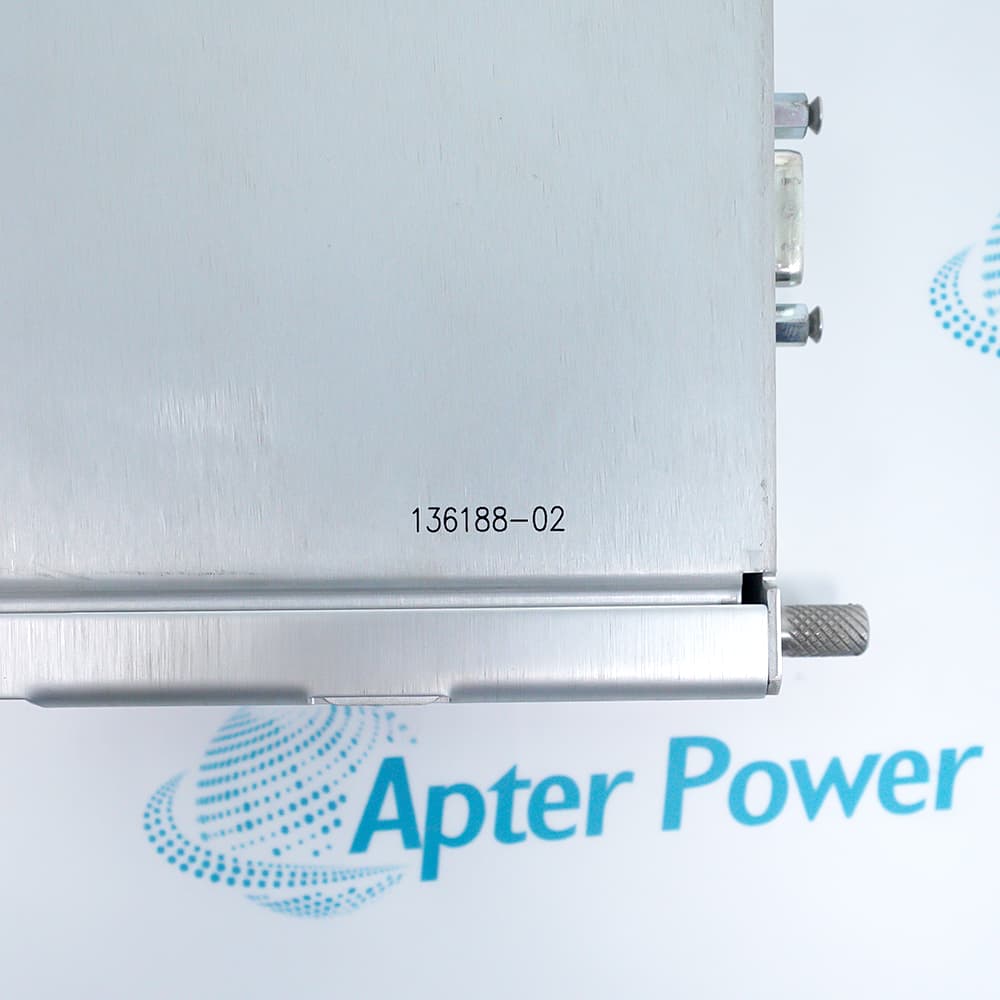

The Bently Nevada 3500/92 136188-02 Communication Gateway Module delivers versatile Ethernet TCP/IP and Modbus communications, providing seamless integration of 3500 rack monitored values with process control and automation systems.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 136188-02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 136188-02

  • Manufacturer:
    Bently Nevada
  • Part Number:
    136188-02
  • Product Family:
    3500 System
  • Product Type:
    Ethernet/RS485 Modbus I/O Module
  • Stock:
    1
  • Protocol:
    Ethernet TCP/IP frame and Modbus/TCP
  • Power Consumption:
    5.0 Watts typical with ModbusRS232/ RS422 I/O Module; 5.6 Watts typical with Modbus RS485 I/O Module
  • Operating Temperature:
    -30°C to +65°C (-22°F to +149°F)
  • Storage Temperature:
    -40°C to +85°C (-40°F to +185°F)
  • Humidity:
    95%, non-condensing
  • Rack Space Requirements:
    1 full-height rear slot
  • Weight:
    0.38 kg
  • Estimated shipping dimensions:
    2.5x11.2x24.2cm
  • Tariff Code:
    8517795000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Interoperability Updates Application Scenarios

Features:

  • Enables Reliable Ethernet And RS485 Modbus Communication For 3500 Racks
  • Supports Flexible Data Exchange With Process Control And Automation Systems
  • Operates In Harsh Industrial Environments With High Stability
The Bently Nevada 136188-02 Ethernet/RS485 Modbus I/O Module provides seamless integration of 3500 rack monitored values into Ethernet and RS485 Modbus networks. Unlike standard communication modules, it allows flexible data exchange between 3500 racks and process control or automation systems, ensuring real-time monitoring and operational visibility. Its compatibility with proprietary Bently Nevada protocols enables full integration with 3500 Rack Configuration and Data Acquisition Software.

Designed for industrial reliability, the 136188-02 operates efficiently under extreme temperature ranges and high humidity, maintaining stable performance where other modules may be limited. Compared to legacy modules, this I/O module reduces complexity by combining Ethernet and RS485 communication in a single interface, eliminating the need for multiple discrete communication devices.

Installation is simple, requiring minimal rack space while providing robust connectivity for multiple protocols. Its low power consumption ensures energy-efficient operation, and its configuration flexibility allows operators to optimize network integration. Overall, the 136188-02 module delivers enhanced communication performance, environmental durability, and system flexibility, making it an ideal choice for modern 3500 rack applications.

The 136188-02 Bently Nevada Ethernet/RS485 Modbus I/O Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 136188-02 Ethernet/RS485 Modbus I/O Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 136188-02 Ethernet/RS485 Modbus I/O Module Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 136188-02
  • Condition New Original ready stock
  • Product Family 3500/92,3500/92-02-01-00,133323-01
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Main Module Compatibility: Must be used with the 3500/92 communication gateway motherboard. Note that it is not compatible with earlier 3500/90 or 3500/91 modules.
  • Multi-Protocol Support: Ethernet: Supports Modbus TCP/IP protocol, typically connected via an RJ45 interface. Serial Interface: Supports Modbus RTU/ASCII protocol, enabling multi-point communication via an RS485 port (usually in terminal block form).
  • System Integration: Seamlessly integrates the status, process variables (such as vibration values, displacement, and speed), and alarm status of all monitoring modules within the 3500 framework into mainstream DCS systems such as Honeywell TDC 3000, Emerson DeltaV, and Yokogawa Centum.
  • Concurrent Communication: Allows simultaneous operation of Ethernet and serial ports, facilitating data delivery to local display terminals (such as HMIs) while connected to the DCS.
  • Configuration Tools: Communication parameters (such as IP address, baud rate, and register mapping) must be configured using the 3500 Rack Configuration Software.
  • Firmware Synchronization: The functionality of the 136188-02 is highly dependent on the firmware version of the 3500/92 main module. It is recommended to update the 3500/92 firmware to version 2.0 or higher for a more stable Ethernet connection and an expanded Modbus register mapping table.
  • Update Method: Firmware updates are typically performed remotely or locally via the Ethernet port or USB port of the 3500/22M (TDI) using the configuration software.
  • Compatibility Note: Some older versions of the 3500 frame backplane may require hardware adjustments to fully support all the high-speed features of the Ethernet I/O module.
  • Digital Factory Integration: Real-time uploading of mechanical protection data from the 3500 system to the central control room enables automated production management.
  • Remote Diagnostics: Utilizing the Ethernet interface, technicians can access Modbus data via the factory LAN to perform remote equipment status assessments.
  • Reduced Hardware Cabling: By replacing traditional 4-20 mA analog outputs with digital communication, a single cable can transmit data from hundreds of measurement points, significantly reducing construction costs.
  • Redundant Communication: In critical applications, two 3500/92 modules and their corresponding 136188-02 I/O modules can be installed to achieve hardware redundancy in the communication link.
Description
The Bently Nevada 3500/92 136188-02 Communication Gateway Module is designed to provide comprehensive communication capabilities for 3500 rack monitored values and statuses. Supporting both Ethernet TCP/IP and serial communications (RS232, RS422, RS485), it ensures flexible connectivity with process control systems and integration with 3500 Rack Configuration Software and Data Acquisition Software. Compared to the 3500/90 module, the 3500/92 adds a Configurable Modbus Register Utility, replacing the older primary value Modbus registers while maintaining all core communication functionalities.

With support for Modicon Modbus protocol over serial interfaces and Modbus/TCP over Ethernet, the 3500/92 136188-02 enables seamless data exchange in modern industrial networks. Its compatibility with proprietary Bently Nevada protocols ensures full integration with 3500 Rack Configuration and Data Acquisition Software packages, providing operators with consistent and reliable communication performance. In contrast, earlier modules like the 3500/90 lack the configurable Modbus register flexibility, limiting adaptability in complex system architectures.

The 3500/92 136188-02 operates efficiently under harsh conditions, with a typical power consumption of 5.0 Watts when paired with Modbus RS232/RS422 I/O modules and 5.6 Watts with Modbus RS485 I/O modules. Its operating range spans -30°C to +65°C (-22°F to +149°F), with storage capabilities from -40°C to +85°C (-40°F to +185°F) and up to 95% non-condensing humidity. Compared to the 3500/90, the 3500/92’s expanded environmental tolerance and power efficiency make it more robust for industrial automation applications.

Installation is straightforward, requiring just one full-height rear slot in the 3500 rack. The module’s design ensures minimal footprint while maximizing communication performance, providing a clear advantage over older modules such as 3500/90 or standalone Ethernet/RS485 Modbus I/O modules like the 136188-02 used individually. This integration capability simplifies system architecture and reduces the need for multiple discrete communication modules.

Overall, the 3500/92 136188-02 Communication Gateway Module combines flexible protocol support, robust environmental performance, low power consumption, and configurable Modbus functionality, making it a superior choice for integrating 3500 rack data into Ethernet, serial, and proprietary Bently Nevada communication systems.
Alternative Names
136188-O2 I36I88-02 136188 02 3500/92 136180-01 3500/25 149369-01 3500/33 149986-01 136188-01 125736-01
Technical notes
Bently Nevada 136188-02 Ethernet/RS485 Modbus I/O Module supports Ethernet TCP/IP frame and Modbus/TCP protocols, with power consumption of 5.0 Watts typical for Modbus RS232/RS422 I/O Module and 5.6 Watts typical for Modbus RS485 I/O Module.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How much power does the 3500/92 consume?
Typical power consumption is 5.0 Watts with Modbus RS232/RS422 I/O modules and 5.6 Watts with Modbus RS485 I/O modules, providing energy-efficient operation.
What communication protocols does the Bently Nevada 3500/92 136188-02 support for third-party system integration?
The Bently Nevada 3500/92 136188-02 supports Modicon Modbus protocol via serial (RS232/RS422/RS485), Modbus/TCP over Ethernet, and the proprietary Bently Nevada host protocol for communication with 3500 Configuration and Data Acquisition Software.
What type of Ethernet connection does the Bently Nevada 3500/92 136188-02 use?
It uses an RJ45 connection for 10BASE-T star topology Ethernet networks, compliant with IEEE802.3. Use shielded Category 5 cable with RJ45 connectors.
Can the Bently Nevada 3500/92 136188-02 be used in maritime environments?
Yes. It holds DNV GL classification for ships, offshore units, and high-speed craft, as well as ABS rules for steel vessels and offshore units.
What happens if the OK LED on the Bently Nevada 3500/92 136188-02 is off?
The OK LED indicates normal operation. If off, the module is not operating properly – check power, rack backplane connection, and environmental conditions. The TX/RX LED indicates active communication with other rack modules.
