D3G146-AH50-16

/ 4.9
1001 reviews | Need a Specific Revision?

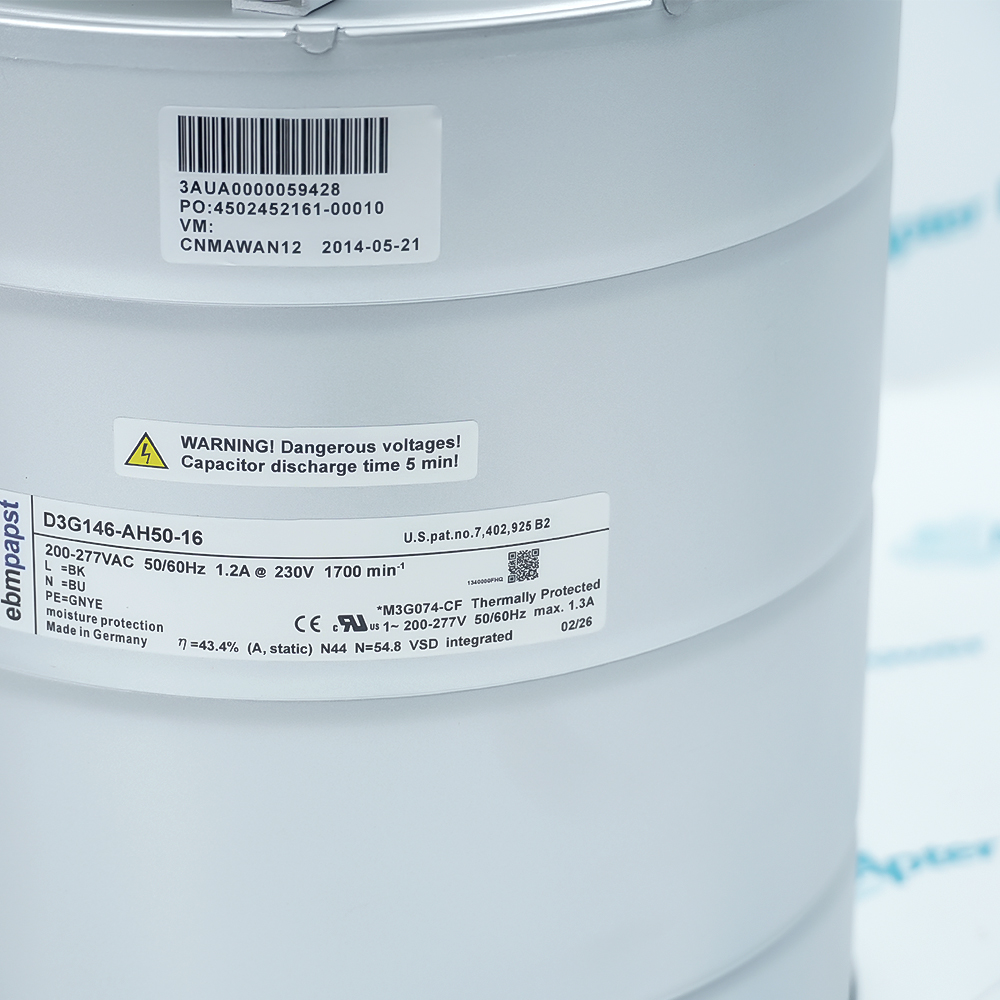

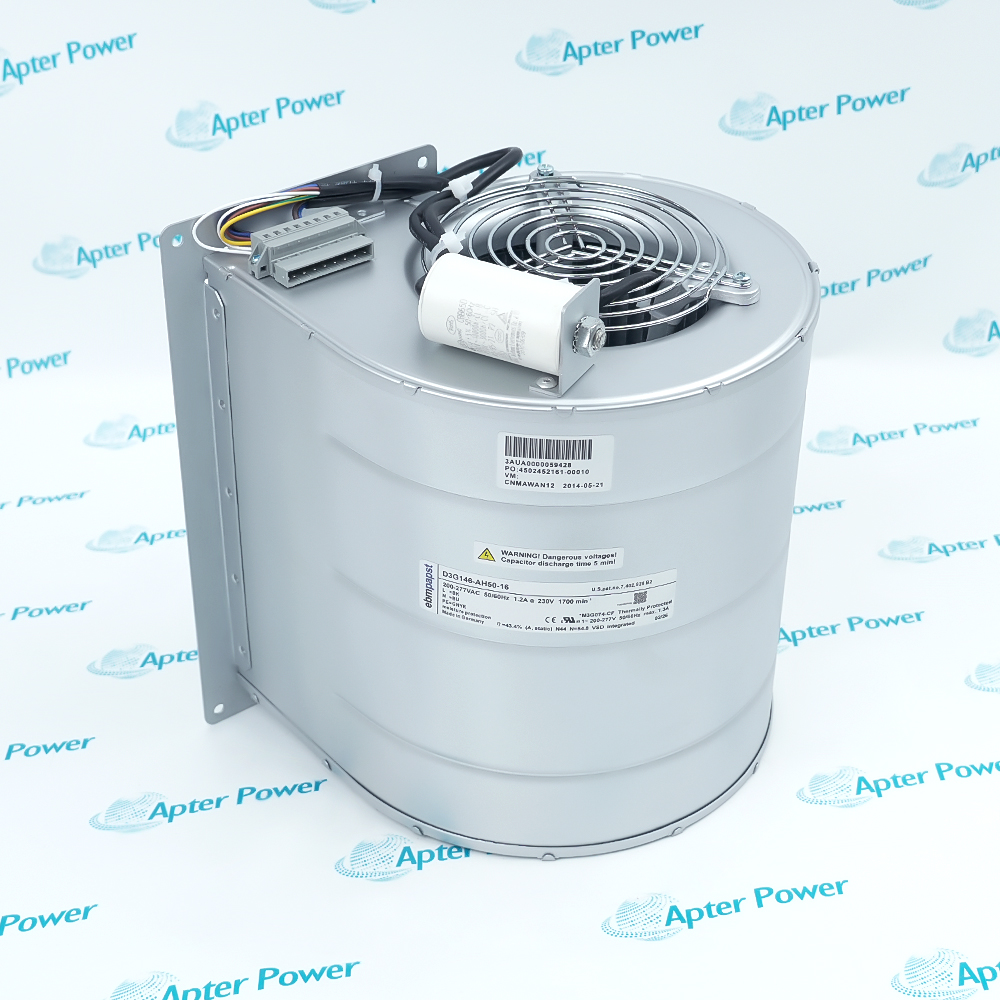

Ebmpapst D3G146-AH50-16 is a 146 mm forward-curved, dual-intake EC centrifugal fan with a flanged housing and M3G074-CF motor.
In Stock
Ships by Saturday, October 17
Fast Shipping Available
Get a quick price for D3G146-AH50-16
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for D3G146-AH50-16

  • Manufacturer:
    EBMPAPST
  • Part Number:
    D3G146-AH50-16
  • Product Family:
    EBMPAPST
  • Product Type:
    EC Centrifugal Fan
  • Stock:
    1
  • Motor:
    M3G074-CF
  • Fan size:
    146 mm
  • Phase:
    1~
  • Nominal voltage:
    230 VAC
  • Voltage range:
    200 to 277 VAC
  • Frequency:
    50 Hz
  • Nominal speed:
    1700 rpm
  • Power consumption:
    165 W
  • Current draw:
    1.2 A
  • Operating ambient temperature:
    -25 to +60 °C
  • Degree of protection:
    IP44
  • Insulation class:
    Class B
  • Installation position:
    Shaft horizontal
  • Operating mode:
    S1
  • Direction of rotation:
    Clockwise, viewed toward rotor
  • Electronics housing:
    Die-cast aluminum
  • Impeller material:
    Sendzimir-galvanized sheet steel
  • Motor bearing:
    Ball bearing
  • Motor protection:
    Thermal overload protector internally connected
  • Weight:
    9.259 lbs (4.2 kg)
  • Estimated shipping dimensions:
    27x20.5x21.9cm
  • Tariff Code:
    8414593000
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Electrical Data Construction Installation Performance

Features:

  • Forward-curved, dual-intake EC fan with a flanged housing
  • 146 mm impeller driven by the M3G074-CF motor
  • Single-phase 230 VAC supply with a 200 to 277 VAC range
The D3G146-AH50-16 combines a galvanized sheet-steel housing and impeller with a die-cast aluminum electronics enclosure.

Vibration-damped motor suspension and ball bearings support continuous S1 operation of D3G146-AH50-16.

Its internally connected thermal overload protector works with IP44 construction and customer-connected protective earth on D3G146-AH50-16.

The Ebmpapst D3G146-AH50-16 EC Centrifugal Fan may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Ebmpapst D3G146-AH50-16 EC Centrifugal Fan Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Power and Connection Path

  • Line conductor: The black L lead carries the single-phase supply into D3G146-AH50-16.
  • Neutral conductor: The blue N lead completes the AC supply path to the fan electronics.
  • Protective earth: The green/yellow PE lead must be connected for Protection Class I operation.
  • Internal bridge: Connection 13 is shown as a fixed internal bridge for full-speed operation in the retrofitted connection.

Fan and Motor Assembly

  • Impeller: A 146 mm forward-curved, dual-intake wheel is formed from Sendzimir-galvanized sheet steel.
  • Housing: The galvanized sheet-steel scroll terminates in an integral rectangular mounting flange.
  • Electronics enclosure: Die-cast aluminum protects the electronic section of D3G146-AH50-16.
  • Motor support: The M3G074-CF motor is vibration-damped on both sides and runs on ball bearings.

Mounting Boundaries

  • Shaft position: Install D3G146-AH50-16 with the motor shaft horizontal.
  • Rotation: The impeller turns clockwise when viewed toward the rotor.
  • Drainage: No condensation drainage holes are provided in the assembly.
  • Envelope: The product drawing shows a 270 mm width, 219 mm height, and 205 mm depth for layout planning.

Measured 50 Hz Airflow

  • Free-air point: D3G146-AH50-16 delivers 1125 m³/h at 0 Pa while running at 1700 rpm.
  • Mid-pressure point: At 150 Pa, the measured airflow is 935 m³/h at 1935 rpm.
  • Higher-pressure point: At 350 Pa, the measured airflow is 660 m³/h at 2370 rpm.
  • Electrical input: These three measured points use 230 V, 50 Hz, 165 W, and 1.2 A.
Description
Ebmpapst D3G146-AH50-16 is a 146 mm forward-curved, dual-intake EC centrifugal fan that combines the M3G074-CF motor, impeller, and flanged housing as one air-moving assembly.

Air enters both sides of D3G146-AH50-16 and leaves through the housing outlet, while the clockwise impeller and horizontal motor shaft define the required mechanical orientation.

The single-phase supply for D3G146-AH50-16 feeds its integrated EC motor electronics; protective earth is connected separately, and the internally connected thermal protector responds to motor overload.

Galvanized sheet steel forms the D3G146-AH50-16 housing and impeller, while a die-cast aluminum electronics enclosure and vibration-damped motor suspension separate the airflow components from the electrical assembly.
Alternative Names
Ebmpapst D3G146AH5016 ebm-papst D3G146-AH50-16 D3G146 AH50 16 D3G 146-AH50-16 D3G146-AH50-16 EC fan D3G146 146 mm centrifugal fan M3G074-CF fan assembly D3G146-AH50-16 dual-intake fan
Technical notes
Ebmpapst D3G146-AH50-16 combines an M3G074-CF EC motor, 146 mm dual-intake impeller, IP44 enclosure, and horizontal-shaft mounting.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which supply connections must be confirmed before energizing Ebmpapst D3G146-AH50-16?
For Ebmpapst D3G146-AH50-16, connect L to the black conductor, N to blue, and PE to green/yellow, then verify the 200 to 277 VAC nameplate range before applying power.
Why should the mounting direction be checked for Ebmpapst D3G146-AH50-16?
Ebmpapst D3G146-AH50-16 is specified for a horizontal shaft position and has no condensation drainage holes. Confirm that orientation before fixing the flanged housing in place.
What operating-temperature limit applies to Ebmpapst D3G146-AH50-16 inside an enclosure?
Keep Ebmpapst D3G146-AH50-16 within -25 to +60 °C during operation; the separate -40 to +80 °C motor range applies only to transport and storage.
How can the airflow duty point be checked for Ebmpapst D3G146-AH50-16?
Use the 50 Hz performance curve for Ebmpapst D3G146-AH50-16: the measured points include 1125 m³/h at 0 Pa and 660 m³/h at 350 Pa, each at 165 W and 1.2 A.
Which protection details matter when integrating Ebmpapst D3G146-AH50-16?
Ebmpapst D3G146-AH50-16 combines IP44 construction, Class B insulation, Protection Class I with customer-connected PE, and an internally connected thermal overload protector.
What must remain consistent when reconnecting the cable on Ebmpapst D3G146-AH50-16?
Preserve the WAGO 231-608 connector arrangement for Ebmpapst D3G146-AH50-16: positions 1.1 and 1.5 carry N and L, position 1.3 carries PE, and 1.2/1.4 are jumpers.
