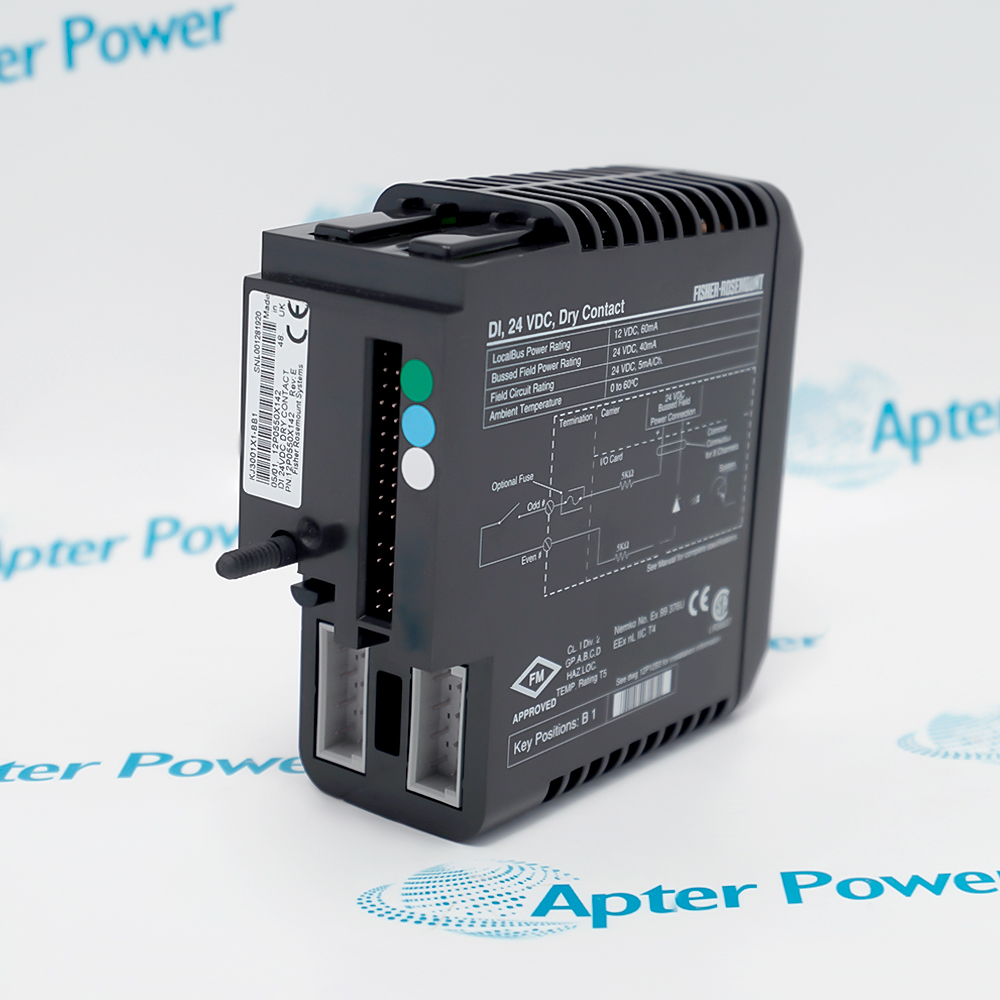

Emerson KJ3001X1-BB1 12P0550X142 is an eight-channel 24 VDC dry-contact digital input card for DeltaV M-series Traditional I/O.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for KJ3001X1-BB1 12P0550X142
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for KJ3001X1-BB1 12P0550X142

  • Manufacturer:
    Emerson
  • Part Number:
    KJ3001X1-BB1 12P0550X142
  • Product Family:
    DeltaV
  • Product Type:
    8-Channel 24 VDC Dry-Contact Digital Input Card
  • Stock:
    1
  • Channels:
    8
  • Input modes:
    Discrete input below 2 Hz or pulse counter below 75 Hz
  • Contact thresholds:
    On: greater than 2.2 mA; off: less than 1 mA
  • Wetting circuit:
    Approximately 5 kΩ at 15 V
  • Isolation:
    Each channel is optically isolated from the system; factory tested at 1500 V DC
  • Terminal key:
    B1
  • Dimensions:
    4.1 × 10.7 × 10.5 cm
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Contacts Counting Termination Application
  • Eight dry-contact input channels use the documented 15 V wetting circuit
  • Channels can be configured for discrete-input operation or pulse counting within the published limits
  • B1 keying identifies the compatible terminal-interface arrangement

KJ3001X1-BB1 12P0550X142 is an Emerson eight-channel 24 VDC dry-contact digital input card designed for DeltaV M-series Traditional I/O.

The card monitors dry-contact states and supports the documented low-frequency pulse-count mode while maintaining optical isolation from the DeltaV system.

Before installation or replacement, verify the complete paired identifier, B1-keyed terminal interface, contact wiring, pulse-count configuration, carrier compatibility, and installed DeltaV controller architecture.

Availability, condition, price, and shipping time for KJ3001X1-BB1 12P0550X142 are confirmed during quotation.

Emerson KJ3001X1-BB1 12P0550X142 8-Channel 24 VDC Dry-Contact Digital Input Card Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The input type is intended for dry-contact circuits
  • The documented wetting source is 15 V through approximately 5 kΩ
  • On and off thresholds are defined by input current rather than an external analog range
  • Each channel can be configured as a discrete input below 2 Hz
  • The documented pulse-count mode supports signals below 75 Hz
  • Pulse operation must be configured in the DeltaV project for the selected channel
  • The card uses B1 terminal keying
  • Standard and fused terminal-block arrangements are documented
  • A 16-pin mass-termination arrangement is documented for this eight-channel type
  • Dry-contact status monitoring in DeltaV process-control systems
  • Low-frequency pulse counting on eligible field contacts
  • M-series Traditional I/O installations using the documented B1-keyed termination
Description
KJ3001X1-BB1 12P0550X142 is an Emerson eight-channel 24 VDC dry-contact digital input card for the DeltaV M-series Traditional I/O platform.

The card provides a 15 V wetting circuit, configurable discrete or pulse-count operation, optical isolation from the system, and B1 terminal keying.

Before installation or replacement, confirm both identifiers, the terminal block and keying, contact wiring, pulse-count requirements, carrier compatibility, and saved controller configuration.
Alternative Names
KJ3001X1-BB1 12P0550X142 KJ3001X1-BB1 12P0550X142 KJ3001X1BB1 12P0550X142 KJ3001X1 BB1 12P0550X142 Emerson KJ3001X1-BB1 12P0550X142 DeltaV KJ3001X1-BB1 12P0550X142
Technical notes
KJ3001X1-BB1 12P0550X142 requires the B1-keyed terminal interface, dry-contact wetting circuit, pulse-count setting, and full paired identifier to be verified before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.

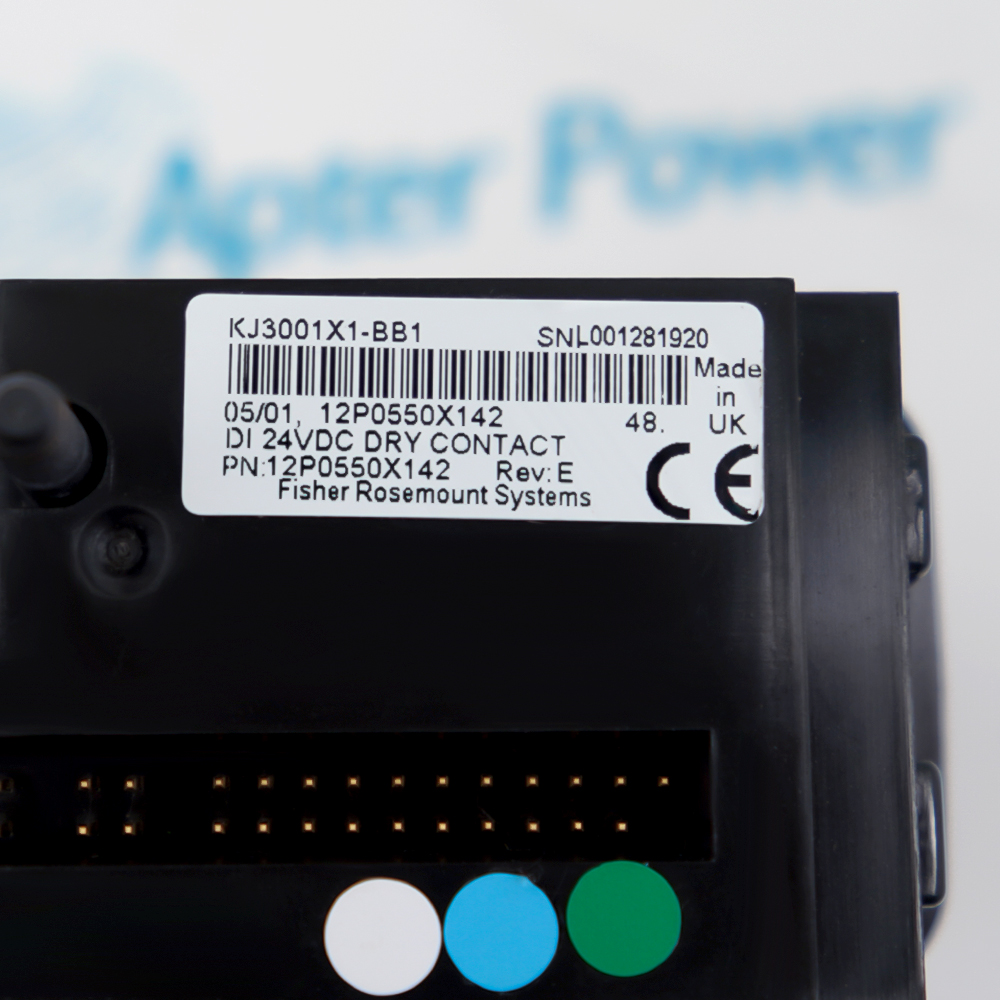

Do KJ3001X1-BB1 and 12P0550X142 identify the same supplied product?
Use KJ3001X1-BB1 12P0550X142 as the complete paired identity for this item. Confirm both markings on the installed card before ordering.
Can Emerson KJ3001X1-BB1 12P0550X142 count pulses?
Yes. Emerson documents a pulse-counter mode below 75 Hz; ordinary discrete-input operation is specified below 2 Hz.
What terminal key is used by Emerson KJ3001X1-BB1 12P0550X142?
The documented key is B1. Match the installed carrier and terminal-block keying before replacement.
What contact thresholds apply to Emerson KJ3001X1-BB1 12P0550X142?
The input is on above 2.2 mA and off below 1 mA under the documented dry-contact wetting circuit.
Can Emerson KJ3001X1-BB1 12P0550X142 replace KJ3001X1-BA1?
Not directly. The BB1 card is the B1-keyed dry-contact type, while BA1 is the B2-keyed isolated 24 VDC type; wiring and termination differ.
Which terminal options are documented for Emerson KJ3001X1-BB1 12P0550X142?
Emerson documents standard and fused terminal blocks plus a 16-pin mass-termination arrangement for this eight-channel dry-contact type.
What should be checked before ordering Emerson KJ3001X1-BB1 12P0550X142?
Check both identifiers, B1 keying, carrier type, dry-contact wiring, pulse-mode requirements, and the saved DeltaV configuration.
