        PR6423/003-030 CON021
        PR6423/003-030 CON021
        PR6423/003-030 CON021
        PR6423/003-030 CON021
        PR6423/003-030 CON021
        PR6423/003-030 CON021
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter Power provides quotations, official documents, and measuring-chain configuration review.

        PR6423/003-030 CON021

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

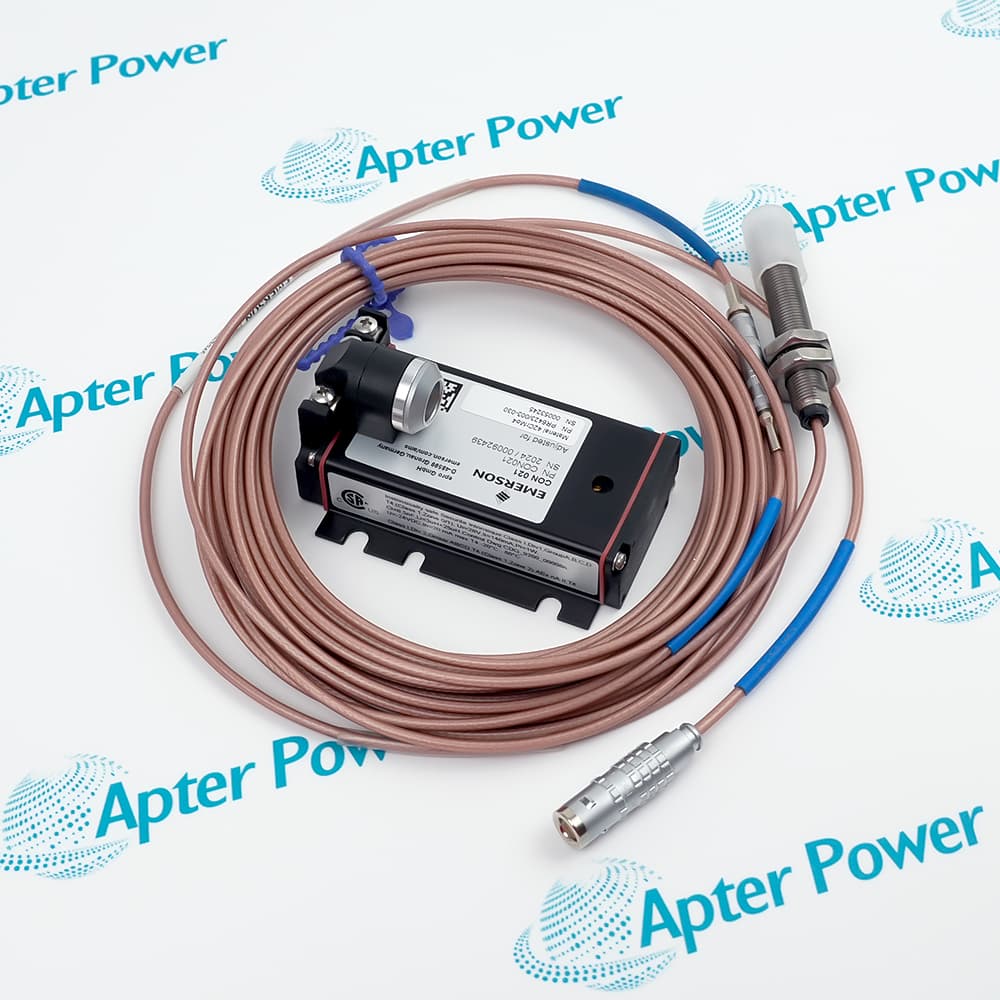

        Emerson EPRO PR6423/003-030 CON021 is an 8 mm eddy current sensor and signal converter assembly for non-contact turbomachinery measurement.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for PR6423/003-030 CON021
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for PR6423/003-030 CON021

        • Manufacturer:
          Emerson
        • Part Number:
          PR6423/003-030 CON021
        • Product Family:
          Epro
        • Product Type:
          8 mm eddy current sensor
        • Stock:
          1
        • Sleeve thread:
          M10x1
        • Armored cable:
          Without
        • Sensor length code:
          Cx = 55 mm; C = Cx + 9 mm
        • Adapter plug:
          Without
        • Total cable length:
          4 m
        • Cable end:
          LEMO
        • Nominal static measuring range:
          ±1.0 mm
        • Sensitivity:
          8 V/mm on 42 CrMo4 reference material
        • CON021 frequency range (-3 dB):
          0 to 20,000 Hz
        • CON021 rise time:
          <15 µs
        • CON021 operating temperature:
          -30 to 100°C (-22 to 212°F)
        • CON021 protection class:
          IP20
        • CON021 supply voltage range:
          -23 to -32 V or -21 to -32 V, depending on output range
        • CON021 weight:
          Approximately 120 g (4.24 oz)
        • Tariff Code:
          9031809090
        • Country of origin:
          Germany
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Measuring Chain Mechanical Setup Converter Interface

        Features:

        • PR6423 8 mm sensor with a nominal ±1.0 mm static measuring range
        • CON021 signal conditioning from 0 to 20,000 Hz
        • M10x1 sensor sleeve with 4 m cable and LEMO termination
        Order code PR6423/003-030 identifies a non-armored 8 mm sensor with a 55 mm Cx length, no adapter plug, and the standard 4 m LEMO-ended cable.

        The paired CON021 converts the eddy current probe signal for monitoring radial or axial shaft displacement, position, eccentricity, and speed or key events.

        Selection requires confirmation of target material, shaft dimensions, nominal gap, temperature exposure, and converter calibration before the measuring chain is installed.

        The Emerson EPRO PR6423/003-030 CON021 8 mm Eddy Current Sensor and Signal Converter Assembly is listed as Active / Available from OEM. Contact Apter Power for quotation and configuration review.
        Emerson EPRO PR6423/003-030 CON021 8 mm Eddy Current Sensor and Signal Converter Assembly Manuals, Datasheets, Links Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        Emerson EPRO PR6423/003-030 CON021 8 mm Eddy Current Sensor and Signal Converter Assembly Specs

        General

        • ManufacturerEmerson EPRO
        • ModelPR6423/003-030 CON021
        • ConditionNew Original
        • Product FamilyPR6423 8 mm Eddy Current Sensor
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        Signal conversion characteristics

        • Static range: The PR6423 sensor provides a nominal ±1.0 mm static measuring range with the standard converter adjustment.
        • Sensitivity: The documented sensitivity is 8 V/mm for the 42 CrMo4 reference material.
        • Bandwidth: The CON021 converter has a frequency range from 0 to 20,000 Hz at the -3 dB point.
        • Response: The CON021 rise time is specified at less than 15 microseconds.

        Probe installation conditions

        • Thread: The ordering code specifies an M10x1 sensor sleeve thread.
        • Body length: Code 3 gives Cx = 55 mm, with total dimension C equal to Cx plus 9 mm.
        • Clearance: Maintain 45 degrees of free space around the PR6423 sensor head.
        • Alignment: Keep the PR6423 axial tilting angle below 2 degrees during mounting.

        Electrical and connection details

        • Sensor connection: The 4 m sensor cable terminates in a self-locking LEMO connector for CON021.
        • Supply range: Use -23 to -32 V or -21 to -32 V according to the selected converter output range.
        • Output wiring: The CON021 supply and output use screw terminals for conductors up to 1.5 mm².
        • Enclosure: The panel-mount CON021 carries an IP20 protection classification.
        Description

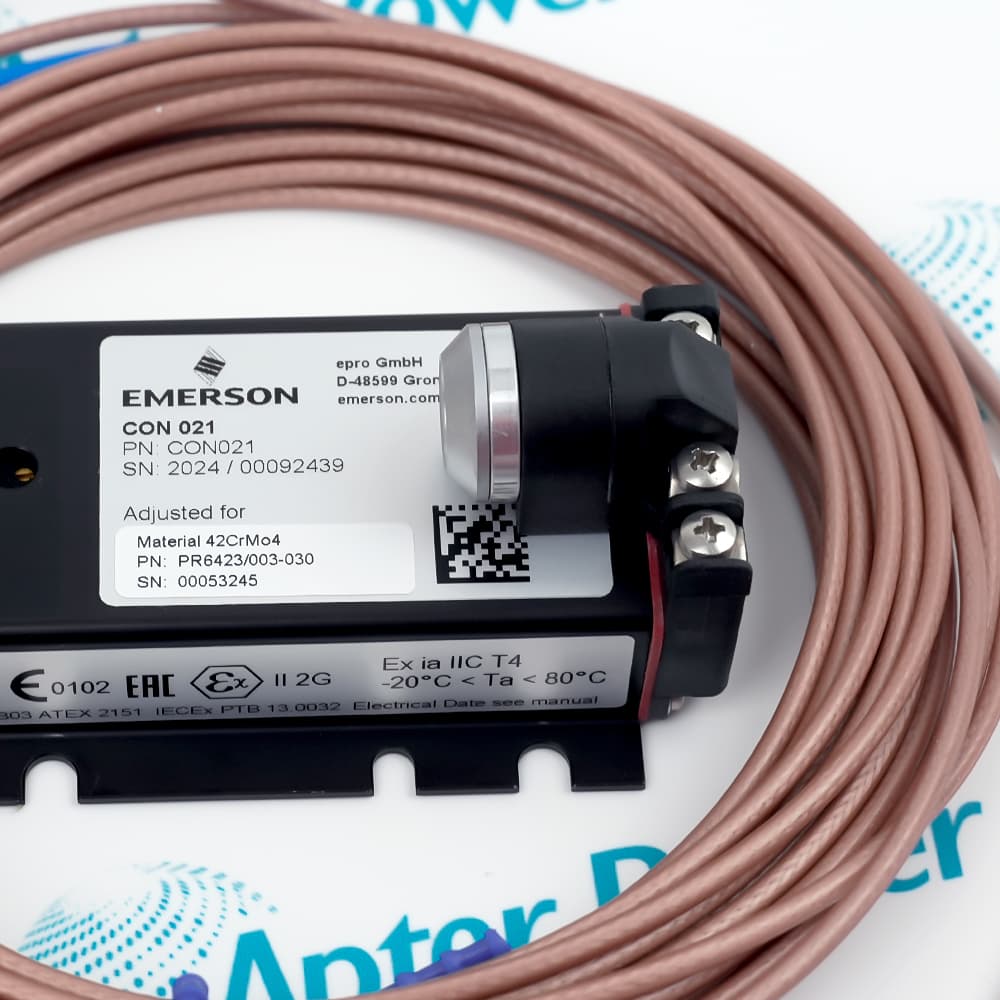

        The PR6423/003-030 CON021 combines an Emerson EPRO PR6423 8 mm eddy current sensor with a CON021 panel-mount signal converter. The sensor order code specifies an M10x1 sleeve, no armored cable, a 55 mm sensor body dimension Cx, no adapter plug, a 4 m cable, and a LEMO cable end.

        Within the PR6423/003-030 CON021 measuring chain, the PR6423 provides a nominal static measuring range of plus or minus 1.0 mm and a sensitivity of 8 V/mm on the standard 42 CrMo4 reference material. The CON021 conditions the sensor signal over a 0 to 20,000 Hz frequency range with a rise time below 15 microseconds.

        Emerson documents the PR6423/003-030 CON021 configuration for radial and axial shaft displacement, position, eccentricity, and speed or key measurements on critical turbomachinery. Application accuracy depends on the target material, shaft geometry, sensor gap, and the converter adjustment used for the complete measuring chain.

        For installation of PR6423/003-030 CON021, maintain the specified free space around the 8 mm sensor head, keep axial tilt below 2 degrees, and verify the self-locking LEMO connection to the CON021 before commissioning.
        Alternative Names
        PR6423/003-030 CON021 PR 6423/003-030 CON021 PR6423003030CON021 PR6423 003 030 CON021 PR6423-003-030-CON021 Emerson PR6423/003-030 CON021 EPRO PR6423/003-030 CON021 Emerson EPRO PR6423/003-030 CON021
        Technical notes
        Emerson EPRO PR6423/003-030 CON021 combines an 8 mm PR6423 eddy current sensor with a CON021 signal converter. The standard measuring chain provides a 2.0 mm total static range and 8 V/mm sensitivity.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What equipment is included in Emerson EPRO PR6423/003-030 CON021?
        Emerson EPRO PR6423/003-030 CON021 combines a PR6423 8 mm eddy current sensor with a CON021 panel-mount signal converter.
        What measuring range applies to Emerson EPRO PR6423/003-030 CON021?
        Emerson EPRO PR6423/003-030 CON021 uses the PR6423 standard nominal static range of ±1.0 mm, or 2.0 mm total.
        How is Emerson EPRO PR6423/003-030 CON021 configured mechanically?
        Emerson EPRO PR6423/003-030 CON021 specifies an M10x1 sleeve, no armor, no adapter plug, a 4 m cable, and a LEMO end.
        Which machinery suits Emerson EPRO PR6423/003-030 CON021?
        Emerson EPRO PR6423/003-030 CON021 is documented for shaft displacement, position, eccentricity, and speed or key measurement on critical turbomachinery.
        What should be checked before installing Emerson EPRO PR6423/003-030 CON021?
        Before installing Emerson EPRO PR6423/003-030 CON021, verify target material, sensor gap, free space, axial alignment, cable routing, and converter adjustment.
        How should Emerson EPRO PR6423/003-030 CON021 faults be investigated?
        For Emerson EPRO PR6423/003-030 CON021, inspect the probe gap, LEMO connection, converter supply, output signal, target surface, and cable condition.
        Can Apter Power quote Emerson EPRO PR6423/003-030 CON021 with official documentation?
        Apter Power can quote Emerson EPRO PR6423/003-030 CON021 and assist with official documents and measuring-chain configuration review.
