    Apter Power supplies original Epro legacy transducers, assuring dependable mechanical diagnostics across aggressive factory settings.

PR6423/010-040 CON021

/ 4.9
1001 reviews | Need a Specific Revision?

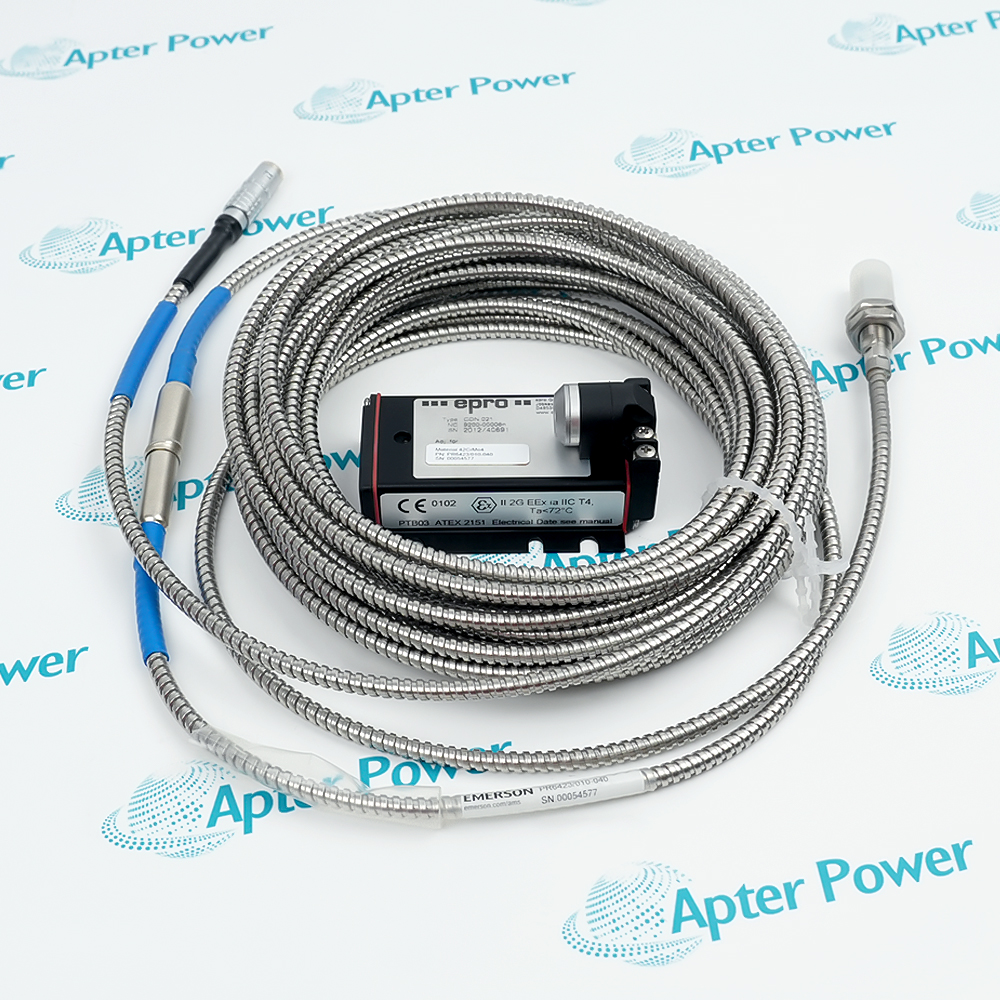

The Emerson PR6423/010-040 CON021 is an 8mm eddy current sensor with 2mm linear range, 8 V/mm scale factor, IP66, and -35 to +180°C operation.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for PR6423/010-040 CON021
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for PR6423/010-040 CON021

  • Manufacturer:
    Emerson
  • Part Number:
    PR6423/010-040 CON021
  • Product Family:
    Epro
  • Product Type:
    8mm Eddy Current Sensor
  • Stock:
    1
  • Linear Measurement Range:
    2 mm (80 mils)
  • Initial Air Gap:
    0.5 mm (20 mils)
  • Incremental Scale Factor:
    8 V/mm (203.2 mV/mil) ±5% (0-45°C)
  • DSL:
    ±0.025 mm (±1 mil) (0-45°C)
  • Minimum Shaft Diameter:
    25 mm (0.79 in)
  • Target Material (Standard):
    42CrMo4 (AISI/SAE 4140)
  • Protection Class:
    IP66 (IEC 60529)
  • Sensor Temp Range:
    -35°C to +180°C
  • Cable/Connector Temp Range:
    -35°C to +150°C
  • Sensor Tip Material:
    PEEK (Polyether Ether Ketone)
  • Case Material:
    Stainless Steel
  • Cable Material:
    PTFE
  • Connector Material:
    Brass, nickel-plated
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    16x15x4cm
  • Tariff Code:
    8431209000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Operating Environment Monitoring and Control

Features:

  • 2mm linear range with 8 V/mm scale factor and ±0.025mm DSL.
  • -35°C to +180°C operation with dust/water resistance for harsh environments.
  • ATEX, IEC-Ex, CSA with intrinsic safety (ia) and non-sparking (nA) approvals.
The PR6423/010-040 CON021 is an 8mm eddy current sensor providing high-precision measurement of shaft dynamic displacement, position, eccentricity, and speed. With a linear measurement range of 2mm (80 mils) and an initial air gap of 0.5mm (20 mils), the PR6423/010-040 CON021 delivers accurate data for critical turbomachinery monitoring. The Incremental Scale Factor of 8 V/mm (203.2 mV/mil) ±5% over 0°C to 45°C ensures reliable signal output. The PR6423/010-040 CON021 achieves DSL of ±0.025mm (±1 mil), making it suitable for applications requiring high measurement accuracy.

The PR6423/010-040 CON021 is designed for harsh industrial environments with an operating temperature range of -35°C to +180°C for the sensor including 1m cable, and -35°C to +150°C for the cable and connector. The PR6423/010-040 CON021 features IP66 protection per IEC 60529, providing resistance to dust and water ingress. The PR6423/010-040 CON021 is constructed with a PEEK sensor tip, stainless steel case, PTFE cable, and nickel-plated brass connector for chemical and corrosion resistance. The PR6423/010-040 CON021 weighs approximately 100g with 1m cable.

The PR6423/010-040 CON021 carries multiple hazardous area certifications including ATEX, IEC-Ex, and CSA, supporting both intrinsic safety (ia) and non-sparking (nA) approvals. The PR6423/010-040 CON021 has temperature classifications T6 (Ta ≤ 64°C), T4 (Ta ≤ 114°C), and T3 (Ta ≤ 160°C) depending on the converter and application. The PR6423/010-040 CON021 complies with CE directives including 2014/30/EU (EMC), 2014/34/EU (ATEX), and 2011/65/EU (RoHS). The PR6423-010-040-CON021 is available with M10x1 or 3/8-24 UNF case threads, armored cable options, and Lemo connector or open cable ends.

The PR6423/010-040 CON021 EMERSON 8mm Eddy Current Sensor may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

EMERSON PR6423/010-040 CON021 8mm Eddy Current Sensor Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
EMERSON PR6423/010-040 CON021 8mm Eddy Current Sensor Specs

General

  • Manufacturer EMERSON
  • Model PR6423/010-040 CON021
  • Condition New Original ready stock
  • Product Family PR6423/00R-101 CON031,PR6423/005-001,PR6423/003-030 CON021
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Power Generation: Steam, gas, and hydro turbines in power plants for core rotor monitoring.
  • Oil & Gas / Petrochemical: High-speed centrifugal compressors, multi-stage pumps, and industrial fans.
  • Mechanical Operations: Heavy gearboxes, blowers, and large electric motors.
  • Temperature Range: Operates from -35°C to 200°C (-31°F to 392°F), letting it sit inside hot turbine housings.
  • Sealing Protection: Features an IP66 / IP67 rated stainless steel sleeve structure that is highly resistant to aggressive turbine lubricating oils, high-pressure environments (up to 20 bar), and chemical vapor.
  • Hazardous Area Certifications: The combined system is intrinsically safe, carrying global explosion-proof ratings such as ATEX, IECEx, and CSA for Zone 0, 1, and 2 environments.
  • Signal Conversion & Sensitivity: The CON021 Converter powers the probe's driver circuit. It handles a linear measurement range of 2 mm (80 mils) with a nominal scale factor of 8 V/mm (203.2 mV/mil).
  • Initial Setup (Gap Voltage): During installation, operators verify a 0.5 mm initial air gap. This typically yields a baseline bias/offset voltage around -10 VDC, which is monitored by technicians to ensure the probe remains centered within its linear range.
  • System Integration: The negative raw voltage signal (-4 to -20 VDC or -2 to -18 VDC) feeds directly into dedicated machinery health protection systems like the Emerson AMS 6500 or legacy MMS 6000 / MMS 3000 systems.
Description
The Emerson PR6423/010-040 CON021 is an 8mm eddy current sensor designed for critical turbomachinery applications such as steam, gas, and hydro turbines, compressors, and gearboxes. This non-contact sensor measures radial and axial shaft dynamic displacement, position, eccentricity, and speed.

The Emerson PR6423/010-040 CON021 has an Incremental Scale Factor (ISF) of 8 V/mm (203.2 mV/mil) ±5% over the temperature range of 0°C to 45°C. The PR6423/010-040 CON021 provides Deviation from Best Fit Straight Line (DSL) of ±0.025mm (±1 mil) over the same temperature range.

The Emerson PR6423/010-040 CON021 features IP66 protection per IEC 60529 for dust and water resistance. The PR6423/010-040 CON021 has an operating temperature range of -35°C to +180°C for the sensor including 1m cable, and -35°C to +150°C for the cable and connector. The PR6423/010-040 CON021 is constructed with a PEEK sensor tip and stainless steel case, with PTFE cable and nickel-plated brass connector.

The Emerson PR6423/010-040 CON021 carries CE, ATEX, IEC-Ex, and CSA certifications for hazardous area installations. The PR6423/010-040 CON021 supports both intrinsic safety (ia) and non-sparking (nA) approvals with temperature classifications T6, T4, and T3 depending on ambient temperature. The PR6423/010-040 CON021 is available with M10x1 or 3/8-24 UNF case threads, armored cable options, and Lemo connector or open cable ends.
Alternative Names
PR6423/O1O-O4O-CONO21 PR6423/0I0-040-CON02I PR6423 010 040 CON021 PR6423/10R-010 PR6423/00R-101 CON031 PR6423/005-001 PR6423/003-030 CON021 PR6423/004-120-CN CON021
Technical notes
The Emerson PR6423/010-040 CON021 is an 8mm eddy current sensor for turbomachinery with 2mm linear range, 8 V/mm scale factor, and ±0.025mm DSL. Features IP66, -35°C to +180°C, PEEK tip, stainless steel case, and PTFE cable. CE/ATEX/IEC-Ex/CSA certified with ia/nA approvals. Ideal for turbines, compressors, and pumps.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the primary function of the PR6423/010-040 CON021?
It measures radial/axial shaft dynamic displacement, position, eccentricity, and speed in turbomachinery applications.
What is the linear range of the PR6423/010-040 CON021?
It has a 2mm (80 mils) linear measurement range with 0.5mm initial air gap and 8 V/mm scale factor.
What is the temperature range of the PR6423/010-040 CON021?
Sensor: -35°C to +180°C; Cable/connector: -35°C to +150°C with IP66 protection.
What certifications does the PR6423/010-040 CON021 carry?
CE, ATEX, IEC-Ex, and CSA with intrinsic safety (ia) and non-sparking (nA) approvals.
