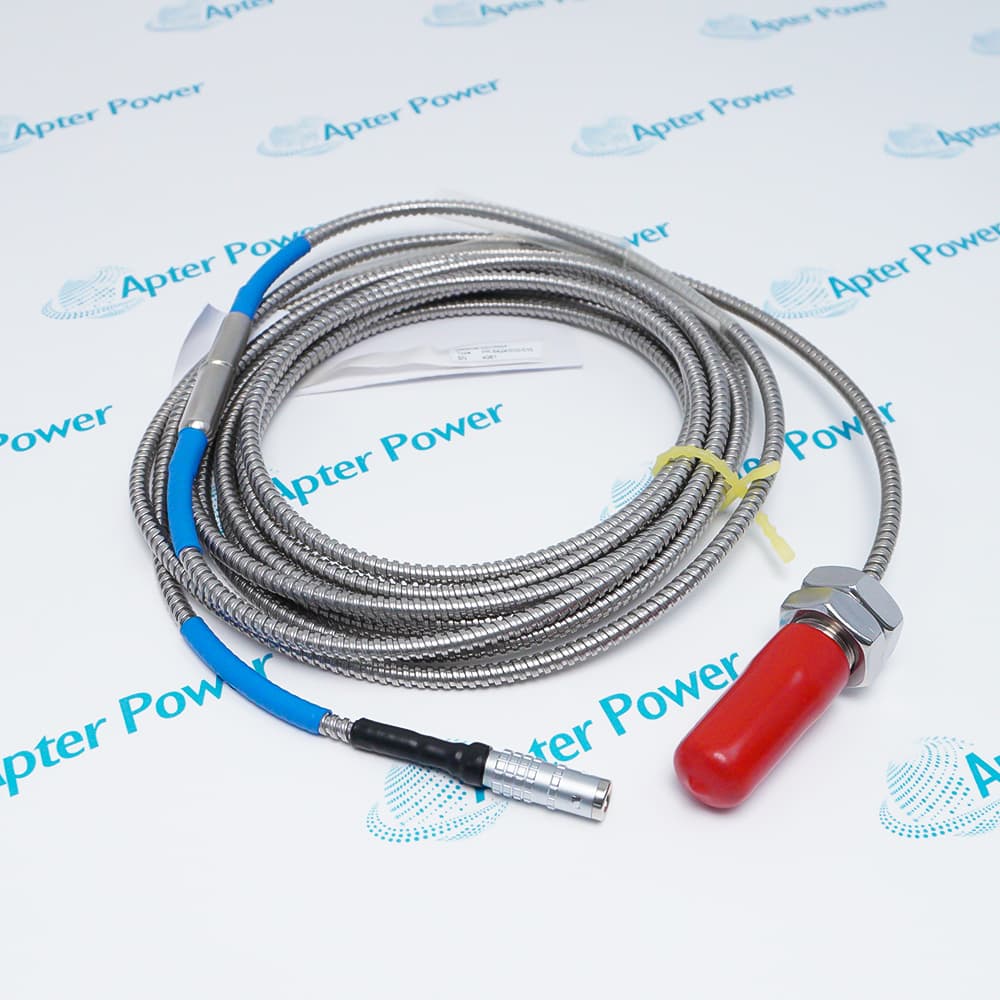

PR6424/006-010 is an Emerson EPRO 16 mm eddy current sensor configured with an M18 × 1.5 unarmored body, 112.5 mm total sensor length, adapter plug, 5 m lead, and LEMO termination.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for PR6424/006-010
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for PR6424/006-010

  • Manufacturer:
    Emerson
  • Part Number:
    PR6424/006-010
  • Product Family:
    Epro
  • Product Type:
    16 mm eddy current sensor
  • Stock:
    1
  • Tip Diameter:
    16 mm
  • Sensitivity / Linearity:
    4 V/mm, ≤ ±1.5%
  • Nominal Center Air Gap:
    Approx. 2.7 mm
  • Long-Term Drift:
    <0.3%
  • Static Range:
    ±2.0 mm
  • Dynamic Range:
    0 to 1000 µm
  • Maximum Surface Speed:
    2500 m/s
  • Minimum Shaft Diameter:
    80 mm
  • Operating Temperature:
    -35 to +150°C
  • Pressure Resistance at Sensor Head:
    10000 hPa
  • Shock and Vibration:
    5 g at 60 Hz and 25°C
  • Sleeve Thread:
    M18 × 1.5
  • Body Length Cx:
    100 mm
  • Total Cable Length:
    5 m
  • Standard Cable Diameter:
    2.8 mm
  • Minimum Standard-Cable Bending Radius:
    25 mm
  • Dimensions:
    17 × 16.5 × 4 cm
  • Weight:
    0.38 kg
  • Tariff Code:
    9031809090
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Targeting Cabling Approvals Application
  • The ordering matrix fixes an M18 × 1.5 unarmored sensor execution.
  • The configured probe includes an adapter and a LEMO-terminated lead.
  • The sensor is intended for non-contact measurement on large turbomachinery shafts.

PR6424/006-010 is an Emerson EPRO 16 mm eddy current sensor designed for shaft measurement on critical rotating equipment.

The selected construction combines a metric sleeve, an unarmored cable path, a defined sensor length, an adapter interface, and a LEMO termination for the associated measurement chain.

Before installation or replacement, verify the converter, shaft diameter and target alloy, mounting clearance, centered gap, cable route, connector, process pressure, and hazardous-area documentation.

Availability, condition, price, and shipping time for PR6424/006-010 are confirmed during quotation.

Emerson EPRO PR6424/006-010 16 mm Eddy Current Sensor Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Use the documented ferromagnetic reference target when assessing suitability.
  • Confirm that the shaft is large enough for the focused sensing area.
  • Keep the probe aligned so mechanical movement represents the intended shaft direction.
  • Protect the unarmored lead from abrasion, tension, and rotating-machine contact.
  • Support the adapter interface so machine vibration does not load the sensor cable.
  • Verify the mating LEMO connection before disturbing the installed measurement chain.
  • Determine area classification from the selected converter documentation.
  • Apply the temperature class that corresponds to the actual ambient condition.
  • Keep the sensor and converter approval records together for the installed chain.
  • Radial and axial shaft movement measurement on hydro turbines.
  • Position, eccentricity, and speed/key monitoring on compressors.
  • Non-contact shaft dynamic displacement measurement on pumps and fans.
Description
PR6424/006-010 is an Emerson EPRO 16 mm eddy current sensor for non-contact measurement on large rotating-machine shafts.

Its order matrix selects an M18 × 1.5 unarmored probe with a 100 mm Cx body length, 112.5 mm total sensor length, an adapter plug, a 5 m cable, and a LEMO cable end.

Before installation or replacement, confirm converter compatibility, shaft diameter and material, probe mounting, centered air gap, cable protection, connector arrangement, and the hazardous-area conditions assigned through the converter.
Alternative Names
PR6424/006-010 PR6424 006 010 PR6424006010 Emerson PR6424/006-010 EPRO PR6424/006-010 Emerson EPRO PR6424/006-010 Emerson AMS PR6424/006-010
Technical notes
PR6424/006-010 combines an M18 × 1.5 unarmored probe, defined sensor length, adapter, 5 m lead, and LEMO end; verify shaft size, target, converter, centered gap, and cable protection before installation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which signal converter should be paired with PR6424/006-010?
Pair PR6424/006-010 with the compatible CON021 signal converter for the PR6424 16 mm eddy-current measurement system. The converter version and calibrated overall cable length must match the installed channel.
When is the shaft geometry suitable for PR6424/006-010?
Confirm a shaft at or above the documented minimum diameter, a ferromagnetic 42CrMo4 reference target, and adequate space for the full probe and cable arrangement.
How should static and dynamic movement be assessed for PR6424/006-010?
Compare the machine's expected position change with the documented static range and its vibration amplitude with the dynamic range; do not treat the two limits as interchangeable.
What must be done with the air gap when commissioning PR6424/006-010?
Mechanically position the probe around the documented nominal center gap, verify the converter output, and ensure expected shaft travel stays within the usable range.
How should the unarmored cable of PR6424/006-010 be protected?
Route the PTFE cable away from abrasion and strain, respect the dimensional drawing's bend limit, and secure the adapter and LEMO interfaces against machine movement.
Can the hazardous-area rating of PR6424/006-010 be determined from the probe alone?
No. Emerson states that area classification depends on the converter; use the selected converter documentation and the applicable sensor temperature class.
Which process conditions deserve special review for PR6424/006-010?
Review shaft surface speed, sensor-head pressure, operating temperature, temperature error, shock and vibration, target material, and converter requirements against the installation.
