1C31125G02

/ 4.9
1001 reviews | Need a Specific Revision?

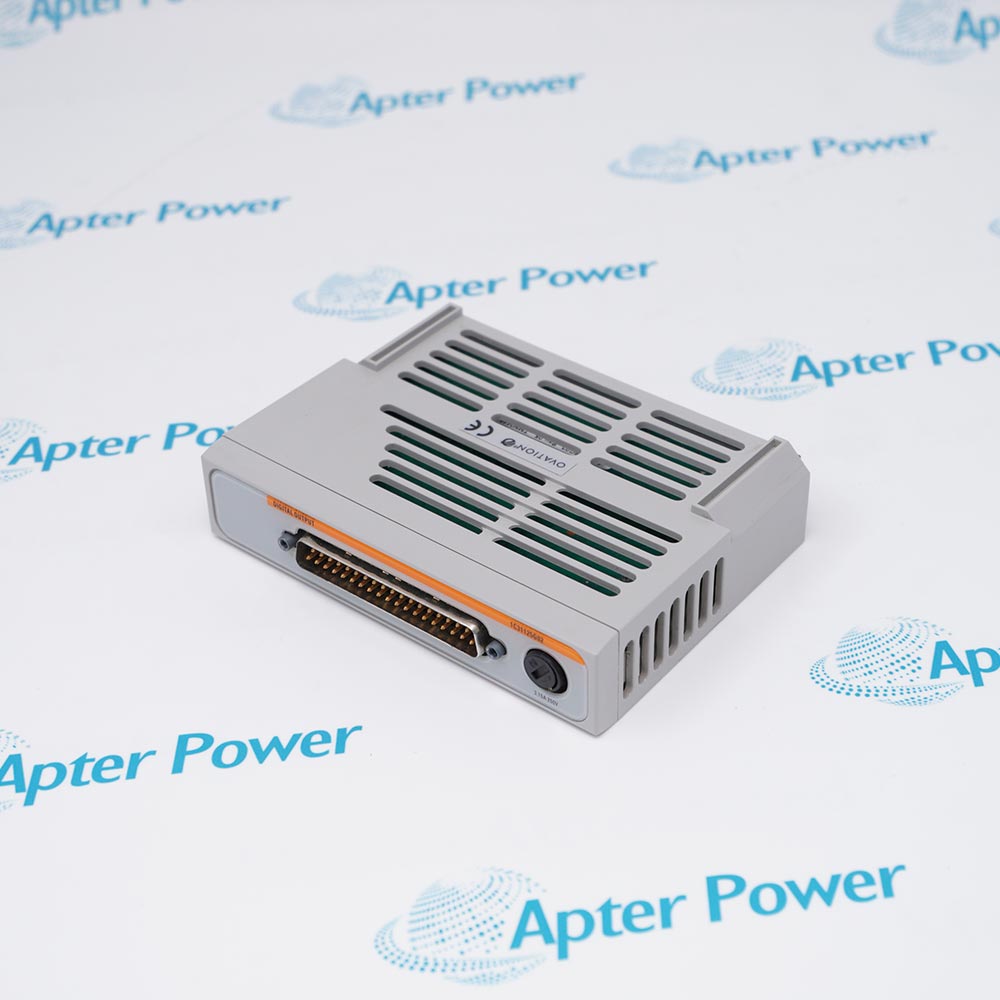

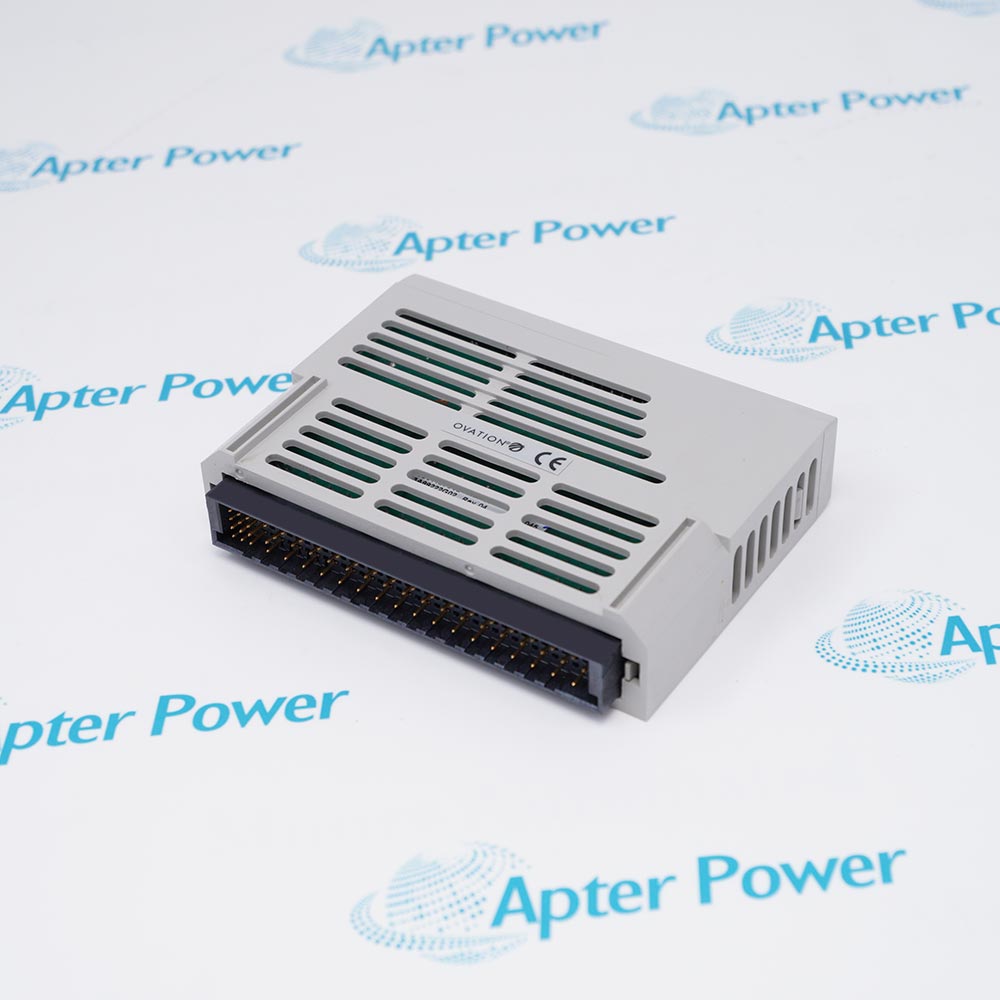

Emerson 1C31125G02 is the Ovation personality module that connects a 1C31122G01 16-channel 0–60 VDC digital-output module to relay panels using local backplane auxiliary power.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1C31125G02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1C31125G02

  • Manufacturer:
    Emerson
  • Part Number:
    1C31125G02
  • Product Family:
    Ovation
  • Product Type:
    Ovation Local-Power Relay-Panel Interface Personality Module
  • Stock:
    1
  • Channels:
    16 at subsystem level
  • Compatible Electronics Module:
    1C31122G01
  • Output Range:
    0–60 VDC at subsystem level
  • Power Arrangement:
    Local I/O backplane auxiliary supply
  • Relay Interfaces:
    5A22410, 5A22411 and 5A22412 families as documented
  • Fuse:
    3.15 A, 250 V fast acting
  • Weight:
    0.309 lbs (0.14 kg)
  • Estimated shipping dimensions:
    12 x 2.8 x 9.4 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Installation Compatibility Safety

Features:

  • Interfaces 16 Ovation digital outputs to supported relay panels.
  • Uses local auxiliary power from the I/O backplane.
  • Pairs with the 1C31122G01 electronics module for 0–60 VDC output service.
The current ordering configuration is 1C31125G02, the local-power relay-panel interface PMOD paired with 1C31122G01.

It transfers the 16 output channels to supported relay assemblies or to the documented field terminal connections while using backplane auxiliary power.

Verify the relay panel, interconnecting cable, fuse rating and local-power return before commissioning or changing any G02 hardware.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Emerson 1C31125G02: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Connects an Ovation digital-output base to locally powered relay-panel assemblies.
  • Routes sixteen command channels to G2R or KUEP relay panels in documented cabinet arrangements.
  • Supports direct field terminal-block interfacing where the official G02 wiring is retained.
  • Install the PMOD with the matching 1C31122G01 electronics module in the specified base unit.
  • Use the relay-panel cable and hood assigned to the selected relay assembly.
  • Confirm the 3.15 A fast-acting fuse before applying auxiliary power.
  • The G02 PMOD is the local-power relay interface for the 1C31122G01 digital-output module.
  • Documented relay choices include solid-state, G2R and KUEP panel families with their assigned kits.
  • The G03 PMOD is a different remote-power configuration and is not a wiring-equivalent substitute.
  • De-energize local auxiliary and field supplies before disturbing the PMOD or relay cables.
  • Retain the documented fuse type so relay-interface conductors remain protected.
  • Solid-state AC and DC relay-panel configurations are excluded from the cited CE Mark statement.
Description
1C31125G02 is the local-power relay-panel personality module in an Ovation 16-channel digital-output subsystem. It pairs with electronics module 1C31122G01 and routes output commands toward documented relay-panel assemblies.

Local power is supplied from the I/O backplane auxiliary source, while the same PMOD may also connect the digital-output module directly to field terminal blocks. The installed fuse is the documented 3.15 A, 250 V fast-acting type.

Confirm the relay-panel family, cable, hood, local-power return and terminal layout before replacement. Do not substitute the G03 remote-power PMOD without reviewing the changed power and grounding arrangement.
Alternative Names
1C31125G02 Emerson 1C31125G02 1C31125 G02 1C31125-G02 1C31125G 02 1C31125G-02 Emerson Ovation Traditional I/O 1C31125G02 Emerson Ovation Local-Power Relay-Panel Interface Personality Module
Technical notes
1C31125G02 uses local backplane auxiliary power with 1C31122G01; do not apply the G03 remote-power return and protection arrangement without redesign.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What power-source decision identifies the 1C31125G02 configuration?
The G02 personality module uses the local I/O-backplane auxiliary supply for its documented relay-panel interface rather than the remote-power arrangement assigned to G03.
What hardware chain must be matched around 1C31125G02 before installation?
Confirm the 1C31122G01 electronics module, the applicable 5A22410, 5A22411 or 5A22412 relay-panel family, and the project cable and terminal arrangement.
How is the intended field connection chosen for a 1C31125G02 output assembly?
Select the documented locally powered relay-panel path or the permitted direct field-terminal path according to the cabinet drawing; do not combine the two wiring schemes.
What should an availability quotation state for a service-ready 1C31125G02?
The request should identify the G02 local-power version, required quantity, relay-panel arrangement and whether the specified fuse and interconnecting accessories are needed.
Why is 1C31125G03 not a drop-in replacement for 1C31125G02?
G03 is documented for remote relay-panel power, so power return, grounding, protection and cabinet wiring differ from the G02 local-power design.
Which drawing set is needed to review a 1C31125G02 relay-panel inquiry?
Use the Digital Output Module section of Emerson Ovation manual R3-1150 together with the installed relay-panel and cable drawings for the specific project.
