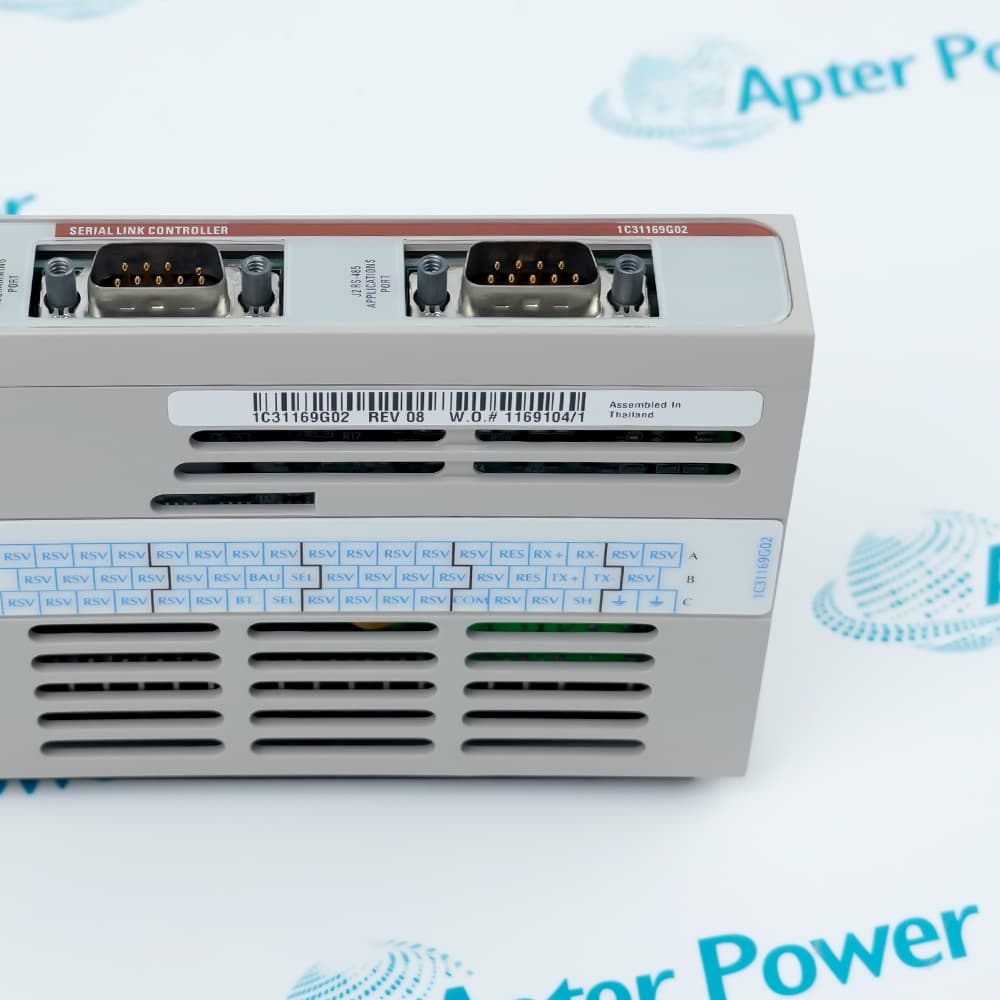

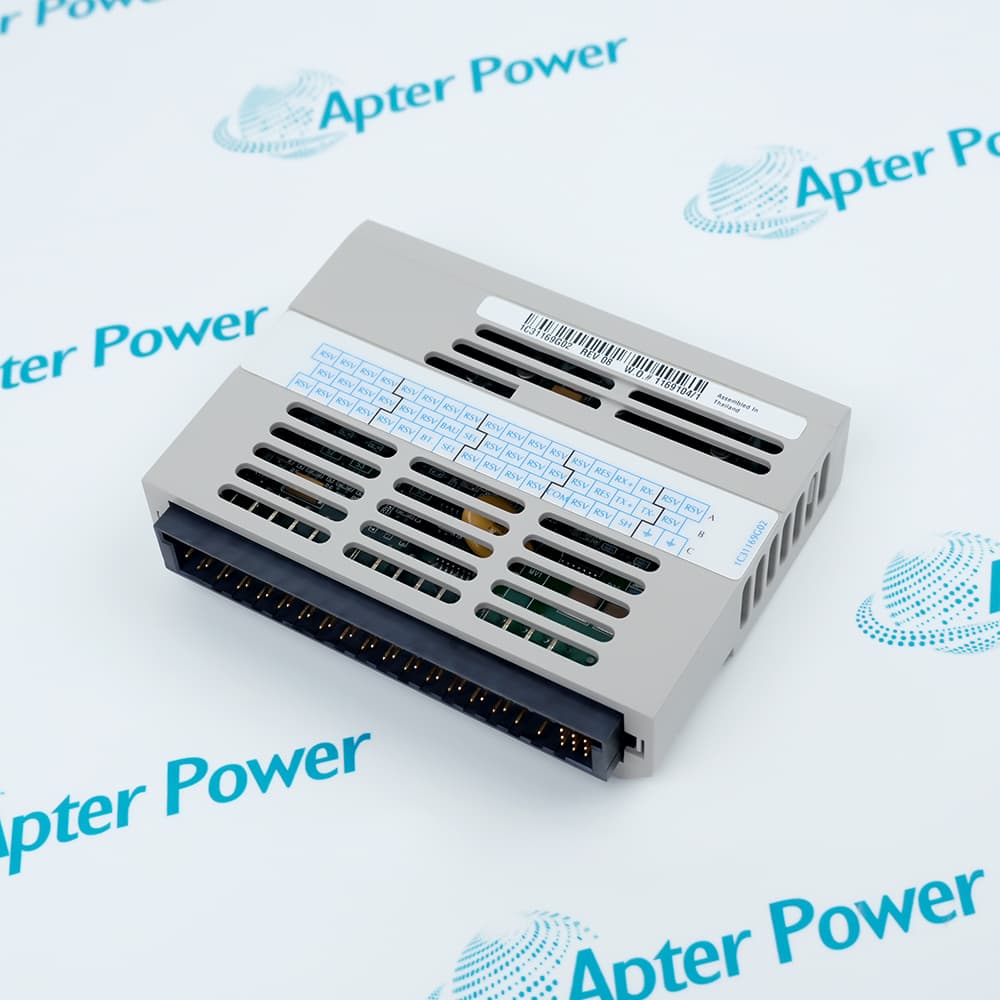

Emerson 1C31169G02 is a four-wire RS-485 personality module for an Ovation Serial Link Controller.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1C31169G02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1C31169G02

  • Manufacturer:
    Emerson
  • Part Number:
    1C31169G02
  • Product Family:
    Ovation
  • Product Type:
    Serial Link Controller Personality Module
  • Stock:
    1
  • Companion Electronics Module:
    1C31166G01
  • Physical Interface:
    RS-485/RS-422, four-wire
  • Supported Interface:
    May also be used for RS-422
  • Serial Channels:
    1
  • Controller Requirement:
    Applicable SLC algorithm in the Ovation Controller
  • System Role:
    Provides a serial data communications link between an Ovation Controller and a third-party device or system
  • System Applicability:
    Applicable for CE Mark Certified Systems
  • Tariff Code:
    9032900090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Pairing Protocol Wiring Application
  • Four-wire RS-485 field interface for an Ovation Serial Link Controller
  • Documented pairing with the 1C31166G01 electronics module
  • One serial channel with documented support for RS-422 use

1C31169G02 is an Emerson Ovation Serial Link Controller personality module for a four-wire serial interface.

In the complete assembly, the personality module establishes the field connection while the companion electronics module interfaces the serial link to the Ovation Controller.

Before installation or replacement, verify the companion module, RS-485 or RS-422 wiring, communication settings, grounding, and the configured SLC algorithm.

Availability, condition, price, and shipping time for 1C31169G02 are confirmed during quotation.

Emerson 1C31169G02 Serial Link Controller Personality Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • 1C31169G02 is used with the documented 1C31166G01 electronics module
  • The personality module establishes the four-wire RS-485 field interface
  • The complete assembly provides one serial channel or serial port
  • The serial link connects an Ovation Controller to a third-party device or system
  • The applicable Serial Link Controller algorithm is configured in the Ovation Controller
  • RS-422 operation is also documented for the 1C31169G02 personality module
  • The documented RS-485 connection uses four-wire signaling
  • Serial settings must match the connected third-party device or system
  • Field wiring and grounding must follow the approved Ovation cabinet drawings
  • Four-wire RS-485 communication with a supported third-party device
  • RS-422 serial communication through the documented Ovation assembly
  • Controller serial-link integration using the configured Ovation SLC algorithm
Description
1C31169G02 is an Emerson Ovation Serial Link Controller personality module for a documented four-wire RS-485 interface.

The module is paired with the 1C31166G01 electronics module to provide one serial channel for communication between an Ovation Controller and a third-party device or system; Emerson also documents this personality module for RS-422 use.

Before installation or replacement, confirm both module identifiers, the four-wire interface, serial settings, grounding, field wiring, and the applicable Serial Link Controller algorithm in the Ovation Controller.
Alternative Names
1C31169G02 Emerson 1C31169G02 Ovation 1C31169G02 1C31169 G02 1C31169-G02
Technical notes
Emerson 1C31169G02 must be paired with 1C31166G01 and matched to the four-wire serial pinout, link settings, grounding, and configured Ovation SLC algorithm.
