        IC693ALG223
        IC693ALG223
        IC693ALG223
        IC693ALG223
        IC693ALG223
        IC693ALG223
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter Power provides quotations, official manuals, loop review, and Series 90-30 sourcing support.

        IC693ALG223

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

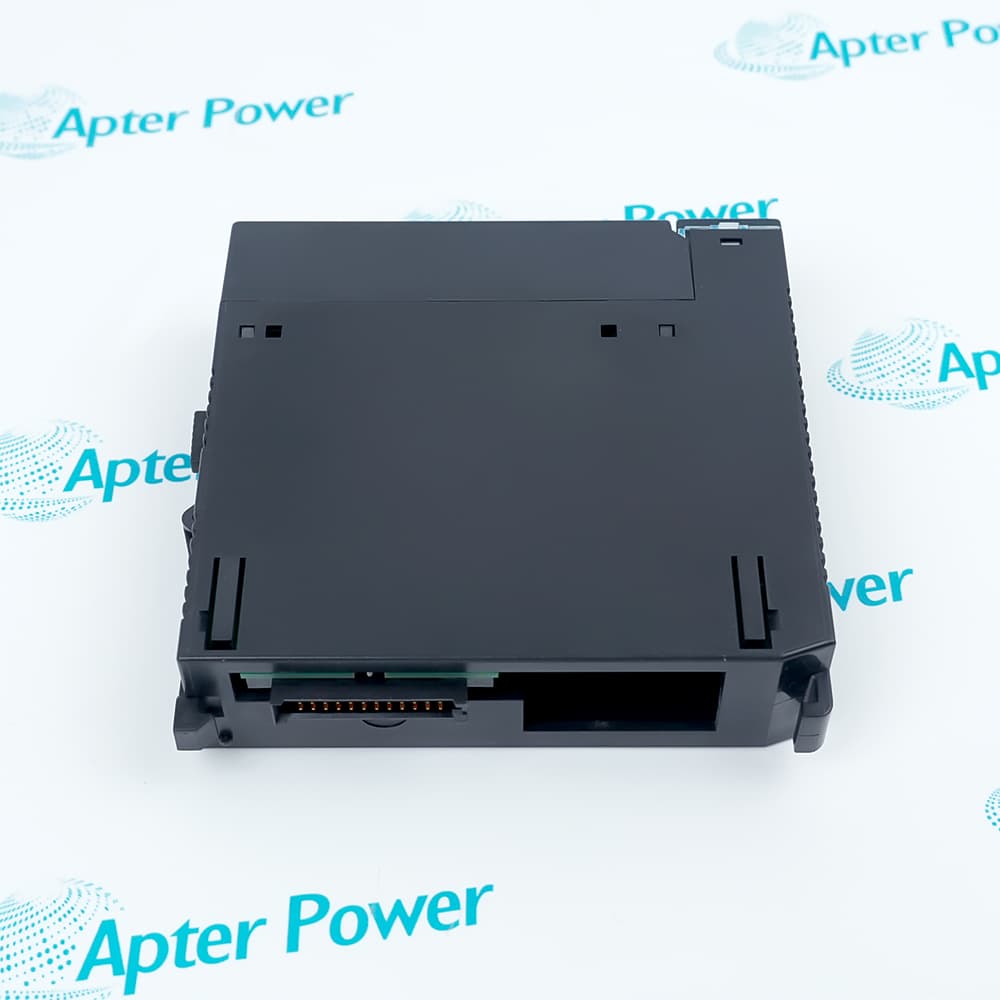

        GE Fanuc IC693ALG223 is a Series 90-30 16-channel analog current input module with selectable current ranges for each single-ended channel.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for IC693ALG223
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for IC693ALG223

        • Manufacturer:
          General Electric
        • Part Number:
          IC693ALG223
        • Product Family:
          GE 90-30 Series PLC
        • Product Type:
          16-Channel Analog Current Input Module
        • Stock:
          1
        • Input Channels:
          16 single-ended
        • Input Current Ranges:
          0-20 mA, 4-20 mA, 4-20 mA Enhanced
        • Input Resistance:
          250 ohms
        • Update Rate:
          13 ms for all 16 channels
        • Resolution:
          4 uA at 4-20 mA; 5 uA at 0-20 mA
        • Absolute Accuracy at 25 C:
          +/-0.25% of full scale
        • Absolute Accuracy over Temperature:
          +/-0.5% of full scale
        • Field-to-Logic Isolation:
          1500 V
        • External Supply:
          20-30 VDC
        • Backplane Current:
          120 mA at 5 VDC
        • External Supply Current:
          65 mA, excluding input loop current
        • Baseplate Placement:
          Any I/O slot in a 5- or 10-slot Series 90-30 baseplate
        • Weight:
          0.34 kg
        • Estimated shipping dimensions:
          3.5 x 13 x 13.5 cm
        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Loop Planning Baseplate Review Ordering Review

        Features:

        • Sixteen inputs: Sixteen selectable single-ended current input channels.
        • Selectable ranges: 0-20 mA, 4-20 mA and 4-20 mA Enhanced.
        • Channel update: All sixteen inputs are updated in 13 ms.

        IC693ALG223 brings sixteen analog current loops into an approved Series 90-30 I/O slot.

        Loop power, channel scaling and current-range selection should be documented before commissioning.

        A replacement review should compare the full module code, terminal wiring and PLC configuration.

        Availability is subject to Apter Power's current inventory and sourcing confirmation.

        Verified resources for General Electric IC693ALG223:

        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        General

        • ManufacturerGeneral Electric
        • ModelIC693ALG223
        • ConditionNew Original ready stock
        • Product FamilySeries 90-30 Analog I/O Modules

        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        Loop Planning

        • Range selection: Assign the documented current range per channel.
        • Loop supply: Include connected transmitter current in the power calculation.
        • Scaling: Match engineering units to the PLC project.

        Baseplate Review

        • Slot: Use an approved I/O slot in a 5- or 10-slot baseplate.
        • Power budget: Check 5 V backplane and external 24 V demand.
        • Isolation: Maintain the documented field-to-logic boundary.

        Ordering Review

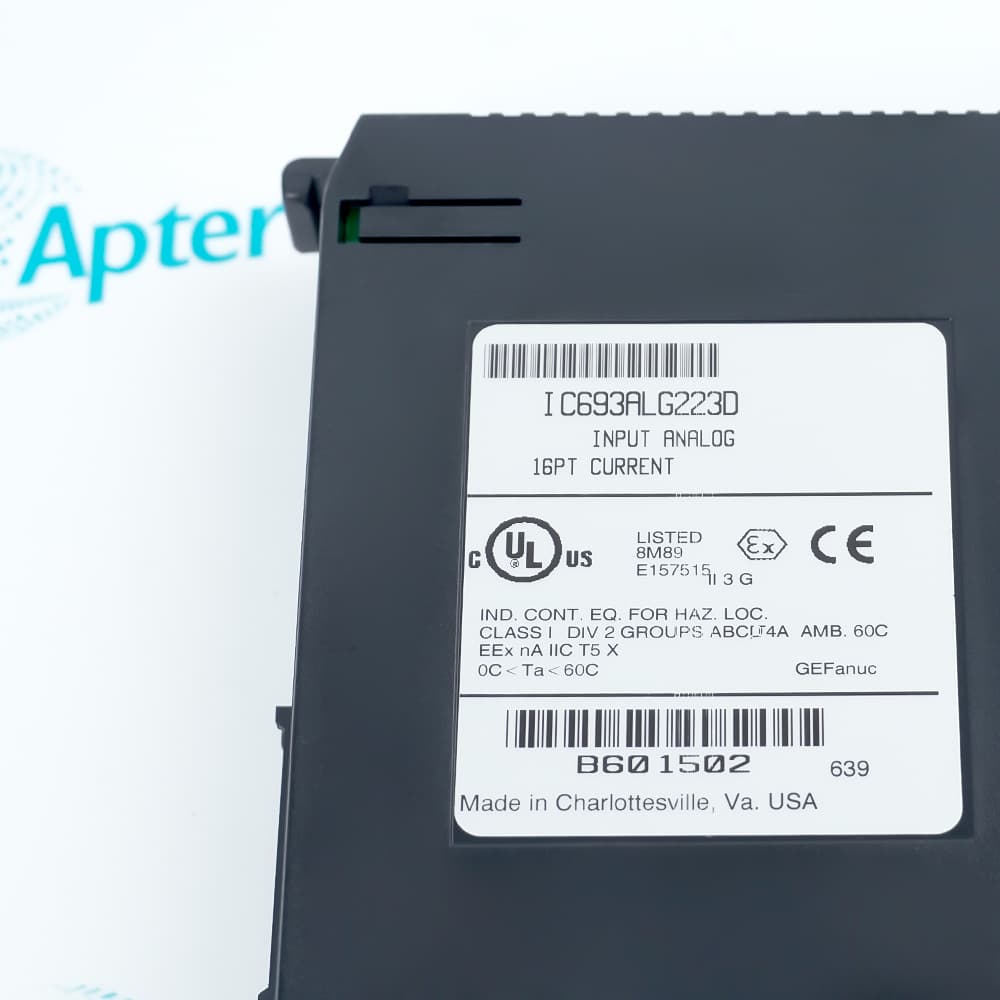

        • Model: Confirm IC693ALG223 on the installed label.
        • Wiring: Record loop polarity and terminal assignments.
        • Project backup: Preserve scaling and alarm settings before replacement.
        Description
        The IC693ALG223 is a GE Fanuc Series 90-30 analog current input module with 16 selectable single-ended channels.

        Official documentation for IC693ALG223 specifies 0-20 mA, 4-20 mA, and 4-20 mA Enhanced input ranges, with all 16 inputs updated in 13 ms.

        Before ordering IC693ALG223, confirm the Series 90-30 baseplate slot, field-loop power arrangement, and configured current range against the installed project.
        Alternative Names
        GE Fanuc IC693ALG223 GE IC693ALG223 GE Series 90-30 IC693ALG223 input module IC693-ALG223 IC693 ALG223 IC693ALG223 analog current input module Series 90-30 IC693ALG223
        Technical notes
        IC693ALG223 supports sixteen single-ended analog current inputs with selectable 0-20 mA, 4-20 mA, and 4-20 mA Enhanced ranges. Before replacement, confirm the Series 90-30 baseplate position, loop-power arrangement, configured range, and stored scaling because selecting the wrong range or wiring method can produce misleading process values.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        When an IC693ALG223 channel is commissioned, what determines its 0-20 mA, 4-20 mA, or enhanced range?
        Use the connected transmitter output and approved PLC design to select the range, then apply the matching raw-to-engineering scaling and alarm limits for that single-ended channel.
        What Series 90-30 baseplate checks are required before installing IC693ALG223?
        Confirm an available I/O slot in a five- or ten-slot baseplate, the 5 V backplane power budget, and the verified hardware configuration before seating the module.
        The field loops for IC693ALG223 require a 20-30 VDC supply; which checks confirm correct power?
        Measure supply voltage at the module, confirm loop polarity and transmitter demand, and include the documented external-supply current separately from the input loop currents.
        What causes believable but incorrect process values from IC693ALG223?
        A wrong current-range selection, engineering-unit scaling error, reversed polarity, poor grounding, or unstable loop supply can produce plausible readings. Compare measured loop current with the raw channel value.
        Can another Series 90-30 analog module replace IC693ALG223 without reproducing its channel design?
        No. The replacement must support sixteen single-ended current inputs and the required ranges, isolation, power demand, terminal wiring, scaling, and PLC hardware configuration.
        At elevated cabinet temperature, how should IC693ALG223 accuracy be assessed?
        Use the documented accuracy of plus or minus 0.25% of full scale at 25 C and plus or minus 0.5% over temperature when evaluating process tolerance and cabinet conditions.
        Before exchanging IC693ALG223, which records are required for all sixteen single-ended loops?
        Record the module slot and each channel assignment, whether the channel uses 0 to 20 mA, 4 to 20 mA, or the enhanced range, its engineering scaling, alarms, and external 20 to 30 VDC loop supply.
